The Wankel engine, a revolutionary design in the world of internal combustion engines, has captivated engineers and enthusiasts alike with its unique operating principles and distinctive Wankel Engine Diagram. Unlike traditional piston engines, the Wankel engine uses a rotor instead of pistons to convert pressure into rotating motion. This design offers several advantages, including a higher power-to-weight ratio, smoother operation, and fewer moving parts. However, it also presents challenges, such as sealing issues and fuel efficiency concerns. This post delves into the intricacies of the Wankel engine, exploring its history, design, advantages, and disadvantages, with a particular focus on the Wankel Engine Diagram.
History of the Wankel Engine
The Wankel engine was invented by German engineer Felix Wankel in the 1950s. Wankel's design aimed to create a more efficient and reliable engine by eliminating the reciprocating motion of pistons. The first prototype was built in 1957, and by the 1960s, several automotive manufacturers, including Mazda and NSU, began experimenting with the Wankel engine. Mazda, in particular, became synonymous with the Wankel engine, producing several successful models, such as the RX-7 and RX-8, which featured this innovative design.
Understanding the Wankel Engine Diagram

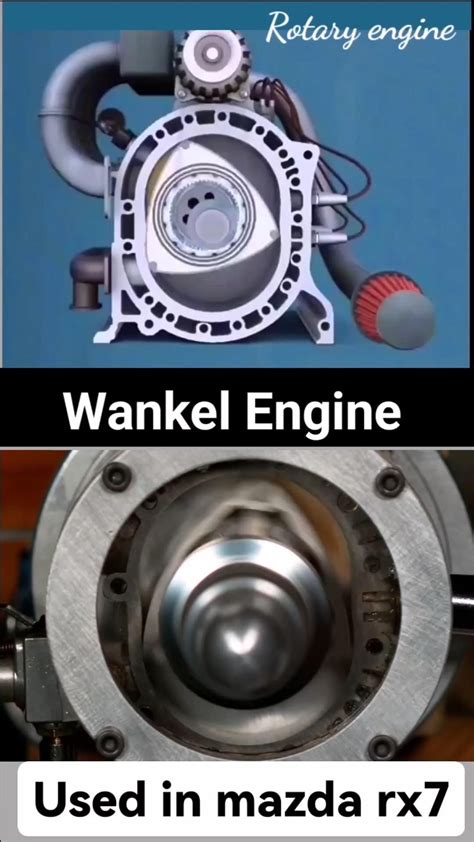

The Wankel Engine Diagram is essential for understanding how this unique engine operates. The diagram typically illustrates the key components and their interactions within the engine. The primary components include:
- The rotor: A triangular-shaped component that rotates within the engine housing.
- The housing: A stationary part that contains the rotor and has an epitrochoid shape.
- The intake and exhaust ports: Openings that allow fuel and air to enter the combustion chamber and exhaust gases to exit.
- The spark plug: Initiates the combustion process.
The Wankel Engine Diagram shows how the rotor moves within the housing, creating three separate combustion chambers. As the rotor turns, each chamber goes through the four strokes of the combustion cycle: intake, compression, combustion, and exhaust. This continuous rotation results in a smoother and more efficient operation compared to traditional piston engines.
Advantages of the Wankel Engine
The Wankel engine offers several advantages that make it an attractive option for certain applications. Some of the key benefits include:
- Higher Power-to-Weight Ratio: The Wankel engine's design allows for a more compact and lighter engine, making it ideal for applications where weight and size are critical, such as in racing cars and aircraft.
- Smoother Operation: The lack of reciprocating motion results in less vibration and a smoother running engine, enhancing the overall driving experience.
- Fewer Moving Parts: With fewer moving parts, the Wankel engine has fewer components that can wear out or fail, potentially leading to lower maintenance costs.
- High Revving Capability: The Wankel engine can rev higher than traditional piston engines, making it suitable for high-performance applications.
Disadvantages of the Wankel Engine
Despite its advantages, the Wankel engine also has several drawbacks that have limited its widespread adoption. Some of the challenges include:
- Sealing Issues: The Wankel engine's design requires precise sealing between the rotor and the housing to prevent gas leakage. Achieving and maintaining this seal has been a significant challenge.
- Fuel Efficiency: Wankel engines tend to be less fuel-efficient compared to modern piston engines. This is due to the engine's design, which results in higher heat loss and incomplete combustion.
- Emissions: The incomplete combustion and higher heat loss also contribute to higher emissions, making it more difficult for Wankel engines to meet modern emission standards.
- Durability: The high revving capability and continuous rotation can lead to increased wear and tear on the engine components, potentially reducing its lifespan.
Applications of the Wankel Engine
The Wankel engine has found applications in various fields, although its use has been somewhat limited due to the challenges mentioned earlier. Some of the notable applications include:
- Automotive: Mazda has been the most prominent user of the Wankel engine in the automotive industry, producing several models featuring this design. The RX-7 and RX-8 are iconic examples of Wankel-powered cars.
- Aircraft: The Wankel engine's high power-to-weight ratio makes it suitable for aircraft engines. Several companies have experimented with Wankel engines for small aircraft and drones.
- Racing: The smooth operation and high revving capability of the Wankel engine make it an attractive option for racing applications. Several racing teams have used Wankel engines in various motorsport events.
- Generators and Pumps: The Wankel engine's design can also be adapted for use in generators and pumps, where its compact size and smooth operation are beneficial.
Future of the Wankel Engine
The future of the Wankel engine remains uncertain, but there is ongoing research and development aimed at addressing its challenges. Advances in materials science and engineering could lead to improved sealing technologies and more efficient combustion processes, making the Wankel engine a more viable option for a wider range of applications. Additionally, the growing interest in alternative fuels and hybrid systems could open new opportunities for the Wankel engine, as its unique design may be better suited to these emerging technologies.
🔧 Note: The Wankel engine's future will depend on overcoming its current limitations, particularly in terms of fuel efficiency and emissions. Ongoing research and development efforts are crucial for realizing its full potential.
Comparing Wankel and Piston Engines
To better understand the Wankel engine, it's helpful to compare it with traditional piston engines. The following table highlights the key differences between the two:
| Feature | Wankel Engine | Piston Engine |
|---|---|---|
| Design | Rotary design with a triangular rotor | Reciprocating design with pistons |
| Moving Parts | Fewer moving parts | More moving parts |
| Power-to-Weight Ratio | Higher | Lower |
| Fuel Efficiency | Lower | Higher |
| Emissions | Higher | Lower |
| Smoothness | Smoother operation | More vibration |
The Wankel Engine Diagram provides a visual representation of these differences, illustrating how the rotary design of the Wankel engine contrasts with the reciprocating motion of piston engines. This comparison highlights the unique characteristics of the Wankel engine and its potential advantages and disadvantages in various applications.
In conclusion, the Wankel engine, with its distinctive Wankel Engine Diagram, represents a fascinating chapter in the history of internal combustion engines. Its innovative design offers several advantages, including a higher power-to-weight ratio, smoother operation, and fewer moving parts. However, challenges such as sealing issues, fuel efficiency, and emissions have limited its widespread adoption. Ongoing research and development efforts aim to address these challenges, potentially opening new opportunities for the Wankel engine in the future. As technology advances, the Wankel engine’s unique characteristics may find new applications, ensuring its legacy in the world of engineering and innovation.
