Understanding the concept of peak voltage is crucial for anyone working with electrical systems. The peak voltage is: the maximum instantaneous voltage value in an alternating current (AC) circuit. This value is essential for designing and analyzing electrical circuits, as it directly impacts the performance and safety of electrical components. In this post, we will delve into the details of peak voltage, its significance, how to calculate it, and its applications in various electrical systems.
What is Peak Voltage?

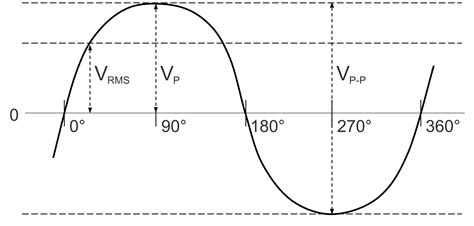

Peak voltage, often denoted as Vp, is the highest value that the voltage reaches in an AC waveform. In a sinusoidal waveform, which is the most common type of AC waveform, the peak voltage occurs at the crest of the wave. It is important to note that the peak voltage is not the same as the root mean square (RMS) voltage, which is the effective value of the voltage used in most electrical calculations.
Importance of Peak Voltage
The peak voltage is a critical parameter in electrical engineering for several reasons:
- Component Rating: Electrical components such as capacitors, resistors, and diodes are rated based on their peak voltage handling capability. Exceeding the peak voltage rating can lead to component failure.
- Signal Analysis: In communication systems, the peak voltage of a signal is crucial for determining the signal strength and quality.
- Power Transmission: In power transmission lines, the peak voltage is essential for ensuring that the insulation and other protective measures are adequate to prevent electrical breakdowns.
Calculating Peak Voltage
To calculate the peak voltage from the RMS voltage, you can use the following formula:
Vp = Vrms × √2
Where:
- Vp is the peak voltage.
- Vrms is the root mean square voltage.
For example, if the RMS voltage of a circuit is 120V, the peak voltage would be:
Vp = 120V × √2 ≈ 169.7V
Peak Voltage in Different Waveforms
The concept of peak voltage applies to various types of waveforms, not just sinusoidal waves. Here are some common waveforms and their peak voltage characteristics:
| Waveform Type | Peak Voltage |
|---|---|
| Sine Wave | Vp = Vrms × √2 |
| Square Wave | Vp = Vrms |
| Triangle Wave | Vp = Vrms × √3 |
Each waveform has its unique characteristics, and understanding the peak voltage for each type is essential for accurate circuit analysis and design.
Applications of Peak Voltage
The peak voltage is used in various applications across different fields of electrical engineering. Some of the key applications include:
- Power Electronics: In power electronics, the peak voltage is crucial for designing converters, inverters, and other power control devices. These devices often operate at high voltages, and understanding the peak voltage helps in selecting the appropriate components and ensuring safe operation.
- Communication Systems: In communication systems, the peak voltage of a signal determines its strength and quality. Engineers use peak voltage measurements to optimize signal transmission and reception, ensuring clear and reliable communication.
- Electrical Safety: The peak voltage is a critical parameter in electrical safety. It helps in designing protective measures such as fuses, circuit breakers, and surge protectors to prevent electrical hazards and ensure the safety of electrical systems and personnel.
🔍 Note: Always ensure that the peak voltage of a circuit does not exceed the rated voltage of the components used. Exceeding the peak voltage rating can lead to component failure and potential safety hazards.
Measuring Peak Voltage
Measuring the peak voltage accurately is essential for ensuring the proper functioning of electrical systems. Here are some common methods for measuring peak voltage:

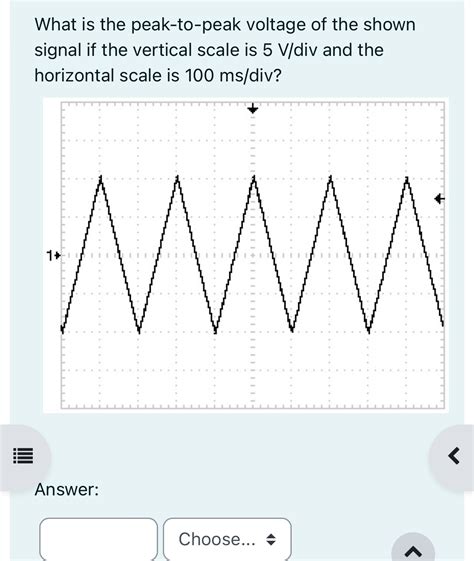

- Oscilloscope: An oscilloscope is a versatile tool for measuring peak voltage. It displays the waveform of the voltage signal, allowing you to directly observe the peak voltage.
- Multimeter: A multimeter can also measure peak voltage, although it may not provide as detailed a waveform as an oscilloscope. Some advanced multimeters have peak voltage measurement capabilities.
- Peak Voltage Detector Circuits: Specialized circuits can be designed to detect and measure the peak voltage of a signal. These circuits are often used in applications where continuous monitoring of peak voltage is required.
When measuring peak voltage, it is important to use the appropriate equipment and follow safety guidelines to avoid electrical hazards.
🔍 Note: Always ensure that the measuring equipment is calibrated and in good working condition before taking measurements. Incorrect measurements can lead to inaccurate results and potential safety issues.
Peak Voltage in Power Systems
In power systems, the peak voltage is a critical parameter for ensuring the reliable and efficient operation of electrical equipment. Here are some key considerations for peak voltage in power systems:
- Transformer Design: Transformers are designed to handle specific peak voltage levels. Understanding the peak voltage helps in selecting the appropriate transformer for a given application and ensuring its safe operation.
- Insulation Coordination: Proper insulation coordination is essential for preventing electrical breakdowns in power systems. The peak voltage is a key factor in determining the insulation requirements for cables, switches, and other components.
- Surge Protection: Surge protectors are used to safeguard electrical equipment from voltage spikes and transients. The peak voltage rating of surge protectors must be carefully selected to ensure effective protection against high-voltage surges.
By carefully considering the peak voltage in power systems, engineers can design reliable and efficient electrical systems that meet safety and performance requirements.
🔍 Note: Always consult with a qualified electrical engineer when designing or modifying power systems to ensure compliance with safety standards and regulations.
In summary, the peak voltage is a fundamental concept in electrical engineering that plays a crucial role in the design, analysis, and operation of electrical systems. Understanding the peak voltage and its applications is essential for ensuring the safe and efficient performance of electrical components and systems. By carefully considering the peak voltage in various electrical applications, engineers can design reliable and efficient systems that meet the demands of modern technology.
