Understanding the differences between a voltaic cell and an electrolytic cell is fundamental in the study of electrochemistry. Both types of cells involve chemical reactions that produce or consume electrical energy, but they operate in fundamentally different ways. This post will delve into the voltaic cell vs electrolytic distinctions, their mechanisms, applications, and the underlying principles that govern their functioning.
Understanding Voltaic Cells
A voltaic cell, also known as a galvanic cell, is an electrochemical cell that converts chemical energy into electrical energy. This process is spontaneous and occurs through a redox reaction, where one substance is oxidized and another is reduced.
Components of a Voltaic Cell
The basic components of a voltaic cell include:
- Anode: The electrode where oxidation occurs.
- Cathode: The electrode where reduction occurs.
- Electrolyte: A solution or medium that allows the flow of ions between the electrodes.
- Salt Bridge: A component that maintains electrical neutrality by allowing ions to flow between the half-cells.
Mechanism of a Voltaic Cell
The mechanism of a voltaic cell involves the following steps:
- Oxidation occurs at the anode, releasing electrons.
- Reduction occurs at the cathode, consuming electrons.
- Electrons flow from the anode to the cathode through an external circuit, generating an electric current.
- The salt bridge or porous membrane allows ions to flow between the half-cells, maintaining electrical neutrality.

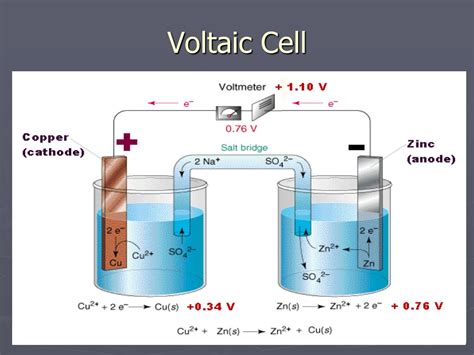

For example, in a simple voltaic cell using zinc (Zn) and copper (Cu) electrodes in a sulfuric acid (H2SO4) solution, the reactions are:
- Anode (oxidation): Zn(s) → Zn2+(aq) + 2e-
- Cathode (reduction): Cu2+(aq) + 2e- → Cu(s)
Understanding Electrolytic Cells
An electrolytic cell, on the other hand, uses electrical energy to drive a non-spontaneous chemical reaction. This process is the opposite of what occurs in a voltaic cell, where electrical energy is produced from a spontaneous chemical reaction.
Components of an Electrolytic Cell
The components of an electrolytic cell are similar to those of a voltaic cell but function differently:
- Anode: The electrode where oxidation occurs.
- Cathode: The electrode where reduction occurs.
- Electrolyte: A solution or medium that allows the flow of ions between the electrodes.
Mechanism of an Electrolytic Cell
The mechanism of an electrolytic cell involves the following steps:
- An external power source provides the electrical energy needed to drive the reaction.
- Oxidation occurs at the anode, releasing electrons.
- Reduction occurs at the cathode, consuming electrons.
- Ions flow through the electrolyte to maintain electrical neutrality.
For example, in the electrolysis of water (H2O), the reactions are:
- Anode (oxidation): 2H2O(l) → O2(g) + 4H+(aq) + 4e-
- Cathode (reduction): 4H+(aq) + 4e- → 2H2(g)

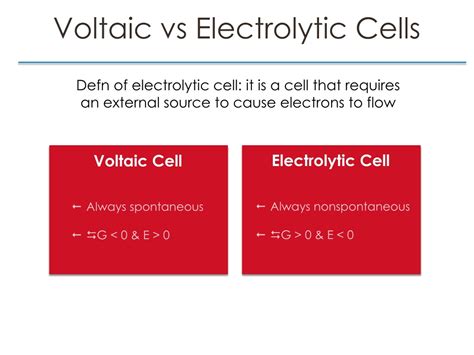

Key Differences Between Voltaic and Electrolytic Cells
While both voltaic and electrolytic cells involve redox reactions, there are several key differences between them:
| Aspect | Voltaic Cell | Electrolytic Cell |
|---|---|---|
| Energy Conversion | Chemical to Electrical | Electrical to Chemical |
| Spontaneity | Spontaneous | Non-spontaneous |
| Power Source | Chemical Reaction | External Power Source |
| Electron Flow | From Anode to Cathode | From Cathode to Anode |
| Applications | Batteries, Fuel Cells | Electroplating, Electrolysis of Water |
Applications of Voltaic and Electrolytic Cells
Both voltaic and electrolytic cells have a wide range of applications in various industries. Understanding their differences and mechanisms is crucial for their effective use.
Applications of Voltaic Cells
Voltaic cells are commonly used in:
- Batteries: Powering portable devices, electric vehicles, and backup power systems.
- Fuel Cells: Generating electricity from hydrogen and other fuels.
- Sensors: Detecting chemical changes and producing electrical signals.
Applications of Electrolytic Cells
Electrolytic cells are used in:
- Electroplating: Coating metals with a thin layer of another metal for decorative or protective purposes.
- Electrolysis of Water: Producing hydrogen and oxygen gases.
- Metal Extraction: Extracting metals from their ores, such as aluminum from bauxite.
Importance of Understanding Voltaic Cell Vs Electrolytic
Understanding the distinctions between voltaic and electrolytic cells is essential for several reasons:
- Educational Purposes: Provides a foundational knowledge of electrochemistry.
- Industrial Applications: Enables the development and optimization of various electrochemical processes.
- Environmental Impact: Helps in designing sustainable energy solutions and reducing environmental pollution.
💡 Note: The efficiency of both voltaic and electrolytic cells can be improved by optimizing the electrolyte composition, electrode materials, and operating conditions.
In conclusion, the voltaic cell vs electrolytic comparison highlights the fundamental differences in their mechanisms, applications, and energy conversion processes. Voltaic cells convert chemical energy into electrical energy through spontaneous redox reactions, while electrolytic cells use electrical energy to drive non-spontaneous chemical reactions. Both types of cells play crucial roles in various industries, from powering devices to extracting metals and producing gases. Understanding these differences is key to advancing electrochemical technologies and developing sustainable energy solutions.
