Superheat And Subcooling

Understanding the principles of superheat and subcooling is crucial for anyone working with refrigeration and air conditioning systems. These concepts are fundamental to the efficient operation of these systems, ensuring that they function optimally and provide the desired cooling effects. This post will delve into the intricacies of superheat and subcooling, explaining their significance, how to measure them, and their impact on system performance.

Table of Contents

Understanding Superheat

Superheat refers to the condition where the refrigerant in a system is heated above its saturation temperature at a given pressure. This occurs in the suction line of the refrigeration system, after the refrigerant has left the evaporator. Superheat is essential for ensuring that only vapor enters the compressor, preventing liquid refrigerant from damaging the compressor.

There are two main types of superheat:

Total Superheat: This is the difference between the actual temperature of the refrigerant vapor and the saturation temperature at the evaporator outlet pressure.
Desired Superheat: This is the amount of superheat that ensures the refrigerant is completely vaporized before entering the compressor. It is typically set by the system designer based on the specific application and refrigerant used.

Measuring superheat involves using temperature and pressure sensors. The temperature sensor is placed at the evaporator outlet, and the pressure sensor is placed at the same location. The saturation temperature is then determined from the pressure reading using refrigerant property tables or charts. The difference between the actual temperature and the saturation temperature gives the superheat value.

🔍 Note: Proper measurement of superheat is crucial for maintaining system efficiency and preventing compressor damage.

Understanding Subcooling

Subcooling, on the other hand, refers to the condition where the refrigerant is cooled below its saturation temperature at a given pressure. This occurs in the liquid line of the refrigeration system, after the refrigerant has left the condenser. Subcooling ensures that the refrigerant entering the expansion device is in a liquid state, which is essential for proper metering and efficient heat transfer in the evaporator.

Subcooling is measured by determining the difference between the saturation temperature at the condenser outlet pressure and the actual temperature of the refrigerant in the liquid line. This measurement is typically taken just before the expansion device. The saturation temperature is again determined using refrigerant property tables or charts based on the pressure reading.

Subcooling is important for several reasons:

It ensures that the refrigerant entering the expansion device is in a liquid state, preventing flash gas formation.
It improves the efficiency of the system by increasing the heat transfer in the evaporator.
It helps in maintaining the stability of the system by reducing the risk of liquid slugging in the compressor.

🔍 Note: Subcooling is particularly important in systems using thermostatic expansion valves (TXVs), as it ensures proper valve operation.

Importance of Superheat and Subcooling in System Performance

Both superheat and subcooling play critical roles in the overall performance and efficiency of refrigeration and air conditioning systems. Proper management of these parameters can lead to significant benefits, including:

Improved Energy Efficiency: Optimal superheat and subcooling ensure that the system operates at its designed efficiency, reducing energy consumption.
Enhanced System Reliability: By preventing liquid refrigerant from entering the compressor and ensuring proper metering, superheat and subcooling help extend the lifespan of system components.
Consistent Cooling Performance: Maintaining the correct levels of superheat and subcooling ensures that the system provides consistent cooling, even under varying load conditions.

Measuring Superheat and Subcooling

Accurate measurement of superheat and subcooling is essential for optimizing system performance. Here are the steps to measure each parameter:

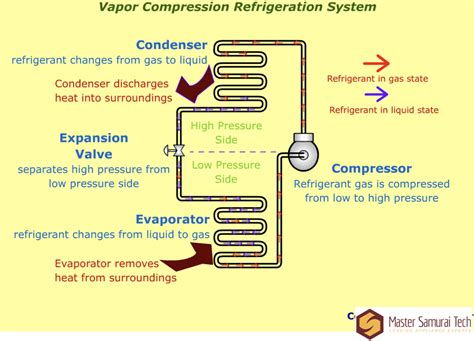

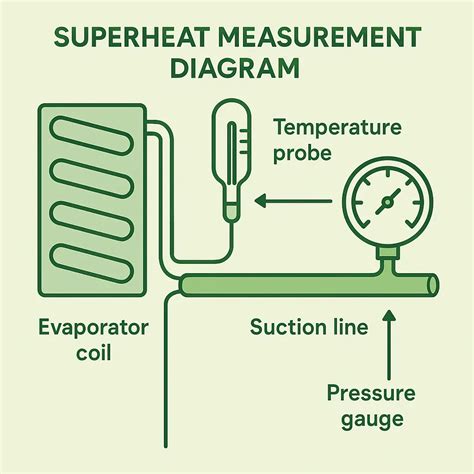

Measuring Superheat

To measure superheat, follow these steps:

Install a temperature sensor at the evaporator outlet.
Install a pressure sensor at the evaporator outlet.
Record the actual temperature (T_actual) and pressure (P) at the evaporator outlet.
Determine the saturation temperature (T_sat) corresponding to the recorded pressure using refrigerant property tables or charts.
Calculate the superheat using the formula: Superheat = T_actual - T_sat.

Measuring Subcooling

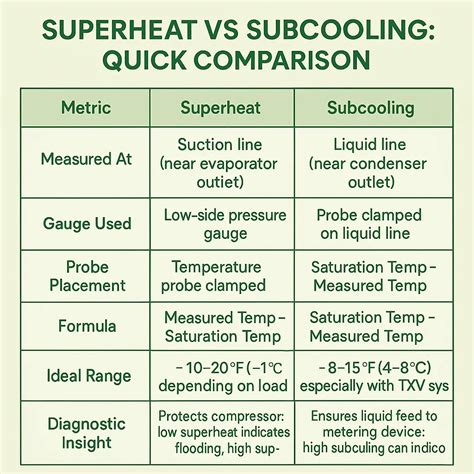

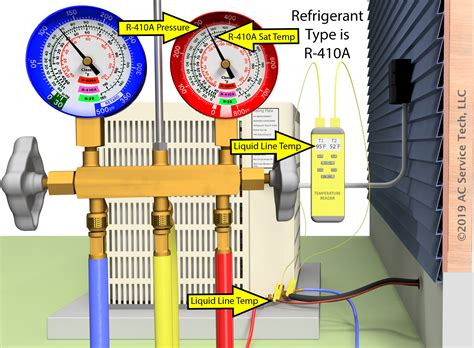

To measure subcooling, follow these steps:

Install a temperature sensor just before the expansion device in the liquid line.
Install a pressure sensor at the condenser outlet.
Record the actual temperature (T_actual) and pressure (P) at the liquid line.
Determine the saturation temperature (T_sat) corresponding to the recorded pressure using refrigerant property tables or charts.
Calculate the subcooling using the formula: Subcooling = T_sat - T_actual.

🔍 Note: Ensure that the sensors are accurately calibrated and placed in the correct locations for precise measurements.

Optimizing Superheat and Subcooling

Optimizing superheat and subcooling involves adjusting system components and settings to achieve the desired values. Here are some strategies to optimize these parameters:

Adjusting the Expansion Device

The expansion device, whether it is a thermostatic expansion valve (TXV) or a fixed orifice, plays a crucial role in controlling superheat and subcooling. Adjusting the expansion device can help achieve the desired values:

For TXVs, adjust the superheat setting on the valve to achieve the desired superheat at the evaporator outlet.
For fixed orifices, consider replacing the orifice with one that provides the correct metering for the system's load and refrigerant type.

Controlling Condenser and Evaporator Performance

The performance of the condenser and evaporator also affects superheat and subcooling. Ensuring that these components operate efficiently can help optimize these parameters:

Clean the condenser and evaporator coils regularly to maintain their heat transfer efficiency.
Ensure proper airflow over the coils by checking and maintaining fans and blowers.
Adjust the condenser and evaporator fan speeds to optimize heat transfer and refrigerant flow.

Monitoring and Adjusting Refrigerant Charge

The refrigerant charge in the system can significantly impact superheat and subcooling. Monitoring and adjusting the refrigerant charge can help achieve the desired values:

Check the refrigerant charge using pressure-temperature charts and ensure it is within the manufacturer's recommended range.
Adjust the refrigerant charge by adding or removing refrigerant as needed to achieve the desired superheat and subcooling.

🔍 Note: Always follow safety procedures when handling refrigerants and adjusting system components.

Troubleshooting Superheat and Subcooling Issues

Despite careful optimization, issues with superheat and subcooling can still arise. Here are some common problems and their potential causes:

Issue	Potential Causes	Solutions
High Superheat	Insufficient refrigerant charge Restricted suction line Evaporator coil fouling	Check and adjust refrigerant charge Inspect and clean the suction line Clean the evaporator coil
Low Superheat	Excessive refrigerant charge Faulty expansion device Liquid line restriction	Check and adjust refrigerant charge Inspect and replace the expansion device if necessary Inspect and clean the liquid line
High Subcooling	Excessive refrigerant charge Restricted liquid line Condenser coil fouling	Check and adjust refrigerant charge Inspect and clean the liquid line Clean the condenser coil
Low Subcooling	Insufficient refrigerant charge Faulty expansion device Liquid line restriction	Check and adjust refrigerant charge Inspect and replace the expansion device if necessary Inspect and clean the liquid line

Regular maintenance and monitoring of the system can help prevent these issues and ensure optimal performance.

🔍 Note: Always consult the system's manual and follow safety procedures when troubleshooting and repairing refrigeration and air conditioning systems.

In conclusion, understanding and managing superheat and subcooling are essential for the efficient and reliable operation of refrigeration and air conditioning systems. By measuring and optimizing these parameters, you can ensure that your system provides consistent cooling performance, reduces energy consumption, and extends the lifespan of its components. Regular maintenance and monitoring are key to preventing issues and maintaining optimal system performance.
