Lemon Battery Experiment

Embarking on a Lemon Battery Experiment is an exciting way to explore the principles of electricity and chemistry. This classic science project is not only educational but also fun and engaging for both kids and adults. By using simple household items, you can create a basic battery that generates enough electricity to power a small LED or a low-voltage device. This hands-on activity provides a tangible understanding of how batteries work and the role of electrolytes in conducting electricity.

Table of Contents

Understanding the Science Behind the Lemon Battery Experiment

The Lemon Battery Experiment demonstrates the fundamental concepts of electrochemical cells. An electrochemical cell converts chemical energy into electrical energy. In this experiment, the lemon acts as the electrolyte, which is a solution that conducts electricity. The copper and zinc electrodes (typically nails and pennies) react with the citric acid in the lemon to produce electrons, creating a flow of electric current.

Here's a breakdown of the key components and their roles:

Lemon: Acts as the electrolyte, providing the medium for the chemical reaction.
Copper (Penny): Acts as the positive electrode (cathode).
Zinc (Galvanized Nail): Acts as the negative electrode (anode).
Wires: Conduct the electric current from one electrode to the other.

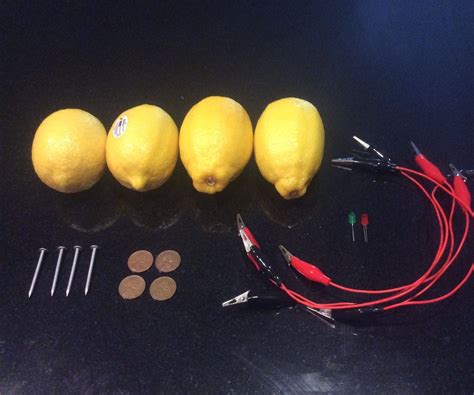

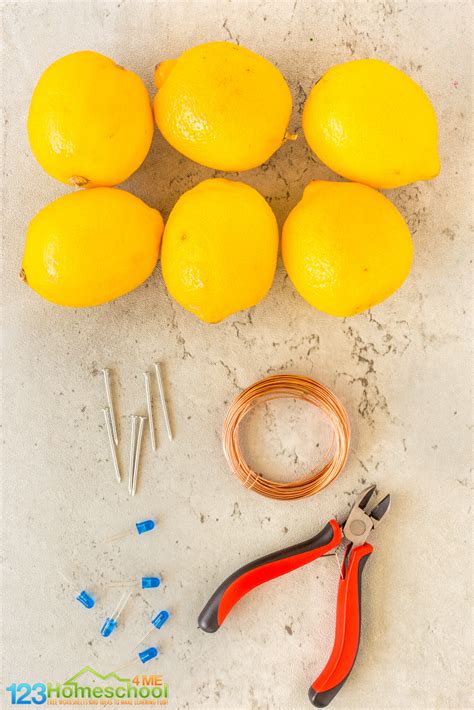

Materials Needed for the Lemon Battery Experiment

Gathering the necessary materials is the first step in conducting the Lemon Battery Experiment. You will need:

1-2 lemons
1 copper coin (penny)
1 galvanized nail (zinc)
2 alligator clip wires
A small LED or a low-voltage device (e.g., a digital clock)
A multimeter (optional, for measuring voltage)

Step-by-Step Guide to Conducting the Lemon Battery Experiment

Follow these detailed steps to create your own lemon battery:

Step 1: Prepare the Lemon

Roll the lemon on a hard surface to soften it and release more juice. This step helps in maximizing the electrolyte concentration.

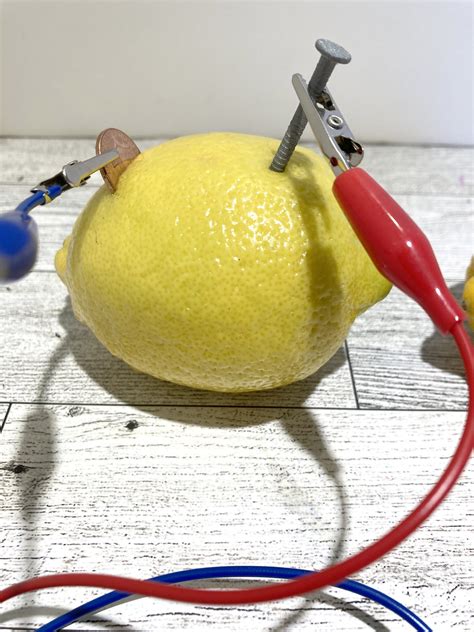

Step 2: Insert the Electrodes

Insert the copper coin and the galvanized nail into the lemon, ensuring they are not touching each other. The electrodes should be placed about an inch apart.

Step 3: Connect the Wires

Attach one alligator clip wire to the copper coin and the other to the galvanized nail. Make sure the connections are secure.

Step 4: Connect to the LED

Connect the free ends of the alligator clip wires to the LED. The longer leg of the LED should be connected to the copper coin (positive terminal), and the shorter leg should be connected to the galvanized nail (negative terminal).

💡 Note: If the LED does not light up, try reversing the connections. The polarity of the electrodes is crucial for the LED to function.

Step 5: Measure the Voltage (Optional)

If you have a multimeter, you can measure the voltage produced by the lemon battery. Connect the multimeter probes to the copper coin and the galvanized nail. The voltage should be around 0.9 volts.

Expanding the Lemon Battery Experiment

Once you have successfully created a single lemon battery, you can expand the experiment by connecting multiple lemons in series to increase the voltage. This setup is known as a battery pack.

Here's how to create a battery pack:

Step 1: Prepare Multiple Lemons

Prepare additional lemons by rolling them and inserting a copper coin and a galvanized nail into each, as described in the previous steps.

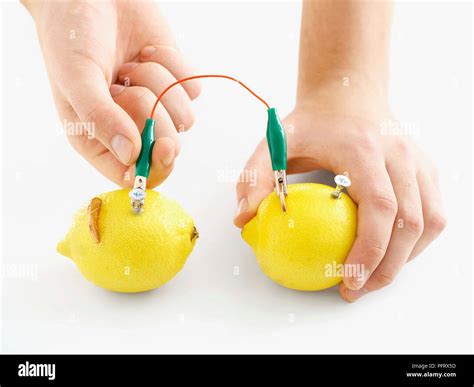

Step 2: Connect the Lemons in Series

Connect the lemons in series by attaching the copper coin of one lemon to the galvanized nail of the next lemon using alligator clip wires. Continue this pattern until all lemons are connected.

Step 3: Connect to the Device

Connect the free ends of the alligator clip wires to your low-voltage device. The voltage will be the sum of the voltages produced by each lemon battery.

💡 Note: Be cautious when handling multiple lemons, as the connections can become complex. Ensure all wires are securely attached to avoid short circuits.

Troubleshooting Common Issues

If your Lemon Battery Experiment does not produce the expected results, consider the following troubleshooting tips:

Check the Connections: Ensure that all wires are securely attached to the electrodes and the device.
Verify the Electrodes: Make sure you are using a copper coin and a galvanized nail. Other metals may not produce the same results.
Inspect the Lemon: Ensure the lemon is fresh and juicy. Overripe or dried-out lemons may not conduct electricity effectively.
Reverse the Polarity: If the LED does not light up, try reversing the connections to the electrodes.

Safety Precautions

While the Lemon Battery Experiment is generally safe, it is important to follow these safety precautions:

Wash your hands thoroughly after handling the lemons and electrodes to avoid any potential irritation.
Avoid ingesting any part of the experiment, including the lemon juice and electrodes.
Keep the experiment away from young children who may not understand the potential risks.

💡 Note: Although the voltage produced by a lemon battery is low, it is still electricity. Handle the wires and connections with care to avoid any electrical hazards.

Educational Benefits of the Lemon Battery Experiment

The Lemon Battery Experiment offers numerous educational benefits, making it a valuable activity for students and educators alike. Some of the key benefits include:

Hands-On Learning: The experiment provides a tangible way to understand the principles of electricity and chemistry.
Critical Thinking: Students learn to troubleshoot and solve problems by identifying and correcting issues in the experiment.
Scientific Inquiry: The experiment encourages students to ask questions, make predictions, and test hypotheses.
Real-World Applications: Understanding how batteries work can inspire further exploration into renewable energy sources and sustainable technologies.

By conducting the Lemon Battery Experiment, students gain a deeper appreciation for the science behind everyday technologies and develop essential skills for future scientific endeavors.

In conclusion, the Lemon Battery Experiment is a fascinating and educational activity that demonstrates the principles of electrochemical cells. By using simple household items, you can create a functional battery that generates enough electricity to power a small LED or a low-voltage device. This hands-on experiment provides a tangible understanding of how batteries work and the role of electrolytes in conducting electricity. Whether you are a student, educator, or simply curious about science, the Lemon Battery Experiment offers a fun and engaging way to explore the world of electricity and chemistry.
