Understanding the I2 Lewis Structure is fundamental for anyone studying chemistry, particularly those delving into molecular bonding and electronic configurations. The Lewis structure, named after Gilbert N. Lewis, is a diagrammatic representation of the valence electrons in a molecule. It helps visualize how atoms bond together to form molecules and predict their properties. In this post, we will explore the I2 Lewis Structure in detail, covering its formation, properties, and significance in chemistry.
What is the I2 Lewis Structure?

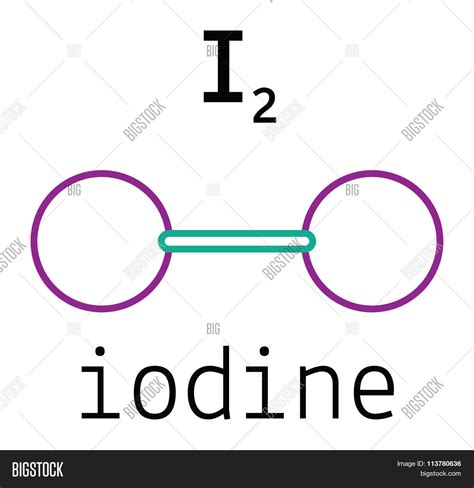

The I2 Lewis Structure represents the molecular structure of diatomic iodine (I2). Iodine is a halogen element, and in its diatomic form, it exists as a pair of iodine atoms bonded together. The Lewis structure provides a clear picture of how these atoms share electrons to form a stable molecule.

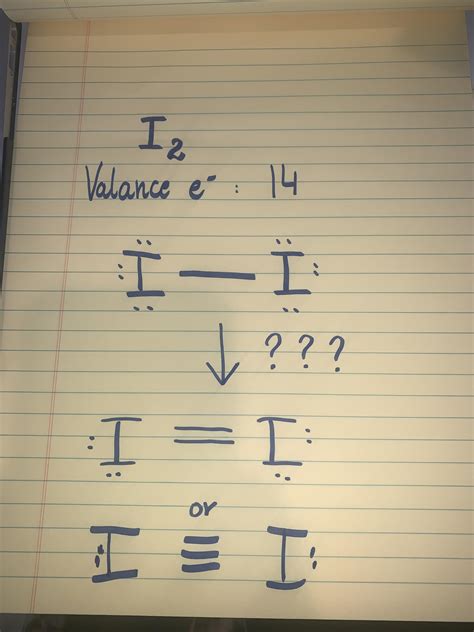

Steps to Draw the I2 Lewis Structure
Drawing the I2 Lewis Structure involves several steps. Here’s a detailed guide:
Step 1: Determine the Total Number of Valence Electrons
Iodine has an atomic number of 53, with 7 valence electrons in its outermost shell. Since I2 consists of two iodine atoms, the total number of valence electrons is:
7 (from the first iodine atom) + 7 (from the second iodine atom) = 14 valence electrons.
Step 2: Choose the Central Atom
In the case of I2, there is no central atom because both iodine atoms are identical and share electrons equally. Therefore, you can place one iodine atom on the left and the other on the right.
Step 3: Connect the Atoms with a Single Bond
Draw a single bond between the two iodine atoms. A single bond represents two shared electrons.
Step 4: Distribute the Remaining Electrons
After placing the single bond, you have used 2 of the 14 valence electrons. Distribute the remaining 12 electrons around the iodine atoms to complete their octets. Each iodine atom will have 3 lone pairs of electrons (6 electrons) and 1 shared pair (2 electrons).
Step 5: Verify the Octet Rule
Check that each iodine atom has 8 electrons in its valence shell. This confirms that the Lewis structure is correct and that both atoms have achieved a stable electronic configuration.
Properties of the I2 Lewis Structure
The I2 Lewis Structure reveals several important properties of the diatomic iodine molecule:
- Bond Order: The bond order in I2 is 1, indicating a single covalent bond between the two iodine atoms.
- Bond Length: The bond length in I2 is approximately 271.5 pm (picometers), which is relatively long compared to other diatomic molecules due to the large size of iodine atoms.
- Bond Energy: The bond energy of the I-I bond is about 151 kJ/mol, reflecting the strength of the single covalent bond.
- Molecular Geometry: The molecular geometry of I2 is linear, with the two iodine atoms aligned in a straight line.
Significance of the I2 Lewis Structure
The I2 Lewis Structure is significant for several reasons:
- Understanding Molecular Bonding: It helps in understanding how iodine atoms bond to form a stable molecule, which is crucial for studying other halogen molecules.
- Predicting Chemical Properties: The Lewis structure allows chemists to predict the chemical properties of I2, such as its reactivity and stability.
- Educational Tool: It serves as an educational tool for students learning about molecular bonding, valence electrons, and the octet rule.
Comparing I2 with Other Halogen Molecules
To better understand the I2 Lewis Structure, it’s helpful to compare it with other halogen molecules. Here’s a comparison table:
| Molecule | Bond Order | Bond Length (pm) | Bond Energy (kJ/mol) |
|---|---|---|---|
| F2 | 1 | 143 | 158 |
| Cl2 | 1 | 199 | 242 |
| Br2 | 1 | 228 | 193 |
| I2 | 1 | 271.5 | 151 |
From the table, it’s clear that as you move down the halogen group, the bond length increases, and the bond energy decreases. This trend is due to the increasing size of the atoms and the weaker attraction between the valence electrons and the nucleus.
💡 Note: The bond length and energy values are approximate and can vary slightly depending on the source.
Applications of Iodine
Iodine, in its various forms, has numerous applications in different fields:
- Medicine: Iodine is used as an antiseptic and disinfectant. It is also essential for the production of thyroid hormones, which regulate metabolism.
- Photography: Historically, iodine was used in photographic processes, particularly in the development of photographic films and papers.
- Industry: Iodine compounds are used in the production of catalysts, dyes, and pharmaceuticals. Iodine is also used in the manufacturing of certain types of batteries.
- Nutrition: Iodine is added to table salt to prevent iodine deficiency, which can lead to health issues such as goiter and mental retardation.
Iodine's versatility makes it a valuable element in various industries, and understanding its molecular structure, including the I2 Lewis Structure, is crucial for optimizing its use.
In conclusion, the I2 Lewis Structure provides a clear and concise representation of the diatomic iodine molecule. By understanding how iodine atoms bond and share electrons, we gain insights into the molecule’s properties and behavior. This knowledge is not only fundamental for students of chemistry but also has practical applications in various fields. The I2 Lewis Structure serves as a cornerstone for exploring more complex molecular structures and bonding theories, making it an essential topic for anyone interested in the fascinating world of chemistry.
