Types Of Foundations

Building a sturdy and reliable structure begins with a solid foundation. The types of foundations used in construction vary widely depending on the soil conditions, the load of the building, and the specific requirements of the project. Understanding these different types is crucial for architects, engineers, and builders to ensure the longevity and safety of any structure.

Table of Contents

Understanding the Importance of Foundations

The foundation of a building is its most critical component. It supports the entire weight of the structure and distributes it evenly across the soil. A well-designed foundation ensures that the building remains stable and secure over time, resisting various forces such as wind, earthquakes, and soil settlement. The choice of foundation type depends on several factors, including the type of soil, the depth of the frost line, the load of the building, and the local building codes.

Types of Foundations

There are several types of foundations commonly used in construction, each with its own advantages and suitable applications. The most common types include:

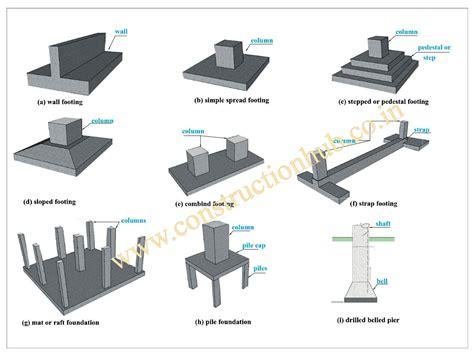

Shallow Foundations

Shallow foundations are used when the soil near the surface is strong enough to support the weight of the building. These foundations are typically placed at a depth less than the width of the foundation. The most common types of shallow foundations are:

Spread Footings: These are the most basic type of shallow foundation, consisting of a concrete slab that spreads the weight of the building over a large area. They are suitable for light structures and stable soil conditions.
Strip Footings: Also known as wall footings, these are continuous strips of concrete that support walls. They are commonly used in residential construction.
Raft Foundations: These are large concrete slabs that cover the entire area of the building. They are used when the soil has low bearing capacity and can distribute the load evenly across the soil.

Deep Foundations

Deep foundations are used when the soil near the surface is not strong enough to support the building. These foundations are placed at a depth greater than the width of the foundation and transfer the load to deeper, more stable soil layers. The most common types of deep foundations are:

Pile Foundations: Piles are long, slender columns made of concrete, steel, or wood that are driven into the ground to transfer the load to deeper soil layers. They are commonly used in areas with soft or unstable soil.
Caissons: Caissons are large, hollow cylinders that are sunk into the ground and filled with concrete. They are used to support heavy structures and can be used in both land and water.
Drilled Shafts: Also known as bored piles, drilled shafts are cylindrical holes drilled into the ground and filled with concrete. They are used to support heavy loads and can be reinforced with steel bars.

Specialized Foundations

In addition to shallow and deep foundations, there are specialized foundations designed for specific conditions and requirements. These include:

Floating Foundations: These foundations are used in areas with very soft soil. They consist of a large, hollow box filled with a material that is lighter than the surrounding soil, allowing the foundation to "float" on the soil.
Mat Foundations: Also known as raft foundations, these are large concrete slabs that cover the entire area of the building. They are used when the soil has low bearing capacity and can distribute the load evenly across the soil.
Pile and Grade Beam Foundations: This type of foundation combines piles with grade beams, which are reinforced concrete beams that connect the piles and distribute the load evenly.

Factors Affecting the Choice of Foundation Type

The selection of the appropriate types of foundations depends on several key factors. These factors ensure that the foundation can adequately support the structure and withstand various environmental and structural forces. The primary factors include:

Soil Conditions: The type and strength of the soil are crucial in determining the foundation type. Soil tests are conducted to assess the bearing capacity, settlement potential, and other properties of the soil.
Load of the Building: The weight and distribution of the building's load influence the choice of foundation. Heavier structures require deeper and more robust foundations.
Depth of the Frost Line: In cold climates, the foundation must be placed below the frost line to prevent heaving and settling caused by freezing and thawing cycles.
Local Building Codes: Building codes and regulations vary by region and must be adhered to. These codes specify the minimum requirements for foundation design and construction.
Water Table Level: The presence of groundwater can affect the stability of the foundation. Foundations must be designed to account for the water table level to prevent issues such as flooding and soil erosion.

Design and Construction Considerations

Designing and constructing a foundation involves several critical steps to ensure its effectiveness and durability. These steps include:

Site Investigation: Conducting a thorough site investigation to assess soil conditions, water table levels, and other environmental factors.
Foundation Design: Developing a detailed design that specifies the type, size, and depth of the foundation, as well as the materials to be used.
Excavation: Excavating the site to the required depth and dimensions, ensuring proper compaction and leveling of the soil.
Formwork and Reinforcement: Constructing formwork and installing reinforcement bars as per the design specifications.
Concrete Pouring: Pouring concrete into the formwork, ensuring proper curing and finishing to achieve the desired strength and durability.
Backfilling and Compaction: Backfilling the excavated area with compacted soil to provide additional support and stability.

🔍 Note: Proper compaction of soil is crucial to prevent settlement and ensure the stability of the foundation.

Common Issues and Solutions

Despite careful planning and construction, foundations can encounter various issues. Understanding these problems and their solutions is essential for maintaining the integrity of the structure. Some common issues include:

Soil Settlement: Differential settlement can occur when different parts of the foundation settle at different rates, leading to cracks and structural damage. Solutions include proper soil compaction, use of appropriate foundation types, and regular maintenance.
Water Damage: Water intrusion can weaken the foundation and cause erosion. Solutions include proper waterproofing, installation of drainage systems, and regular inspections.
Frost Heave: In cold climates, freezing and thawing cycles can cause the soil to expand and contract, leading to foundation movement. Solutions include placing the foundation below the frost line and using insulation.
Inadequate Design: Poorly designed foundations can fail to support the building's load, leading to structural issues. Solutions include thorough site investigation, adherence to building codes, and professional design and construction.

🛠️ Note: Regular inspections and maintenance can help identify and address foundation issues before they become major problems.

Case Studies

To illustrate the practical application of different types of foundations, let’s examine a few case studies:

Residential Construction

In residential construction, shallow foundations such as spread footings and strip footings are commonly used. These foundations are cost-effective and suitable for light structures. For example, a single-family home built on stable soil may use spread footings to support the walls and columns. The foundation is designed to distribute the load evenly across the soil, ensuring stability and longevity.

Commercial Construction

Commercial buildings often require deeper and more robust foundations due to their larger size and heavier loads. Deep foundations such as pile foundations and drilled shafts are commonly used. For instance, a high-rise office building in an urban area may use pile foundations to transfer the load to deeper, more stable soil layers. The piles are driven into the ground and reinforced with steel bars to provide additional strength and stability.

Specialized Structures

Specialized structures, such as bridges and towers, require unique foundation solutions. For example, a bridge spanning a river may use caissons to support the piers. The caissons are sunk into the riverbed and filled with concrete, providing a stable base for the bridge. Similarly, a tall tower may use a combination of pile foundations and grade beams to distribute the load evenly and ensure stability.

Future Trends in Foundation Technology

The field of foundation engineering is continually evolving, driven by advancements in technology and materials. Some of the future trends in foundation technology include:

Advanced Materials: The use of advanced materials such as high-strength concrete, composite materials, and smart sensors can enhance the performance and durability of foundations.
Geotechnical Instrumentation: The integration of geotechnical instrumentation, such as piezometers and inclinometers, can provide real-time monitoring of soil conditions and foundation performance.
Sustainable Practices: The adoption of sustainable practices, such as the use of recycled materials and energy-efficient construction methods, can reduce the environmental impact of foundation construction.
Digital Modeling: The use of digital modeling and simulation tools can help engineers design and analyze foundations more accurately, leading to improved performance and cost savings.

🌱 Note: Sustainable practices in foundation construction can help reduce the environmental impact and promote long-term sustainability.

In conclusion, understanding the various types of foundations and their applications is essential for ensuring the stability and longevity of any structure. From shallow foundations suitable for light structures to deep foundations designed for heavy loads, each type has its own advantages and suitable conditions. By considering factors such as soil conditions, load requirements, and local building codes, architects, engineers, and builders can select the most appropriate foundation type for their projects. Regular inspections and maintenance, along with adherence to best practices, can help prevent common issues and ensure the integrity of the foundation over time. As technology and materials continue to advance, the field of foundation engineering will evolve, offering new solutions and improved performance for future structures.
