Electrical Wiring Dimmer Switch

Electrical wiring can be a complex task, especially when it comes to installing an Electrical Wiring Dimmer Switch. Whether you're looking to enhance the ambiance of your living room or save energy in your bedroom, understanding how to properly wire a dimmer switch is crucial. This guide will walk you through the process step-by-step, ensuring you have all the information you need to complete the task safely and efficiently.

Understanding Dimmer Switches

A dimmer switch is an essential component in modern electrical systems, allowing you to control the brightness of your lights. Unlike traditional switches that simply turn lights on and off, dimmer switches provide a range of lighting levels, making them ideal for creating the perfect atmosphere in any room.

Types of Dimmer Switches

Before diving into the installation process, it’s important to understand the different types of dimmer switches available:

Single-Pole Dimmer Switch: This is the most common type, used to control a single light fixture from one location.

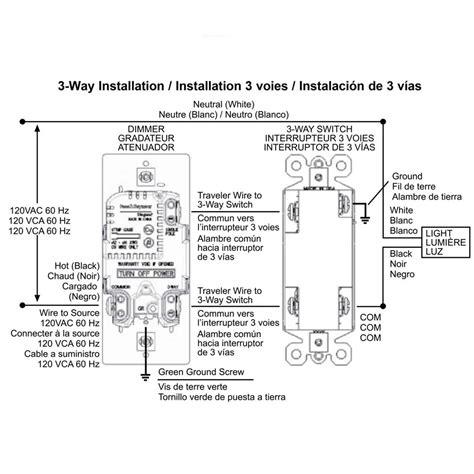

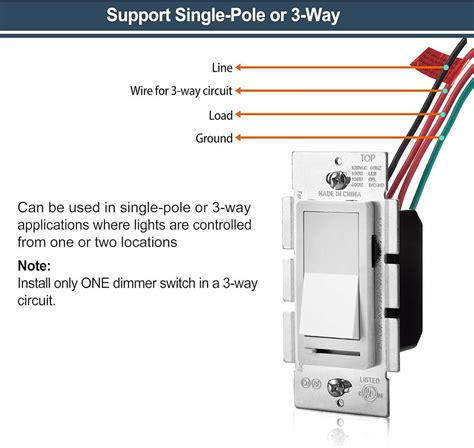

Three-Way Dimmer Switch: This type is used when you need to control a light from two different locations, such as at the top and bottom of a staircase.
Smart Dimmer Switch: These are advanced switches that can be controlled via a smartphone app or voice commands, often integrating with smart home systems.

Tools and Materials Needed

To install an Electrical Wiring Dimmer Switch, you will need the following tools and materials:

New dimmer switch
Screwdriver (flathead and Phillips)
Wire stripper
Wire nuts
Voltage tester
Needle-nose pliers
Safety glasses

Safety Precautions

Working with electrical wiring can be dangerous if not done correctly. Always follow these safety precautions:

Turn off the power at the circuit breaker before starting any work.
Use a voltage tester to ensure the power is off.
Wear safety glasses to protect your eyes from debris.
Avoid working in damp or wet conditions.

Step-by-Step Installation Guide

Follow these steps to install your Electrical Wiring Dimmer Switch:

Step 1: Turn Off the Power

Before you begin, turn off the power to the circuit you will be working on at the main circuit breaker. Use a voltage tester to ensure the power is off.

Step 2: Remove the Old Switch

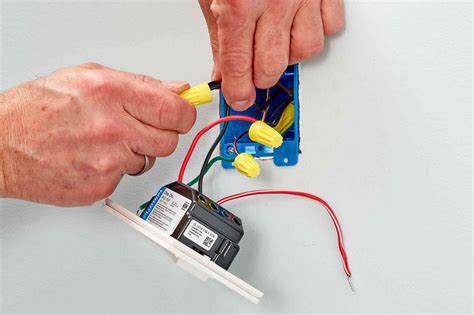

Remove the faceplate of the old switch by unscrewing it. Then, remove the screws holding the switch in place and pull the switch out of the wall box. Disconnect the wires from the old switch, noting their positions for reference.

Step 3: Prepare the New Dimmer Switch

Prepare the new dimmer switch by removing any packaging and familiarizing yourself with the wiring diagram provided with the switch. Most dimmer switches will have a green ground wire, a black hot wire, and a white neutral wire.

Step 4: Connect the Wires

Connect the wires to the new dimmer switch according to the wiring diagram. Typically, you will connect the black wire to the brass screw, the white wire to the silver screw, and the green or bare copper wire to the green ground screw. If your switch has a neutral wire, connect it to the neutral terminal on the switch.

Step 5: Secure the Dimmer Switch

Once the wires are connected, carefully push the dimmer switch back into the wall box and secure it with the screws. Make sure the switch is firmly in place and the wires are not pinched.

Step 6: Install the Faceplate

Attach the faceplate to the dimmer switch and secure it with the screws provided. Ensure the faceplate is level and flush with the wall.

Step 7: Test the Dimmer Switch

Turn the power back on at the circuit breaker and test the dimmer switch to ensure it is working correctly. Adjust the brightness level to make sure the switch is functioning as expected.

🔧 Note: If the dimmer switch does not work, double-check all wire connections and ensure the power is turned on.

Troubleshooting Common Issues

Even with careful installation, you may encounter some issues. Here are some common problems and their solutions:

Dimmer Switch Not Working

If the dimmer switch does not work at all, check the following:

Ensure the power is turned on at the circuit breaker.
Verify that all wires are properly connected.
Check for any loose connections or damaged wires.

Dimmer Switch Flickers

If the dimmer switch flickers, it could be due to:

Incompatible light bulbs (use dimmable bulbs).
Loose wire connections.
Faulty dimmer switch (try replacing it).

Dimmer Switch Makes Noise

If the dimmer switch makes a buzzing or humming noise, it could be caused by:

Incompatible light bulbs (use dimmable bulbs).
Loose wire connections.
Faulty dimmer switch (try replacing it).

Advanced Tips for Smart Dimmer Switches

If you’re installing a smart dimmer switch, follow these additional steps:

Download the manufacturer’s app on your smartphone and create an account if required.

Step 2: Connect to Wi-Fi

Follow the app’s instructions to connect the smart dimmer switch to your Wi-Fi network. This usually involves pressing a button on the switch and entering your Wi-Fi credentials in the app.

Step 3: Configure Settings

Use the app to configure the settings for your smart dimmer switch. This may include setting schedules, creating scenes, or integrating with other smart home devices.

Step 4: Test the Smart Features

Test the smart features of your dimmer switch, such as voice control or remote access, to ensure everything is working correctly.

🔧 Note: Ensure your smart dimmer switch is compatible with your existing smart home system before purchasing.

Maintenance and Care

To ensure the longevity and proper functioning of your Electrical Wiring Dimmer Switch, follow these maintenance tips:

Regularly check the switch for any signs of wear or damage.
Keep the switch clean and free of dust.
Avoid overloading the switch with too many lights or high-wattage bulbs.
Replace the switch if it shows signs of malfunctioning, such as flickering or making noise.

Installing an Electrical Wiring Dimmer Switch can significantly enhance the functionality and aesthetics of your lighting system. By following the steps outlined in this guide, you can ensure a safe and successful installation. Whether you choose a traditional dimmer switch or a smart dimmer switch, understanding the basics of electrical wiring and safety precautions is essential. With the right tools and knowledge, you can enjoy the benefits of a dimmer switch in your home.
