Lightning is a powerful and unpredictable force of nature that can cause significant damage to structures and infrastructure. One of the most effective ways to protect buildings and other structures from lightning strikes is by installing a Lightning Protection Rod. This device, also known as a lightning rod or air terminal, is designed to intercept lightning strikes and safely conduct the electrical current to the ground, thereby preventing damage to the structure.
Understanding Lightning Protection Rods
A Lightning Protection Rod is a metallic rod or conductor that is installed at the highest point of a structure. Its primary function is to provide a low-resistance path for the lightning current to travel to the ground, thereby protecting the structure from potential damage. The rod is typically made of conductive materials such as copper or aluminum, which are excellent conductors of electricity.
The concept of a Lightning Protection Rod was first introduced by Benjamin Franklin in the 18th century. Franklin's invention revolutionized the way buildings were protected from lightning strikes, and his design remains the foundation for modern lightning protection systems. Over the years, advancements in technology and materials have led to the development of more efficient and reliable Lightning Protection Rods.

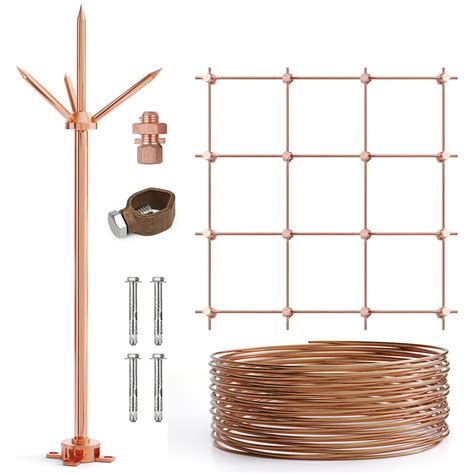

Components of a Lightning Protection System
A comprehensive lightning protection system consists of several key components, each playing a crucial role in ensuring the safety of the structure. These components include:
- Air Terminals (Lightning Protection Rods): These are the metallic rods installed at the highest points of the structure to intercept lightning strikes.
- Down Conductors: These are conductive paths that connect the air terminals to the grounding system, allowing the lightning current to flow safely to the ground.
- Grounding Electrodes: These are conductive elements buried in the ground that provide a low-resistance path for the lightning current to dissipate into the earth.
- Equipotential Bonding: This involves connecting all metallic parts of the structure to the lightning protection system to ensure they are at the same electrical potential, preventing dangerous voltage differences.
Types of Lightning Protection Rods
There are several types of Lightning Protection Rods available, each designed for specific applications and environments. Some of the most common types include:
- Early Streamer Emission (ESE) Rods: These rods are designed to emit a streamer of ions that attracts the lightning strike, increasing the protection radius.

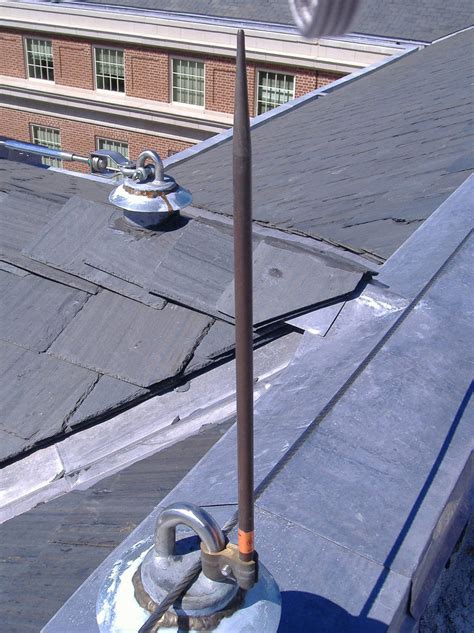

- Franklin Rods: These are the traditional Lightning Protection Rods that rely on their height and conductivity to intercept lightning strikes.
- Chimney Rods: These are specifically designed for installation on chimneys and other vertical structures to protect them from lightning strikes.

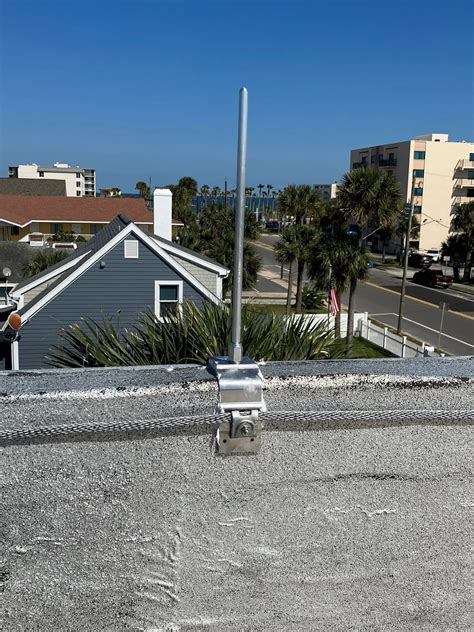

- Flat Roof Rods: These are designed for installation on flat roofs and are often used in commercial and industrial buildings.
Installation of Lightning Protection Rods
The installation of a Lightning Protection Rod involves several steps to ensure it is properly integrated into the structure's lightning protection system. Here is a general overview of the installation process:
- Site Assessment: Conduct a thorough assessment of the structure to determine the best locations for installing the Lightning Protection Rods. This includes identifying the highest points of the structure and any potential hazards.
- Material Selection: Choose the appropriate materials for the Lightning Protection Rods and other components of the system. Copper and aluminum are commonly used due to their excellent conductivity.
- Installation of Air Terminals: Install the Lightning Protection Rods at the designated locations, ensuring they are securely fastened and properly grounded.
- Down Conductor Installation: Connect the air terminals to the grounding system using down conductors. These conductors should be routed in a straight line to minimize resistance.
- Grounding System Installation: Install the grounding electrodes in the ground, ensuring they are deeply buried and provide a low-resistance path for the lightning current.
- Equipotential Bonding: Connect all metallic parts of the structure to the lightning protection system to ensure they are at the same electrical potential.
- Testing and Inspection: Conduct thorough testing and inspection of the lightning protection system to ensure it is functioning correctly and meets all safety standards.
🔍 Note: It is essential to follow local building codes and regulations when installing a Lightning Protection Rod system. Consulting with a professional lightning protection specialist is recommended to ensure the system is designed and installed correctly.
Maintenance of Lightning Protection Rods
Regular maintenance of a Lightning Protection Rod system is crucial to ensure its continued effectiveness and reliability. Here are some key maintenance tasks:
- Visual Inspections: Conduct regular visual inspections of the Lightning Protection Rods and other components to check for any signs of damage or corrosion.
- Cleaning: Clean the Lightning Protection Rods and down conductors to remove any dirt, debris, or corrosion that could affect their conductivity.
- Testing: Periodically test the grounding system to ensure it provides a low-resistance path for the lightning current.
- Repairs and Replacements: Repair or replace any damaged or corroded components of the lightning protection system as needed.
By following a regular maintenance schedule, you can ensure that your Lightning Protection Rod system remains effective and provides reliable protection against lightning strikes.
Benefits of Installing Lightning Protection Rods
Installing a Lightning Protection Rod system offers numerous benefits, including:
- Protection Against Fire: Lightning strikes can cause fires, and a Lightning Protection Rod system helps prevent this by providing a safe path for the lightning current.
- Safety for Occupants: By protecting the structure from lightning strikes, a Lightning Protection Rod system ensures the safety of the occupants.
- Preservation of Property: Lightning strikes can cause significant damage to buildings and their contents. A Lightning Protection Rod system helps preserve the property by preventing such damage.
- Compliance with Regulations: Many building codes and regulations require the installation of lightning protection systems. Installing a Lightning Protection Rod system ensures compliance with these regulations.
Common Misconceptions About Lightning Protection Rods
There are several misconceptions about Lightning Protection Rods that can lead to improper installation or maintenance. Some of the most common misconceptions include:
- Lightning Rods Attract Lightning: This is a common myth. Lightning Protection Rods do not attract lightning; they simply provide a low-resistance path for the lightning current to travel to the ground.
- Lightning Rods Are Only for Tall Buildings: While tall buildings are more susceptible to lightning strikes, any structure can benefit from a Lightning Protection Rod system, regardless of its height.
- Lightning Rods Are Expensive: The cost of installing a Lightning Protection Rod system varies depending on the size and complexity of the structure. However, the cost is often justified by the protection it provides against potential damage and loss.
Understanding these misconceptions can help ensure that Lightning Protection Rods are installed and maintained correctly, providing effective protection against lightning strikes.
Case Studies: Successful Implementation of Lightning Protection Rods
Several case studies highlight the successful implementation of Lightning Protection Rod systems in various settings. These examples demonstrate the effectiveness of lightning protection systems in protecting structures from lightning strikes.
One notable case study involves a large commercial building that experienced frequent lightning strikes, resulting in significant damage and disruption to operations. After installing a comprehensive Lightning Protection Rod system, the building experienced no further damage from lightning strikes, and operations were able to continue uninterrupted.
Another case study involves a residential community that was prone to lightning strikes due to its location in a high-risk area. By installing Lightning Protection Rods on all the homes in the community, the residents were able to protect their properties from lightning damage and ensure the safety of their families.
These case studies illustrate the importance of installing a Lightning Protection Rod system in structures that are at risk of lightning strikes. By providing a safe path for the lightning current to travel to the ground, these systems help prevent damage and ensure the safety of occupants.
In addition to these case studies, there are numerous examples of successful Lightning Protection Rod installations in various industries, including:
| Industry | Application | Benefits |
|---|---|---|
| Commercial Buildings | Protection of office spaces, retail stores, and other commercial structures | Prevention of fire, preservation of property, and compliance with regulations |
| Residential Homes | Protection of single-family homes, apartments, and condominiums | Safety for occupants, preservation of property, and peace of mind |
| Industrial Facilities | Protection of factories, warehouses, and other industrial structures | Prevention of equipment damage, preservation of inventory, and compliance with regulations |
| Historical Sites | Protection of museums, churches, and other historical structures | Preservation of cultural heritage, prevention of fire, and compliance with regulations |
These examples demonstrate the versatility and effectiveness of Lightning Protection Rod systems in protecting a wide range of structures from lightning strikes.
In conclusion, Lightning Protection Rods play a crucial role in protecting structures from the damaging effects of lightning strikes. By providing a safe path for the lightning current to travel to the ground, these systems help prevent fires, preserve property, and ensure the safety of occupants. Whether installed in commercial buildings, residential homes, industrial facilities, or historical sites, Lightning Protection Rods offer numerous benefits and are an essential component of any comprehensive lightning protection strategy. Regular maintenance and adherence to local building codes and regulations are key to ensuring the continued effectiveness and reliability of these systems.
