Anodic Stripping Voltammetry

Anodic Stripping Voltammetry (ASV) is a highly sensitive electrochemical technique used for the detection and quantification of trace metals in various samples. This method combines the principles of anodic stripping and voltammetry to achieve exceptional sensitivity and selectivity. ASV is particularly valuable in environmental monitoring, clinical analysis, and industrial quality control, where the detection of low concentrations of metals is crucial.

Understanding Anodic Stripping Voltammetry

Anodic Stripping Voltammetry involves two main steps: deposition and stripping. During the deposition step, the target metal ions are reduced and deposited onto a working electrode, typically a mercury or solid electrode. This step concentrates the metal ions on the electrode surface, enhancing the sensitivity of the detection process. In the stripping step, the deposited metal is oxidized back into the solution, and the resulting current is measured as a function of the applied potential. This current-voltage curve, known as a voltammogram, provides information about the concentration and identity of the metal ions in the sample.

Principles of Anodic Stripping Voltammetry

ASV operates on the principles of electrochemistry, where the electrochemical reactions at the electrode surface are controlled by applying a specific potential. The key steps involved in ASV are:

• Deposition: The sample solution is stirred, and a negative potential is applied to the working electrode. This causes the target metal ions to be reduced and deposited onto the electrode surface.
• Equilibration: After deposition, the solution is allowed to equilibrate, and the stirring is stopped to minimize convection.
• Stripping: A positive potential is applied to the working electrode, causing the deposited metal to be oxidized back into the solution. The resulting current is measured and recorded.

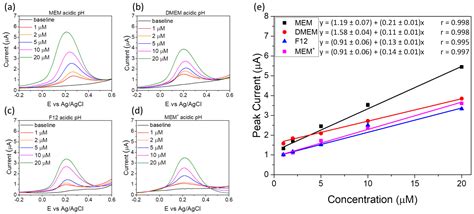

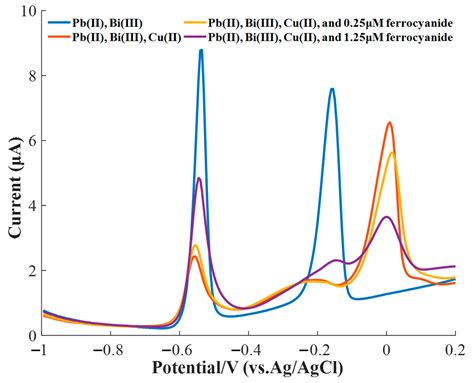

The stripping step generates a voltammogram, which is a plot of the current versus the applied potential. The peak current in the voltammogram is proportional to the concentration of the metal ions in the sample, allowing for quantitative analysis.

Applications of Anodic Stripping Voltammetry

Anodic Stripping Voltammetry is widely used in various fields due to its high sensitivity and selectivity. Some of the key applications include:

• Environmental Monitoring: ASV is used to detect trace metals in water, soil, and air samples. It helps in monitoring pollution levels and ensuring compliance with environmental regulations.
• Clinical Analysis: In medical diagnostics, ASV is employed to measure metal concentrations in biological fluids, such as blood and urine, aiding in the diagnosis of metal-related diseases.
• Industrial Quality Control: ASV is utilized in industries to monitor metal contamination in products and processes, ensuring product quality and safety.
• Food and Beverage Analysis: ASV can detect trace metals in food and beverage samples, helping to ensure food safety and compliance with regulatory standards.

Advantages of Anodic Stripping Voltammetry

Anodic Stripping Voltammetry offers several advantages that make it a preferred method for trace metal analysis:

• High Sensitivity: ASV can detect metal ions at very low concentrations, often in the parts per billion (ppb) range.
• Selectivity: The method allows for the selective detection of specific metal ions, even in complex matrices.
• Cost-Effective: ASV is relatively inexpensive compared to other analytical techniques, making it accessible for routine analysis.
• Rapid Analysis: The analysis time is relatively short, allowing for quick results and efficient monitoring.

Limitations of Anodic Stripping Voltammetry

Despite its advantages, ASV also has some limitations that need to be considered:

• Interference: Certain ions and compounds can interfere with the detection of target metals, affecting the accuracy of the results.
• Electrode Fouling: The working electrode can become fouled over time, reducing its sensitivity and requiring frequent cleaning or replacement.
• Sample Preparation: Proper sample preparation is crucial for accurate results, which can be time-consuming and complex.

Instrumentation for Anodic Stripping Voltammetry

The basic instrumentation for ASV includes a potentiostat, a working electrode, a reference electrode, and a counter electrode. The potentiostat controls the applied potential and measures the resulting current. The working electrode, typically made of mercury or a solid material like gold or glassy carbon, is where the electrochemical reactions occur. The reference electrode provides a stable potential reference, while the counter electrode completes the electrical circuit.

Here is a table summarizing the key components of ASV instrumentation:

🔍 Note: The choice of working electrode material can significantly impact the sensitivity and selectivity of ASV. Mercury electrodes are highly sensitive but have environmental concerns, while solid electrodes offer a more environmentally friendly alternative.

Sample Preparation for Anodic Stripping Voltammetry

Proper sample preparation is essential for accurate and reliable results in ASV. The steps involved in sample preparation typically include:

• Collection: Collect the sample in a clean container to avoid contamination.
• Filtration: Filter the sample to remove any particulate matter that could interfere with the analysis.
• Acidification: Acidify the sample to dissolve any metal ions and prevent precipitation.
• Dilution: Dilute the sample to bring the metal concentrations within the detectable range.
• Deaeration: Remove dissolved oxygen from the sample to minimize interference with the electrochemical reactions.

Each of these steps plays a crucial role in ensuring that the sample is suitable for ASV analysis. Proper sample preparation helps to minimize interference, enhance sensitivity, and improve the accuracy of the results.

📝 Note: The specific sample preparation steps may vary depending on the type of sample and the target metal ions. It is important to follow established protocols to ensure reliable results.

Data Analysis in Anodic Stripping Voltammetry

Data analysis in ASV involves interpreting the voltammogram to determine the concentration and identity of the metal ions in the sample. The key steps in data analysis include:

• Peak Identification: Identify the peaks in the voltammogram corresponding to the oxidation of the deposited metal ions.
• Peak Area Measurement: Measure the area under the peaks to quantify the amount of metal deposited on the electrode.
• Calibration: Use calibration curves to relate the peak area to the concentration of the metal ions in the sample.
• Interference Correction: Correct for any interference from other ions or compounds in the sample.

The voltammogram provides a visual representation of the electrochemical reactions occurring at the electrode surface. By analyzing the peaks in the voltammogram, researchers can determine the concentration and identity of the metal ions in the sample.

🔍 Note: Calibration curves are essential for accurate quantification in ASV. They are typically prepared using standard solutions of known concentrations.

Future Trends in Anodic Stripping Voltammetry

Anodic Stripping Voltammetry continues to evolve with advancements in technology and methodology. Some of the future trends in ASV include:

• Nanomaterial-Based Electrodes: The use of nanomaterials, such as carbon nanotubes and graphene, to enhance the sensitivity and selectivity of ASV.
• Microfluidic Devices: Integration of ASV with microfluidic devices for miniaturized and portable analysis.
• Automated Systems: Development of automated ASV systems for high-throughput analysis and improved efficiency.
• Environmental Monitoring: Enhanced use of ASV in real-time environmental monitoring and pollution control.

These trends highlight the ongoing development and application of ASV in various fields, ensuring its continued relevance and importance in trace metal analysis.

Anodic Stripping Voltammetry is a powerful and versatile technique for the detection and quantification of trace metals. Its high sensitivity, selectivity, and cost-effectiveness make it an invaluable tool in environmental monitoring, clinical analysis, and industrial quality control. By understanding the principles, applications, and limitations of ASV, researchers and analysts can effectively utilize this technique to address a wide range of analytical challenges.
