Embarking on a journey into the world of computer architecture, particularly the MIPS (Microprocessor without Interlocked Pipeline Stages) architecture, can be both fascinating and complex. One of the critical documents that students and professionals often encounter is the MIPS Green Sheet. This document serves as a comprehensive guide to understanding the MIPS instruction set, which is fundamental for anyone studying or working in the field of computer science and engineering.

Table of Contents

Understanding the MIPS Architecture

The MIPS architecture is renowned for its simplicity and efficiency. Developed by MIPS Technologies, it is widely used in educational settings due to its straightforward design, which makes it easier to teach and learn. The architecture is based on a Reduced Instruction Set Computing (RISC) model, which means it has a fixed-length instruction format and a limited number of instructions. This design philosophy aims to simplify the instruction set, making it easier to implement and optimize.

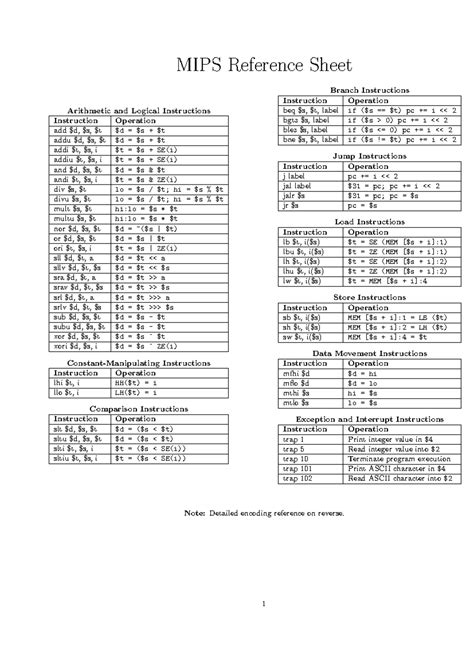

The Importance of the MIPS Green Sheet

The MIPS Green Sheet is an essential resource for anyone delving into the MIPS instruction set. It provides a detailed list of all the instructions available in the MIPS architecture, along with their formats, operations, and examples. This document is particularly valuable for students taking courses in computer organization and architecture, as it serves as a quick reference guide for understanding how to write assembly language programs for MIPS processors.

Key Components of the MIPS Green Sheet

The MIPS Green Sheet is organized into several key sections, each providing crucial information about the MIPS instruction set. These sections include:

Instruction Format: This section details the structure of MIPS instructions, including the opcode, register fields, and immediate or address fields.
Instruction Set: This is the core of the MIPS Green Sheet, listing all the instructions along with their mnemonics, formats, and descriptions.
Registers: Information about the general-purpose registers, special-purpose registers, and their uses.
Examples: Practical examples of how to use various instructions, which are invaluable for understanding the application of the instruction set.

Instruction Formats in MIPS

The MIPS architecture uses a fixed-length instruction format of 32 bits. The instructions are categorized into three main formats: R-type, I-type, and J-type. Each format has a specific structure that determines how the instruction is interpreted by the processor.

Instruction Type	Format	Description
R-type	op \| rs \| rt \| rd \| shamt \| funct	Used for arithmetic and logical operations involving registers.
I-type	op \| rs \| rt \| immediate	Used for instructions that involve immediate values or memory addresses.
J-type	op \| address	Used for jump instructions.

📝 Note: Understanding these formats is crucial for writing efficient assembly language programs. Each format has specific fields that must be correctly filled to ensure the instruction is executed as intended.

Common MIPS Instructions

The MIPS Green Sheet lists a wide range of instructions, but some are more commonly used than others. Here are a few examples:

ADD: Adds two registers and stores the result in a third register.
SUB: Subtracts the value of one register from another and stores the result in a third register.
AND: Performs a bitwise AND operation on two registers and stores the result in a third register.
OR: Performs a bitwise OR operation on two registers and stores the result in a third register.
LW: Loads a word from memory into a register.
SW: Stores a word from a register into memory.
BEQ: Branches to a specified address if two registers are equal.
BNE: Branches to a specified address if two registers are not equal.
J: Jumps to a specified address.

Writing MIPS Assembly Programs

Writing assembly language programs for MIPS involves understanding how to use the instructions listed in the MIPS Green Sheet. Here is a simple example of a MIPS assembly program that adds two numbers and stores the result in a register:

.data
num1: .word 5
num2: .word 10
result: .word 0

.text
.globl main
main:
    la $t0, num1       # Load address of num1 into $t0
    lw $t1, 0($t0)      # Load value of num1 into $t1
    la $t2, num2        # Load address of num2 into $t2
    lw $t3, 0($t2)      # Load value of num2 into $t3
    add $t4, $t1, $t3   # Add $t1 and $t3, store result in $t4
    la $t5, result      # Load address of result into $t5
    sw $t4, 0($t5)      # Store result in memory
    li $v0, 10          # Load immediate value 10 into $v0 (exit code)
    syscall             # System call to exit

📝 Note: This example demonstrates basic memory operations and arithmetic instructions. The .data section defines the data, while the .text section contains the code.

Advanced MIPS Instructions

Beyond the basic instructions, the MIPS Green Sheet also includes more advanced instructions that are essential for complex programming tasks. These instructions often involve more intricate operations and are used in scenarios where performance and efficiency are critical.

MULT: Multiplies two registers and stores the result in a special-purpose register.
DIV: Divides the value of one register by another and stores the quotient and remainder in special-purpose registers.
MFC0: Moves a value from a coprocessor register to a general-purpose register.
MTC0: Moves a value from a general-purpose register to a coprocessor register.

Optimizing MIPS Programs

Optimizing MIPS programs involves understanding the instruction set and using it efficiently. Here are some tips for optimizing MIPS programs:

Minimize Memory Access: Memory access is slower than register access, so try to keep frequently used data in registers.
Use Efficient Instructions: Choose instructions that perform the desired operation with the fewest cycles.
Avoid Branches: Branches can disrupt the pipeline, so try to minimize their use.
Use Loop Unrolling: Unrolling loops can reduce the overhead of loop control instructions.

📝 Note: Optimization is an iterative process. Profile your code to identify bottlenecks and focus on optimizing those areas.

In the realm of computer architecture, the MIPS Green Sheet stands as a beacon of knowledge, guiding students and professionals through the intricacies of the MIPS instruction set. By understanding the key components, instruction formats, and common instructions, one can write efficient and optimized assembly language programs. The MIPS Green Sheet is not just a reference document; it is a tool that empowers learners to delve deeper into the world of computer science and engineering, fostering a deeper appreciation for the underlying principles of computer architecture.
