Understanding the fundamentals of digital logic gates is crucial for anyone delving into the world of electronics and computer science. Among these fundamental gates, the XNOR gate holds a unique position due to its specific functionality and applications. This post will delve into the intricacies of the XNOR gate, its truth table, and its practical uses in various electronic circuits.
What is an XNOR Gate?
The XNOR gate, short for “exclusive NOR,” is a digital logic gate that outputs true (1) only when the number of true inputs is even. In simpler terms, it outputs 1 when both inputs are the same (either both 0 or both 1) and 0 when the inputs are different. This behavior makes the XNOR gate a valuable component in many digital circuits.

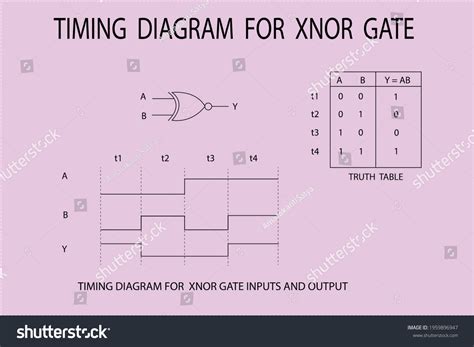

XNOR Gate Truth Table
The XNOR gate truth table is a fundamental tool for understanding its behavior. The truth table for an XNOR gate with two inputs, A and B, is as follows:
| A | B | Output (A XNOR B) |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
From the XNOR gate truth table, it is clear that the output is 1 when both inputs are the same and 0 when they are different. This characteristic is what sets the XNOR gate apart from other logic gates like AND, OR, and XOR.
How Does an XNOR Gate Work?
The XNOR gate can be thought of as a combination of other basic logic gates. It can be constructed using a combination of an XOR gate followed by a NOT gate. The XOR gate outputs 1 when the inputs are different and 0 when they are the same. By inverting the output of the XOR gate using a NOT gate, we get the XNOR gate’s behavior.
Here is a step-by-step breakdown of how an XNOR gate works:
- Step 1: Inputs A and B are fed into an XOR gate.
- Step 2: The XOR gate outputs 1 if A and B are different and 0 if they are the same.
- Step 3: The output of the XOR gate is then fed into a NOT gate.
- Step 4: The NOT gate inverts the output of the XOR gate, resulting in the XNOR gate's final output.
This combination ensures that the XNOR gate outputs 1 when both inputs are the same and 0 when they are different.
💡 Note: The XNOR gate is often used in parity checking and error detection circuits due to its ability to compare two binary inputs and determine if they are the same.
Applications of the XNOR Gate
The XNOR gate finds applications in various fields of electronics and computer science. Some of the key applications include:
- Parity Checking: XNOR gates are used in parity checking circuits to ensure data integrity. By comparing the parity bit with the data bits, the XNOR gate can detect errors in data transmission.
- Error Detection: In digital communication systems, XNOR gates are used to detect errors in transmitted data. They compare the received data with the expected data and generate an error signal if a mismatch is detected.
- Comparator Circuits: XNOR gates are used in comparator circuits to compare two binary numbers. The output of the XNOR gate indicates whether the two numbers are identical.
- Control Systems: In control systems, XNOR gates are used to synchronize signals and ensure that control signals are consistent.
These applications highlight the versatility and importance of the XNOR gate in modern electronic systems.
XNOR Gate in Digital Circuits
The XNOR gate plays a crucial role in various digital circuits. Its ability to compare two binary inputs makes it an essential component in many digital systems. Here are some examples of how the XNOR gate is used in digital circuits:
- Half Adder: The XNOR gate is used in the design of a half adder circuit. A half adder adds two single-bit binary numbers and produces a sum and a carry. The XNOR gate is used to generate the sum bit.
- Full Adder: In a full adder circuit, which adds three single-bit binary numbers, the XNOR gate is used to generate the sum bit. The full adder is a fundamental building block in arithmetic logic units (ALUs).
- Parity Generator: The XNOR gate is used in parity generator circuits to generate a parity bit for a set of data bits. The parity bit is used to detect errors in data transmission.
These examples illustrate the importance of the XNOR gate in digital circuit design and its role in ensuring the reliability and accuracy of digital systems.
💡 Note: The XNOR gate is often used in combination with other logic gates to create more complex digital circuits. Its ability to compare two binary inputs makes it a valuable component in many digital systems.
XNOR Gate vs. XOR Gate
It is essential to understand the difference between the XNOR gate and the XOR gate. While both gates are used to compare two binary inputs, they have different output behaviors. The XOR gate outputs 1 when the inputs are different and 0 when they are the same, whereas the XNOR gate outputs 1 when the inputs are the same and 0 when they are different.
Here is a comparison of the XNOR gate and the XOR gate:
| Gate | Output when inputs are the same | Output when inputs are different |
|---|---|---|
| XNOR | 1 | 0 |
| XOR | 0 | 1 |
This comparison highlights the fundamental difference between the XNOR gate and the XOR gate and their respective applications in digital circuits.
Conclusion
The XNOR gate is a fundamental component in digital logic circuits, with its unique behavior and applications making it indispensable in various electronic systems. Understanding the XNOR gate truth table and its functionality is crucial for anyone working in the field of electronics and computer science. From parity checking and error detection to comparator circuits and control systems, the XNOR gate plays a vital role in ensuring the reliability and accuracy of digital systems. Its ability to compare two binary inputs and generate an output based on their equality makes it a valuable tool in digital circuit design. By mastering the XNOR gate and its applications, one can gain a deeper understanding of digital logic and its role in modern technology.
