Statistical process control (SPC) is a powerful methodology used to monitor and control processes to ensure they operate efficiently and produce more specifiable products. One of the most widely used tools in SPC is the Xbar and R Chart. This chart is essential for understanding and controlling the variability in a process, making it a cornerstone of quality management. This post will delve into the intricacies of the Xbar and R Chart, its applications, and how to create and interpret it effectively.
Understanding the Xbar and R Chart
The Xbar and R Chart is a type of control chart used to monitor the stability and capability of a process. It consists of two charts: the Xbar chart and the R chart. The Xbar chart tracks the average (mean) of a sample, while the R chart tracks the range (difference between the maximum and minimum values) of the sample. Together, they provide a comprehensive view of the process variability and help identify any special causes of variation.
Components of the Xbar and R Chart
The Xbar and R Chart comprises several key components:
- Xbar Chart: This chart plots the average of each sample over time. It helps monitor the central tendency of the process.
- R Chart: This chart plots the range of each sample over time. It helps monitor the variability within the samples.
- Centerline (CL): The average of all sample means for the Xbar chart and the average of all sample ranges for the R chart.
- Upper Control Limit (UCL) and Lower Control Limit (LCL): These limits define the acceptable range of variation for the process. Points outside these limits indicate special causes of variation.
Creating an Xbar and R Chart
Creating an Xbar and R Chart involves several steps. Here’s a detailed guide:
Step 1: Collect Data
Gather data from the process in subgroups. Each subgroup should contain a fixed number of observations. The size of the subgroup (n) should be consistent throughout the data collection process.
Step 2: Calculate Sample Means and Ranges
For each subgroup, calculate the sample mean (Xbar) and the range (R). The sample mean is the average of the observations in the subgroup, while the range is the difference between the highest and lowest values in the subgroup.
Step 3: Calculate Control Limits
Calculate the centerline (CL), upper control limit (UCL), and lower control limit (LCL) for both the Xbar and R charts. The formulas for these calculations are as follows:
| Chart | Centerline (CL) | Upper Control Limit (UCL) | Lower Control Limit (LCL) |
|---|---|---|---|
| Xbar Chart | X̄ = ΣXbar / k | UCL = X̄ + A2 * R̄ | LCL = X̄ - A2 * R̄ |
| R Chart | R̄ = ΣR / k | UCL = D4 * R̄ | LCL = D3 * R̄ |
Where:
- X̄ is the average of all sample means.
- R̄ is the average of all sample ranges.
- k is the number of subgroups.
- A2, D3, and D4 are constants that depend on the subgroup size (n).
Step 4: Plot the Data
Plot the sample means on the Xbar chart and the sample ranges on the R chart. Draw the centerline and control limits on both charts.
Step 5: Interpret the Charts

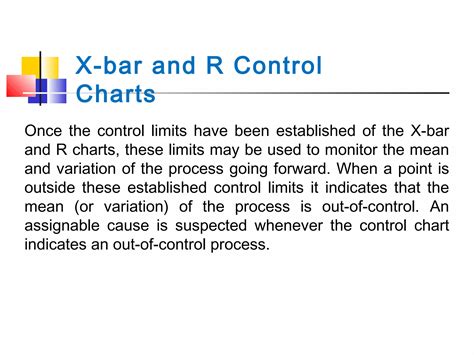

Analyze the charts to identify any points that fall outside the control limits. Points outside the control limits indicate special causes of variation that need to be investigated. Additionally, look for patterns or trends in the data that may suggest process instability.
📝 Note: It is crucial to ensure that the data collected is representative of the process and that the subgroup size is appropriate for the process being monitored.
Interpreting the Xbar and R Chart
Interpreting an Xbar and R Chart involves understanding the patterns and trends in the data. Here are some key points to consider:
- Points Outside Control Limits: Any point that falls outside the UCL or LCL indicates a special cause of variation. These points should be investigated to determine the root cause and take corrective action.
- Trends and Patterns: Look for trends or patterns in the data, such as a series of points increasing or decreasing over time. These trends may indicate a shift in the process mean or an increase in variability.
- Stability: A stable process will have points that fall within the control limits and show no discernible trends or patterns. This indicates that the process is in control and producing consistent results.
Applications of the Xbar and R Chart
The Xbar and R Chart is widely used in various industries to monitor and control processes. Some common applications include:
- Manufacturing: Monitoring the dimensions of manufactured parts to ensure they meet specifications.
- Healthcare: Tracking patient vital signs to ensure they remain within safe limits.
- Service Industries: Monitoring customer wait times to ensure they are within acceptable ranges.
- Food and Beverage: Controlling the consistency of product ingredients and packaging.
In each of these applications, the Xbar and R Chart helps identify and address variations in the process, leading to improved quality and efficiency.
Benefits of Using the Xbar and R Chart
Using an Xbar and R Chart offers several benefits:
- Improved Quality: By monitoring and controlling process variability, the chart helps ensure that products meet quality standards.
- Early Detection of Issues: The chart allows for the early detection of special causes of variation, enabling timely corrective action.
- Data-Driven Decisions: The chart provides a visual representation of process data, making it easier to make informed decisions.
- Continuous Improvement: By identifying and addressing variations, the chart supports continuous improvement efforts.
Overall, the Xbar and R Chart is a valuable tool for any organization looking to improve process stability and quality.
In conclusion, the Xbar and R Chart is an essential tool in statistical process control, providing a comprehensive view of process variability and helping to identify special causes of variation. By understanding and effectively using this chart, organizations can improve process stability, enhance product quality, and achieve continuous improvement. The key to successful implementation lies in accurate data collection, proper calculation of control limits, and thorough interpretation of the charts. With these elements in place, the Xbar and R Chart can be a powerful asset in any quality management system.
