Wiring Layout Diagram

Electrical wiring is a critical aspect of any building project, whether it's a residential home, commercial space, or industrial facility. A well-designed wiring layout diagram is essential for ensuring that the electrical system is safe, efficient, and compliant with local regulations. This guide will walk you through the importance of a wiring layout diagram, the key components involved, and the steps to create an effective one.

Understanding the Importance of a Wiring Layout Diagram

A wiring layout diagram is a visual representation of an electrical system that shows the arrangement of wires, circuits, and components. It serves as a blueprint for electricians and contractors, guiding them through the installation process. Here are some reasons why a wiring layout diagram is crucial:

• Safety: A well-documented wiring layout diagram helps prevent electrical hazards by ensuring that all components are correctly installed and wired.
• Efficiency: It optimizes the electrical system's performance by minimizing power loss and ensuring that all components are properly connected.
• Compliance: It ensures that the electrical system meets local building codes and regulations, which is essential for obtaining necessary permits and inspections.
• Maintenance: A wiring layout diagram makes it easier to troubleshoot and maintain the electrical system, as it provides a clear map of all components and connections.

Key Components of a Wiring Layout Diagram

Before diving into the creation process, it's important to understand the key components that make up a wiring layout diagram. These components include:

• Power Source: The origin of the electrical supply, such as a main panel or subpanel.
• Wires and Cables: The conductors that carry electrical current from the power source to various components.
• Switches and Outlets: Devices that control the flow of electricity to lights, appliances, and other equipment.
• Fixtures and Appliances: The end-use devices that consume electrical power, such as lights, HVAC systems, and kitchen appliances.
• Protective Devices: Components like circuit breakers and fuses that protect the electrical system from overloads and short circuits.

Creating a Wiring Layout Diagram

Creating a wiring layout diagram involves several steps, from gathering information to finalizing the design. Here's a step-by-step guide to help you through the process:

Step 1: Gather Information

Before you start designing, you need to gather all relevant information about the electrical system. This includes:

• The size and layout of the building.
• The location of the main power source.
• The types and quantities of fixtures, appliances, and other electrical devices.
• Local building codes and regulations.

Step 2: Plan the Layout

Based on the gathered information, plan the layout of the electrical system. This involves deciding the placement of switches, outlets, and other components. Consider the following factors:

• Functionality: Ensure that switches and outlets are placed in convenient locations for easy access.
• Safety: Avoid placing outlets near water sources and ensure that all components are easily accessible for maintenance.
• Efficiency: Minimize the length of wires and cables to reduce power loss and installation costs.

Step 3: Design the Wiring Layout Diagram

Using the planned layout, create a detailed wiring layout diagram. This can be done using specialized software or manually on graph paper. Include the following details:

• The location and type of each component (switches, outlets, fixtures, etc.).
• The routing of wires and cables, including their sizes and types.
• The location and type of protective devices (circuit breakers, fuses, etc.).
• Any special notes or instructions for installation.

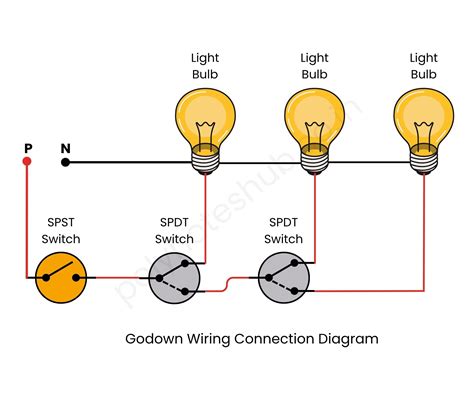

Here is an example of how a wiring layout diagram might look:

🔍 Note: Ensure that all components are clearly labeled and that the diagram is easy to read and understand.

Step 4: Review and Finalize

Once the wiring layout diagram is complete, review it carefully to ensure accuracy and compliance with local regulations. Make any necessary adjustments and finalize the design. It's also a good idea to have the diagram reviewed by a licensed electrician to ensure that it meets all safety standards.

🔍 Note: Always double-check the diagram for any errors or omissions before proceeding with installation.

Common Mistakes to Avoid

Creating a wiring layout diagram can be complex, and there are several common mistakes to avoid:

• Inaccurate Measurements: Ensure that all measurements are precise to avoid installation issues.
• Ignoring Local Codes: Always comply with local building codes and regulations to avoid fines and safety hazards.
• Overlooking Safety Features: Include all necessary protective devices and safety features in the design.
• Poor Documentation: Clearly label all components and provide detailed instructions for installation.

Tools and Software for Creating Wiring Layout Diagrams

There are several tools and software programs available to help you create a wiring layout diagram. Some popular options include:

• AutoCAD Electrical: A comprehensive software for designing electrical systems, including wiring layout diagrams.
• Eagle: A versatile tool for creating schematics and PCB layouts, which can also be used for wiring diagrams.
• SmartDraw: A user-friendly software for creating a variety of diagrams, including wiring layout diagrams.
• Lucidchart: An online tool for creating diagrams and flowcharts, which can be used for wiring layout diagrams.

These tools offer various features and functionalities, so choose one that best fits your needs and budget.

Here is an example of a wiring layout diagram created using software:

Best Practices for Wiring Layout Diagrams

To ensure that your wiring layout diagram is effective and reliable, follow these best practices:

• Use Standard Symbols: Follow industry-standard symbols for all components to ensure clarity and understanding.
• Keep It Simple: Avoid cluttering the diagram with unnecessary details. Focus on the essential components and connections.
• Label Everything: Clearly label all components, wires, and connections to make the diagram easy to follow.
• Include a Legend: Provide a legend or key that explains the symbols and abbreviations used in the diagram.
• Regularly Update: Keep the wiring layout diagram up-to-date with any changes or modifications to the electrical system.

By following these best practices, you can create a wiring layout diagram that is accurate, easy to understand, and compliant with all relevant standards.

Here is an example of a legend for a wiring layout diagram:

🔍 Note: A well-organized legend can significantly enhance the readability of your wiring layout diagram.

In conclusion, a wiring layout diagram is an essential tool for designing and installing electrical systems. It ensures safety, efficiency, and compliance with local regulations. By understanding the key components, following the creation steps, and adhering to best practices, you can create an effective wiring layout diagram that meets all your needs. Whether you’re a professional electrician or a DIY enthusiast, a well-designed wiring layout diagram is crucial for a successful electrical project.
