Wire A Switch Diagram

Understanding how to wire a switch diagram is essential for anyone involved in electrical work, whether you're a professional electrician or a DIY enthusiast. A well-wired switch ensures the safe and efficient operation of electrical circuits in your home or workplace. This guide will walk you through the basics of wiring a switch, including the tools you need, the types of switches, and step-by-step instructions for wiring a single-pole switch.

Tools and Materials Needed

Before you begin, gather the necessary tools and materials. Having everything on hand will make the process smoother and more efficient.

• Screwdrivers (both flathead and Phillips)
• Wire strippers
• Wire cutters
• Needle-nose pliers
• Voltage tester
• Single-pole switch
• Electrical wire (usually ¹⁴⁄₂ or ¹²⁄₂ gauge)
• Wire nuts
• Electrical tape

Types of Switches

There are several types of switches, each serving different purposes. Understanding the differences will help you choose the right switch for your needs.

• Single-Pole Switch: Controls a light or outlet from one location.
• Three-Way Switch: Controls a light or outlet from two locations.
• Four-Way Switch: Used in conjunction with three-way switches to control a light or outlet from three or more locations.
• Dimmer Switch: Allows you to adjust the brightness of a light.
• Toggle Switch: A basic on/off switch.

Understanding a Wire A Switch Diagram

A wire a switch diagram is a visual representation of how electrical wires are connected to a switch. It shows the path of the electrical current and helps ensure that the switch is wired correctly. The diagram typically includes the following components:

• Power source (usually a circuit breaker or fuse box)
• Switch
• Light fixture or outlet
• Electrical wires (hot, neutral, and ground)

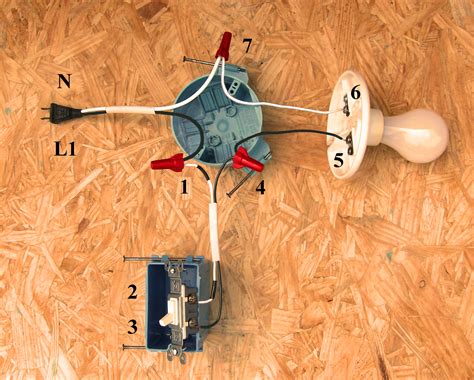

Here is a basic wire a switch diagram for a single-pole switch:

Step-by-Step Guide to Wiring a Single-Pole Switch

Wiring a single-pole switch is a straightforward process if you follow these steps carefully. Always remember to turn off the power at the circuit breaker before starting any electrical work.

Step 1: Turn Off the Power

Before you begin, turn off the power to the circuit you will be working on at the circuit breaker. Use a voltage tester to ensure that the power is off.

Step 2: Remove the Old Switch

Remove the faceplate of the switch and unscrew the switch from the electrical box. Pull the switch out of the box and disconnect the wires. Note how the wires are connected before removing the switch.

Step 3: Prepare the New Switch

Prepare the new switch by removing any packaging and ensuring it is in good condition. If the switch has a green ground screw, make sure it is tight.

Step 4: Connect the Wires

Connect the wires to the new switch according to the wire a switch diagram. Typically, you will have a black (hot) wire, a white (neutral) wire, and a bare or green (ground) wire.

• Connect the black wire to the brass screw on the switch.
• Connect the white wire to the silver screw on the switch.
• Connect the bare or green wire to the green ground screw on the switch.

If your switch does not have a ground screw, you can twist the ground wire with the other ground wires in the box and secure it with a wire nut.

Step 5: Secure the Switch

Push the switch back into the electrical box and secure it with screws. Make sure the switch is firmly in place and that the wires are not pinched or damaged.

Step 6: Reattach the Faceplate

Reattach the faceplate to the switch and secure it with screws. Ensure the faceplate is flush with the wall.

Step 7: Turn On the Power

Turn the power back on at the circuit breaker and test the switch to ensure it is working correctly.

🔧 Note: Always double-check your connections before turning the power back on. Loose or improperly connected wires can cause shorts or fires.

Troubleshooting Common Issues

Even with careful planning and execution, issues can arise. Here are some common problems and their solutions:

Switch Doesn’t Work

If the switch doesn’t work after installation, check the following:

• Ensure the power is turned on at the circuit breaker.
• Verify that the wires are properly connected to the switch.
• Check for any loose or damaged wires.

Switch is Loose

If the switch feels loose, it may not be securely fastened to the electrical box. Tighten the screws and ensure the switch is firmly in place.

Switch is Hot to the Touch

If the switch is hot to the touch, it may be overloaded or there may be a short circuit. Turn off the power immediately and inspect the wiring for any issues. If necessary, consult a professional electrician.

Safety Precautions

Working with electrical components can be dangerous if not done correctly. Always follow these safety precautions:

• Turn off the power at the circuit breaker before starting any work.
• Use a voltage tester to ensure the power is off.
• Wear appropriate safety gear, including gloves and safety glasses.
• Avoid working in damp or wet conditions.
• Keep a fire extinguisher nearby in case of emergencies.

⚠️ Note: If you are unsure about any aspect of the wiring process, consult a licensed electrician. Safety should always be your top priority.

Conclusion

Wiring a switch is a fundamental skill for anyone involved in electrical work. By understanding the basics of a wire a switch diagram and following the steps outlined in this guide, you can ensure that your electrical circuits are safe and functional. Always prioritize safety and double-check your work to avoid potential hazards. With practice and attention to detail, you can confidently wire switches in your home or workplace.
