Understanding the intricacies of structural engineering often involves delving into the specifics of various components, one of the most fundamental being the wide flange beam. These beams, also known as I-beams or H-beams, are essential in construction due to their strength and efficiency. This post will explore the significance of wide flange beam dimensions, their applications, and how to select the right beam for your project.
What are Wide Flange Beams?

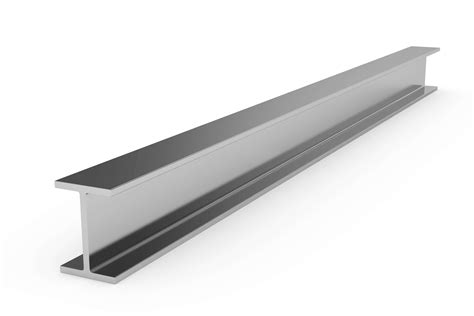

Wide flange beams are structural elements characterized by their distinctive shape, which resembles the letter “I” or “H.” They consist of a web (the vertical part) and two flanges (the horizontal parts). The wide flange design provides excellent resistance to bending and shear forces, making them ideal for various construction applications.

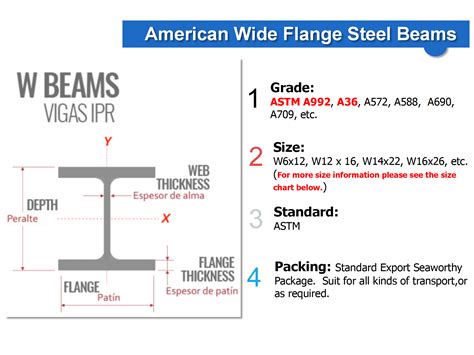

Understanding Wide Flange Beam Dimensions
Wide flange beam dimensions are crucial for ensuring the structural integrity of a building or infrastructure. The dimensions typically include the depth, flange width, and web thickness. These measurements are standardized to ensure consistency and reliability in construction projects.
Here are the key dimensions to consider:
- Depth (d): The overall height of the beam, measured from the top of the top flange to the bottom of the bottom flange.
- Flange Width (b): The width of the top and bottom flanges.
- Web Thickness (t): The thickness of the vertical web.
- Flange Thickness (T): The thickness of the top and bottom flanges.
These dimensions are often specified in inches or millimeters, depending on the region and the specific standards being followed.
Standard Wide Flange Beam Sizes
Wide flange beams come in various standard sizes, each designed for specific load-bearing capacities and applications. The most common sizes are defined by standards such as ASTM A6 and AISC (American Institute of Steel Construction).

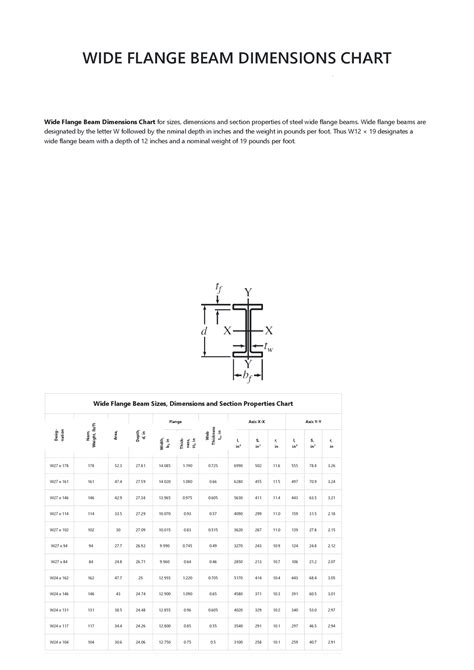

Here is a table of some standard wide flange beam sizes:
| Designation | Depth (inches) | Flange Width (inches) | Web Thickness (inches) | Flange Thickness (inches) |
|---|---|---|---|---|
| W6x9 | 6.06 | 4.00 | 0.210 | 0.300 |
| W8x13 | 8.06 | 5.00 | 0.230 | 0.340 |
| W10x19 | 10.06 | 5.00 | 0.250 | 0.380 |
| W12x26 | 12.06 | 6.00 | 0.270 | 0.430 |
| W14x38 | 14.06 | 7.00 | 0.300 | 0.500 |
These dimensions are just a few examples, and there are many more sizes available to suit different structural needs.
Applications of Wide Flange Beams
Wide flange beams are used in a wide range of construction projects due to their versatility and strength. Some of the most common applications include:
- Building Frames: Wide flange beams are often used as columns and beams in building frames, providing the necessary support for floors, walls, and roofs.
- Bridges: These beams are essential in bridge construction, where they support the deck and distribute the load evenly.
- Industrial Structures: In industrial settings, wide flange beams are used to construct warehouses, factories, and other large structures that require robust support.
- Residential Construction: While less common, wide flange beams can also be used in residential construction for supporting heavy loads, such as in multi-story homes.
The choice of wide flange beam dimensions depends on the specific requirements of the project, including the expected loads, span lengths, and environmental conditions.
Selecting the Right Wide Flange Beam
Choosing the appropriate wide flange beam for a project involves several considerations. Here are some key factors to keep in mind:
- Load Requirements: Determine the maximum load the beam will need to support. This includes both dead loads (the weight of the beam itself and any permanent fixtures) and live loads (temporary loads such as people, vehicles, or equipment).
- Span Length: The distance between supports is crucial. Longer spans require beams with greater strength and stiffness.
- Material Properties: Consider the material properties of the beam, such as yield strength and modulus of elasticity. These properties affect the beam's ability to resist deformation and failure.
- Environmental Conditions: Factors such as corrosion, temperature, and humidity can affect the performance of the beam. Choose a beam that is suitable for the specific environmental conditions of the project.
It is also important to consult with a structural engineer to ensure that the selected beam meets all safety and performance requirements.
🔍 Note: Always refer to the latest standards and guidelines when selecting wide flange beams to ensure compliance with current regulations.
Calculating Wide Flange Beam Dimensions
Calculating the dimensions of a wide flange beam involves understanding the beam’s moment of inertia, section modulus, and other structural properties. Here are the steps to calculate the necessary dimensions:
- Determine the Load: Calculate the total load that the beam will need to support, including both dead and live loads.
- Select a Beam Size: Based on the load and span length, select a preliminary beam size from standard tables or charts.
- Calculate the Moment of Inertia (I): The moment of inertia is a measure of the beam's resistance to bending. It can be calculated using the formula:
I = (b * d^3) / 12
- Calculate the Section Modulus (S): The section modulus is a measure of the beam's resistance to bending stress. It can be calculated using the formula:
S = I / (d / 2)
- Check the Beam's Capacity: Compare the calculated moment of inertia and section modulus with the required values to ensure that the beam can support the load without exceeding its allowable stress.
- Adjust the Beam Size if Necessary: If the preliminary beam size does not meet the requirements, adjust the dimensions and recalculate until the beam's capacity is sufficient.
📐 Note: Always double-check your calculations and consult with a structural engineer to ensure accuracy and safety.
Wide Flange Beam Dimensions in Different Regions
Wide flange beam dimensions can vary slightly depending on the region and the specific standards being followed. Here are some examples of how dimensions may differ:
- United States: In the U.S., wide flange beams are typically specified according to ASTM A6 and AISC standards. These standards provide detailed dimensions and properties for a wide range of beam sizes.
- Europe: In Europe, wide flange beams are often specified according to EN 10025 standards. These standards provide dimensions and properties that are slightly different from those in the U.S., reflecting regional differences in construction practices.
- Asia: In Asia, wide flange beams may be specified according to JIS (Japanese Industrial Standards) or other regional standards. These standards may include additional sizes and properties to suit local construction needs.
It is important to refer to the appropriate standards for the region where the project is located to ensure compliance with local regulations and best practices.
Wide Flange Beam Dimensions and Sustainability
In addition to their structural benefits, wide flange beams can also contribute to sustainable construction practices. Here are some ways in which wide flange beam dimensions can support sustainability:
- Efficient Use of Materials: The wide flange design allows for efficient use of materials, reducing waste and conserving resources.
- Recyclability: Steel beams, including wide flange beams, are highly recyclable. Using recycled steel can reduce the environmental impact of construction projects.
- Durability: Wide flange beams are durable and long-lasting, reducing the need for frequent replacements and repairs. This contributes to the overall sustainability of the structure.
By choosing the right wide flange beam dimensions and considering sustainability factors, construction projects can achieve both structural integrity and environmental responsibility.
In conclusion, understanding wide flange beam dimensions is essential for ensuring the structural integrity and safety of construction projects. By considering factors such as load requirements, span length, material properties, and environmental conditions, engineers can select the appropriate beam size for their specific needs. Whether used in building frames, bridges, industrial structures, or residential construction, wide flange beams play a crucial role in modern engineering. Always consult with a structural engineer and refer to the latest standards and guidelines to ensure compliance and safety in your projects.
