What Is Stationary Wave

Waves are a fundamental concept in physics, and understanding their behavior is crucial for various scientific and engineering applications. One of the most intriguing phenomena related to waves is the concept of a stationary wave. A stationary wave, also known as a standing wave, occurs when two waves of the same frequency and amplitude traveling in opposite directions interfere with each other. This interference results in a wave pattern that appears to be stationary, with nodes (points of no displacement) and antinodes (points of maximum displacement).

Table of Contents

Understanding What Is Stationary Wave

To grasp the concept of a stationary wave, it’s essential to understand the basic principles of wave interference. When two waves meet, they can either constructively or destructively interfere. Constructive interference occurs when the crests of one wave align with the crests of the other, resulting in a wave of increased amplitude. Destructive interference happens when the crests of one wave align with the troughs of the other, leading to a wave of decreased amplitude.

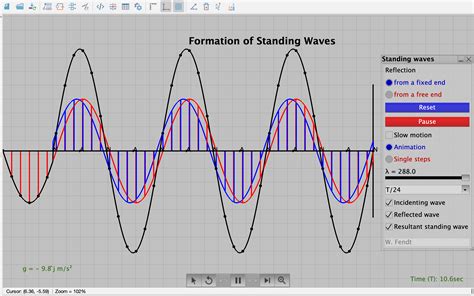

In the case of a stationary wave, the two interfering waves have the same frequency and amplitude but travel in opposite directions. This setup creates a pattern where the waves continuously interfere constructively and destructively at specific points. The points where the waves always interfere destructively are called nodes, and the points where they always interfere constructively are called antinodes.

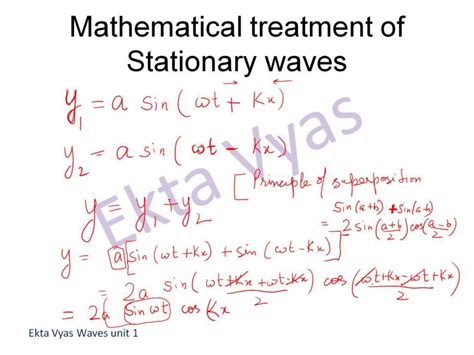

Mathematical Representation of Stationary Waves

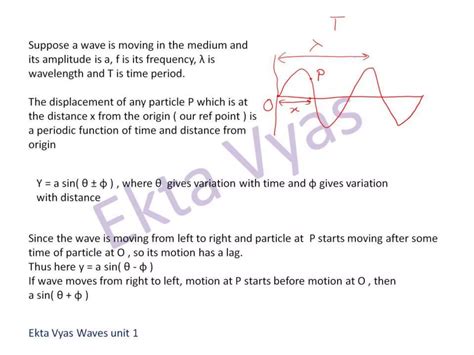

The mathematical representation of a stationary wave can be derived from the superposition principle, which states that the resultant wave is the sum of the individual waves. For two waves traveling in opposite directions, the equation can be written as:

y(x, t) = A sin(kx - ωt) + A sin(kx + ωt)

Where:

A is the amplitude of the waves
k is the wave number
ω is the angular frequency
x is the position
t is the time

Using trigonometric identities, this equation can be simplified to:

y(x, t) = 2A sin(kx) cos(ωt)

This equation shows that the amplitude of the stationary wave varies with position (x) but not with time (t). The factor 2A sin(kx) determines the positions of the nodes and antinodes, while cos(ωt) describes the time-dependent oscillation.

Properties of Stationary Waves

Stationary waves have several distinctive properties that set them apart from traveling waves:

Fixed Nodes and Antinodes: The positions of the nodes and antinodes remain fixed in space. Nodes are points of zero displacement, while antinodes are points of maximum displacement.
No Net Energy Transfer: Unlike traveling waves, stationary waves do not transfer energy from one point to another. The energy is confined to the region where the waves interfere.
Resonance: Stationary waves often occur in systems that exhibit resonance, where the frequency of the waves matches the natural frequency of the system. This can lead to large amplitudes and is a common phenomenon in musical instruments and mechanical systems.

Applications of Stationary Waves

Stationary waves have numerous applications in various fields, including acoustics, optics, and electronics. Some of the key applications are:

Musical Instruments: In stringed instruments like guitars and violins, the strings vibrate in stationary wave patterns. The fundamental frequency and harmonics of the instrument are determined by the length and tension of the strings.
Optical Resonators: In lasers, optical resonators use stationary waves to amplify light. The laser cavity is designed to support standing waves at specific frequencies, leading to coherent and intense light output.
Electronics: In electronic circuits, stationary waves can occur in transmission lines and waveguides. Understanding and controlling these waves is crucial for designing efficient communication systems and filters.

Examples of Stationary Waves

To better understand stationary waves, let’s consider a few examples:

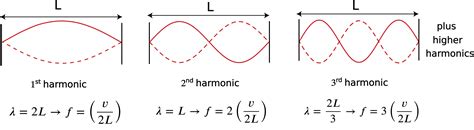

String Vibrations

When a string is plucked or bowed, it vibrates in a stationary wave pattern. The fundamental frequency of the string is determined by its length, tension, and mass per unit length. The string can also vibrate in higher harmonics, which are multiples of the fundamental frequency. The nodes and antinodes of the string’s vibration can be observed visually or by touching the string at different points.

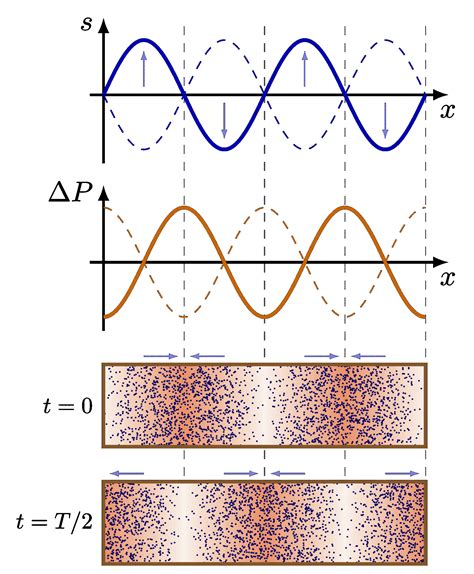

Sound Waves in a Pipe

Sound waves in a pipe can also form stationary waves. When air is blown into a pipe, it creates a pressure wave that reflects off the closed end and interferes with the incoming wave. This interference results in a stationary wave pattern with nodes and antinodes. The frequency of the sound wave is determined by the length of the pipe and the speed of sound in air.

Microwave Ovens

Microwave ovens use stationary waves to heat food. The microwaves are generated by a magnetron and reflected within the oven cavity. The standing wave pattern created by the microwaves heats the food by causing water molecules to vibrate. The design of the oven cavity ensures that the microwaves are distributed evenly, leading to uniform heating.

Experimental Demonstration of Stationary Waves

Stationary waves can be demonstrated experimentally using simple apparatus. One common method is to use a rope or string attached to a vibrating source, such as a motor or a speaker. By adjusting the frequency of the vibrating source, different stationary wave patterns can be observed. The nodes and antinodes can be marked, and the wavelength can be measured.

Another method is to use a ripple tank, which consists of a shallow tray of water with a vibrating source at one end. The water surface forms a stationary wave pattern when the vibrating source is turned on. The nodes and antinodes can be observed by sprinkling small particles on the water surface.

💡 Note: When performing experiments with stationary waves, it's important to ensure that the vibrating source has a constant frequency and amplitude. Any variations in these parameters can affect the observed wave pattern.

Conclusion

Stationary waves are a fascinating phenomenon that occurs when two waves of the same frequency and amplitude traveling in opposite directions interfere with each other. Understanding what is stationary wave involves grasping the concepts of wave interference, nodes, and antinodes. Stationary waves have numerous applications in various fields, including acoustics, optics, and electronics. By studying stationary waves, we can gain insights into the behavior of waves and their interactions, leading to advancements in technology and science.
