Electrical wiring is a critical component of any building, ensuring that power is safely and efficiently distributed throughout the structure. One of the most commonly used types of electrical wiring in residential and commercial settings is Romex. Understanding What Is Romex and its various applications can help homeowners, electricians, and DIY enthusiasts make informed decisions about their electrical systems.
What Is Romex?
Romex is a brand name for a type of non-metallic sheathed cable (NM cable) used for electrical wiring in buildings. It is manufactured by Southwire Company and is widely recognized for its durability and ease of use. Romex cables are typically composed of two or more insulated conductors enclosed in a non-metallic sheath, which provides protection against physical damage and moisture.
Components of Romex Cable
Romex cables are designed with several key components that ensure their functionality and safety. These components include:
- Conductors: The core of the cable, usually made of copper or aluminum, which carries the electrical current.
- Insulation: Each conductor is individually insulated to prevent short circuits and electrical shocks.
- Non-Metallic Sheath: A protective outer layer, typically made of PVC (polyvinyl chloride), that shields the conductors from physical damage and environmental factors.
Types of Romex Cable
Romex cables come in various types, each designed for specific applications and electrical loads. The most common types include:
| Type | Description | Common Uses |
|---|---|---|

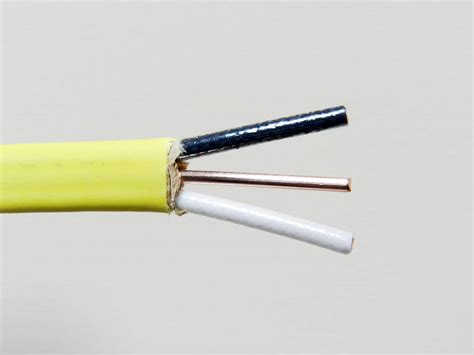

| Romex 12⁄2 | Contains two 12-gauge conductors and a bare copper ground wire. | Used for general-purpose wiring in residential settings, such as lighting circuits and outlets. |

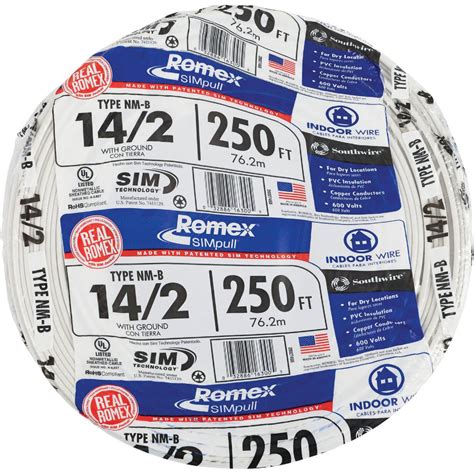

| Romex 14⁄2 | Contains two 14-gauge conductors and a bare copper ground wire. | Ideal for low-current applications like lighting fixtures and small appliances. |
| Romex 10⁄2 | Contains two 10-gauge conductors and a bare copper ground wire. | Used for higher-current applications, such as heavy-duty appliances and 240-volt circuits. |
| Romex 12⁄3 | Contains three 12-gauge conductors and a bare copper ground wire. | Commonly used for three-way and four-way switch applications. |
Advantages of Using Romex Cable
Romex cables offer several advantages that make them a popular choice for electrical wiring:
- Durability: The non-metallic sheath provides excellent protection against physical damage and moisture, ensuring long-lasting performance.
- Ease of Installation: Romex cables are flexible and easy to bend, making them simple to install in various configurations.
- Cost-Effective: Compared to other types of electrical wiring, Romex is relatively affordable, making it a cost-effective solution for both residential and commercial applications.
- Versatility: Available in different gauges and configurations, Romex can be used for a wide range of electrical needs, from lighting circuits to heavy-duty appliances.
Installation Tips for Romex Cable
Proper installation of Romex cable is crucial for ensuring safety and functionality. Here are some key tips to keep in mind:
- Plan Your Route: Before installing, plan the route of the cable to avoid obstacles and ensure it is easily accessible for future maintenance.
- Use Appropriate Tools: Use cable staples or clips to secure the cable to studs or joists, and ensure that the cable is not over-tightened, which can damage the insulation.
- Avoid Sharp Bends: Romex cables should not be bent at sharp angles, as this can damage the conductors and insulation. Use gentle curves to maintain the integrity of the cable.
- Proper Connections: When connecting Romex to outlets, switches, or other devices, ensure that the connections are secure and that the wires are properly stripped and twisted.
🔧 Note: Always follow local electrical codes and regulations when installing Romex cable to ensure compliance and safety.
Safety Considerations
While Romex cable is designed for safety, there are several considerations to keep in mind to prevent electrical hazards:
- Avoid Overloading: Ensure that the cable is not overloaded with more current than it is rated for, as this can cause overheating and potential fires.
- Protect from Physical Damage: Use conduit or other protective measures in areas where the cable may be exposed to physical damage, such as in basements or garages.
- Regular Inspections: Periodically inspect the cable for signs of wear, damage, or corrosion, and replace it if necessary to maintain safety.
Common Applications of Romex Cable
Romex cable is used in a variety of applications, both residential and commercial. Some of the most common uses include:
- Residential Wiring: Romex is widely used in homes for lighting circuits, outlet installations, and appliance connections.
- Commercial Buildings: In commercial settings, Romex is used for similar purposes, including office lighting, power outlets, and equipment connections.
- Renovations and Remodeling: Due to its ease of installation and flexibility, Romex is a popular choice for electrical wiring in renovation and remodeling projects.
- Outdoor Applications: With proper protection, Romex can be used for outdoor wiring, such as for landscape lighting or outdoor outlets.
Romex cable is a versatile and reliable option for electrical wiring in various settings. Its durability, ease of installation, and cost-effectiveness make it a popular choice for both residential and commercial applications. By understanding What Is Romex and its various types and uses, you can make informed decisions about your electrical wiring needs and ensure a safe and efficient electrical system.
