Understanding the intricacies of data storage and management is crucial for anyone involved in IT or system administration. One of the key concepts in this field is the What Is Raid Disk configuration. RAID, which stands for Redundant Array of Independent Disks, is a technology that combines multiple physical disk storage devices into a single logical unit to provide data redundancy, improved performance, and better reliability. This blog post will delve into the details of RAID, its types, benefits, and how to set it up.
What Is Raid Disk?
RAID, or Redundant Array of Independent Disks, is a data storage virtualization technology that combines multiple physical disk storage devices into a single logical unit. The primary goals of RAID are to increase data integrity, improve performance, and provide redundancy. By distributing data across multiple disks, RAID can enhance the overall reliability and speed of data storage systems.
Types of RAID Configurations
There are several types of RAID configurations, each with its own advantages and use cases. The most common types include:
- RAID 0 (Striped): This configuration splits data evenly across two or more disks. It offers improved performance but no redundancy. If one disk fails, all data is lost.
- RAID 1 (Mirrored): This configuration mirrors data across two disks. It provides redundancy but no performance improvement. If one disk fails, the other disk continues to function normally.
- RAID 5: This configuration uses block-level striping with distributed parity. It provides both performance improvement and redundancy. If one disk fails, the data can be reconstructed from the remaining disks.
- RAID 6: Similar to RAID 5, but with an additional parity block. It provides even greater redundancy, allowing for the failure of two disks without data loss.

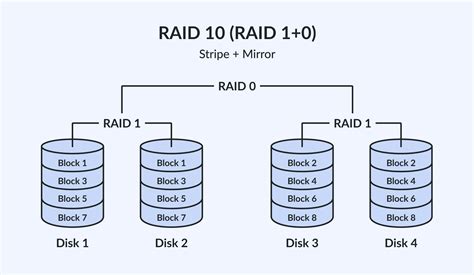

- RAID 10 (or RAID 1+0): This configuration combines mirroring and striping. It offers both performance improvement and redundancy. It is often used in high-performance environments.
Benefits of RAID
Implementing a RAID configuration offers several benefits, including:
- Improved Performance: RAID configurations like RAID 0 and RAID 10 can significantly enhance read and write speeds by distributing data across multiple disks.
- Data Redundancy: Configurations like RAID 1, RAID 5, and RAID 6 provide data redundancy, ensuring that data is not lost in case of a disk failure.
- Increased Reliability: By distributing data across multiple disks, RAID reduces the risk of data loss due to single points of failure.
- Scalability: RAID systems can be easily expanded by adding more disks, making it a scalable solution for growing data storage needs.
Setting Up a RAID Configuration
Setting up a RAID configuration involves several steps. Here is a general guide to help you get started:
- Choose the Right RAID Level: Determine the RAID level that best suits your needs based on performance, redundancy, and cost considerations.
- Select Compatible Hardware: Ensure that your disks and RAID controller are compatible with each other. Most modern motherboards come with built-in RAID controllers, but you can also use dedicated RAID cards for better performance.
- Install the Disks: Physically install the disks into your system. Make sure they are securely connected to the RAID controller.
- Configure the RAID Array: Access the RAID configuration utility, which is usually available during the system boot process. Follow the on-screen instructions to create the RAID array. This typically involves selecting the disks, choosing the RAID level, and initializing the array.
- Format the RAID Array: Once the RAID array is created, format it with a file system that supports RAID, such as NTFS, ext4, or ZFS.
- Install the Operating System: If you are setting up a new system, install the operating system on the RAID array. Make sure to select the RAID array as the installation target.
💡 Note: Always back up your data before configuring a RAID array, as the process can result in data loss if not done correctly.
RAID Configuration Table
| RAID Level | Description | Minimum Disks | Performance | Redundancy |
|---|---|---|---|---|
| RAID 0 | Striped | 2 | High | None |
| RAID 1 | Mirrored | 2 | Moderate | High |
| RAID 5 | Striped with Parity | 3 | High | Moderate |
| RAID 6 | Striped with Double Parity | 4 | High | High |
| RAID 10 | Mirrored and Striped | 4 | Very High | High |
Common Use Cases for RAID
RAID configurations are used in a variety of scenarios, including:

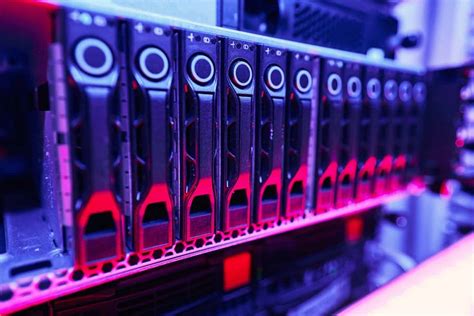

- Enterprise Servers: RAID is commonly used in enterprise environments to ensure data availability and performance. Configurations like RAID 5 and RAID 10 are popular choices.
- Workstations: For high-performance workstations, RAID 0 or RAID 10 can provide the necessary speed and reliability for tasks like video editing and 3D rendering.
- Storage Solutions: RAID is often used in network-attached storage (NAS) devices to provide scalable and reliable storage solutions for homes and small businesses.
- Database Servers: RAID configurations like RAID 10 are ideal for database servers, where both performance and data integrity are critical.
Challenges and Considerations
While RAID offers numerous benefits, there are also challenges and considerations to keep in mind:
- Cost: RAID systems can be more expensive due to the need for multiple disks and potentially a dedicated RAID controller.
- Complexity: Setting up and managing a RAID array can be complex, especially for those new to the technology.

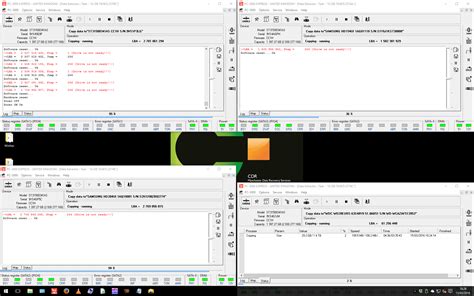

- Data Recovery: In case of a disk failure, data recovery can be time-consuming and may require specialized tools or services.
- Performance Trade-offs: Some RAID levels, like RAID 5, can experience a performance hit during write operations due to the need to calculate and write parity information.
💡 Note: Regularly monitor the health of your RAID array and replace failing disks promptly to avoid data loss.
RAID is a powerful technology that can significantly enhance the performance, reliability, and scalability of your data storage systems. By understanding the different types of RAID configurations and their benefits, you can choose the right solution for your specific needs. Whether you are setting up a RAID array for an enterprise server, a high-performance workstation, or a home NAS device, RAID provides the tools you need to manage your data effectively.
