What Is Milling

Milling is a fundamental process in manufacturing and machining, essential for creating precise and intricate parts. Understanding what is milling involves delving into its various types, applications, and the tools involved. This blog post aims to provide a comprehensive overview of milling, from its basic principles to advanced techniques, making it a valuable resource for both beginners and experienced machinists.

Table of Contents

Understanding the Basics of Milling

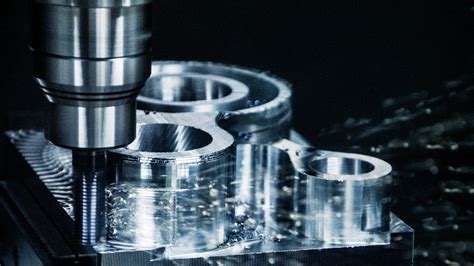

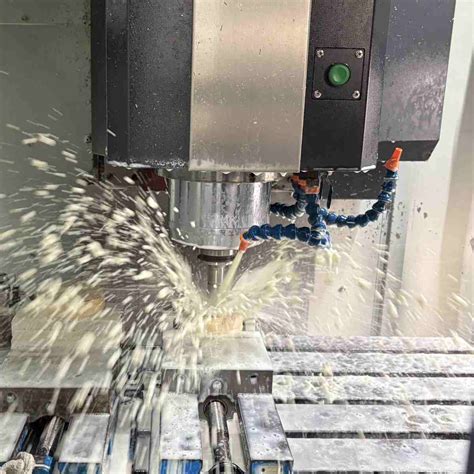

Milling is a machining process that uses rotary cutters to remove material from a workpiece, creating a desired shape or feature. The process involves feeding the workpiece against a rotating cutter, which removes material in the form of chips. This method is widely used in industries such as aerospace, automotive, and electronics for producing complex parts with high precision.

There are several types of milling machines, each designed for specific tasks:

Vertical Milling Machines: These machines have a vertical spindle and are ideal for face milling, drilling, and cutting slots.
Horizontal Milling Machines: With a horizontal spindle, these machines are suitable for heavy-duty cutting and producing grooves and slots.
Universal Milling Machines: These versatile machines can perform both vertical and horizontal milling operations.

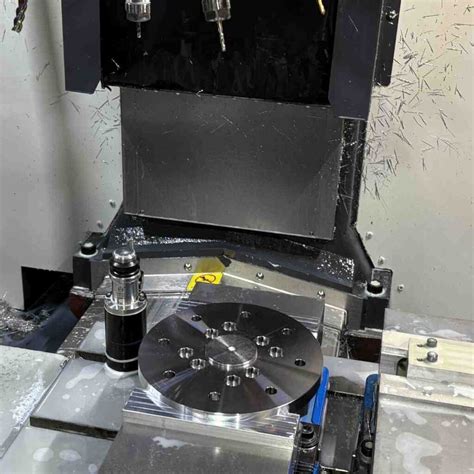

CNC Milling Machines: Computer Numerical Control (CNC) milling machines use programmed instructions to control the movement of the cutter, allowing for highly precise and automated milling operations.

Types of Milling Operations

Milling operations can be categorized based on the type of cut and the desired outcome. Some of the most common milling operations include:

Face Milling: This operation involves cutting the surface of the workpiece to create a flat, smooth finish. It is commonly used to create large, flat surfaces.
Peripheral Milling: Also known as plain milling, this operation uses the periphery of the cutter to remove material. It is ideal for creating slots, grooves, and contours.
End Milling: This operation uses an end mill cutter to create complex shapes and features, such as pockets, slots, and contours. It is versatile and can be used for a variety of applications.
Form Milling: This operation uses a cutter with a specific shape to create a corresponding shape on the workpiece. It is often used for creating intricate designs and patterns.
Gang Milling: This operation involves using multiple cutters mounted on the same arbor to perform simultaneous milling operations. It is efficient for producing multiple features at once.

Tools and Cutters Used in Milling

The effectiveness of milling operations depends largely on the tools and cutters used. Here are some of the most common types of milling cutters:

End Mills: These cutters have cutting edges on both the end and the sides, making them versatile for various milling operations. They come in different shapes, such as square, ball, and corner radius.
Face Mills: These cutters are designed for face milling operations and have cutting edges on the periphery and sometimes on the face as well. They are ideal for creating large, flat surfaces.
Shell Mills: These cutters are similar to face mills but have removable inserts, making them more versatile and easier to maintain.
Slab Mills: These cutters are used for heavy-duty milling operations and have a large diameter and multiple cutting edges.
Fly Cutters: These cutters have a single cutting edge and are used for light-duty face milling operations.

Choosing the right cutter depends on the material being machined, the desired finish, and the specific milling operation. It is essential to select a cutter with the appropriate geometry, material, and coating to ensure optimal performance and longevity.

Milling Materials

Milling can be performed on a wide range of materials, including metals, plastics, and composites. Some of the most commonly milled materials include:

Aluminum: Known for its lightweight and excellent machinability, aluminum is widely used in aerospace, automotive, and consumer electronics.
Steel: Various types of steel, including stainless steel and tool steel, are commonly milled for their strength and durability. They are used in industries such as automotive, construction, and manufacturing.
Brass: Brass is a copper-zinc alloy that is easy to machine and has good corrosion resistance. It is often used in plumbing, electrical components, and decorative items.
Plastics: Plastics such as ABS, nylon, and acrylic are milled for their lightweight, corrosion resistance, and ease of machining. They are used in various applications, including prototyping, medical devices, and consumer goods.
Composites: Composite materials, such as carbon fiber and fiberglass, are milled for their high strength-to-weight ratio and excellent mechanical properties. They are used in aerospace, automotive, and sports equipment.

Each material has its unique properties and machining requirements, so it is crucial to select the appropriate cutting tools, speeds, and feeds for optimal results.

Milling Parameters

To achieve the desired outcome in milling operations, it is essential to understand and control various parameters. These parameters include:

Cutting Speed: The speed at which the cutter rotates, measured in surface feet per minute (SFM) or meters per minute (m/min). It affects the material removal rate and the quality of the finish.
Feed Rate: The speed at which the workpiece is fed against the cutter, measured in inches per minute (IPM) or millimeters per minute (mm/min). It influences the material removal rate and the surface finish.
Depth of Cut: The thickness of the material removed in one pass of the cutter. It affects the material removal rate and the cutting forces.
Spindle Speed: The rotational speed of the spindle, measured in revolutions per minute (RPM). It is directly related to the cutting speed and affects the material removal rate.

Optimizing these parameters is crucial for achieving efficient and high-quality milling operations. It is essential to consider the material being machined, the type of cutter, and the desired outcome when selecting the appropriate parameters.

Advanced Milling Techniques

In addition to traditional milling operations, there are several advanced techniques that offer enhanced capabilities and precision. Some of these techniques include:

High-Speed Milling (HSM): This technique involves using high spindle speeds and feed rates to achieve rapid material removal and improved surface finish. It is ideal for machining hard materials and complex geometries.
High-Efficiency Milling (HEM): This technique focuses on optimizing the cutting parameters to maximize material removal rates while minimizing tool wear and energy consumption. It is suitable for a wide range of materials and applications.
Trochoidal Milling: This technique uses a trochoidal toolpath to reduce cutting forces and improve tool life. It is ideal for machining hard materials and complex geometries.
5-Axis Milling: This technique involves using a milling machine with five axes of movement, allowing for the machining of complex shapes and contours from multiple angles. It is widely used in aerospace, automotive, and medical industries.

These advanced milling techniques offer significant advantages in terms of efficiency, precision, and versatility. However, they require specialized equipment and expertise to implement effectively.

Safety Considerations in Milling

Milling operations involve the use of high-speed rotating cutters and powerful machinery, making safety a critical consideration. Here are some essential safety guidelines to follow:

Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses, ear protection, and gloves, to protect against flying debris and noise.
Machine Guarding: Ensure that all moving parts of the milling machine are properly guarded to prevent accidental contact.
Proper Clamping: Securely clamp the workpiece to prevent it from moving during the milling operation, which can cause accidents and damage to the machine.
Tool Inspection: Regularly inspect cutting tools for signs of wear or damage and replace them as needed to ensure safe and efficient operation.
Emergency Stop: Familiarize yourself with the location and operation of the emergency stop button in case of an emergency.

Following these safety guidelines is essential for preventing accidents and ensuring a safe working environment.

🛑 Note: Always follow the manufacturer's instructions and safety guidelines for the specific milling machine and tools being used.

Applications of Milling

Milling is used in a wide range of industries and applications, from aerospace and automotive to electronics and medical devices. Some of the most common applications of milling include:

Aerospace: Milling is used to produce complex components for aircraft, such as engine parts, structural components, and landing gear.
Automotive: Milling is essential for manufacturing engine blocks, cylinder heads, and other critical components in the automotive industry.
Electronics: Milling is used to create precise and intricate parts for electronic devices, such as circuit boards, connectors, and enclosures.
Medical Devices: Milling is employed to produce high-precision medical components, such as implants, surgical instruments, and diagnostic equipment.
Consumer Goods: Milling is used to manufacture a variety of consumer products, including appliances, furniture, and decorative items.

The versatility and precision of milling make it an indispensable process in modern manufacturing.

Future Trends in Milling

As technology continues to advance, the field of milling is evolving to meet new challenges and opportunities. Some of the future trends in milling include:

Automation and Robotics: The integration of automation and robotics in milling operations is increasing, allowing for higher productivity, consistency, and flexibility.
Additive Manufacturing: The combination of milling with additive manufacturing techniques, such as 3D printing, is enabling the production of complex and customized parts with reduced material waste.
Smart Manufacturing: The use of IoT, AI, and machine learning in milling operations is enhancing predictive maintenance, process optimization, and quality control.
Sustainable Practices: There is a growing focus on sustainable milling practices, including the use of eco-friendly materials, energy-efficient machinery, and waste reduction techniques.

These trends are shaping the future of milling, making it more efficient, precise, and environmentally friendly.

Milling is a versatile and essential process in modern manufacturing, offering a wide range of applications and benefits. Understanding what is milling and its various aspects is crucial for anyone involved in machining and manufacturing. By mastering the principles, techniques, and safety considerations of milling, you can achieve high-quality results and stay competitive in the ever-evolving world of manufacturing.
