What Is Milliampere

Understanding electrical measurements is crucial for anyone working with electronics, and one of the fundamental units you'll encounter is the milliampere. But what is milliampere? This unit is a subdivision of the ampere, the base unit of electric current in the International System of Units (SI). To grasp the significance of the milliampere, it's essential to delve into the basics of electrical current and its measurements.

Table of Contents

Understanding Electrical Current

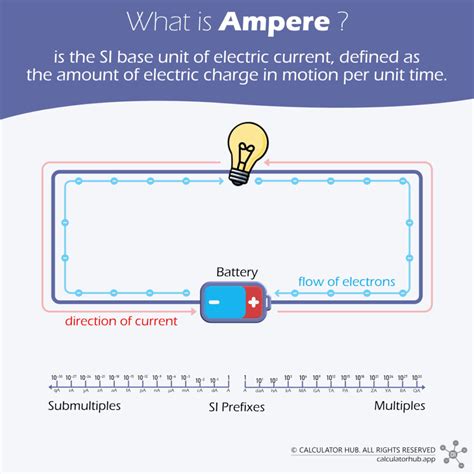

Electrical current is the flow of electric charge through a conductor. It is measured in amperes (A), named after the French mathematician and physicist André-Marie Ampère. One ampere is defined as the flow of one coulomb of charge per second. However, in many practical applications, especially in electronics, the currents involved are much smaller than one ampere. This is where the milliampere comes into play.

What Is Milliampere?

A milliampere (mA) is one-thousandth of an ampere. In other words, 1 milliampere is equal to 0.001 amperes. This unit is commonly used in electronics to measure the current flowing through small components such as resistors, LEDs, and transistors. For example, a typical LED might draw a current of 20 milliamperes, while a small transistor might operate with a base current of a few milliamperes.

Importance of Milliampere in Electronics

The milliampere is a critical unit in electronics for several reasons:

Precision Measurement: Many electronic components operate with very low currents, making the milliampere a more precise and practical unit for measurement.
Power Consumption: Understanding the current in milliamperes helps in calculating the power consumption of electronic devices, which is essential for battery life and energy efficiency.
Component Selection: Knowing the current requirements in milliamperes aids in selecting the right components, such as resistors and capacitors, for a circuit.
Safety: Measuring current in milliamperes is crucial for ensuring the safety of electronic devices, as excessive current can damage components or cause fires.

Converting Between Amperes and Milliampere

Converting between amperes and milliamperes is straightforward. Here are the conversion formulas:

To convert amperes to milliamperes: Multiply the value in amperes by 1,000.
To convert milliamperes to amperes: Divide the value in milliamperes by 1,000.

For example, if you have a current of 0.5 amperes, converting it to milliamperes would be:

0.5 A * 1,000 = 500 mA

Conversely, if you have a current of 750 milliamperes, converting it to amperes would be:

750 mA / 1,000 = 0.75 A

Measuring Current in Milliampere

Measuring current in milliamperes typically involves using a multimeter, a versatile tool for electrical measurements. Here are the steps to measure current using a multimeter:

Set the multimeter to the current measurement mode. This is usually indicated by an 'A' symbol with a straight line through it.
Select the appropriate range for milliamperes. Most multimeters have multiple ranges, such as 200 mA, 20 mA, and 2 mA.
Connect the multimeter in series with the circuit. This means breaking the circuit and inserting the multimeter probes into the break.
Turn on the circuit and observe the reading on the multimeter. The display will show the current in milliamperes.

🔍 Note: Always ensure that the multimeter is set to the correct range to avoid damaging the instrument or the circuit.

Common Applications of Milliampere

The milliampere is used in a wide range of applications, including:

Battery-Powered Devices: Measuring the current draw of battery-powered devices to optimize battery life.
LED Lighting: Determining the current requirements for LEDs to ensure proper brightness and longevity.
Sensors and Transducers: Measuring the current output of sensors and transducers to calibrate and verify their performance.
Medical Devices: Ensuring that medical devices operate within safe current limits to protect patients.

Milliampere vs. Microampere

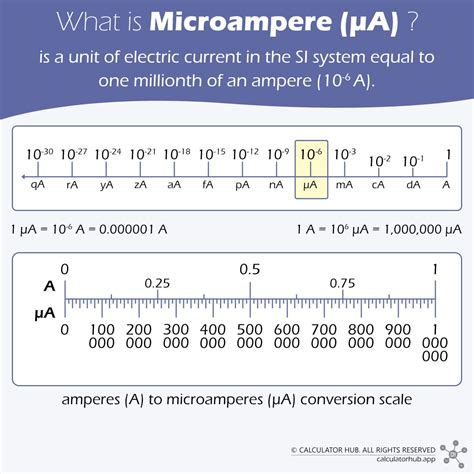

While the milliampere is a common unit for measuring current in electronics, there are instances where even smaller units are needed. The microampere (µA) is one-millionth of an ampere, or 0.000001 amperes. This unit is used for measuring very low currents, such as those in high-impedance circuits or in the leakage current of electronic components.

Here is a comparison table for better understanding:

Unit	Symbol	Value in Amperes
Milliampere	mA	0.001
Microampere	µA	0.000001

For example, a typical CMOS (Complementary Metal-Oxide-Semiconductor) circuit might draw a quiescent current of a few microamperes, while a high-impedance sensor might output a signal current in the microampere range.

Safety Considerations

When working with electrical currents, safety is paramount. Even though milliamperes are relatively small, they can still pose risks, especially in sensitive applications. Here are some safety considerations:

Proper Insulation: Ensure that all electrical components and wires are properly insulated to prevent short circuits.
Grounding: Properly ground your equipment to protect against electrical shocks.
Current Limits: Always stay within the current limits specified for your components to avoid overheating and potential fires.
Use of Fuses: Incorporate fuses in your circuits to protect against overcurrent conditions.

By adhering to these safety guidelines, you can work with milliamperes and other electrical units safely and effectively.

In the realm of electronics, understanding what is milliampere and its applications is fundamental. This unit allows for precise measurements and ensures the proper functioning of electronic devices. Whether you’re designing circuits, troubleshooting issues, or optimizing power consumption, the milliampere plays a crucial role. By mastering the use of milliamperes, you can enhance your skills in electronics and ensure the reliability and safety of your projects.
