What Is Mechanical Advantage

Understanding the principles of mechanics is fundamental to various fields, from engineering to physics. One of the key concepts in this domain is what is mechanical advantage. Mechanical advantage refers to the factor by which a machine multiplies the force put into it. This concept is crucial for designing and analyzing mechanical systems, as it helps in understanding how forces are amplified or reduced through the use of simple machines.

Table of Contents

Understanding Mechanical Advantage

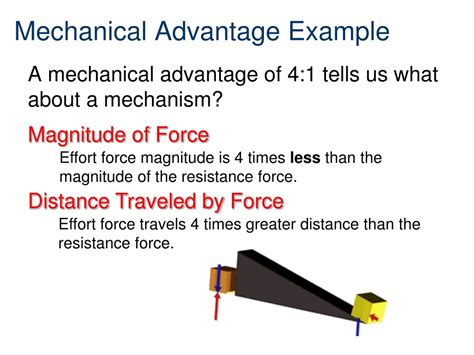

Mechanical advantage is a measure of the force amplification achieved by using a tool, mechanical device, or machine system. It is calculated as the ratio of the force exerted by the machine (output force) to the force applied to the machine (input force). This ratio can be expressed mathematically as:

Mechanical Advantage (MA) = Output Force / Input Force

Types of Mechanical Advantage

There are two primary types of mechanical advantage: ideal mechanical advantage (IMA) and actual mechanical advantage (AMA).

Ideal Mechanical Advantage (IMA)

Ideal mechanical advantage is the mechanical advantage of a machine assuming there are no energy losses due to friction or other inefficiencies. It is based purely on the geometry of the machine and is often used in theoretical calculations. IMA is calculated using the distances over which forces are applied.

IMA = Distance of Effort / Distance of Resistance

Actual Mechanical Advantage (AMA)

Actual mechanical advantage takes into account the real-world inefficiencies of the machine, such as friction and wear. It is calculated using the actual forces exerted and is always less than or equal to the ideal mechanical advantage. AMA is calculated as:

AMA = Output Force / Input Force

Examples of Mechanical Advantage in Simple Machines

Simple machines are devices that change the direction or magnitude of a force. They are the building blocks of more complex machines and are essential for understanding what is mechanical advantage. Some common simple machines include levers, pulleys, inclined planes, wedges, screws, and wheels and axles.

Levers

A lever is a rigid bar that pivots around a fixed point called a fulcrum. Levers can amplify force, change the direction of force, or both. The mechanical advantage of a lever is determined by the lengths of the effort arm and the resistance arm.

MA = Effort Arm Length / Resistance Arm Length

For example, consider a seesaw where the fulcrum is in the middle. If the effort arm is twice as long as the resistance arm, the mechanical advantage is 2, meaning the force applied at the effort arm is doubled at the resistance arm.

Pulleys

A pulley is a wheel with a groove in which a rope or cable can run. Pulleys can change the direction of a force and, when used in combinations, can amplify force. The mechanical advantage of a pulley system is determined by the number of supporting strands.

MA = Number of Supporting Strands

For instance, a single fixed pulley has a mechanical advantage of 1, while a block and tackle system with four supporting strands has a mechanical advantage of 4.

Inclined Planes

An inclined plane is a flat surface that is at an angle to the horizontal. It allows a load to be moved to a higher level with less force than lifting it vertically. The mechanical advantage of an inclined plane is determined by the ratio of the length of the plane to its height.

MA = Length of Plane / Height of Plane

For example, a ramp that is 10 meters long and 2 meters high has a mechanical advantage of 5, meaning the force required to move a load up the ramp is one-fifth of the force required to lift it vertically.

Wedges

A wedge is a triangular-shaped tool that is used to split or lift objects. It converts a force applied parallel to the wedge into forces perpendicular to the wedge’s sides. The mechanical advantage of a wedge is determined by the ratio of the length of the wedge to its thickness.

MA = Length of Wedge / Thickness of Wedge

For instance, a wedge that is 10 centimeters long and 1 centimeter thick has a mechanical advantage of 10, meaning the force applied to the wedge is amplified tenfold.

Screws

A screw is an inclined plane wrapped around a cylinder. It converts rotational motion into linear motion and can amplify force. The mechanical advantage of a screw is determined by the ratio of the circumference of the screw to the pitch (the distance between threads).

MA = Circumference of Screw / Pitch

For example, a screw with a circumference of 5 centimeters and a pitch of 1 millimeter has a mechanical advantage of 50, meaning the force applied to the screw is amplified fiftyfold.

Wheels and Axles

A wheel and axle is a simple machine consisting of a wheel attached to a smaller axle. It converts rotational motion into linear motion and can amplify force. The mechanical advantage of a wheel and axle is determined by the ratio of the radius of the wheel to the radius of the axle.

MA = Radius of Wheel / Radius of Axle

For instance, a wheel with a radius of 10 centimeters and an axle with a radius of 1 centimeter has a mechanical advantage of 10, meaning the force applied to the wheel is amplified tenfold.

Applications of Mechanical Advantage

Understanding what is mechanical advantage is crucial in various applications, from everyday tools to complex machinery. Here are some key areas where mechanical advantage is applied:

Engineering and Design

In engineering, mechanical advantage is used to design machines and systems that can perform tasks more efficiently. Engineers use the principles of mechanical advantage to optimize the performance of tools, vehicles, and industrial machinery. For example, the design of cranes, forklifts, and other lifting devices relies heavily on mechanical advantage to handle heavy loads with minimal effort.

Physics and Education

In physics, mechanical advantage is a fundamental concept that helps students understand the principles of work, energy, and force. It is often taught using simple machines and experiments that demonstrate how forces can be amplified or redirected. Understanding mechanical advantage is essential for students to grasp more complex topics in mechanics and engineering.

Everyday Tools

Many everyday tools and devices utilize mechanical advantage to make tasks easier. For example, scissors use levers to amplify the force applied to cut materials, while bottle openers use wedges to pry off caps. Even simple tools like hammers and screwdrivers rely on mechanical advantage to perform their functions effectively.

Calculating Mechanical Advantage

To calculate mechanical advantage, you need to know the input and output forces or the distances over which these forces are applied. Here are the steps to calculate mechanical advantage for different scenarios:

Using Forces

If you know the input and output forces, you can calculate mechanical advantage using the formula:

MA = Output Force / Input Force

For example, if you apply a force of 50 Newtons to a machine and it exerts a force of 200 Newtons, the mechanical advantage is:

MA = 200 N / 50 N = 4

Using Distances

If you know the distances over which the forces are applied, you can calculate the ideal mechanical advantage using the formula:

IMA = Distance of Effort / Distance of Resistance

For example, if the effort arm of a lever is 4 meters long and the resistance arm is 1 meter long, the ideal mechanical advantage is:

IMA = 4 m / 1 m = 4

💡 Note: When calculating mechanical advantage using distances, remember that this gives you the ideal mechanical advantage, which does not account for real-world inefficiencies.

Factors Affecting Mechanical Advantage

Several factors can affect the mechanical advantage of a machine or system. Understanding these factors is crucial for optimizing performance and efficiency.

Friction

Friction is a significant factor that reduces the actual mechanical advantage of a machine. It causes energy losses and makes it harder to move parts, reducing the overall efficiency of the system. Minimizing friction through lubrication and proper design can help maintain a higher mechanical advantage.

Material Properties

The properties of the materials used in a machine can also affect its mechanical advantage. Stronger and more durable materials can withstand higher forces and reduce wear and tear, maintaining the machine’s efficiency over time.

Design and Geometry

The design and geometry of a machine play a crucial role in determining its mechanical advantage. Optimal design can maximize the force amplification while minimizing energy losses. For example, the shape and size of levers, pulleys, and other components can significantly impact the mechanical advantage.

Mechanical Advantage in Complex Systems

In complex systems, mechanical advantage is often achieved through a combination of simple machines working together. These systems can amplify forces to a much greater extent than individual simple machines. For example, a block and tackle system with multiple pulleys can achieve a high mechanical advantage by combining the effects of several pulleys.

Compound Machines

A compound machine is a combination of two or more simple machines working together to achieve a specific task. The mechanical advantage of a compound machine is the product of the mechanical advantages of the individual simple machines. For example, a wheelbarrow combines a lever and a wheel and axle to make it easier to move heavy loads.

Power Transmission Systems

Power transmission systems, such as gears and belts, are used to transfer mechanical energy from one part of a machine to another. These systems can amplify forces and change the direction of motion. The mechanical advantage of a power transmission system is determined by the ratio of the input and output forces or the distances over which these forces are applied.

Mechanical Advantage in Biology

Mechanical advantage is not limited to man-made machines; it also plays a crucial role in biological systems. Many animals and plants have evolved structures that utilize mechanical advantage to perform various functions.

Animal Structures

Animals have developed various structures that use mechanical advantage to enhance their strength and agility. For example, the jaws of a crocodile act as a lever, allowing it to exert tremendous force when biting. Similarly, the legs of a grasshopper use levers to amplify the force of its jump.

Plant Structures

Plants also utilize mechanical advantage in their structures. For example, the tendrils of climbing plants act as levers, allowing them to wrap around supports and climb to reach sunlight. The spines of cacti use wedges to penetrate and anchor into the ground, providing stability and support.

Mechanical Advantage in Sports

In sports, mechanical advantage is often used to enhance performance and achieve better results. Athletes and coaches use the principles of mechanical advantage to optimize techniques and equipment.

Equipment Design

Sports equipment is designed to provide mechanical advantage, making it easier for athletes to perform at their best. For example, golf clubs use levers to amplify the force of a swing, while tennis rackets use a combination of levers and springs to enhance power and control.

Technique and Form

Proper technique and form in sports often involve using mechanical advantage to maximize performance. For example, a weightlifter uses levers in their body to lift heavy weights, while a swimmer uses the mechanical advantage of their arms and legs to propel themselves through the water.

Understanding what is mechanical advantage is essential for anyone involved in mechanics, engineering, or physics. It provides a fundamental framework for designing and analyzing machines and systems, optimizing performance, and enhancing efficiency. By applying the principles of mechanical advantage, we can create tools and devices that make our lives easier and more productive. Whether in everyday tools, complex machinery, or biological systems, mechanical advantage plays a crucial role in how forces are amplified and directed.
