What Is Internet Bridge

In the ever-evolving landscape of technology, understanding the intricacies of network infrastructure is crucial. One such concept that often comes up in discussions about network design and optimization is What Is Internet Bridge. An Internet bridge, also known as a network bridge, is a device or software application that connects two or more network segments at the data link layer (Layer 2) of the OSI model. This allows devices on different network segments to communicate as if they were on the same network. In this post, we will delve into the details of what an Internet bridge is, its functions, types, and how it operates within a network.

Understanding What Is Internet Bridge

An Internet bridge is a networking device or software that connects two or more network segments. It operates at the data link layer (Layer 2) of the OSI model, which means it works with MAC addresses rather than IP addresses. The primary function of an Internet bridge is to forward data frames between network segments based on the destination MAC address in the frame header.

Bridges are essential in network design because they help to segment a large network into smaller, more manageable parts. This segmentation can improve network performance, reduce congestion, and enhance security by isolating different parts of the network. Bridges can also be used to connect networks that use different physical media, such as Ethernet and Wi-Fi.

Functions of an Internet Bridge

An Internet bridge performs several key functions within a network:

• Frame Forwarding: The bridge forwards data frames between network segments based on the destination MAC address. If the destination MAC address is on the same segment, the frame is not forwarded. If it is on a different segment, the frame is forwarded to the appropriate segment.
• Learning: The bridge learns the MAC addresses of devices on each network segment by examining the source MAC addresses of incoming frames. This information is stored in a MAC address table.
• Filtering: The bridge filters out frames that are not intended for devices on the same segment, reducing unnecessary traffic and improving network efficiency.
• Loop Prevention: Bridges use protocols like Spanning Tree Protocol (STP) to prevent loops in the network, which can cause broadcast storms and network congestion.

Types of Internet Bridges

There are several types of Internet bridges, each designed for specific network requirements:

• Transparent Bridge: This type of bridge operates transparently to the network, meaning it does not require any configuration changes to the devices on the network. It learns MAC addresses and forwards frames based on the destination MAC address.
• Source-Route Bridge: This bridge uses a source-routing mechanism, where the source device specifies the path that the frame should take through the network. This type of bridge is less common and is typically used in older networks.
• Translation Bridge: This bridge connects networks that use different protocols or data link layer technologies. It translates the frames from one protocol to another, allowing devices on different networks to communicate.

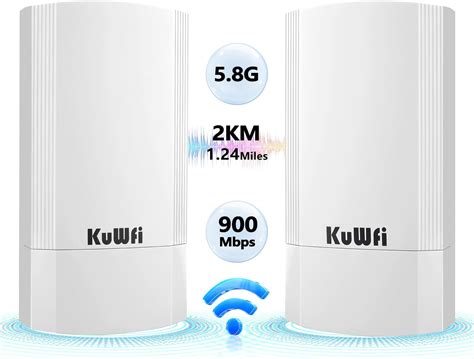

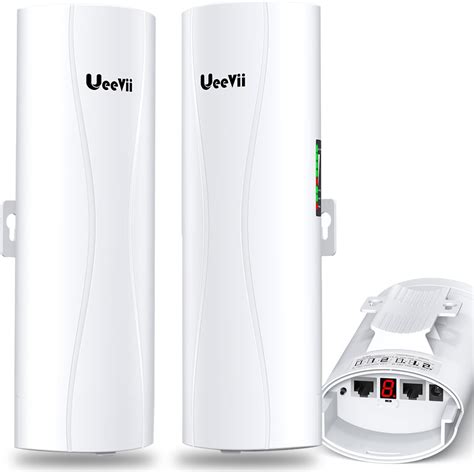

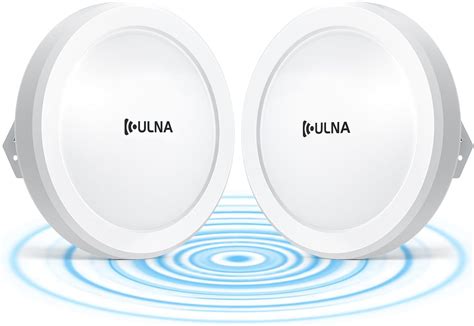

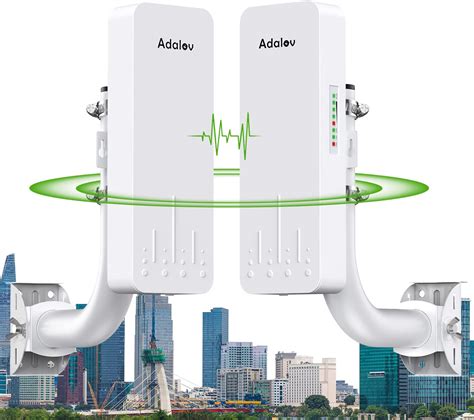

• Wireless Bridge: This type of bridge connects wireless networks to wired networks or to other wireless networks. It is commonly used to extend the range of a wireless network or to connect two wireless networks that are not within direct range of each other.

How an Internet Bridge Operates

An Internet bridge operates by examining the MAC addresses of incoming frames and making decisions based on this information. Here is a step-by-step overview of how an Internet bridge operates:

1. Frame Reception: The bridge receives a data frame from one of the network segments it is connected to.
2. MAC Address Learning: The bridge examines the source MAC address of the frame and updates its MAC address table with this information. The table maps MAC addresses to the specific network segments.
3. Frame Forwarding: The bridge checks the destination MAC address of the frame against its MAC address table. If the destination MAC address is on the same segment, the frame is not forwarded. If it is on a different segment, the frame is forwarded to the appropriate segment.
4. Loop Prevention: The bridge uses protocols like Spanning Tree Protocol (STP) to detect and prevent loops in the network. This ensures that frames are not endlessly forwarded between segments, which can cause network congestion.

💡 Note: The Spanning Tree Protocol (STP) is a network protocol that ensures a loop-free topology for Ethernet networks. It is commonly used in networks with multiple bridges to prevent broadcast storms and network congestion.

Benefits of Using an Internet Bridge

Using an Internet bridge in a network offers several benefits:

• Improved Network Performance: By segmenting a large network into smaller parts, bridges can reduce congestion and improve overall network performance.
• Enhanced Security: Bridges can isolate different parts of the network, enhancing security by limiting the spread of malicious traffic.
• Flexibility: Bridges can connect networks that use different physical media, such as Ethernet and Wi-Fi, providing flexibility in network design.
• Cost-Effective: Bridges are generally less expensive than routers, making them a cost-effective solution for network segmentation.

Challenges and Limitations

While Internet bridges offer numerous benefits, they also come with certain challenges and limitations:

• Broadcast Storms: If not properly configured, bridges can cause broadcast storms, where broadcast frames are endlessly forwarded between segments, leading to network congestion.
• Limited Scalability: Bridges operate at the data link layer and are not designed to handle large-scale networks. For larger networks, routers or layer 3 switches are more appropriate.
• Complexity: Configuring and managing bridges, especially in complex networks, can be challenging and requires a good understanding of network protocols and topologies.

Internet Bridge vs. Router

While both Internet bridges and routers are used to connect network segments, they operate at different layers of the OSI model and have different functions:

In summary, an Internet bridge is ideal for segmenting a local area network (LAN) and improving performance, while a router is better suited for connecting different networks and handling inter-network traffic.

💡 Note: In some cases, a device can function as both a bridge and a router, providing both layer 2 and layer 3 functionality. These devices are often referred to as layer 3 switches or routing switches.

Use Cases for Internet Bridges

Internet bridges are used in various scenarios to enhance network performance and connectivity. Some common use cases include:

• Extending Network Range: Bridges can be used to extend the range of a network by connecting multiple network segments. This is particularly useful in large buildings or campuses where a single network segment may not cover the entire area.
• Connecting Different Media: Bridges can connect networks that use different physical media, such as Ethernet and Wi-Fi. This allows devices on different types of networks to communicate seamlessly.
• Isolating Network Segments: Bridges can be used to isolate different parts of a network, enhancing security and reducing congestion. For example, a bridge can be used to separate a guest network from the main corporate network.
• Improving Network Performance: By segmenting a large network into smaller parts, bridges can reduce congestion and improve overall network performance. This is particularly useful in environments with high network traffic, such as data centers or large enterprises.

In addition to these use cases, Internet bridges are also used in wireless networks to extend the range of Wi-Fi signals and connect multiple access points. This is particularly useful in large buildings or outdoor areas where a single access point may not provide adequate coverage.

Future Trends in Internet Bridging

As network technologies continue to evolve, so do the capabilities and applications of Internet bridges. Some future trends in Internet bridging include:

• Software-Defined Networking (SDN): SDN allows for more flexible and dynamic network management, including the configuration and management of Internet bridges. SDN controllers can automate the deployment and configuration of bridges, making it easier to manage complex networks.
• Network Virtualization: Network virtualization allows multiple virtual networks to coexist on the same physical infrastructure. Bridges can be used to connect these virtual networks, providing seamless communication between them.
• Internet of Things (IoT): As the number of IoT devices continues to grow, the need for efficient and scalable network solutions becomes more critical. Internet bridges can be used to connect IoT devices to the network, ensuring reliable communication and data exchange.
• 5G Networks: The deployment of 5G networks will require advanced networking solutions to handle the increased data traffic and connectivity demands. Internet bridges can play a crucial role in connecting different parts of the 5G network, ensuring seamless communication and data exchange.

These trends highlight the ongoing importance of Internet bridges in modern network design and their potential to evolve with emerging technologies.

In conclusion, understanding What Is Internet Bridge is essential for anyone involved in network design and management. Bridges play a crucial role in segmenting networks, improving performance, and enhancing security. By learning about the functions, types, and operations of Internet bridges, network professionals can make informed decisions about network design and optimization. As network technologies continue to evolve, the role of Internet bridges will remain vital in ensuring efficient and reliable network communication.
