Understanding the concept of impedance is crucial for anyone working in electronics, electrical engineering, or related fields. Impedance is a fundamental property that describes how a circuit or component opposes the flow of alternating current (AC). Unlike resistance, which only applies to direct current (DC), impedance takes into account both resistance and reactance, making it a more comprehensive measure for AC circuits. This blog post will delve into the intricacies of impedance, explaining what is impedance, its components, how it is measured, and its practical applications.
What Is Impedance?
Impedance is a measure of the opposition that a circuit presents to a current when a voltage is applied. It is a complex quantity, meaning it has both magnitude and phase. The magnitude of impedance is the ratio of the voltage to the current, while the phase is the angle by which the current lags or leads the voltage. Impedance is typically denoted by the symbol Z and is measured in ohms (Ω).
Components of Impedance

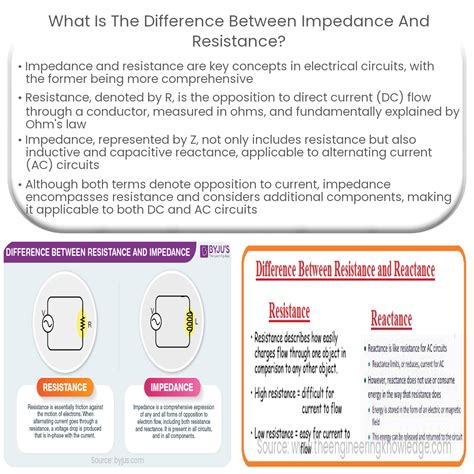

Impedance consists of two main components: resistance ® and reactance (X). Resistance is the opposition to the flow of electric current, while reactance is the opposition due to the storage of energy in the form of electric and magnetic fields. Reactance can be further divided into capacitive reactance (XC) and inductive reactance (XL).
Capacitive reactance occurs in capacitors and is given by the formula:
XC = 1 / (2πfC)
where f is the frequency and C is the capacitance.
Inductive reactance occurs in inductors and is given by the formula:
XL = 2πfL
where L is the inductance.
The total reactance (X) is the difference between inductive and capacitive reactance:
X = XL - XC

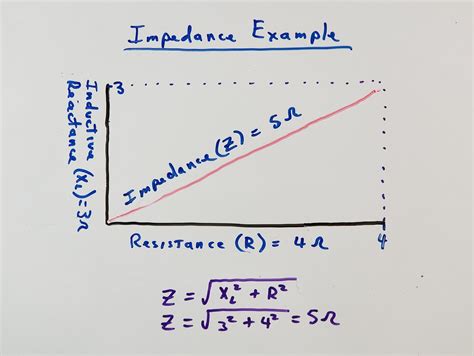

Impedance (Z) is then calculated as:
Z = √(R2 + X2)
Measuring Impedance
Impedance can be measured using various instruments, with the most common being the impedance analyzer. This device applies a known voltage or current to the circuit and measures the resulting current or voltage. It then calculates the impedance based on these measurements. Other instruments, such as multimeters and oscilloscopes, can also measure impedance, but they are generally less accurate and versatile than impedance analyzers.
When measuring impedance, it is important to consider the frequency of the applied signal. Impedance is frequency-dependent, meaning it changes with the frequency of the AC signal. Therefore, measurements should be taken at the same frequency as the intended application.
Impedance in Series and Parallel Circuits
In series circuits, the total impedance is the sum of the individual impedances:
Ztotal = Z1 + Z2 + … + Zn
In parallel circuits, the total impedance is calculated using the formula:
1/Ztotal = 1/Z1 + 1/Z2 + ... + 1/Zn
Understanding how impedance behaves in series and parallel circuits is essential for designing and analyzing electronic circuits.
Practical Applications of Impedance
Impedance has numerous practical applications in electronics and electrical engineering. Some of the key areas where impedance plays a crucial role include:
- Filter Design: Impedance is used to design filters that allow certain frequencies to pass while blocking others. This is essential in applications such as audio processing, signal conditioning, and communication systems.
- Matching Networks: Impedance matching is the process of designing circuits to maximize power transfer between a source and a load. This is crucial in radio frequency (RF) and microwave circuits, where efficient power transfer is essential.
- Circuit Analysis: Impedance is used to analyze the behavior of circuits under AC conditions. This includes calculating voltage and current distributions, power dissipation, and resonance frequencies.
- Audio Systems: In audio systems, impedance matching between speakers and amplifiers is crucial for achieving optimal sound quality and preventing damage to the equipment.
Impedance and Resonance
Resonance occurs when the inductive reactance and capacitive reactance in a circuit are equal in magnitude but opposite in sign. At resonance, the total reactance is zero, and the impedance is purely resistive. This results in maximum current flow and maximum power transfer. Resonance is a critical concept in many applications, including:
- Tuned Circuits: Tuned circuits are used in radio receivers and transmitters to select specific frequencies. The resonance frequency of the circuit determines the frequency that is amplified or transmitted.
- Filters: Resonance is used in filter design to create narrowband filters that pass a specific frequency range while rejecting others.
- Oscillators: Oscillators generate signals at a specific frequency and are used in various applications, including clocks, timers, and signal generators.
Understanding resonance and how it relates to impedance is essential for designing and analyzing circuits that operate at specific frequencies.
Impedance in AC Circuits
In AC circuits, impedance plays a crucial role in determining the behavior of the circuit. Unlike DC circuits, where resistance is the only factor affecting current flow, AC circuits are influenced by both resistance and reactance. This makes impedance a more comprehensive measure for analyzing AC circuits.
When analyzing AC circuits, it is important to consider the phase relationship between voltage and current. In resistive circuits, voltage and current are in phase. In inductive circuits, current lags voltage by 90 degrees. In capacitive circuits, current leads voltage by 90 degrees. The phase angle (θ) of the impedance is given by:
θ = arctan(X/R)
Understanding the phase relationship between voltage and current is essential for analyzing the behavior of AC circuits and designing circuits that operate at specific frequencies.
💡 Note: The phase angle of impedance is an important parameter in AC circuit analysis. It determines the power factor of the circuit, which is the ratio of real power to apparent power. A high power factor indicates efficient power transfer, while a low power factor indicates inefficient power transfer.
Impedance and Power Factor
Power factor is a measure of how efficiently electrical power is being used in a circuit. It is the ratio of real power (P) to apparent power (S), where real power is the power that does useful work, and apparent power is the total power supplied to the circuit. Power factor is given by:
Power Factor = P/S = cos(θ)
Where θ is the phase angle of the impedance. A power factor of 1 indicates that the circuit is purely resistive, and all the power supplied is used to do useful work. A power factor less than 1 indicates that some of the power is being stored and released in reactive components, resulting in inefficient power transfer.
Improving the power factor of a circuit can result in significant energy savings and reduced operating costs. This is particularly important in industrial applications, where large amounts of power are consumed.
Impedance and Transmission Lines
Transmission lines are used to transmit electrical signals over long distances. They are characterized by their impedance, which is determined by the physical properties of the line, such as its length, diameter, and the dielectric material used. The characteristic impedance (Z0) of a transmission line is given by:
Z0 = √(L/C)
Where L is the inductance per unit length and C is the capacitance per unit length. The characteristic impedance is an important parameter in transmission line design, as it determines the reflection and transmission of signals at the interface between different impedances.
When designing transmission lines, it is important to match the characteristic impedance of the line to the impedance of the source and load. This ensures maximum power transfer and minimizes signal reflections, which can cause distortion and loss of signal integrity.
Transmission lines are used in a wide range of applications, including:
- Telecommunications: Transmission lines are used to transmit voice, data, and video signals over long distances.
- Power Distribution: Transmission lines are used to distribute electrical power from generating stations to consumers.
- RF and Microwave Circuits: Transmission lines are used to transmit RF and microwave signals in communication systems, radar, and other applications.
Understanding the impedance of transmission lines is essential for designing and analyzing circuits that operate at high frequencies.
💡 Note: The impedance of a transmission line can be affected by various factors, including temperature, humidity, and mechanical stress. It is important to consider these factors when designing and installing transmission lines to ensure reliable performance.
Impedance and Smith Charts
A Smith chart is a graphical tool used to analyze the impedance of transmission lines and circuits. It provides a visual representation of the impedance as a function of frequency and allows engineers to quickly and easily determine the impedance of a circuit at any point along the transmission line.
The Smith chart is divided into two main sections: the impedance chart and the admittance chart. The impedance chart is used to analyze the impedance of a circuit, while the admittance chart is used to analyze the admittance (the reciprocal of impedance).
The Smith chart is particularly useful for analyzing circuits that operate at high frequencies, where the impedance can vary significantly with frequency. It allows engineers to quickly and easily determine the impedance of a circuit at any point along the transmission line and to design circuits that operate at specific frequencies.
Some of the key features of the Smith chart include:
- Impedance and Admittance Circles: The Smith chart is divided into concentric circles that represent different values of impedance and admittance.
- Normalized Impedance: The Smith chart uses normalized impedance, which is the ratio of the impedance of the circuit to the characteristic impedance of the transmission line.
- Frequency Scaling: The Smith chart can be scaled to represent different frequency ranges, allowing engineers to analyze circuits that operate at different frequencies.
Understanding how to use a Smith chart is an essential skill for engineers working in RF and microwave circuits, as it allows them to quickly and easily analyze the impedance of circuits and design circuits that operate at specific frequencies.
💡 Note: The Smith chart is a powerful tool for analyzing the impedance of transmission lines and circuits, but it requires practice and experience to use effectively. Engineers should take the time to familiarize themselves with the Smith chart and its features to get the most out of this valuable tool.
Impedance and Circuit Simulation
Circuit simulation software is a powerful tool for analyzing the behavior of electronic circuits. It allows engineers to model circuits and simulate their behavior under various conditions, including different frequencies and load impedances. Circuit simulation software can be used to analyze the impedance of circuits and to design circuits that operate at specific frequencies.
Some of the key features of circuit simulation software include:
- AC Analysis: Circuit simulation software can perform AC analysis, which allows engineers to analyze the impedance of circuits as a function of frequency.
- Impedance Matching: Circuit simulation software can be used to design impedance matching networks that maximize power transfer between a source and a load.
- Transient Analysis: Circuit simulation software can perform transient analysis, which allows engineers to analyze the behavior of circuits over time.
Circuit simulation software is an essential tool for engineers working in electronics and electrical engineering, as it allows them to quickly and easily analyze the behavior of circuits and to design circuits that operate at specific frequencies.
Some popular circuit simulation software packages include:
| Software | Features |
|---|---|
| LTspice | Free, open-source, powerful AC and transient analysis |
| PSpice | Commercial, comprehensive simulation capabilities |
| Multisim | Educational, user-friendly, integrated with NI ELVIS |
| Micro-Cap | Commercial, fast simulation, user-friendly interface |
Understanding how to use circuit simulation software is an essential skill for engineers working in electronics and electrical engineering, as it allows them to quickly and easily analyze the behavior of circuits and to design circuits that operate at specific frequencies.
💡 Note: Circuit simulation software is a powerful tool, but it is important to validate the results with real-world measurements. Engineers should always verify the simulation results with actual measurements to ensure accurate and reliable performance.
Impedance is a fundamental concept in electronics and electrical engineering, and understanding it is crucial for designing and analyzing circuits that operate at specific frequencies. By understanding what is impedance, its components, how it is measured, and its practical applications, engineers can design more efficient and effective circuits. Whether working with filters, matching networks, transmission lines, or circuit simulation software, a solid understanding of impedance is essential for success in the field.
Impedance is a complex but essential concept in electronics and electrical engineering. By understanding what is impedance, its components, how it is measured, and its practical applications, engineers can design more efficient and effective circuits. Whether working with filters, matching networks, transmission lines, or circuit simulation software, a solid understanding of impedance is essential for success in the field.
