What is Extrusion?

Extrusion is a process where a material is pushed through a die of a specific shape to create a continuous profile. The material can be in various forms, including metals, polymers, ceramics, and food products. The extrusion process can be categorized into two main types: hot extrusion and cold extrusion.

Types of Extrusion

Extrusion processes can be broadly classified into several types, each suited for different materials and applications.

Hot Extrusion

Hot extrusion involves heating the material to a high temperature before pushing it through the die. This process is commonly used for metals like aluminum, copper, and steel. The high temperature makes the material more malleable, allowing it to flow through the die more easily. Hot extrusion is ideal for creating complex shapes and large cross-sections.

Cold Extrusion

Cold extrusion, on the other hand, is performed at room temperature. This method is often used for softer metals like lead, tin, and aluminum. Cold extrusion results in products with better surface finishes and dimensional accuracy. However, it is limited to simpler shapes and smaller cross-sections due to the material’s lower ductility at room temperature.

Warm Extrusion

Warm extrusion is a hybrid process that combines elements of both hot and cold extrusion. The material is heated to a temperature below its recrystallization point, making it more ductile than in cold extrusion but less so than in hot extrusion. This process is used for materials that require precise dimensions and good surface finishes, such as certain alloys and composites.

Foam Extrusion

Foam extrusion is a specialized process used primarily in the plastics industry. It involves mixing a blowing agent with the polymer to create a foam structure as the material is extruded. This process is used to produce lightweight, insulating materials for various applications, including packaging, construction, and automotive parts.

Applications of Extrusion

The extrusion process is used in a wide range of industries due to its versatility and efficiency. Some of the key applications include:

Plastics Industry

In the plastics industry, extrusion is used to produce a variety of products, including pipes, tubes, sheets, and films. The process allows for the creation of complex shapes and profiles with high precision. Common materials used in plastic extrusion include polyethylene, polypropylene, polyvinyl chloride (PVC), and polystyrene.

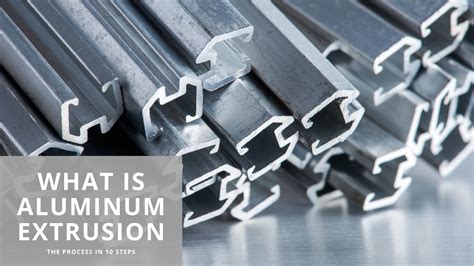

Metals Industry

In the metals industry, extrusion is used to produce structural components, such as beams, rods, and tubes. The process is particularly useful for creating complex shapes that would be difficult or impossible to achieve through other methods. Common metals used in extrusion include aluminum, copper, brass, and steel.

Food Industry

In the food industry, extrusion is used to produce a variety of products, including pasta, cereals, and snack foods. The process involves mixing ingredients, heating, and then extruding the mixture through a die to create the desired shape. Extrusion cooking can also improve the nutritional value and digestibility of food products.

Ceramics Industry

In the ceramics industry, extrusion is used to produce products such as bricks, tiles, and pipes. The process involves mixing clay or other ceramic materials with water and then extruding the mixture through a die to create the desired shape. Extrusion allows for the production of complex shapes with high precision and consistency.

Advantages of Extrusion

The extrusion process offers several advantages that make it a popular choice for many industries. Some of the key benefits include:

Versatility: Extrusion can be used to produce a wide range of products with different shapes, sizes, and materials.
Efficiency: The process is highly efficient, allowing for the production of large quantities of products in a short amount of time.
Precision: Extrusion allows for the creation of complex shapes with high precision and consistency.
Cost-Effective: The extrusion process is generally cost-effective, as it requires less material and labor compared to other manufacturing methods.
Customization: Extrusion dies can be customized to create unique shapes and profiles, allowing for a high degree of customization.

Disadvantages of Extrusion

While extrusion offers many advantages, it also has some limitations. Some of the challenges associated with the extrusion process include:

Material Limitations: Not all materials can be extruded, and some materials may require specialized equipment or processes.
Die Wear: The extrusion die can wear out over time, requiring frequent replacement or maintenance.
Complexity: The extrusion process can be complex, requiring specialized knowledge and equipment.
Waste: Extrusion can generate waste material, which may need to be recycled or disposed of properly.

Extrusion Equipment

The extrusion process requires specialized equipment to ensure precision and efficiency. The key components of an extrusion system include:

Extruder

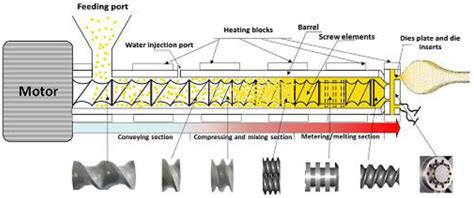

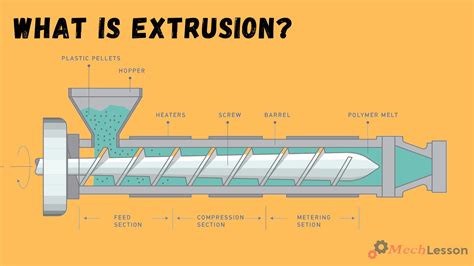

The extruder is the main component of the extrusion system. It consists of a barrel and a screw that rotates to push the material through the die. The extruder can be heated to control the temperature of the material during the extrusion process.

Die

The die is a critical component of the extrusion system. It determines the shape and size of the extruded product. Dies can be customized to create unique shapes and profiles, allowing for a high degree of customization.

Cooling System

The cooling system is used to cool the extruded product as it exits the die. This helps to maintain the dimensional stability and surface finish of the product. Cooling systems can include water baths, air cooling, or other methods.

Puller

The puller is used to draw the extruded product away from the die at a controlled speed. This helps to maintain the dimensional accuracy and surface finish of the product. Pullers can be mechanical or hydraulic.

Extrusion Process Steps

The extrusion process involves several steps, each of which is crucial for achieving the desired outcome. Here is a detailed overview of the extrusion process steps:

Material Preparation

The first step in the extrusion process is material preparation. This involves selecting the appropriate material and preparing it for extrusion. The material may need to be heated, mixed, or otherwise treated to ensure it flows smoothly through the die.

Feeding

The prepared material is then fed into the extruder. The feeding process can be manual or automated, depending on the scale of production. The material is pushed through the barrel by the rotating screw.

Heating

In hot extrusion, the material is heated to a high temperature to make it more malleable. The heating process can be controlled using heating elements or other methods. The temperature must be carefully controlled to ensure the material flows smoothly through the die.

Extrusion

The material is then pushed through the die, which shapes it into the desired profile. The die determines the shape and size of the extruded product. The extrusion process can be controlled using various parameters, such as screw speed, temperature, and pressure.

Cooling

After extrusion, the product is cooled to maintain its dimensional stability and surface finish. Cooling can be achieved using water baths, air cooling, or other methods. The cooling process must be carefully controlled to prevent warping or other defects.

Cutting

The extruded product is then cut to the desired length using a cutting tool. The cutting process can be automated or manual, depending on the scale of production. The cut pieces are then ready for further processing or use.

📝 Note: The extrusion process can vary depending on the material and application. Some materials may require additional steps, such as annealing or surface treatment, to achieve the desired properties.

Extrusion in the Plastics Industry

In the plastics industry, extrusion is a fundamental process used to produce a wide range of products. The process involves melting the plastic material and then pushing it through a die to create the desired shape. The key steps in plastic extrusion include:

Material Selection

The first step in plastic extrusion is selecting the appropriate material. Common plastics used in extrusion include polyethylene, polypropylene, PVC, and polystyrene. The material selection depends on the desired properties of the final product, such as strength, flexibility, and chemical resistance.

Melting

The selected plastic material is then melted in the extruder. The melting process involves heating the material to a high temperature to make it flowable. The temperature must be carefully controlled to ensure the material flows smoothly through the die.

Extrusion

The melted plastic is then pushed through the die, which shapes it into the desired profile. The die determines the shape and size of the extruded product. The extrusion process can be controlled using various parameters, such as screw speed, temperature, and pressure.

Cooling

After extrusion, the plastic product is cooled to maintain its dimensional stability and surface finish. Cooling can be achieved using water baths, air cooling, or other methods. The cooling process must be carefully controlled to prevent warping or other defects.

Cutting

The extruded plastic product is then cut to the desired length using a cutting tool. The cutting process can be automated or manual, depending on the scale of production. The cut pieces are then ready for further processing or use.

Extrusion in the Metals Industry

In the metals industry, extrusion is used to produce structural components, such as beams, rods, and tubes. The process involves heating the metal to a high temperature and then pushing it through a die to create the desired shape. The key steps in metal extrusion include:

Material Selection

The first step in metal extrusion is selecting the appropriate material. Common metals used in extrusion include aluminum, copper, brass, and steel. The material selection depends on the desired properties of the final product, such as strength, ductility, and corrosion resistance.

Heating

The selected metal is then heated to a high temperature to make it more malleable. The heating process can be controlled using heating elements or other methods. The temperature must be carefully controlled to ensure the material flows smoothly through the die.

Extrusion

The heated metal is then pushed through the die, which shapes it into the desired profile. The die determines the shape and size of the extruded product. The extrusion process can be controlled using various parameters, such as ram speed, temperature, and pressure.

Cooling

After extrusion, the metal product is cooled to maintain its dimensional stability and surface finish. Cooling can be achieved using water baths, air cooling, or other methods. The cooling process must be carefully controlled to prevent warping or other defects.

Cutting

The extruded metal product is then cut to the desired length using a cutting tool. The cutting process can be automated or manual, depending on the scale of production. The cut pieces are then ready for further processing or use.

Extrusion in the Food Industry

Ingredient Selection

The first step in food extrusion is selecting the appropriate ingredients. Common ingredients used in food extrusion include grains, flours, and additives. The ingredient selection depends on the desired properties of the final product, such as texture, flavor, and nutritional value.

Mixing

The selected ingredients are then mixed to create a homogeneous mixture. The mixing process can be controlled using various parameters, such as mixing speed, temperature, and time. The mixture must be carefully controlled to ensure it flows smoothly through the die.

Heating

The mixed ingredients are then heated to a high temperature to cook the product. The heating process can be controlled using heating elements or other methods. The temperature must be carefully controlled to ensure the product cooks evenly and thoroughly.

Extrusion

The heated mixture is then pushed through the die, which shapes it into the desired profile. The die determines the shape and size of the extruded product. The extrusion process can be controlled using various parameters, such as screw speed, temperature, and pressure.

Cooling

After extrusion, the food product is cooled to maintain its dimensional stability and surface finish. Cooling can be achieved using water baths, air cooling, or other methods. The cooling process must be carefully controlled to prevent warping or other defects.

Cutting

The extruded food product is then cut to the desired length using a cutting tool. The cutting process can be automated or manual, depending on the scale of production. The cut pieces are then ready for further processing or use.

Extrusion in the Ceramics Industry

Material Selection

The first step in ceramic extrusion is selecting the appropriate material. Common materials used in ceramic extrusion include clay, kaolin, and other ceramic powders. The material selection depends on the desired properties of the final product, such as strength, durability, and aesthetic appeal.

Mixing

The selected ceramic materials are then mixed with water to create a homogeneous mixture. The mixing process can be controlled using various parameters, such as mixing speed, temperature, and time. The mixture must be carefully controlled to ensure it flows smoothly through the die.

Extrusion

The mixed ceramic material is then pushed through the die, which shapes it into the desired profile. The die determines the shape and size of the extruded product. The extrusion process can be controlled using various parameters, such as screw speed, temperature, and pressure.

Drying

After extrusion, the ceramic product is dried to remove excess water. Drying can be achieved using air drying, oven drying, or other methods. The drying process must be carefully controlled to prevent warping or other defects.

Firing

The dried ceramic product is then fired in a kiln to harden and strengthen it. The firing process can be controlled using various parameters, such as temperature, time, and atmosphere. The firing process must be carefully controlled to ensure the product achieves the desired properties.

Cutting

The extruded ceramic product is then cut to the desired length using a cutting tool. The cutting process can be automated or manual, depending on the scale of production. The cut pieces are then ready for further processing or use.

Extrusion in the Automotive Industry

In the automotive industry, extrusion is used to produce a variety of components, including frames, panels, and structural parts. The process involves heating the material to a high temperature and then pushing it through a die to create the desired shape. The key steps in automotive extrusion include:

Material Selection

The first step in automotive extrusion is selecting the appropriate material. Common materials used in automotive extrusion include aluminum, steel, and composites. The material selection depends on the desired properties of the final product, such as strength, weight, and corrosion resistance.

Heating

The selected material is then heated to a high temperature to make it more malleable. The heating process can be controlled using heating elements or other methods. The temperature must be carefully controlled to ensure the material flows smoothly through the die.

Extrusion

The heated material is then pushed through the die, which shapes it into the desired profile. The die determines the shape and size of the extruded product. The extrusion process can be controlled using various parameters, such as ram speed, temperature, and pressure.

Cooling

After extrusion, the automotive component is cooled to maintain its dimensional stability and surface finish. Cooling can be achieved using water baths, air cooling, or other methods. The cooling process must be carefully controlled to prevent warping or other defects.

Cutting

The extruded automotive component is then cut to the desired length using a cutting tool. The cutting process can be automated or manual, depending on the scale of production. The cut pieces are then ready for further processing or use.

Extrusion in the Construction Industry

In the construction industry, extrusion is used to produce a variety of products, including pipes, tubes, and structural components. The process involves heating the material to a high temperature and then pushing it through a die to create the desired shape. The key steps in construction extrusion include:

Material Selection

The first step in construction extrusion is selecting the appropriate material. Common materials used in construction extrusion include PVC, aluminum, and steel. The material selection depends on the desired properties of the final product, such as strength, durability, and corrosion resistance.

Heating

Extrusion

Cooling

After extrusion, the construction component is cooled to maintain its dimensional stability and surface finish. Cooling can be achieved using water baths, air cooling, or other methods. The cooling process must be carefully controlled to prevent warping or other defects.

Cutting

The extruded construction component is then cut to the desired length using a cutting tool. The cutting process can be automated or manual, depending on the scale of production. The cut pieces are then ready for further processing or use.

Extrusion in the Aerospace Industry

In the aerospace industry, extrusion is used to produce a variety of components, including structural parts, panels, and tubes. The process involves heating the material to a high temperature and then pushing it through a die to create the desired shape. The key steps in aerospace extrusion include:
