Understanding the fundamental concepts of electromagnetism is crucial for anyone delving into the fields of physics and engineering. One of the key concepts is the electric field, often referred to as the E field. This invisible force field surrounds electrically charged particles and exerts a force on other charged particles within its vicinity. The E field is a vector quantity, meaning it has both magnitude and direction. This post will explore what is E field, its properties, how it is calculated, and its applications in various fields.
What Is E Field?
The E field, or electric field, is a region of space where an electric charge experiences a force. It is created by electric charges and extends infinitely in all directions. The strength of the E field at any point is defined as the force per unit charge that a test charge would experience if placed at that point. The E field is a fundamental concept in electromagnetism and is essential for understanding how electrical and electronic devices work.
Properties of the E Field
The E field has several important properties that define its behavior and interaction with charged particles:
- Vector Nature: The E field is a vector quantity, meaning it has both magnitude and direction. The direction of the E field is the direction in which a positive test charge would move if placed in the field.
- Superposition Principle: The E field due to multiple charges is the vector sum of the E fields due to each individual charge. This principle allows for the calculation of complex E fields by breaking them down into simpler components.
- Inverse Square Law: The magnitude of the E field decreases with the square of the distance from the charge. This means that as you move farther away from a charge, the E field strength decreases rapidly.
- Continuity and Discontinuity: The E field is continuous in regions without charges but can be discontinuous across surfaces with charge distributions.
Calculating the E Field
Calculating the E field involves understanding the relationship between the charge and the distance from the charge. The E field due to a point charge can be calculated using Coulomb’s law, which states that the force between two point charges is directly proportional to the product of their charges and inversely proportional to the square of the distance between them.
The formula for the E field due to a point charge is:
E = k * (q / r^2)
where:
- E is the electric field strength
- k is Coulomb's constant (approximately 8.99 x 10^9 N m^2/C^2)
- q is the charge creating the E field
- r is the distance from the charge
For a continuous charge distribution, the E field can be calculated using integration. The E field at a point due to a continuous charge distribution is given by:
E = ∫ (k * dq / r^2) * r̂
where:
- dq is a small element of charge
- r̂ is the unit vector pointing from the charge element to the point of interest
For a uniform E field, such as that between the plates of a parallel-plate capacitor, the E field is constant and can be calculated using the formula:
E = V / d
where:
- V is the potential difference between the plates
- d is the distance between the plates
Applications of the E Field
The E field has numerous applications in various fields, including electronics, telecommunications, and medicine. Some of the key applications are:
- Electronics: The E field is crucial in the design and operation of electronic devices such as capacitors, transistors, and integrated circuits. Understanding the E field allows engineers to optimize the performance and efficiency of these devices.
- Telecommunications: The E field is used in the transmission of electromagnetic waves, which are the basis for radio, television, and wireless communication. The E field interacts with antennas to transmit and receive signals over long distances.
- Medicine: The E field is used in medical imaging techniques such as electroencephalography (EEG) and electromyography (EMG). These techniques measure the electrical activity of the brain and muscles, respectively, to diagnose and monitor various conditions.
- Industrial Applications: The E field is used in electrostatic painting, where charged particles of paint are attracted to a grounded object, ensuring an even coat. It is also used in electrostatic precipitators to remove particles from exhaust gases.
E Field and Gauss's Law
Gauss's law is a fundamental principle in electromagnetism that relates the E field to the charge enclosed by a surface. It states that the flux of the E field through a closed surface is proportional to the charge enclosed by that surface. The mathematical expression of Gauss's law is:
Φ_E = ∮ E · dA = q_enclosed / ε_0
where:
- Φ_E is the electric flux
- E is the electric field
- dA is a small element of area
- q_enclosed is the charge enclosed by the surface
- ε_0 is the permittivity of free space
Gauss's law is particularly useful for calculating the E field in situations with high symmetry, such as spherical, cylindrical, or planar charge distributions. By choosing an appropriate Gaussian surface, the E field can be determined more easily than using direct integration.
For example, consider a point charge q at the center of a spherical Gaussian surface. The E field is radially symmetric, and the flux through the surface is:
Φ_E = E * 4πr^2
Using Gauss's law, we have:
E * 4πr^2 = q / ε_0
Solving for E, we get:
E = q / (4πε_0r^2)
This result is consistent with Coulomb's law, demonstrating the consistency of Gauss's law with other principles of electromagnetism.
E Field and Potential
The E field is closely related to the electric potential, which is a scalar quantity representing the amount of work needed to move a unit charge from a reference point to a specific point in the E field. The relationship between the E field and the electric potential is given by:
E = -∇V
where:
- E is the electric field
- V is the electric potential
- ∇ is the gradient operator
The negative sign indicates that the E field points in the direction of decreasing potential. The electric potential is often more convenient to work with than the E field because it is a scalar quantity and can be easily visualized using equipotential surfaces.
For a point charge, the electric potential at a distance r is given by:
V = k * q / r
where:
- k is Coulomb's constant
- q is the charge
- r is the distance from the charge
For a continuous charge distribution, the electric potential can be calculated using integration:
V = ∫ (k * dq / r)
where:
- dq is a small element of charge
- r is the distance from the charge element to the point of interest
Understanding the relationship between the E field and the electric potential is crucial for solving problems in electromagnetism and for designing electrical and electronic devices.
E Field in Dielectric Materials
When an E field is applied to a dielectric material, the material becomes polarized, meaning that the positive and negative charges within the material are separated. This polarization creates an internal E field that opposes the applied E field, reducing the overall E field within the material. The relationship between the applied E field (E_0), the internal E field (E), and the polarization (P) is given by:
E = E_0 - P / ε_0
where:
- ε_0 is the permittivity of free space
The polarization P is related to the applied E field by the electric susceptibility (χ_e) of the material:
P = χ_e * ε_0 * E_0
Substituting this into the previous equation, we get:
E = E_0 / (1 + χ_e)
The dielectric constant (κ) of the material is defined as:
κ = 1 + χ_e
So the relationship between the applied E field and the internal E field can be written as:
E = E_0 / κ
This equation shows that the internal E field is reduced by a factor of the dielectric constant. Dielectric materials are used in capacitors to increase their capacitance and in insulators to prevent the flow of electric current.
Dielectric materials can be classified as linear or nonlinear based on their response to the applied E field. In linear dielectrics, the polarization is directly proportional to the applied E field, and the dielectric constant is independent of the E field strength. In nonlinear dielectrics, the polarization is not directly proportional to the applied E field, and the dielectric constant can vary with the E field strength.
Some common dielectric materials and their dielectric constants are shown in the table below:
| Material | Dielectric Constant (κ) |
|---|---|
| Vacuum | 1 |
| Air | 1.0006 |
| Water | 80 |
| Glass | 5-10 |
| Paper | 3.5 |
| Rubber | 2.5-3 |
Understanding the behavior of the E field in dielectric materials is important for designing capacitors, insulators, and other electrical components.
💡 Note: The dielectric constant of a material can vary with temperature, frequency, and other factors, so it is important to consider these variables when designing electrical components.

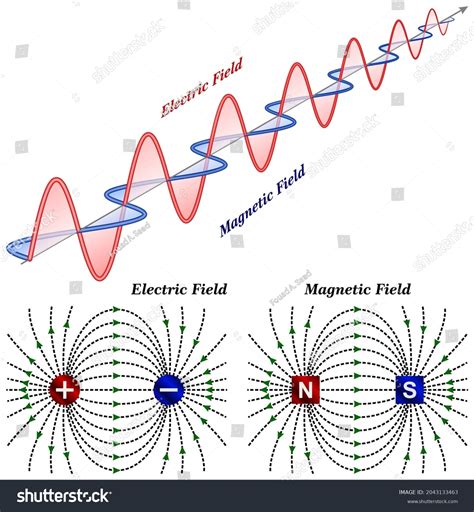

E Field and Magnetic Field
The E field and the magnetic field are closely related and together form the electromagnetic field. The relationship between the E field and the magnetic field is described by Maxwell’s equations, which are a set of four fundamental equations in electromagnetism. The equations are:
∇ · E = ρ / ε_0
∇ · B = 0
∇ × E = -∂B / ∂t
∇ × B = μ_0 * J + μ_0 * ε_0 * ∂E / ∂t
where:
- E is the electric field
- B is the magnetic field
- ρ is the charge density
- J is the current density
- μ_0 is the permeability of free space
- ε_0 is the permittivity of free space
The first equation is Gauss's law for the E field, which relates the E field to the charge distribution. The second equation is Gauss's law for the magnetic field, which states that magnetic monopoles do not exist. The third equation is Faraday's law of induction, which describes how a changing magnetic field induces an E field. The fourth equation is Ampere's law with Maxwell's correction, which describes how electric currents and changing electric fields generate magnetic fields.
Maxwell's equations describe the behavior of the E field and the magnetic field in all situations and are the foundation of classical electromagnetism. They have numerous applications in physics, engineering, and technology, including the design of antennas, waveguides, and optical fibers.
Understanding the relationship between the E field and the magnetic field is crucial for studying electromagnetic waves, which are oscillations of the E field and the magnetic field that propagate through space. Electromagnetic waves include radio waves, microwaves, infrared, visible light, ultraviolet, X-rays, and gamma rays. They are used in a wide range of applications, from communication and navigation to medical imaging and scientific research.
Electromagnetic waves are characterized by their frequency, wavelength, and polarization. The frequency (f) is the number of oscillations per second, and the wavelength (λ) is the distance between successive crests or troughs of the wave. The speed of the wave (c) is given by:
c = f * λ
In a vacuum, the speed of electromagnetic waves is approximately 3 x 10^8 m/s. The polarization of an electromagnetic wave refers to the direction of the E field oscillation. Electromagnetic waves can be polarized linearly, circularly, or elliptically, depending on the orientation and phase of the E field and the magnetic field.
Electromagnetic waves are generated by accelerating charges, such as electrons in an antenna. The E field and the magnetic field oscillate perpendicular to each other and to the direction of propagation. The E field induces a current in a receiving antenna, which can be detected and processed to extract information.
Understanding the behavior of electromagnetic waves is important for designing communication systems, radar, and other technologies that rely on the transmission and reception of electromagnetic signals.
💡 Note: The behavior of electromagnetic waves can be affected by the properties of the medium through which they propagate. For example, the speed of light in a material is given by c/n, where n is the refractive index of the material. The refractive index depends on the frequency of the wave and can cause dispersion, where different frequencies travel at different speeds.
In conclusion, the E field is a fundamental concept in electromagnetism that describes the force exerted by electric charges on other charges. It has numerous applications in electronics, telecommunications, medicine, and industry. Understanding the properties of the E field, how it is calculated, and its relationship with other electromagnetic quantities is crucial for designing and analyzing electrical and electronic devices. The E field is closely related to the magnetic field and together they form the electromagnetic field, which is described by Maxwell’s equations. Electromagnetic waves, which are oscillations of the E field and the magnetic field, have numerous applications in communication, navigation, and scientific research. By studying the E field and its behavior, we can gain a deeper understanding of the fundamental forces of nature and their applications in technology.
