Cogeneration, also known as combined heat and power (CHP), is a highly efficient and sustainable method of generating electricity and useful thermal energy from a single fuel source. This process not only reduces energy costs but also significantly decreases greenhouse gas emissions, making it a cornerstone of modern energy strategies. Understanding what is cogeneration and its benefits can provide valuable insights into how industries and communities can achieve greater energy efficiency and sustainability.
Understanding Cogeneration

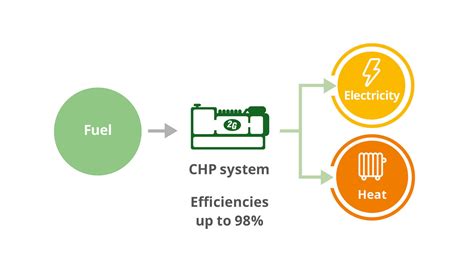

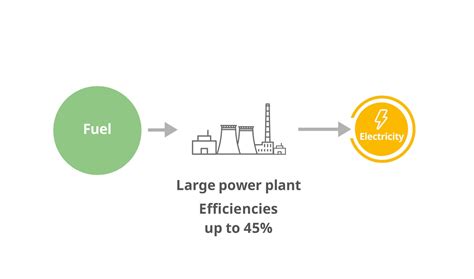

Cogeneration involves the simultaneous production of electricity and heat from a single energy source. Traditional power plants generate electricity and then discard the heat produced as a byproduct. In contrast, cogeneration systems capture and utilize this heat for various applications, such as heating buildings, powering industrial processes, or even providing hot water. This dual use of energy makes cogeneration a highly efficient process, often achieving efficiencies of up to 80% or more, compared to the 30-40% efficiency of conventional power plants.
How Cogeneration Works

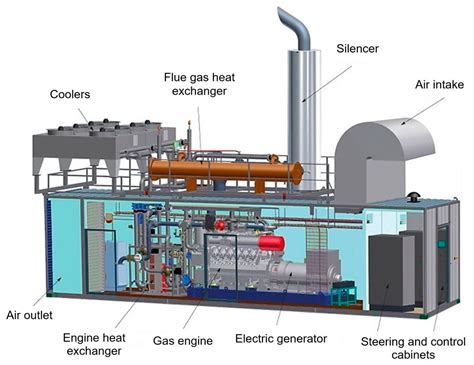

Cogeneration systems typically consist of a prime mover, such as a gas turbine, steam turbine, or reciprocating engine, which drives an electrical generator. The heat produced during this process is then captured and used for various applications. The basic components of a cogeneration system include:
- Prime Mover: The engine or turbine that drives the electrical generator.
- Generator: Converts mechanical energy into electrical energy.
- Heat Recovery System: Captures the heat produced by the prime mover and transfers it to a useful application.
- Control System: Monitors and regulates the operation of the cogeneration system to ensure optimal performance.
There are several types of cogeneration systems, each suited to different applications and energy needs:
- Topping Cycle: In this system, the prime mover generates electricity first, and the waste heat is then used for heating or other thermal applications.
- Bottoming Cycle: Here, the primary goal is to produce heat, and the electricity is generated as a byproduct of the heat production process.
- Combined Cycle: This system combines both topping and bottoming cycles to maximize efficiency. It typically involves a gas turbine for electricity generation and a steam turbine for heat recovery.
Benefits of Cogeneration
Cogeneration offers numerous benefits, making it an attractive option for both industrial and commercial applications. Some of the key advantages include:
- Energy Efficiency: By capturing and utilizing waste heat, cogeneration systems can achieve efficiencies of up to 80% or more, significantly higher than traditional power plants.
- Cost Savings: Reduced energy costs due to the efficient use of fuel and the elimination of the need for separate heating and power systems.
- Environmental Impact: Lower greenhouse gas emissions and reduced air pollution due to the more efficient use of fuel.
- Reliability: Cogeneration systems can provide a stable and reliable source of both electricity and heat, reducing dependence on the grid and minimizing the risk of power outages.
- Flexibility: Can be scaled to meet the specific energy needs of different applications, from small commercial buildings to large industrial facilities.
Applications of Cogeneration
Cogeneration systems are used in a wide range of applications, from small-scale residential and commercial buildings to large industrial facilities. Some of the most common applications include:
- Industrial Processes: Many industries, such as manufacturing, chemical processing, and food production, require both electricity and heat. Cogeneration systems can provide a cost-effective and efficient solution for these energy needs.
- Commercial Buildings: Hotels, hospitals, universities, and other large commercial buildings can benefit from cogeneration by reducing energy costs and improving reliability.
- Residential Communities: Some residential communities, particularly those with district heating systems, can use cogeneration to provide both electricity and heat to homes.
- District Heating and Cooling: In urban areas, cogeneration systems can be used to provide heating and cooling to multiple buildings through a district energy network.
Here is a table summarizing the key applications and benefits of cogeneration:
| Application | Benefits |
|---|---|
| Industrial Processes | Cost savings, improved efficiency, reduced emissions |
| Commercial Buildings | Energy cost reduction, reliability, sustainability |
| Residential Communities | Energy efficiency, cost savings, reduced environmental impact |
| District Heating and Cooling | Efficient energy distribution, reduced emissions, cost savings |
Challenges and Considerations
While cogeneration offers numerous benefits, there are also challenges and considerations to keep in mind. Some of the key factors to consider include:
- Initial Investment: The upfront cost of installing a cogeneration system can be high, although the long-term savings often justify the investment.
- Maintenance: Regular maintenance is required to ensure the system operates efficiently and reliably.
- Regulatory Compliance: Compliance with local regulations and environmental standards is essential for the successful implementation of cogeneration systems.
- Fuel Availability: The availability and cost of fuel can impact the feasibility and economics of a cogeneration project.
It is important to conduct a thorough analysis of these factors to determine the suitability of cogeneration for a specific application. Engaging with experienced professionals and conducting detailed feasibility studies can help ensure the successful implementation of a cogeneration system.
🔍 Note: When considering cogeneration, it is crucial to evaluate the specific energy needs and constraints of the application to ensure the system is designed and implemented effectively.
Case Studies
Several successful case studies highlight the benefits and effectiveness of cogeneration systems. For example, a large manufacturing plant implemented a cogeneration system to meet its electricity and heat requirements. The system not only reduced energy costs by 30% but also decreased greenhouse gas emissions by 25%. Similarly, a university campus used cogeneration to provide heating and cooling to multiple buildings, resulting in significant energy savings and improved reliability.
These case studies demonstrate the potential of cogeneration to transform energy use in various sectors, providing both economic and environmental benefits.
Cogeneration systems are a powerful tool for achieving greater energy efficiency and sustainability. By understanding what is cogeneration and its benefits, industries and communities can make informed decisions about their energy strategies. The efficient use of fuel, reduced energy costs, and lower environmental impact make cogeneration an attractive option for a wide range of applications. As energy demands continue to grow, cogeneration will play an increasingly important role in meeting these needs sustainably.
