Understanding the concept of What Is Arcing is crucial for anyone involved in electrical engineering, maintenance, or safety. Arcing, also known as an electric arc, is a luminous discharge of electricity that occurs when a current flows through a normally non-conductive medium such as air. This phenomenon can have significant implications for electrical systems, safety protocols, and equipment longevity. This post will delve into the fundamentals of arcing, its causes, effects, and prevention strategies.
Understanding Arcing

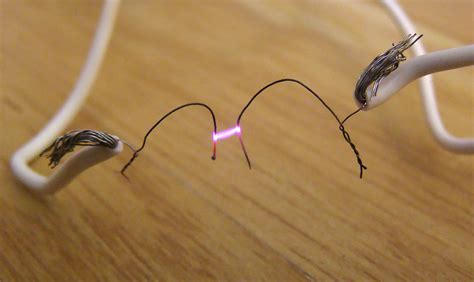

Arcing occurs when an electrical current jumps across a gap between two conductors. This gap can be due to a variety of reasons, including worn-out insulation, loose connections, or faulty equipment. The arc itself is a plasma channel that conducts electricity, and it can generate extremely high temperatures, often exceeding 3,000°C (5,432°F). This intense heat can cause significant damage to surrounding materials and equipment.
There are several types of arcing, each with its own characteristics and implications:
- Series Arcing: Occurs when the arc forms in series with the load, typically due to a break in the circuit.
- Parallel Arcing: Happens when the arc forms in parallel with the load, often due to insulation failure.
- Ground Arcing: Occurs when the arc forms between a live conductor and the ground, usually due to insulation breakdown or a faulty ground connection.
Causes of Arcing
Arcing can be caused by a variety of factors, many of which are related to the condition and maintenance of electrical systems. Some of the most common causes include:
- Worn-Out Insulation: Over time, insulation on wires and cables can degrade due to age, heat, or mechanical stress, leading to arcing.
- Loose Connections: Poorly tightened connections can create gaps where arcing can occur, especially under high current conditions.
- Faulty Equipment: Defective switches, circuit breakers, and other electrical components can cause arcing.
- Environmental Factors: Dust, moisture, and corrosive substances can degrade electrical components and lead to arcing.
- Overloading: Excessive current flow can cause overheating and arcing in electrical circuits.
Effects of Arcing
The effects of arcing can be severe and far-reaching, impacting both the electrical system and the surrounding environment. Some of the key effects include:
- Equipment Damage: The high temperatures generated by arcing can melt or vaporize metal components, leading to equipment failure.
- Fire Hazard: Arcing can ignite nearby combustible materials, posing a significant fire risk.
- Electrical Shock: Arcing can create a path for electrical current to flow through the body, resulting in severe injuries or fatalities.
- System Downtime: Arcing can cause power outages and system failures, leading to downtime and productivity losses.
Prevention Strategies
Preventing arcing is essential for maintaining the safety and reliability of electrical systems. Several strategies can be employed to minimize the risk of arcing:
- Regular Maintenance: Conducting regular inspections and maintenance of electrical systems can help identify and address potential issues before they lead to arcing.
- Proper Installation: Ensuring that electrical components are installed correctly and securely can prevent loose connections and insulation failures.
- Use of High-Quality Materials: Using high-quality insulation and conductors can reduce the risk of degradation and arcing.
- Arc Flash Protection: Implementing arc flash protection measures, such as arc flash suits and face shields, can protect workers from the hazards of arcing.
- Grounding and Bonding: Proper grounding and bonding of electrical systems can help prevent ground arcing and ensure safe operation.
Additionally, using arc suppression devices and circuit protection equipment can help mitigate the effects of arcing. These devices are designed to detect and extinguish arcs quickly, minimizing damage and reducing the risk of fire and electrical shock.
Arcing in Different Environments
Arcing can occur in various environments, each with its own unique challenges and considerations. Understanding the specific risks and prevention strategies for different environments is crucial for effective management.
In industrial settings, arcing is a common hazard due to the presence of high-voltage equipment and heavy machinery. Regular inspections, proper grounding, and the use of arc flash protection are essential for preventing arcing and ensuring worker safety.
In residential settings, arcing can occur due to worn-out wiring, loose connections, and faulty appliances. Homeowners should be aware of the signs of arcing, such as flickering lights, burning smells, and discolored outlets, and take immediate action to address these issues.
In outdoor environments, arcing can be caused by environmental factors such as moisture, dust, and corrosive substances. Using weather-resistant materials and regular maintenance can help prevent arcing and ensure the reliability of outdoor electrical systems.
Arcing Detection and Monitoring
Detecting and monitoring arcing is essential for preventing equipment damage and ensuring safety. Several technologies and methods can be used to detect arcing, including:
- Thermal Imaging: Thermal cameras can detect the heat generated by arcing, allowing for early identification and prevention of potential issues.
- Acoustic Sensors: Acoustic sensors can detect the sound of arcing, providing an early warning of potential problems.
- Partial Discharge Monitoring: Partial discharge monitoring systems can detect the electrical signals associated with arcing, allowing for early intervention and prevention.
Regular monitoring and inspection of electrical systems can help identify potential arcing issues before they become critical. Implementing a comprehensive monitoring program can enhance the reliability and safety of electrical systems.
Here is a table summarizing the key points about arcing detection and monitoring:
| Detection Method | Description | Benefits |
|---|---|---|
| Thermal Imaging | Uses thermal cameras to detect heat generated by arcing. | Early identification of potential issues, non-invasive. |
| Acoustic Sensors | Detects the sound of arcing. | Provides early warning, easy to implement. |
| Partial Discharge Monitoring | Detects electrical signals associated with arcing. | Early intervention, comprehensive monitoring. |
🔍 Note: Regular monitoring and inspection are crucial for maintaining the safety and reliability of electrical systems. Implementing a comprehensive monitoring program can help identify potential arcing issues before they become critical.
Case Studies and Real-World Examples
Understanding the real-world implications of arcing can provide valuable insights into its causes, effects, and prevention strategies. Several case studies highlight the importance of addressing arcing in electrical systems.
In one industrial setting, a series of arcing incidents led to significant equipment damage and downtime. The root cause was identified as worn-out insulation on high-voltage cables. By implementing a regular maintenance program and using high-quality insulation materials, the company was able to reduce the frequency of arcing incidents and improve overall system reliability.
In another example, a residential fire was traced back to arcing caused by a loose connection in an electrical outlet. The homeowner had noticed flickering lights and a burning smell but did not take immediate action. The fire resulted in significant property damage and highlighted the importance of addressing potential arcing issues promptly.
These case studies underscore the need for proactive measures to prevent arcing and ensure the safety and reliability of electrical systems.
