Understanding the intricacies of water management and control is crucial for various industries, from agriculture to hydropower. One of the key components in this field is the weir. But what is a weir? A weir is a low barrier across a river or stream designed to alter the flow characteristics of water. Weirs are used for various purposes, including measuring flow rates, controlling water levels, and diverting water for irrigation or other uses. This blog post will delve into the details of weirs, their types, applications, and the science behind their operation.
Understanding Weirs: Basic Concepts

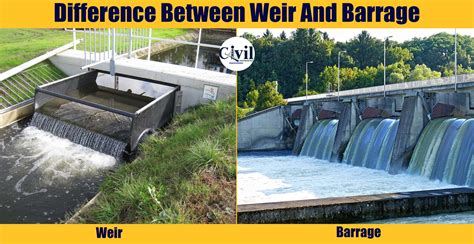

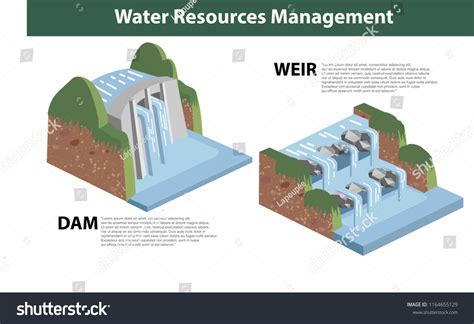

A weir is essentially a small dam that allows water to flow over it while controlling the water level upstream. The primary function of a weir is to manage the flow of water in a controlled manner. Weirs are commonly used in rivers, streams, and canals to regulate water levels, measure flow rates, and divert water for various purposes. The design of a weir can vary widely depending on its specific application, but the basic principle remains the same: to create a controlled flow of water over a barrier.
Types of Weirs
Weirs come in various types, each designed for specific purposes. The most common types include:

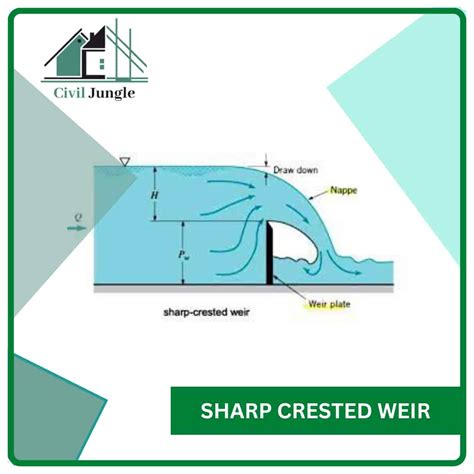

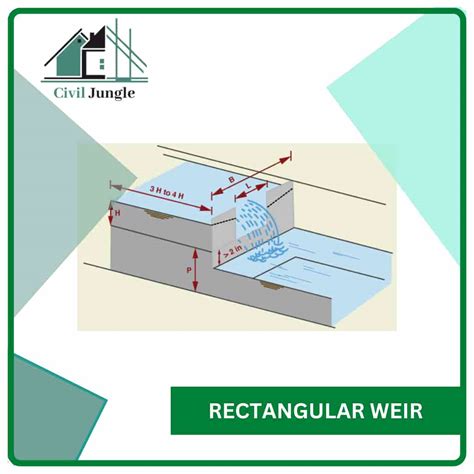

- Sharp-Crested Weirs: These weirs have a thin edge over which the water flows. They are often used for precise flow measurement due to their ability to create a well-defined nappe (the sheet of water flowing over the weir).

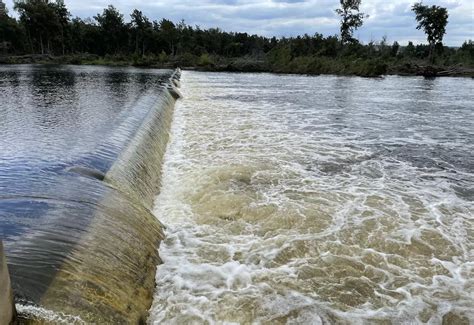

- Broad-Crested Weirs: These weirs have a wider crest, allowing water to flow over a broader surface. They are commonly used for flow measurement and control in larger channels.
- Ogee Weirs: These weirs have a curved profile that resembles the shape of an "S." They are designed to minimize energy loss and are often used in spillways and dams.
- Cipoletti Weirs: These weirs have a trapezoidal shape with specific dimensions that allow for accurate flow measurement. They are commonly used in irrigation and water management systems.
- V-Notch Weirs: These weirs have a V-shaped notch, which allows for precise flow measurement over a wide range of flow rates. They are often used in laboratory settings and small-scale applications.
Applications of Weirs
Weirs have a wide range of applications in various industries. Some of the most common applications include:
- Flow Measurement: Weirs are often used to measure the flow rate of water in rivers, streams, and canals. By measuring the height of the water flowing over the weir, engineers can calculate the flow rate using established formulas.

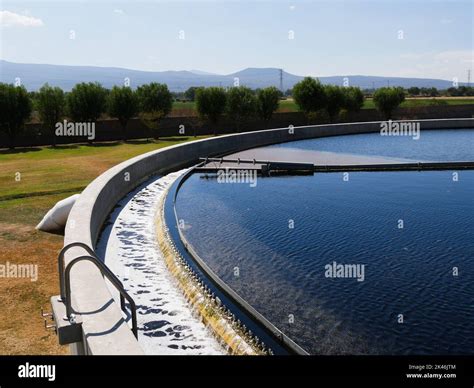

- Water Level Control: Weirs are used to control the water level in reservoirs, canals, and other water bodies. By adjusting the height of the weir, engineers can maintain a desired water level upstream.
- Irrigation: Weirs are used to divert water from rivers and streams for irrigation purposes. By controlling the flow of water, farmers can ensure that their crops receive the necessary amount of water.
- Hydropower: Weirs are used in hydropower systems to control the flow of water to turbines. By regulating the water flow, engineers can optimize the generation of electricity.
- Flood Control: Weirs are used to manage flood waters by controlling the flow of water in rivers and streams. By releasing water gradually, weirs can help prevent downstream flooding.
Design Considerations for Weirs
Designing a weir involves several considerations to ensure it functions effectively and efficiently. Some of the key design considerations include:
- Material Selection: The material used to construct the weir must be durable and resistant to corrosion. Common materials include concrete, steel, and wood.
- Shape and Size: The shape and size of the weir depend on its specific application. For example, a sharp-crested weir is suitable for precise flow measurement, while a broad-crested weir is better for controlling water levels in larger channels.
- Flow Characteristics: The design of the weir must take into account the flow characteristics of the water, including velocity, depth, and turbulence. This ensures that the weir operates efficiently and effectively.
- Environmental Factors: The design must also consider environmental factors such as sediment load, water quality, and wildlife habitat. Weirs should be designed to minimize their impact on the environment.
Here is a table summarizing the key design considerations for different types of weirs:
| Type of Weir | Material | Shape | Flow Characteristics | Environmental Factors |
|---|---|---|---|---|
| Sharp-Crested Weir | Concrete, Steel | Thin Edge | Precise Flow Measurement | Minimal Impact |
| Broad-Crested Weir | Concrete, Wood | Wide Crest | Controlled Flow | Sediment Management |
| Ogee Weir | Concrete | Curved Profile | Minimized Energy Loss | Wildlife Habitat |
| Cipoletti Weir | Concrete | Trapezoidal Shape | Accurate Flow Measurement | Water Quality |
| V-Notch Weir | Steel | V-Shaped Notch | Wide Range of Flow Rates | Minimal Impact |
📝 Note: The design of a weir should always be tailored to the specific requirements of the application. Consulting with a hydraulic engineer is recommended to ensure the weir is designed and constructed correctly.
The Science Behind Weirs

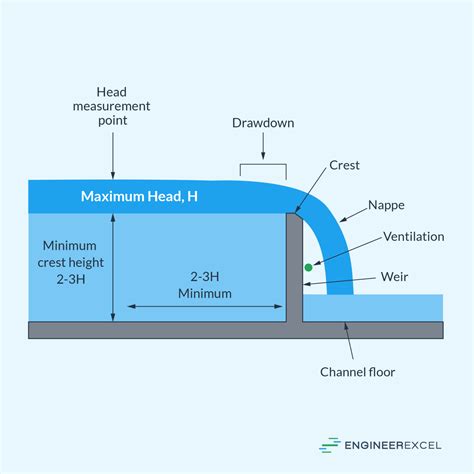

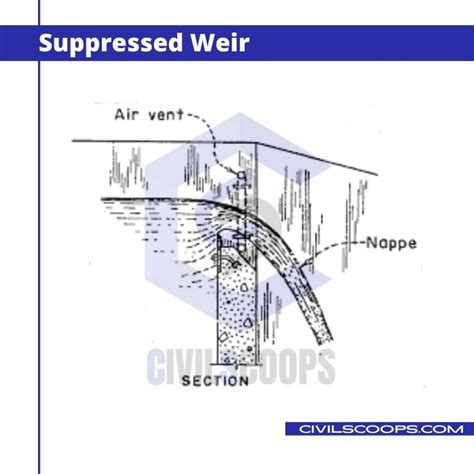

The operation of a weir is based on the principles of fluid dynamics and hydraulics. When water flows over a weir, it creates a nappe, which is the sheet of water flowing over the weir. The height of the nappe is directly related to the flow rate of the water. By measuring the height of the nappe, engineers can calculate the flow rate using established formulas.
The most common formula used to calculate the flow rate over a weir is the weir equation, which is given by:
Q = Cd * L * H3/2
Where:
- Q is the flow rate (in cubic meters per second)
- Cd is the discharge coefficient (a dimensionless constant that depends on the weir's shape and size)
- L is the length of the weir crest (in meters)
- H is the head of water over the weir (in meters)
The discharge coefficient (Cd) varies depending on the type of weir and the flow conditions. For example, a sharp-crested weir typically has a discharge coefficient of around 0.62, while a broad-crested weir may have a discharge coefficient of around 1.7.
Understanding the science behind weirs is crucial for designing and operating them effectively. By applying the principles of fluid dynamics and hydraulics, engineers can ensure that weirs function as intended and provide the desired benefits.
Maintenance and Monitoring of Weirs
Maintaining and monitoring weirs is essential to ensure their long-term performance and reliability. Regular maintenance helps prevent issues such as sediment buildup, corrosion, and structural damage. Monitoring weirs allows engineers to track their performance and make necessary adjustments to optimize their operation.
Some key maintenance and monitoring activities include:
- Regular Inspections: Conducting regular inspections to check for signs of wear, damage, or sediment buildup.
- Cleaning: Removing sediment and debris from the weir to ensure it operates efficiently.
- Repairs: Making necessary repairs to address any issues identified during inspections.
- Monitoring Flow Rates: Using flow meters and other instruments to monitor the flow rate over the weir and ensure it is operating within the desired range.
- Adjusting Water Levels: Adjusting the water level upstream of the weir to maintain the desired flow rate and water level.
By following these maintenance and monitoring practices, engineers can ensure that weirs continue to function effectively and provide the desired benefits over their lifespan.
📝 Note: Regular maintenance and monitoring are crucial for the long-term performance of weirs. Neglecting these activities can lead to reduced efficiency, increased maintenance costs, and potential failure of the weir.
Weirs are a vital component in water management and control, with applications ranging from flow measurement to flood control. Understanding what is a weir, its types, applications, and the science behind its operation is essential for engineers and professionals in various industries. By designing, maintaining, and monitoring weirs effectively, we can ensure that they continue to provide the necessary benefits for water management and control.
In summary, weirs play a crucial role in managing water resources efficiently. Whether used for measuring flow rates, controlling water levels, or diverting water for irrigation, weirs are indispensable tools in hydrology and water management. Their design, based on the principles of fluid dynamics and hydraulics, ensures that they operate effectively and efficiently. Regular maintenance and monitoring are essential to keep weirs in optimal condition, ensuring their long-term performance and reliability. By understanding the intricacies of weirs, we can better manage our water resources and contribute to sustainable water management practices.
