Understanding the fundamentals of plumbing and HVAC systems often leads to the question, "What is a valve?" Valves are essential components in these systems, controlling the flow of liquids, gases, or slurries by opening, closing, or partially obstructing various passageways. They play a crucial role in regulating pressure, direction, and flow rate, making them indispensable in a wide range of applications, from industrial processes to everyday household plumbing.

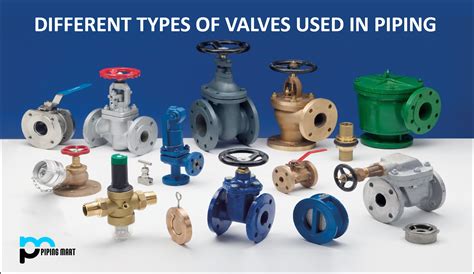

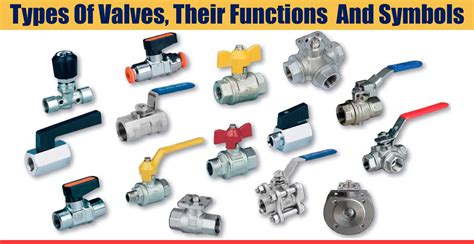

Types of Valves
Valves come in various types, each designed for specific functions and applications. Understanding the different types of valves is key to selecting the right one for your needs.
Ball Valves
Ball valves are one of the most common types of valves used in plumbing and industrial applications. They feature a spherical disc with a hole through the middle, which rotates to control the flow. When the valve is open, the hole aligns with the flow path, allowing fluid to pass through. When closed, the solid part of the ball blocks the flow.
Ball valves are known for their durability, reliability, and ability to provide a tight seal. They are often used in applications where quick shut-off is required, such as in water supply lines and gas pipelines.
Gate Valves
Gate valves are designed to control the flow of liquids or gases by using a gate or wedge that moves perpendicular to the flow path. When the valve is open, the gate is fully retracted, allowing unrestricted flow. When closed, the gate descends to block the flow.
Gate valves are ideal for applications where minimal pressure drop is required and where the valve is either fully open or fully closed. They are commonly used in water distribution systems and steam lines.

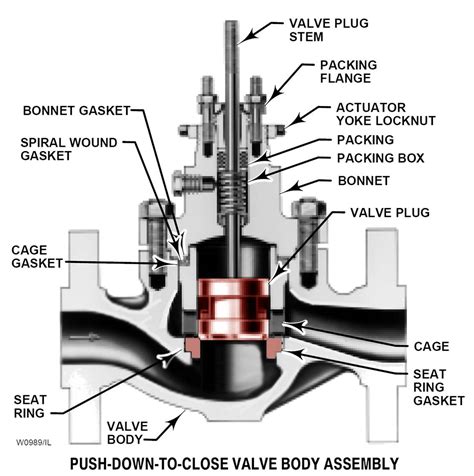

Globe Valves
Globe valves are designed to regulate flow by using a movable disk that can be adjusted to control the flow rate. The disk moves perpendicular to the flow path, allowing for precise control over the flow. Globe valves are often used in applications where throttling is required, such as in steam systems and cooling water systems.
Globe valves are known for their ability to provide precise flow control and are often used in applications where accurate regulation of flow is critical.
Check Valves
Check valves are designed to allow fluid to flow in only one direction, preventing backflow. They are essential in applications where backflow could cause contamination or damage to equipment. Check valves are commonly used in water supply systems, sewage treatment plants, and industrial processes.
Check valves come in various types, including swing check valves, lift check valves, and ball check valves, each designed for specific applications and flow conditions.
Butterfly Valves
Butterfly valves are designed to control the flow of liquids or gases by using a disc that rotates on a shaft. When the valve is open, the disc is parallel to the flow path, allowing fluid to pass through. When closed, the disc rotates to block the flow.
Butterfly valves are known for their compact design and ability to provide quick shut-off. They are commonly used in large-diameter pipelines, such as in water treatment plants and HVAC systems.
Needle Valves
Needle valves are designed to control the flow of liquids or gases with high precision. They feature a small port and a threaded, needle-shaped plunger that can be adjusted to control the flow rate. Needle valves are often used in applications where precise flow control is required, such as in laboratory equipment and instrumentation.
Needle valves are known for their ability to provide fine control over the flow rate and are often used in applications where accurate regulation of flow is critical.
Diaphragm Valves
Diaphragm valves are designed to control the flow of liquids or gases by using a flexible diaphragm that moves up and down to open or close the valve. They are often used in applications where a sterile environment is required, such as in food and beverage processing and pharmaceutical manufacturing.
Diaphragm valves are known for their ability to provide a tight seal and are often used in applications where contamination must be avoided.
Plug Valves
Plug valves are designed to control the flow of liquids or gases by using a cylindrical or conical plug with a bored passage. The plug rotates to align the passage with the flow path, allowing fluid to pass through. When closed, the solid part of the plug blocks the flow.
Plug valves are known for their ability to provide quick shut-off and are often used in applications where rapid flow control is required, such as in oil and gas pipelines.
Pinch Valves
Pinch valves are designed to control the flow of liquids or gases by using a flexible sleeve that can be pinched to block the flow. They are often used in applications where a sterile environment is required, such as in food and beverage processing and pharmaceutical manufacturing.
Pinch valves are known for their ability to provide a tight seal and are often used in applications where contamination must be avoided.
Safety Valves
Safety valves are designed to protect equipment and personnel from overpressure by automatically opening when the pressure exceeds a predetermined set point. They are essential in applications where safety is a critical concern, such as in pressure vessels and boilers.
Safety valves are known for their ability to provide reliable protection against overpressure and are often used in applications where safety is a critical concern.
Applications of Valves
Valves are used in a wide range of applications, from industrial processes to everyday household plumbing. Understanding the various applications of valves can help you select the right valve for your specific needs.
Industrial Applications
In industrial settings, valves are used to control the flow of liquids, gases, and slurries in various processes. Some common industrial applications of valves include:
- Oil and Gas: Valves are used to control the flow of oil and gas in pipelines, refineries, and processing plants.
- Chemical Processing: Valves are used to control the flow of chemicals in reactors, distillation columns, and other processing equipment.
- Power Generation: Valves are used to control the flow of steam, water, and other fluids in power plants.
- Water Treatment: Valves are used to control the flow of water in treatment plants, distribution systems, and wastewater management.
Household Applications
In household settings, valves are used to control the flow of water in plumbing systems. Some common household applications of valves include:
- Water Supply: Valves are used to control the flow of water in supply lines, faucets, and showerheads.
- Heating and Cooling: Valves are used to control the flow of water in heating and cooling systems, such as radiators and air conditioners.
- Appliances: Valves are used in appliances such as washing machines, dishwashers, and water heaters to control the flow of water.
Automotive Applications
In automotive settings, valves are used to control the flow of fluids in various systems. Some common automotive applications of valves include:
- Engine Cooling: Valves are used to control the flow of coolant in the engine cooling system.
- Fuel System: Valves are used to control the flow of fuel in the fuel system.
- Braking System: Valves are used to control the flow of brake fluid in the braking system.
Selection Criteria for Valves
Selecting the right valve for your application involves considering several factors. Understanding these selection criteria can help you choose the most suitable valve for your needs.
Material
The material of the valve is an important consideration, as it must be compatible with the fluid being controlled. Common valve materials include:
- Stainless Steel: Suitable for corrosive fluids and high-temperature applications.
- Brass: Suitable for water and low-pressure applications.
- Cast Iron: Suitable for high-pressure and high-temperature applications.
- Plastic: Suitable for low-pressure and non-corrosive applications.
Size
The size of the valve is determined by the nominal pipe size (NPS) or the diameter of the pipe it will be installed in. It is important to select a valve that matches the size of the pipe to ensure proper flow and pressure control.
Pressure Rating
The pressure rating of the valve indicates the maximum pressure it can withstand. It is important to select a valve with a pressure rating that matches or exceeds the pressure of the system it will be used in.
Temperature Rating
The temperature rating of the valve indicates the maximum temperature it can withstand. It is important to select a valve with a temperature rating that matches or exceeds the temperature of the fluid being controlled.
Flow Characteristics
The flow characteristics of the valve determine how it controls the flow of fluid. Some valves provide quick shut-off, while others provide precise flow control. It is important to select a valve with flow characteristics that match the requirements of your application.
Actuation
Valves can be actuated manually, pneumatically, electrically, or hydraulically. The type of actuation depends on the application and the level of control required. Manual actuation is suitable for simple applications, while automated actuation is suitable for complex systems that require precise control.
Maintenance and Troubleshooting
Maintaining and troubleshooting valves is essential to ensure they operate correctly and reliably. Regular maintenance can prevent failures and extend the lifespan of the valve. Here are some tips for maintaining and troubleshooting valves:
Maintenance Tips
- Regular Inspection: Inspect valves regularly for signs of wear, corrosion, or damage.
- Lubrication: Lubricate moving parts to ensure smooth operation.
- Cleaning: Clean valves to remove debris and prevent clogging.
- Testing: Test valves periodically to ensure they are functioning correctly.
Troubleshooting Tips
- Leakage: Check for leaks around the valve seat, stem, or packing. Replace worn or damaged parts as needed.
- Sticking: If the valve is sticking, check for debris or corrosion and clean or lubricate as needed.
- No Flow: If there is no flow, check for blockages in the valve or pipe and clear as needed.
- Excessive Noise: If the valve is making excessive noise, check for cavitation or turbulence and adjust the flow rate or valve type as needed.
🛠️ Note: Always follow the manufacturer's guidelines for maintenance and troubleshooting to ensure the valve operates correctly and safely.
Safety Considerations
When working with valves, it is important to follow safety guidelines to prevent injuries and ensure the safe operation of the system. Here are some safety considerations to keep in mind:
- Personal Protective Equipment (PPE): Wear appropriate PPE, including gloves, safety glasses, and protective clothing, when handling valves.
- Pressure Release: Always release pressure from the system before opening or closing a valve.
- Lockout/Tagout: Follow lockout/tagout procedures to prevent accidental startup of equipment while performing maintenance.
- Inspection: Regularly inspect valves for signs of wear, corrosion, or damage and replace as needed.
Understanding the fundamentals of valves, their types, applications, selection criteria, maintenance, and safety considerations is crucial for anyone working in plumbing, HVAC, or industrial settings. By choosing the right valve and maintaining it properly, you can ensure the safe and efficient operation of your system.
Valves play a critical role in controlling the flow of liquids, gases, and slurries in various applications. From industrial processes to household plumbing, valves are essential components that ensure the safe and efficient operation of systems. By understanding the different types of valves, their applications, and selection criteria, you can choose the right valve for your specific needs. Regular maintenance and following safety guidelines are also crucial to ensure the reliable and safe operation of valves.
