What Is A Spillway

By Ashley

July 15, 2025

3 min read

Save

What Is A Spillway

Dams are essential structures for water management, providing benefits such as flood control, irrigation, and hydroelectric power generation. However, managing the water flow from these structures is crucial to prevent overflow and potential disasters. This is where a spillway comes into play. A spillway is a structure used to provide the controlled release of flows from a dam or levee into a downstream area, typically the riverbed of the dammed river itself. Understanding what is a spillway, its types, functions, and importance can provide valuable insights into dam management and water resource control.

Table of Contents

What Is A Spillway?

A spillway is an essential component of a dam designed to safely release excess water from the reservoir. It ensures that the dam does not overflow, which could lead to catastrophic failures. Spillways are engineered to handle large volumes of water efficiently, directing the flow away from the dam structure to prevent erosion and structural damage. They are critical for maintaining the integrity of the dam and the safety of downstream communities.

Types of Spillways

Spillways can be categorized into several types based on their design and function. Each type serves a specific purpose and is chosen based on the dam's requirements and the surrounding topography.

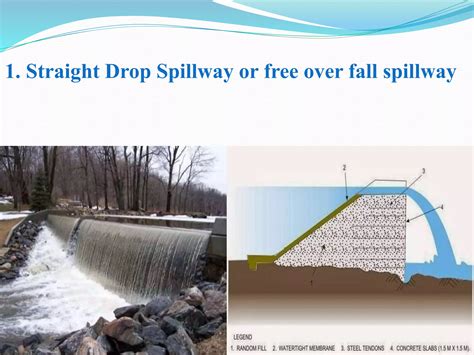

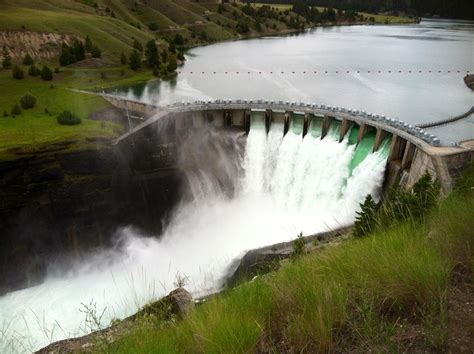

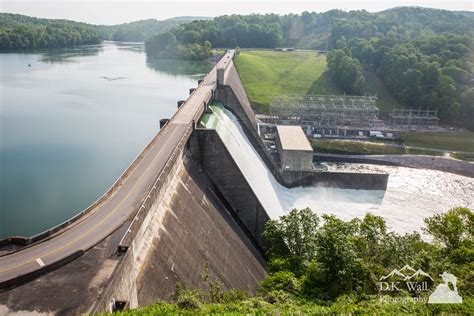

Overflow Spillways

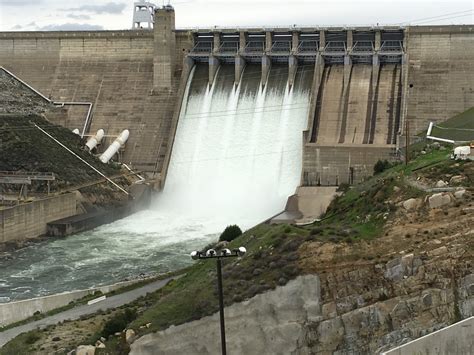

Overflow spillways are the most common type, designed to release water when the reservoir reaches a certain level. These spillways are typically located at the top of the dam and allow water to flow over the crest and down a controlled channel. Overflow spillways are simple in design and effective for managing routine water releases.

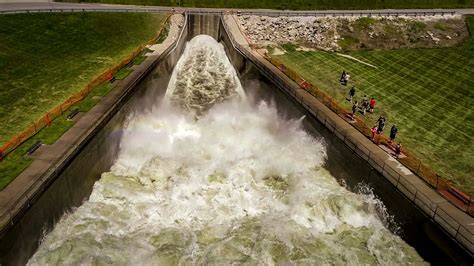

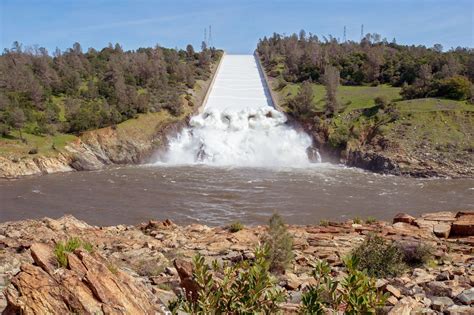

Chute Spillways

Chute spillways are designed to quickly convey large volumes of water away from the dam. They consist of a steep, open channel that directs water down to the riverbed. Chute spillways are often used in dams with high water flow rates and are effective in preventing rapid reservoir level increases.

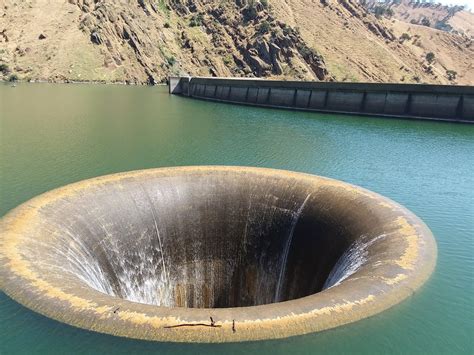

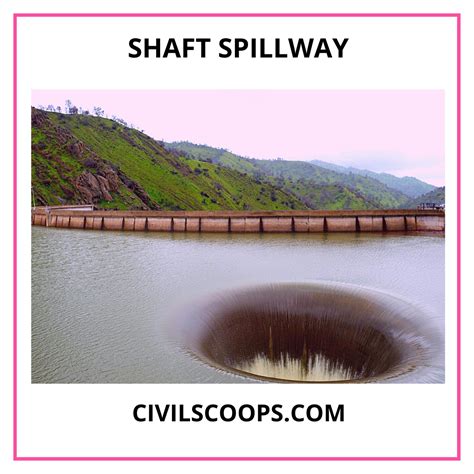

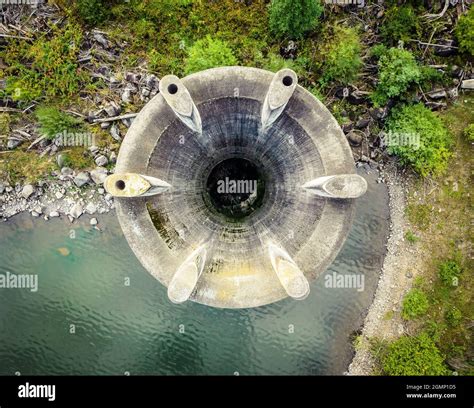

Shaft Spillways

Shaft spillways, also known as morning glory spillways, are vertical conduits that release water through a circular opening at the top of the dam. The water flows down a vertical shaft and exits through a horizontal tunnel. This design is useful in dams with limited space and can handle significant water volumes efficiently.

Side-Channel Spillways

Side-channel spillways are located adjacent to the dam and consist of a channel that runs parallel to the dam's axis. Water flows over the spillway crest and into the channel, which then directs the water away from the dam. This type of spillway is useful in dams with limited downstream space and can handle moderate to high water flow rates.

Siphon Spillways

Siphon spillways use the principle of siphoning to release water from the reservoir. They consist of a closed conduit that draws water from the reservoir and discharges it downstream. Siphon spillways are effective in maintaining a constant water level in the reservoir and can handle varying flow rates.

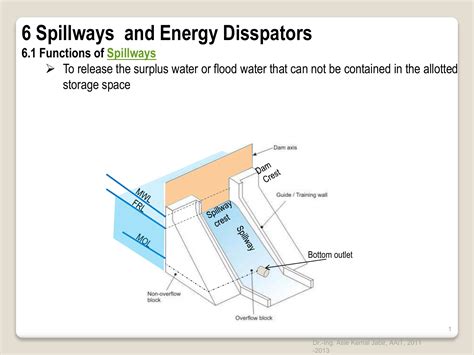

Functions of Spillways

Spillways serve several critical functions in dam management and water resource control. Understanding these functions can help appreciate the importance of spillways in maintaining dam safety and efficiency.

Flood Control: Spillways play a crucial role in flood control by releasing excess water from the reservoir during heavy rainfall or snowmelt. This prevents the reservoir from overflowing and reduces the risk of downstream flooding.
Water Level Management: Spillways help maintain optimal water levels in the reservoir by releasing water when necessary. This ensures that the reservoir has enough capacity to store water for various purposes, such as irrigation, hydroelectric power generation, and water supply.
Safety and Stability: By controlling water flow, spillways prevent structural damage to the dam and ensure its stability. They reduce the risk of erosion and other forms of damage that could compromise the dam's integrity.
Environmental Protection: Spillways help protect the downstream environment by regulating water flow and preventing sudden releases that could harm aquatic ecosystems. They also help maintain water quality by preventing sediment buildup in the reservoir.

Importance of Spillways

The importance of spillways in dam management cannot be overstated. They are essential for ensuring the safety and efficiency of dams and protecting downstream communities and environments. Here are some key reasons why spillways are crucial:

Preventing Dam Failures: Spillways prevent dam failures by releasing excess water and reducing the risk of overflow. This ensures the dam's structural integrity and prevents catastrophic failures that could result in loss of life and property.
Protecting Downstream Communities: By controlling water flow, spillways protect downstream communities from flooding and other water-related disasters. They help maintain safe water levels and prevent sudden releases that could cause damage.
Maintaining Water Quality: Spillways help maintain water quality by preventing sediment buildup in the reservoir. This ensures that the water released downstream is clean and safe for various uses, such as irrigation and drinking.
Supporting Hydroelectric Power Generation: Spillways play a crucial role in hydroelectric power generation by maintaining optimal water levels in the reservoir. This ensures that the turbines have enough water to generate electricity efficiently.

Design Considerations for Spillways

Designing an effective spillway requires careful consideration of various factors, including the dam's size, location, and surrounding topography. Here are some key design considerations for spillways:

Capacity: The spillway's capacity must be sufficient to handle the maximum expected water flow rate. This ensures that the spillway can release excess water efficiently and prevent overflow.
Location: The spillway's location is crucial for its effectiveness. It should be placed in a position that allows for efficient water release and minimizes the risk of erosion and other forms of damage.
Material: The choice of material for the spillway is essential for its durability and effectiveness. Common materials include concrete, steel, and reinforced earth.
Shape and Size: The spillway's shape and size must be designed to handle the expected water flow rate efficiently. This includes the crest's shape, the channel's dimensions, and the outlet's design.
Environmental Impact: The spillway's design should consider its environmental impact, including its effect on downstream ecosystems and water quality. This ensures that the spillway supports sustainable water management practices.

💡 Note: The design of a spillway should be tailored to the specific needs and conditions of the dam and its surrounding environment. Consulting with experienced engineers and hydrologists is essential for ensuring an effective and safe spillway design.

Maintenance and Monitoring of Spillways

Maintaining and monitoring spillways is crucial for ensuring their effectiveness and safety. Regular inspections and maintenance can help identify and address potential issues before they become significant problems. Here are some key aspects of spillway maintenance and monitoring:

Regular Inspections: Regular inspections of the spillway can help identify signs of wear and tear, erosion, and other potential issues. This includes inspecting the spillway's structure, channels, and outlets.
Cleaning and Debris Removal: Regular cleaning and debris removal are essential for maintaining the spillway's effectiveness. This includes removing sediment, vegetation, and other debris that could obstruct water flow.
Repairs and Upgrades: Regular repairs and upgrades can help maintain the spillway's structural integrity and effectiveness. This includes repairing cracks, replacing worn-out components, and upgrading the spillway's design as needed.
Monitoring Water Levels: Monitoring water levels in the reservoir and downstream areas can help ensure that the spillway is functioning correctly. This includes using sensors and other monitoring tools to track water flow and levels.
Emergency Preparedness: Having an emergency preparedness plan in place can help ensure a quick and effective response to potential spillway failures or other emergencies. This includes having emergency response teams, equipment, and procedures in place.

💡 Note: Regular maintenance and monitoring of spillways are essential for ensuring their long-term effectiveness and safety. Consulting with experienced engineers and hydrologists can help develop an effective maintenance and monitoring plan.

Case Studies of Spillway Failures

Understanding the causes and consequences of spillway failures can provide valuable insights into the importance of effective spillway design, maintenance, and monitoring. Here are some notable case studies of spillway failures:

Teton Dam Failure (1976)

The Teton Dam in Idaho, USA, failed catastrophically in 1976 due to a combination of design flaws and construction errors. The spillway was unable to handle the expected water flow rate, leading to rapid erosion and the eventual collapse of the dam. The failure resulted in significant loss of life and property, highlighting the importance of effective spillway design and construction.

Johnstown Flood (1889)

The Johnstown Flood in Pennsylvania, USA, was caused by the failure of the South Fork Dam, which had an inadequate spillway. The dam was unable to handle the heavy rainfall, leading to its collapse and the release of a massive wall of water. The flood resulted in over 2,200 deaths and extensive property damage, underscoring the critical role of spillways in dam safety.

Banqiao Dam Failure (1975)

The Banqiao Dam in Henan Province, China, failed during Typhoon Nina in 1975 due to inadequate spillway capacity. The dam was unable to handle the massive influx of water, leading to its collapse and the release of a devastating flood. The failure resulted in the deaths of an estimated 171,000 people and extensive property damage, highlighting the importance of spillway design and capacity.

These case studies illustrate the devastating consequences of spillway failures and the importance of effective spillway design, maintenance, and monitoring. Understanding these failures can help inform better practices in dam management and water resource control.

Future Trends in Spillway Design and Technology

The field of spillway design and technology is continually evolving, driven by advancements in engineering, materials science, and environmental science. Here are some future trends in spillway design and technology:

Advanced Materials: The use of advanced materials, such as high-strength concrete and composite materials, can enhance the durability and effectiveness of spillways. These materials can withstand higher water flow rates and reduce the risk of erosion and other forms of damage.
Smart Monitoring Systems: The integration of smart monitoring systems, such as sensors and IoT devices, can provide real-time data on water flow, levels, and spillway performance. This enables more effective maintenance and monitoring, ensuring the spillway's long-term effectiveness and safety.
Environmental Considerations: Future spillway designs will increasingly focus on environmental considerations, such as minimizing the impact on downstream ecosystems and water quality. This includes the use of eco-friendly materials and designs that support sustainable water management practices.
Climate Change Adaptation: As climate change continues to impact water resources, spillway designs will need to adapt to changing conditions, such as increased rainfall and more frequent extreme weather events. This includes designing spillways with greater capacity and flexibility to handle varying water flow rates.

These trends highlight the ongoing evolution of spillway design and technology, driven by advancements in engineering, materials science, and environmental science. Staying informed about these trends can help ensure effective and sustainable spillway design and management.

Spillways are essential components of dams, playing a crucial role in water management, flood control, and environmental protection. Understanding what is a spillway, its types, functions, and importance can provide valuable insights into dam management and water resource control. By designing, maintaining, and monitoring spillways effectively, we can ensure the safety and efficiency of dams and protect downstream communities and environments.
