Understanding the mechanics behind various mechanical systems often involves delving into the intricacies of their components. One such component that plays a crucial role in many mechanical and industrial applications is the sheave. But what is a sheave? A sheave is a pulley with a groove in which a rope or cable runs. It is designed to change the direction of a force applied to the rope or cable, making it an essential part of many lifting and moving systems. This blog post will explore the various types of sheaves, their applications, and the importance of proper maintenance.
Understanding Sheaves: Basic Concepts
A sheave is essentially a wheel with a groove around its circumference. This groove allows a rope, cable, or belt to run smoothly, reducing friction and wear. Sheaves are commonly used in pulley systems to lift heavy objects, transmit power, or change the direction of a force. The basic components of a sheave include:
- The wheel or pulley itself, which can be made from various materials such as metal, plastic, or composite materials.
- The groove, which is designed to accommodate the rope, cable, or belt.
- The axle or shaft, which supports the wheel and allows it to rotate.
- The bearings, which reduce friction and allow the wheel to rotate smoothly.
Sheaves come in various sizes and designs, each suited to different applications. The choice of sheave depends on factors such as the load to be lifted, the type of rope or cable used, and the environmental conditions.
Types of Sheaves
Sheaves can be categorized based on their design and application. Some of the most common types include:
Fixed Sheaves
Fixed sheaves are mounted in a stationary position and are used to change the direction of a rope or cable. They are commonly found in lifting systems, such as cranes and hoists, where they help to redirect the force applied to the rope. Fixed sheaves are typically used in pairs or sets to create a pulley system that multiplies the force applied to the rope.
Movable Sheaves

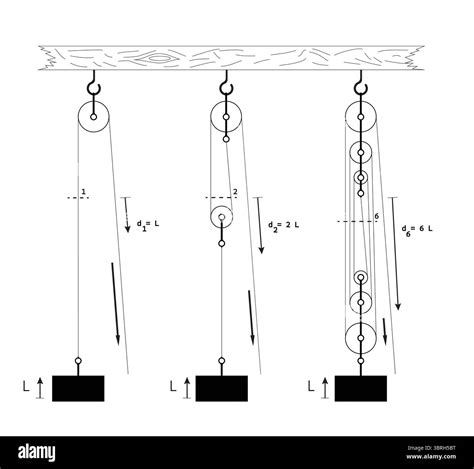

Movable sheaves, also known as live sheaves, are designed to move along with the load. They are often used in block and tackle systems, where they help to multiply the force applied to the rope. Movable sheaves are typically smaller than fixed sheaves and are mounted on a movable block that can slide along a rope or cable.
Snatch Blocks
Snatch blocks are a type of sheave that can be opened to allow a rope or cable to be easily inserted or removed. They are commonly used in rescue and recovery operations, where quick and easy rope handling is essential. Snatch blocks typically have a quick-release mechanism that allows the sheave to be opened and closed with minimal effort.

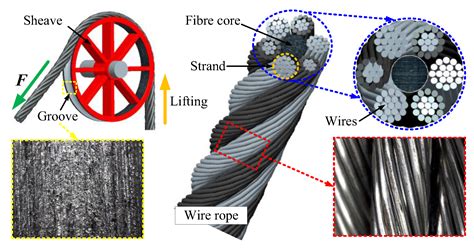

Wire Rope Sheaves
Wire rope sheaves are designed specifically for use with wire ropes. They have a deep groove that helps to prevent the wire rope from slipping out of the sheave. Wire rope sheaves are commonly used in heavy-duty lifting and moving applications, such as cranes, hoists, and elevators.
V-Belt Sheaves
V-belt sheaves are designed for use with V-belts, which are commonly used in power transmission systems. They have a V-shaped groove that helps to keep the belt in place and prevent slippage. V-belt sheaves are often used in industrial machinery, such as conveyors, pumps, and compressors.
Applications of Sheaves
Sheaves are used in a wide range of applications, from simple lifting systems to complex industrial machinery. Some of the most common applications include:
- Cranes and hoists: Sheaves are used to lift and move heavy objects in construction, manufacturing, and shipping industries.

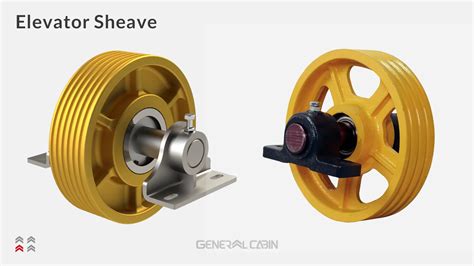

- Elevators: Sheaves are used to lift and lower elevator cars in buildings.
- Conveyor systems: Sheaves are used to move materials along conveyor belts in manufacturing and processing plants.
- Power transmission: Sheaves are used to transmit power from one shaft to another in machinery such as pumps, compressors, and generators.
- Rescue and recovery: Sheaves are used in rescue and recovery operations to lift and move people and equipment.
Maintenance and Safety
Maintaining sheaves is crucial for ensuring their longevity and safety. Regular inspection and maintenance can prevent failures and accidents. Here are some key points to consider:
- Inspect sheaves regularly for signs of wear, such as cracks, corrosion, or excessive wear on the groove.
- Lubricate bearings and moving parts to reduce friction and prevent seizing.
- Check the alignment of the sheave and the rope or cable to ensure smooth operation.
- Replace worn or damaged sheaves promptly to prevent failures.
Safety is paramount when working with sheaves. Always follow these guidelines:
- Use sheaves that are rated for the load and application.
- Ensure that ropes, cables, and belts are in good condition and properly secured.
- Follow manufacturer's instructions for installation, use, and maintenance.
- Wear appropriate personal protective equipment (PPE) when working with sheaves.
🛠️ Note: Always consult with a professional if you are unsure about the proper use or maintenance of sheaves.
Choosing the Right Sheave
Selecting the right sheave for your application involves considering several factors. Here is a guide to help you make an informed decision:
Load Capacity
The load capacity of a sheave is the maximum weight it can safely support. It is essential to choose a sheave with a load capacity that exceeds the weight of the load to be lifted. This ensures safety and prevents failures.
Material
The material of the sheave affects its durability and performance. Common materials include:
- Steel: Strong and durable, suitable for heavy-duty applications.
- Aluminum: Lightweight and corrosion-resistant, ideal for lighter loads.
- Plastic: Lightweight and cost-effective, suitable for low-load applications.
- Composite: Lightweight and strong, often used in specialized applications.
Groove Design
The groove design of a sheave is crucial for ensuring smooth operation and preventing slippage. Different groove designs are suited to different types of ropes, cables, and belts. Common groove designs include:
- V-groove: Suitable for V-belts and ropes.
- U-groove: Suitable for round ropes and cables.
- Wire rope groove: Deep groove designed for wire ropes.
Environmental Conditions
The environmental conditions in which the sheave will be used can affect its performance and longevity. Consider factors such as temperature, humidity, and exposure to chemicals or corrosive substances when choosing a sheave.
Common Issues and Troubleshooting
Even with proper maintenance, sheaves can encounter issues. Here are some common problems and troubleshooting tips:
Excessive Wear
Excessive wear on the groove or bearings can cause the sheave to malfunction. Regular inspection and lubrication can help prevent this issue. If wear is detected, replace the sheave promptly.
Misalignment
Misalignment of the sheave and the rope or cable can cause uneven wear and reduce efficiency. Ensure that the sheave is properly aligned and secured to prevent this issue.
Corrosion
Corrosion can weaken the sheave and reduce its load capacity. Use sheaves made from corrosion-resistant materials and apply protective coatings to prevent corrosion.
Bearing Failure
Bearing failure can cause the sheave to seize or malfunction. Regular lubrication and inspection can help prevent bearing failure. If a bearing fails, replace it promptly to prevent further damage.
Here is a table summarizing common issues and troubleshooting tips:
| Issue | Troubleshooting Tips |
|---|---|
| Excessive Wear | Regular inspection and lubrication, prompt replacement if wear is detected. |
| Misalignment | Ensure proper alignment and secure mounting. |
| Corrosion | Use corrosion-resistant materials and apply protective coatings. |
| Bearing Failure | Regular lubrication and inspection, prompt replacement if failure occurs. |
🛠️ Note: Always consult with a professional if you are unsure about troubleshooting or repairing sheaves.
Sheaves are essential components in many mechanical and industrial systems. Understanding what is a sheave, their types, applications, and maintenance requirements is crucial for ensuring their safe and efficient operation. By choosing the right sheave and maintaining it properly, you can extend its lifespan and prevent costly failures. Whether you are using sheaves in lifting systems, power transmission, or rescue operations, proper selection and maintenance are key to their performance and safety.
