In the world of manufacturing and engineering, precision and accuracy are paramount. One tool that plays a crucial role in achieving these qualities is the mandrel. But what is a mandrel? A mandrel is a cylindrical tool used to support and shape materials during various manufacturing processes. It serves as a core around which other materials are shaped, ensuring uniformity and precision. Mandrels are essential in industries ranging from metalworking to woodworking, and their applications are diverse and far-reaching.
Understanding the Basics of Mandrels
A mandrel is a fundamental tool in many manufacturing processes. It is typically a cylindrical rod or shaft that provides a stable surface for shaping materials. Mandrels can be made from various materials, including steel, aluminum, and even wood, depending on the application. The choice of material depends on factors such as the type of material being shaped, the required precision, and the environmental conditions.
Mandrels come in different shapes and sizes, each designed for specific tasks. Some common types include:
- Solid Mandrels: These are simple cylindrical rods used for basic shaping tasks.
- Expandable Mandrels: These can adjust in diameter, making them versatile for different sizes of workpieces.
- Tapered Mandrels: These have a conical shape, useful for creating tapered parts.
- Threaded Mandrels: These have threads on the surface, used for creating threaded components.
Applications of Mandrels
Mandrels are used in a wide range of industries and applications. Here are some of the most common uses:
Metalworking
In metalworking, mandrels are used to shape metal tubes, pipes, and other cylindrical components. They ensure that the metal is uniformly shaped and maintains the desired dimensions. Mandrels are also used in processes like turning, drilling, and milling to hold the workpiece securely in place.
Woodworking
In woodworking, mandrels are essential for shaping wooden components. They are used in lathe work to create symmetrical and precise wooden parts. Mandrels help in achieving smooth surfaces and consistent shapes, making them indispensable for craftsmen and artisans.
Plastics and Composites
Mandrels are also used in the plastics and composites industry. They are employed to shape plastic tubes, rods, and other components. In composite manufacturing, mandrels serve as the core around which layers of composite materials are wrapped, ensuring the final product has the desired shape and strength.
Textile Industry
In the textile industry, mandrels are used to shape and hold fabrics during various processes. They are essential for creating cylindrical shapes like tubes and sleeves, ensuring the fabric maintains its form and dimensions.
Types of Mandrels
Mandrels come in various types, each designed for specific applications. Understanding the different types can help in selecting the right tool for the job.
Solid Mandrels
Solid mandrels are the simplest type, consisting of a solid cylindrical rod. They are used for basic shaping tasks and are often made from materials like steel or aluminum. Solid mandrels are ideal for applications where the workpiece needs to be held securely in place without the need for adjustment.

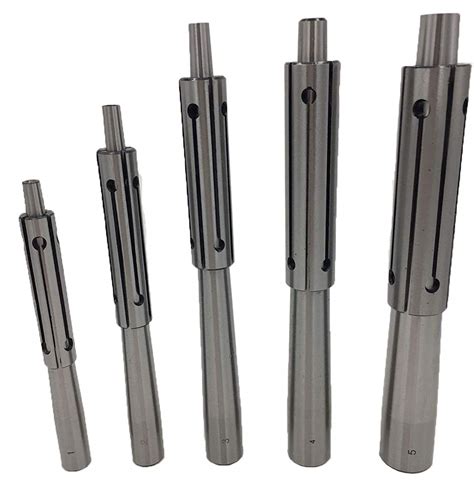

Expandable Mandrels
Expandable mandrels, also known as adjustable mandrels, can change in diameter. This makes them versatile for different sizes of workpieces. They are commonly used in applications where the workpiece dimensions may vary, such as in the production of custom parts.
Tapered Mandrels
Tapered mandrels have a conical shape, making them ideal for creating tapered parts. They are used in applications where the workpiece needs to have a gradual change in diameter, such as in the production of conical shapes or tapered tubes.
Threaded Mandrels
Threaded mandrels have threads on the surface, making them suitable for creating threaded components. They are used in applications where the workpiece needs to have internal or external threads, such as in the production of bolts, nuts, and screws.
Selecting the Right Mandrel
Choosing the right mandrel is crucial for achieving the desired results. Several factors should be considered when selecting a mandrel:
- Material: The material of the mandrel should be compatible with the workpiece material. For example, a steel mandrel is suitable for metalworking, while a wooden mandrel is ideal for woodworking.
- Size: The size of the mandrel should match the dimensions of the workpiece. An expandable mandrel can be adjusted to fit different sizes, making it a versatile choice.
- Shape: The shape of the mandrel should match the desired shape of the workpiece. For example, a tapered mandrel is ideal for creating tapered parts.
- Precision: The precision required for the application should be considered. High-precision applications may require a mandrel with tighter tolerances.
Here is a table summarizing the different types of mandrels and their applications:
| Type of Mandrel | Material | Applications |
|---|---|---|
| Solid Mandrel | Steel, Aluminum | Basic shaping tasks, holding workpieces securely |
| Expandable Mandrel | Steel, Aluminum | Custom parts, varying workpiece dimensions |
| Tapered Mandrel | Steel, Aluminum | Tapered parts, conical shapes |
| Threaded Mandrel | Steel | Threaded components, bolts, nuts, screws |
🔧 Note: Always ensure that the mandrel is properly secured and aligned before use to avoid any accidents or errors in the shaping process.
Maintenance and Care of Mandrels
Maintaining mandrels is essential for their longevity and performance. Proper care ensures that the mandrel remains accurate and reliable over time. Here are some tips for maintaining mandrels:
- Cleaning: Regularly clean the mandrel to remove any debris or residue. This can be done using a soft cloth and a mild cleaning solution.
- Lubrication: Apply a suitable lubricant to the mandrel to reduce friction and wear. This is especially important for threaded mandrels.
- Storage: Store the mandrel in a dry, cool place to prevent rusting and corrosion. Use a protective cover or case to keep it safe from damage.
- Inspection: Regularly inspect the mandrel for any signs of wear or damage. Replace it if necessary to ensure accuracy and reliability.
By following these maintenance tips, you can extend the lifespan of your mandrel and ensure it performs optimally in your manufacturing processes.
🛠️ Note: Always follow the manufacturer's guidelines for maintenance and care to ensure the mandrel remains in good condition.
Mandrels are indispensable tools in various manufacturing and engineering processes. Understanding what is a mandrel and its applications can help in selecting the right tool for the job, ensuring precision and accuracy in your work. Whether you are in metalworking, woodworking, or any other industry, mandrels play a crucial role in achieving the desired results. By choosing the right mandrel and maintaining it properly, you can enhance the quality and efficiency of your manufacturing processes.
