What Does Agarose Do

Agarose is a linear polysaccharide derived from the cell walls of red algae, commonly used in molecular biology and biochemistry laboratories. Its primary function is to separate and purify DNA, RNA, and proteins through a technique known as gel electrophoresis. Understanding what does agarose do in this context is crucial for researchers and scientists who rely on this method for their experiments.

Table of Contents

What is Agarose?

Agarose is a natural polymer extracted from seaweed, specifically from the cell walls of red algae. It is composed of repeating units of agarose, which are made up of D-galactose and 3,6-anhydro-L-galactopyranose. Agarose is preferred over other gelling agents like agar because it lacks charged groups, making it ideal for electrophoresis, where charged molecules need to move freely through the gel matrix.

Properties of Agarose

Agarose has several key properties that make it suitable for gel electrophoresis:

Neutral Charge: Unlike agar, agarose does not contain charged groups, which means it does not interfere with the movement of charged molecules like DNA and RNA.
Thermal Reversibility: Agarose gels can be melted by heating and solidified by cooling, allowing for easy preparation and manipulation.
Porosity: The pore size of agarose gels can be controlled by varying the concentration of agarose, which affects the resolution of the separated molecules.
Chemical Stability: Agarose is stable under a wide range of pH and temperature conditions, making it versatile for various experimental setups.

What Does Agarose Do in Gel Electrophoresis?

In gel electrophoresis, agarose serves as the medium through which DNA, RNA, or proteins migrate under the influence of an electric field. The process involves several steps:

Preparation of the Gel: Agarose powder is dissolved in a buffer solution and heated until it forms a clear liquid. This liquid is then poured into a mold and allowed to cool and solidify, forming a gel.
Loading the Samples: Samples containing DNA, RNA, or proteins are mixed with a loading dye and loaded into wells at one end of the gel.
Application of Electric Field: An electric field is applied across the gel, causing the negatively charged nucleic acids or proteins to migrate towards the positive electrode.

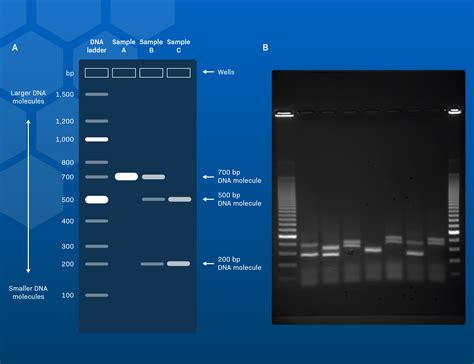

Separation of Molecules: As the molecules move through the gel, they are separated based on their size and charge. Smaller molecules move faster and travel further than larger molecules.
Visualization: After electrophoresis, the separated molecules are visualized using staining techniques, such as ethidium bromide for DNA or Coomassie blue for proteins.

By understanding what does agarose do in this process, researchers can optimize their experiments to achieve high-resolution separation of biomolecules.

Types of Agarose

Agarose is available in various types, each with different properties that make them suitable for specific applications:

Standard Agarose: This is the most commonly used type, suitable for general-purpose gel electrophoresis.
Low Melting Point (LMP) Agarose: This type melts at a lower temperature (around 65°C) and solidifies at a lower temperature (around 25°C), making it ideal for applications that require gentle handling of samples, such as the recovery of DNA fragments.
Low Electroendosmosis (LE) Agarose: This type has a lower electroendosmotic flow, which reduces the distortion of bands during electrophoresis, providing better resolution.
High Resolution Agarose: This type is designed for high-resolution separation of small DNA fragments, making it suitable for applications like DNA fingerprinting and genotyping.

Applications of Agarose

Agarose is widely used in various applications in molecular biology and biochemistry. Some of the key applications include:

DNA and RNA Separation: Agarose gel electrophoresis is commonly used to separate DNA and RNA fragments based on their size.
Protein Separation: Although less common than polyacrylamide gels, agarose gels can be used for the separation of large proteins.
Pulsed-Field Gel Electrophoresis (PFGE): This technique uses alternating electric fields to separate large DNA molecules, such as chromosomes.
Southern and Northern Blotting: These techniques involve the transfer of separated DNA or RNA from the gel to a membrane for further analysis, such as hybridization with specific probes.
Plasmid Purification: Agarose gels can be used to purify plasmid DNA from bacterial cultures, which is essential for cloning and genetic engineering.

Preparing Agarose Gels

Preparing agarose gels involves several steps, each of which is crucial for achieving optimal separation of biomolecules. Here is a step-by-step guide to preparing agarose gels:

Determine the Gel Concentration: The concentration of agarose in the gel affects the pore size and resolution. Common concentrations range from 0.5% to 2%.
Prepare the Buffer Solution: Choose an appropriate buffer solution, such as Tris-Acetate-EDTA (TAE) or Tris-Borate-EDTA (TBE), and dissolve the agarose powder in the buffer.
Heat the Solution: Heat the agarose solution in a microwave or on a hot plate until the agarose is completely dissolved and the solution is clear.
Pour the Gel: Pour the molten agarose solution into a gel casting tray with a comb in place to create wells for loading samples.
Allow the Gel to Solidify: Let the gel cool and solidify at room temperature. This usually takes about 20-30 minutes.
Remove the Comb: Carefully remove the comb to create wells for loading samples.

📝 Note: Ensure that the gel is completely solidified before removing the comb to avoid damaging the wells.

Running Agarose Gels

Once the gel is prepared, the next step is to run the electrophoresis. Here are the steps involved:

Prepare the Samples: Mix your DNA, RNA, or protein samples with a loading dye and load them into the wells of the gel.
Set Up the Electrophoresis Apparatus: Place the gel in the electrophoresis chamber and fill the chamber with the appropriate buffer solution.
Apply the Electric Field: Connect the power supply and apply an electric field across the gel. The voltage and current settings will depend on the size of the gel and the type of molecules being separated.
Monitor the Electrophoresis: Allow the electrophoresis to run until the molecules have separated sufficiently. The time required will depend on the size of the molecules and the voltage applied.
Visualize the Results: After electrophoresis, visualize the separated molecules using staining techniques or UV light.

📝 Note: Always wear appropriate personal protective equipment (PPE) when handling agarose gels and staining solutions, as some chemicals can be hazardous.

Troubleshooting Common Issues

Despite careful preparation, issues can arise during agarose gel electrophoresis. Here are some common problems and their solutions:

Poor Resolution: If the bands are not well-separated, it may be due to an inappropriate gel concentration or voltage settings. Adjust the gel concentration or voltage to improve resolution.
Smiling Bands: This occurs when the bands curve upwards at the edges of the gel. It is usually caused by uneven heating or buffer flow. Ensure that the gel is evenly cooled and that the buffer is circulating properly.
Faint Bands: If the bands are faint, it may be due to insufficient staining or overloading of the samples. Adjust the staining time or reduce the amount of sample loaded.
Distorted Bands: Distorted bands can be caused by air bubbles in the gel or uneven loading of samples. Ensure that the gel is free of air bubbles and that the samples are loaded evenly.

Safety Considerations

Working with agarose gels involves handling chemicals and electrical equipment, so it is important to follow safety guidelines:

Personal Protective Equipment (PPE): Always wear gloves, lab coats, and safety glasses when handling agarose and staining solutions.
Ventilation: Work in a well-ventilated area to avoid inhaling fumes from heating agarose solutions.
Electrical Safety: Ensure that the electrophoresis apparatus is properly grounded and that all electrical connections are secure.
Waste Disposal: Dispose of used agarose gels and staining solutions according to local regulations for hazardous waste.

📝 Note: Always follow the manufacturer's instructions for handling and disposing of chemicals used in gel electrophoresis.

Alternative Gelling Agents

While agarose is the most commonly used gelling agent for electrophoresis, there are alternative agents that can be used for specific applications:

Polyacrylamide: This is often used for separating proteins and small DNA fragments. It provides higher resolution than agarose but is more difficult to prepare.
Agar: This is a mixture of agarose and agaropectin, which contains charged groups that can interfere with the movement of biomolecules. It is less commonly used than agarose.
Pectin: This is a polysaccharide derived from plant cell walls and can be used as a gelling agent in some applications.

Conclusion

Understanding what does agarose do in gel electrophoresis is fundamental for researchers and scientists working in molecular biology and biochemistry. Agarose provides a neutral, stable, and porous medium that allows for the efficient separation of DNA, RNA, and proteins. By optimizing the preparation and running conditions of agarose gels, researchers can achieve high-resolution separation of biomolecules, which is crucial for various applications, including genetic analysis, cloning, and protein studies. Proper handling and safety precautions are essential to ensure successful and safe experimentation with agarose gels.
