What Are Servos

Understanding the fundamentals of robotics and automation often leads to the question, "What are servos?" Servos are essential components in many mechanical and electronic systems, providing precise control over movement and positioning. This blog post will delve into the intricacies of servos, their types, applications, and how they function within various systems.

Table of Contents

What Are Servos?

Servos, short for servomechanisms, are self-contained electrical devices that rotate parts of a machine with high precision. They consist of a motor coupled to a sensor for position feedback. The sensor provides information to a control circuit, which adjusts the motor’s movement to achieve the desired position. This closed-loop system ensures that the servo can accurately maintain or change its position as commanded.

Types of Servos

Servos come in various types, each designed for specific applications. The main types include:

Standard Servos: These are commonly used in hobbyist projects and small-scale applications. They typically have a limited range of motion, usually 180 degrees, and are controlled via pulse width modulation (PWM).
Continuous Rotation Servos: Unlike standard servos, these can rotate continuously in either direction. They are often used in applications requiring continuous motion, such as robotic wheels or conveyor belts.

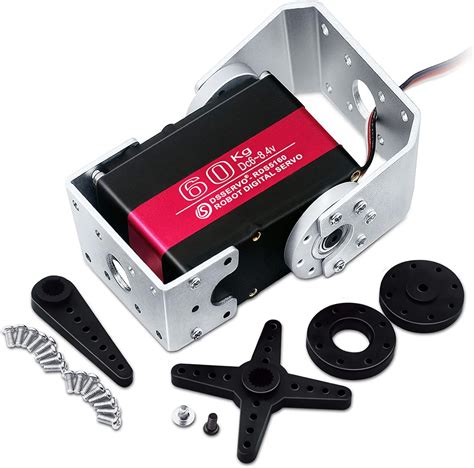

High-Torque Servos: These servos are designed for applications requiring significant force, such as heavy-duty robotics or industrial machinery. They offer higher torque but may have slower response times.
Linear Servos: Instead of rotational motion, linear servos provide straight-line movement. They are used in applications where linear actuation is required, such as in CNC machines or automated assembly lines.

How Servos Work

To understand “What are servos?” more deeply, it’s essential to grasp their internal workings. A typical servo consists of the following components:

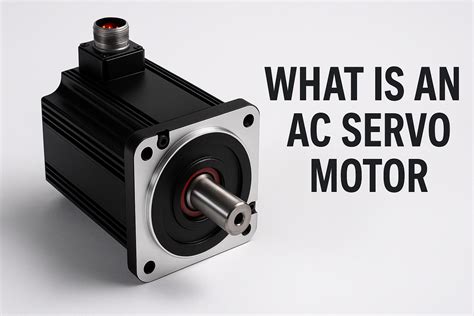

Motor: The driving force behind the servo’s movement. It can be a DC motor, AC motor, or stepper motor, depending on the application.
Gear Train: A series of gears that reduce the motor’s speed and increase its torque. This allows the servo to move with precision and power.
Position Sensor: Usually a potentiometer, this sensor provides feedback on the servo’s current position. It sends this information to the control circuit.
Control Circuit: This circuit processes the position feedback and adjusts the motor’s power to achieve the desired position. It receives commands via PWM signals.

When a command is sent to the servo, the control circuit compares the desired position with the current position (as reported by the sensor). If there is a difference, the circuit adjusts the motor’s power to move the servo to the correct position. This continuous feedback loop ensures accurate and reliable movement.

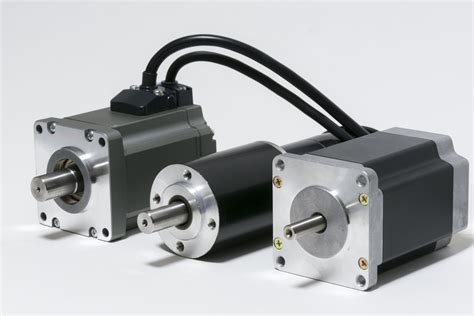

Applications of Servos

Servos are used in a wide range of applications across various industries. Some of the most common uses include:

Robotics: Servos are integral to robotic systems, providing precise control over joints and movements. They are used in industrial robots, hobbyist robots, and even in advanced humanoid robots.
Automotive: In the automotive industry, servos are used in power steering systems, automatic transmissions, and various control mechanisms.
Aerospace: Servos play a crucial role in aircraft control systems, including flight surfaces, landing gear, and engine controls.
Consumer Electronics: Servos are found in many consumer devices, such as cameras (for autofocus and zoom), drones, and remote-controlled toys.
Industrial Automation: In manufacturing, servos are used in CNC machines, assembly lines, and other automated systems to ensure precise and repeatable movements.

Choosing the Right Servo

Selecting the appropriate servo for a specific application involves considering several factors. Here are some key points to keep in mind:

Torque: The amount of force the servo can exert. Higher torque servos are needed for applications requiring significant power.
Speed: The rate at which the servo can move. Faster servos are essential for applications needing quick responses.
Precision: The accuracy of the servo’s movement. High-precision servos are crucial for applications requiring fine control.
Size and Weight: The physical dimensions and weight of the servo. Compact servos are ideal for space-constrained applications.
Power Supply: The voltage and current requirements of the servo. Ensure the power supply matches the servo’s specifications.

When choosing a servo, it's also important to consider the environment in which it will operate. Factors such as temperature, humidity, and exposure to dust or liquids can affect the servo's performance and lifespan.

Servo Control and Programming

Controlling servos typically involves sending PWM signals to the servo’s control circuit. The PWM signal consists of a series of pulses, where the width of each pulse determines the desired position. Most servos operate with a standard PWM frequency of 50 Hz, with a pulse width ranging from 1 ms to 2 ms.

Here is a basic example of how to control a servo using an Arduino microcontroller:


#include

Servo myServo;

void setup() {
  myServo.attach(9); // Attach the servo to pin 9
}

void loop() {
  myServo.write(0); // Move the servo to 0 degrees
  delay(1000); // Wait for 1 second
  myServo.write(90); // Move the servo to 90 degrees
  delay(1000); // Wait for 1 second
  myServo.write(180); // Move the servo to 180 degrees
  delay(1000); // Wait for 1 second
}

In this example, the servo is attached to pin 9 of the Arduino. The myServo.write() function is used to set the servo’s position, with values ranging from 0 to 180 degrees. The delay() function pauses the program for the specified number of milliseconds.

💡 Note: Ensure that the servo's power requirements are met by the microcontroller or an external power supply. Some servos may require more current than the microcontroller can provide.

Servo Maintenance and Troubleshooting

To ensure the longevity and reliability of servos, regular maintenance is essential. Here are some tips for maintaining and troubleshooting servos:

Lubrication: Regularly lubricate the servo’s gears and bearings to reduce wear and ensure smooth operation.
Cleaning: Keep the servo clean and free of debris. Dust and dirt can interfere with the servo’s movement and cause overheating.
Calibration: Periodically calibrate the servo to ensure accurate positioning. This may involve adjusting the control circuit or updating the firmware.
Power Supply: Ensure a stable and adequate power supply. Fluctuations in voltage or current can affect the servo’s performance.

If a servo is not functioning correctly, troubleshooting steps include:

Checking the power supply and connections.
Verifying the PWM signals and control commands.
Inspecting the servo for physical damage or wear.
Testing the servo with a known good control system.

By following these maintenance and troubleshooting steps, you can extend the lifespan of your servos and ensure reliable performance.

Servos are versatile and essential components in many mechanical and electronic systems. Understanding "What are servos?" and their various types, applications, and control methods can help you make informed decisions when integrating them into your projects. Whether you're working on a hobbyist robot, an industrial automation system, or a consumer electronic device, servos provide the precision and control needed for successful operation.

In summary, servos are self-contained electrical devices that provide precise control over movement and positioning. They consist of a motor, gear train, position sensor, and control circuit, working together in a closed-loop system to achieve accurate and reliable movement. Servos come in various types, including standard, continuous rotation, high-torque, and linear servos, each designed for specific applications. They are used in robotics, automotive, aerospace, consumer electronics, and industrial automation, among other fields. Choosing the right servo involves considering factors such as torque, speed, precision, size, weight, and power supply. Controlling servos typically involves sending PWM signals to the servo’s control circuit, and regular maintenance and troubleshooting are essential for ensuring their longevity and reliability.
