Welding is a crucial process in various industries, from construction to manufacturing, and one of the most fundamental techniques is welding gas welding. This method involves using a flame to melt and join metals, making it a versatile and widely used technique. Whether you're a professional welder or a hobbyist, understanding the intricacies of welding gas welding can significantly enhance your skills and the quality of your work.
Understanding Welding Gas Welding
Welding gas welding, often referred to as oxy-fuel welding or oxyacetylene welding, is a process that uses a combination of fuel gas and oxygen to create a high-temperature flame. This flame is then used to melt and join metals. The most common fuel gases used in this process are acetylene and propane, each with its own advantages and applications.
Types of Fuel Gases in Welding Gas Welding
There are several types of fuel gases used in welding gas welding, each with unique properties that make them suitable for different applications. The most commonly used fuel gases are:
- Acetylene: Known for its high flame temperature, acetylene is ideal for welding and cutting a wide range of metals. It produces a flame that can reach temperatures up to 3,500°C (6,332°F), making it highly effective for welding thick materials.
- Propane: Propane is a versatile fuel gas that is often used for welding and brazing. It produces a lower flame temperature compared to acetylene but is safer and more economical for certain applications.
- MAPP Gas: MAPP (Methylacetylene-Propadiene Propane) gas is a stable fuel gas that produces a hot flame, similar to acetylene. It is often used for welding and cutting applications where a high flame temperature is required.
- Natural Gas: Natural gas is a cost-effective fuel option that is commonly used for welding and heating applications. It produces a lower flame temperature but is suitable for welding thin materials and for brazing.

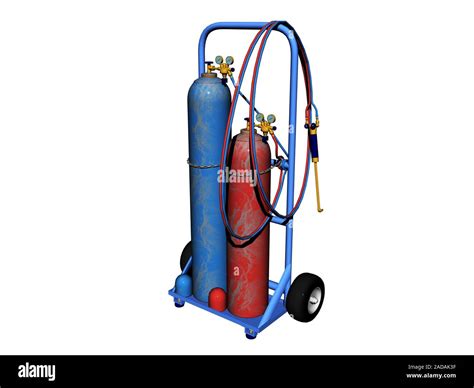

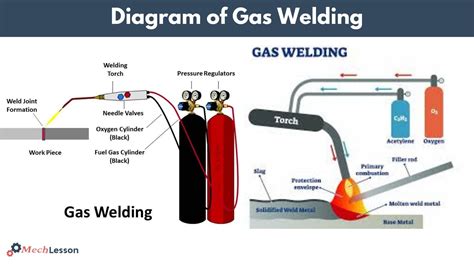

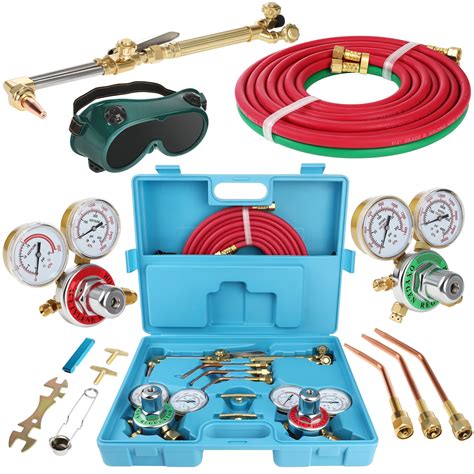

Equipment Needed for Welding Gas Welding
To perform welding gas welding effectively, you need a set of essential equipment. Here is a list of the key components:
- Welding Torch: The welding torch is the tool that mixes the fuel gas and oxygen to create the flame. It comes in various sizes and types, depending on the specific welding application.
- Gas Cylinders: These cylinders store the fuel gas and oxygen. They are typically made of steel and are equipped with regulators to control the gas flow.
- Regulators: Regulators are used to control the pressure of the gases as they flow from the cylinders to the torch. They ensure a steady and safe gas supply.
- Hoses: Hoses connect the gas cylinders to the welding torch. They are designed to withstand high pressures and are color-coded for easy identification.
- Safety Equipment: Safety is paramount in welding. Essential safety equipment includes welding gloves, safety glasses, and a welding helmet to protect against sparks and UV radiation.

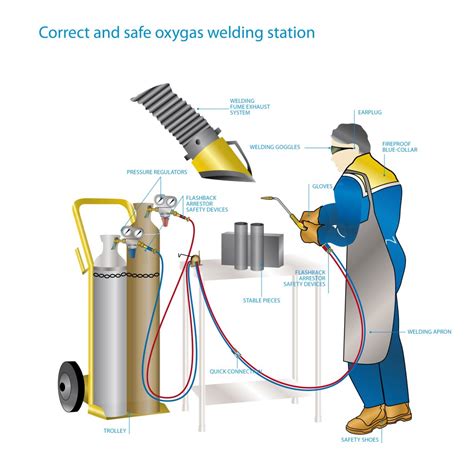

Setting Up for Welding Gas Welding
Before you begin welding, it's crucial to set up your equipment correctly. Here are the steps to follow:
- Inspect Equipment: Check all your equipment for any signs of damage or wear. Ensure that the hoses, regulators, and torch are in good condition.
- Connect Gas Cylinders: Attach the fuel gas and oxygen cylinders to the regulators. Make sure the connections are secure and tight.
- Open Valves: Slowly open the valves on the gas cylinders to allow the gases to flow. Use the regulators to adjust the pressure to the recommended levels.
- Light the Torch: Open the fuel gas valve on the torch and use a spark lighter to ignite the flame. Adjust the oxygen flow to achieve the desired flame characteristics.
- Adjust Flame: Depending on the type of welding you are performing, you may need to adjust the flame to be neutral, oxidizing, or carburizing. A neutral flame is typically used for most welding applications.
🔧 Note: Always follow the manufacturer's instructions for setting up and operating your welding equipment. Ensure that you are working in a well-ventilated area to avoid the buildup of harmful fumes.
Techniques for Welding Gas Welding
Welding gas welding requires specific techniques to achieve strong and durable welds. Here are some key techniques to master:
- Forehand Welding: In this technique, the torch is held in the direction of the weld. It is suitable for welding thin materials and for achieving a smooth, even weld.
- Backhand Welding: This technique involves holding the torch in the opposite direction of the weld. It is useful for welding thicker materials and for achieving deeper penetration.
- Circle Welding: This technique is used for welding circular or curved surfaces. The torch is moved in a circular motion to ensure even heat distribution.
- Weave Welding: Weave welding involves moving the torch in a side-to-side motion to create a wider weld bead. It is useful for welding larger surfaces and for achieving a stronger weld.
Safety Precautions for Welding Gas Welding
Safety is of utmost importance when performing welding gas welding. Here are some essential safety precautions to follow:
- Protective Gear: Always wear appropriate protective gear, including welding gloves, safety glasses, and a welding helmet. This will protect you from sparks, UV radiation, and other hazards.
- Ventilation: Ensure that you are working in a well-ventilated area to avoid the buildup of harmful fumes. Use exhaust fans or ventilation systems if necessary.
- Fire Safety: Keep a fire extinguisher nearby and ensure that there are no flammable materials in the vicinity. Always follow proper fire safety protocols.
- Gas Handling: Handle gas cylinders with care. Store them upright and secure them to prevent tipping. Always close the valves when not in use.
- Emergency Procedures: Know the emergency procedures in case of a gas leak or fire. Have a plan in place and ensure that everyone in the area is aware of the procedures.
🚨 Note: Never attempt to weld in a confined space without proper ventilation. Always follow local regulations and safety guidelines for welding gas welding.
Applications of Welding Gas Welding
Welding gas welding is used in a wide range of applications across various industries. Some of the most common applications include:
- Automotive Repair: Welding gas welding is often used for repairing and fabricating automotive parts. It is ideal for welding thin metals and for making precise repairs.
- Construction: In the construction industry, welding gas welding is used for joining metal structures, such as beams, pipes, and frames. It is a versatile technique that can be used for both indoor and outdoor applications.
- Manufacturing: Welding gas welding is commonly used in manufacturing for producing metal components and assemblies. It is suitable for welding a variety of metals, including steel, aluminum, and copper.
- Art and Sculpture: Artists and sculptors often use welding gas welding to create intricate metal sculptures and art pieces. The technique allows for precise control over the welding process, making it ideal for artistic applications.
Common Mistakes to Avoid in Welding Gas Welding
Even experienced welders can make mistakes when performing welding gas welding. Here are some common mistakes to avoid:
- Incorrect Flame Adjustment: Failing to adjust the flame correctly can result in poor weld quality. Ensure that the flame is neutral, oxidizing, or carburizing as required for the specific application.
- Improper Torch Angle: Holding the torch at the wrong angle can affect the weld quality. Practice proper torch angles to achieve the desired weld characteristics.
- Inadequate Cleaning: Failing to clean the metal surfaces before welding can result in contamination and weak welds. Always clean the metal surfaces thoroughly to remove any dirt, oil, or rust.
- Overheating: Overheating the metal can cause warping and distortion. Use the correct welding speed and heat input to avoid overheating.
- Insufficient Practice: Welding gas welding requires practice to master. Spend time practicing different techniques and applications to improve your skills.
🛠️ Note: Regularly inspect your equipment and maintain it properly to ensure optimal performance and safety. Replace any worn or damaged parts as needed.
Maintenance and Care of Welding Equipment
Proper maintenance and care of your welding equipment are essential for ensuring its longevity and performance. Here are some tips for maintaining your welding gas welding equipment:
- Regular Inspections: Inspect your equipment regularly for any signs of wear or damage. Check the hoses, regulators, and torch for leaks or cracks.
- Cleaning: Keep your equipment clean to prevent contamination and ensure smooth operation. Clean the torch tip and other components regularly.
- Storage: Store your equipment in a dry, well-ventilated area. Keep gas cylinders upright and secure to prevent tipping.
- Replacement Parts: Replace any worn or damaged parts promptly. This includes hoses, regulators, and torch tips.
- Safety Checks: Perform regular safety checks to ensure that your equipment is in good working condition. Follow the manufacturer's guidelines for maintenance and safety.
🔧 Note: Always follow the manufacturer's instructions for maintaining and caring for your welding equipment. Proper maintenance will extend the life of your equipment and ensure safe operation.
Advanced Techniques in Welding Gas Welding
As you gain experience in welding gas welding, you may want to explore advanced techniques to enhance your skills and the quality of your welds. Some advanced techniques include:
- Pulsed Welding: This technique involves using a pulsed flame to control the heat input and reduce the risk of overheating. It is useful for welding thin materials and for achieving precise control over the weld.
- Multi-Pass Welding: This technique involves making multiple passes over the weld to build up the weld bead and achieve a stronger weld. It is useful for welding thicker materials and for achieving deeper penetration.
- Brazing and Soldering: These techniques involve using a filler metal to join two pieces of metal. Brazing uses a higher temperature and is suitable for joining dissimilar metals, while soldering uses a lower temperature and is suitable for joining thin materials.
🔧 Note: Advanced techniques require practice and experience. Spend time practicing these techniques to improve your skills and achieve better weld quality.
Troubleshooting Common Issues in Welding Gas Welding
Even with proper technique and equipment, issues can arise during welding gas welding. Here are some common problems and their solutions:
| Problem | Solution |
|---|---|
| Poor Weld Quality | Check the flame adjustment and torch angle. Ensure that the metal surfaces are clean and free of contaminants. |
| Inconsistent Flame | Inspect the regulators and hoses for leaks or damage. Ensure that the gas cylinders are properly connected and the valves are open. |
| Overheating | Reduce the welding speed and heat input. Use a neutral flame to avoid overheating the metal. |
| Warping | Use clamps or jigs to hold the metal in place. Apply heat evenly to prevent warping. |
| Contamination | Clean the metal surfaces thoroughly before welding. Use a wire brush or grinder to remove any dirt, oil, or rust. |
🛠️ Note: Regularly inspect your equipment and maintain it properly to prevent common issues. Follow the manufacturer's guidelines for troubleshooting and maintenance.
Welding gas welding is a versatile and essential technique in various industries. By understanding the fundamentals, mastering the techniques, and following safety precautions, you can achieve high-quality welds and enhance your skills. Whether you’re a beginner or an experienced welder, continuous practice and learning will help you excel in welding gas welding.
