Welding Fillet Weld

Welding is a critical skill in various industries, from construction to manufacturing. Among the different types of welds, the welding fillet weld is one of the most commonly used. This type of weld is essential for joining two pieces of metal at a right angle, creating a strong and durable bond. Understanding the techniques and best practices for welding fillet welds can significantly enhance the quality and longevity of your projects.

Table of Contents

Understanding Welding Fillet Welds

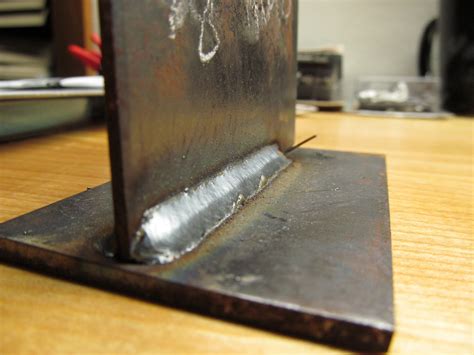

A welding fillet weld is a type of weld that joins two pieces of metal at a right angle, forming a triangular cross-section. This weld is commonly used in structural steelwork, pipe welding, and various fabrication projects. The strength of a fillet weld depends on its size, which is determined by the leg length of the triangle formed by the weld.

Types of Welding Fillet Welds

There are several types of welding fillet welds, each suited for different applications:

Convex Fillet Weld: This type of weld has a convex shape, meaning the weld metal protrudes slightly above the surface of the base metal. It is often used in applications where a smooth finish is not critical.
Concave Fillet Weld: This weld has a concave shape, with the weld metal slightly below the surface of the base metal. It is commonly used in applications where a smooth finish is required.
Flat Fillet Weld: This weld has a flat surface, with the weld metal level with the base metal. It is often used in applications where a smooth and even finish is essential.

Preparing for a Welding Fillet Weld

Proper preparation is crucial for achieving a high-quality welding fillet weld. Here are the steps to follow:

Clean the Metal Surfaces: Ensure that the metal surfaces to be welded are clean and free of rust, paint, and other contaminants. Use a wire brush or grinder to remove any impurities.
Align the Metal Pieces: Position the metal pieces at a right angle to each other. Use clamps or jigs to hold them in place securely.
Set the Welding Parameters: Adjust the welding machine settings according to the type and thickness of the metal. This includes setting the voltage, amperage, and wire feed speed.

Welding Techniques for Fillet Welds

There are several techniques for welding fillet welds, each with its own advantages and applications:

Stringer Bead Technique: This technique involves laying down a continuous bead of weld metal along the joint. It is simple and effective for creating strong welds.
Weave Bead Technique: This technique involves moving the welding torch in a weaving motion to distribute the weld metal evenly across the joint. It is useful for wider joints and can help reduce the risk of porosity.
Stitch Welding Technique: This technique involves welding short segments along the joint, leaving small gaps between each segment. It is useful for reducing distortion and residual stress in the weld.

Common Mistakes to Avoid

Even experienced welders can make mistakes when performing a welding fillet weld. Here are some common errors to avoid:

Inadequate Cleaning: Failing to clean the metal surfaces properly can lead to weak welds and contamination.
Incorrect Alignment: Misaligning the metal pieces can result in poor weld quality and structural weakness.
Improper Welding Parameters: Incorrect settings for voltage, amperage, and wire feed speed can lead to poor weld penetration and quality.
Inconsistent Welding Technique: Using an inconsistent welding technique can result in uneven welds and weak spots.

🛑 Note: Always wear appropriate personal protective equipment (PPE), including a welding helmet, gloves, and protective clothing, to ensure safety during the welding process.

Quality Control for Welding Fillet Welds

Ensuring the quality of a welding fillet weld is essential for the integrity and longevity of the welded structure. Here are some key aspects to consider:

Visual Inspection: Check the weld for any visible defects, such as cracks, porosity, or undercutting.
Non-Destructive Testing (NDT): Use techniques such as radiographic testing, ultrasonic testing, or magnetic particle testing to detect internal defects.
Mechanical Testing: Conduct tensile, bend, or impact tests to evaluate the strength and ductility of the weld.

Applications of Welding Fillet Welds

Welding fillet welds are used in a wide range of applications across various industries. Some common examples include:

Structural Steelwork: Fillet welds are used to join steel beams, columns, and other structural components in buildings and bridges.
Pipe Welding: Fillet welds are used to join pipes in plumbing, HVAC, and industrial piping systems.
Fabrication Projects: Fillet welds are used in the fabrication of metal structures, machinery, and equipment.

Safety Precautions for Welding Fillet Welds

Welding can be a hazardous activity if proper safety precautions are not followed. Here are some important safety measures to consider:

Ventilation: Ensure adequate ventilation to remove fumes and gases generated during welding.
Fire Safety: Keep a fire extinguisher nearby and remove any flammable materials from the welding area.
Electrical Safety: Ensure that the welding machine is properly grounded and that all electrical connections are secure.
Personal Protective Equipment (PPE): Wear appropriate PPE, including a welding helmet, gloves, and protective clothing.

🛑 Note: Always follow the manufacturer's instructions for the welding equipment and materials to ensure safe and effective use.

Conclusion

Mastering the art of welding fillet welds is essential for anyone involved in metal fabrication, construction, or manufacturing. By understanding the different types of fillet welds, preparing properly, using the right techniques, and following safety precautions, you can achieve strong and durable welds. Regular quality control and inspection are also crucial for ensuring the integrity of the welded structures. With practice and attention to detail, you can become proficient in welding fillet welds and produce high-quality results in your projects.
