Welding is a critical process in various industries, from construction to manufacturing. One of the essential components in welding is the welding cable, which ensures a stable and efficient power supply to the welding machine. Choosing the right welding cable size is crucial for the safety and performance of your welding operations. This guide will walk you through the importance of a Welding Cable Size Chart, how to read it, and how to select the appropriate cable size for your needs.
Understanding Welding Cables

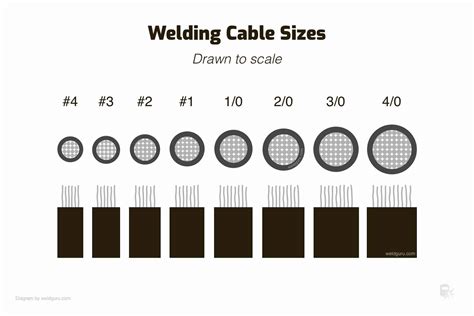

Welding cables are designed to handle high currents and voltages, making them different from standard electrical cables. They are typically made of copper or aluminum and are insulated to protect against electrical hazards. The size of the welding cable is determined by its American Wire Gauge (AWG) rating, which indicates the diameter of the cable.
The Importance of a Welding Cable Size Chart
A Welding Cable Size Chart is an invaluable tool for welders and engineers. It provides a quick reference for selecting the appropriate cable size based on the current requirements of the welding machine. Using the correct cable size ensures:
- Efficient power transmission
- Reduced voltage drop
- Improved welding performance
- Enhanced safety
Without the right cable size, you risk overheating, voltage drops, and potential hazards, which can compromise the quality of your welds and the safety of your workspace.
Reading a Welding Cable Size Chart

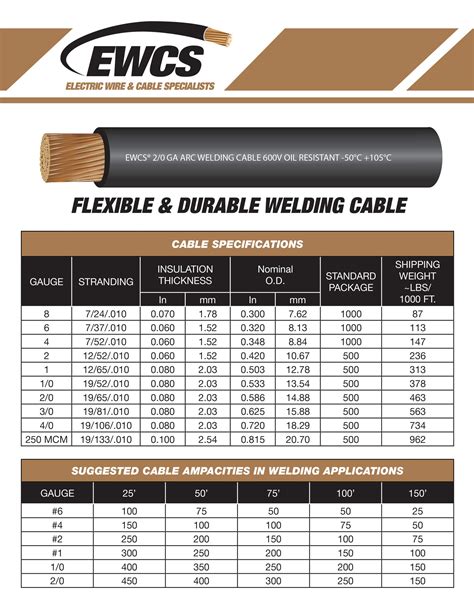

A typical Welding Cable Size Chart includes several key pieces of information:
- AWG Rating: The gauge of the cable, which indicates its diameter.
- Current Capacity: The maximum current the cable can safely handle.
- Voltage Drop: The loss of voltage over a given distance.
- Insulation Type: The type of insulation used, which affects the cable's flexibility and durability.

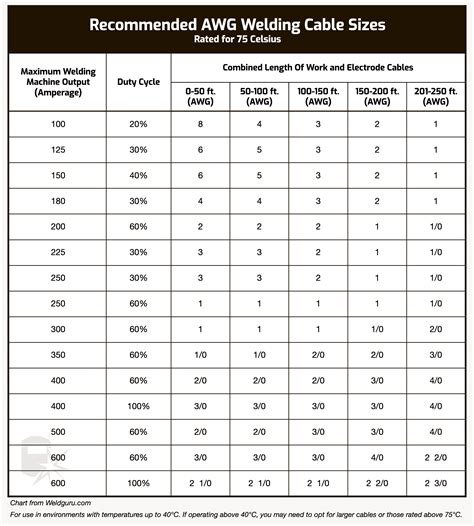

Here is an example of what a Welding Cable Size Chart might look like:
| AWG Rating | Current Capacity (Amps) | Voltage Drop (Volts per 100 feet) | Insulation Type |
|---|---|---|---|
| 2/0 | 320 | 0.16 | Rubber |
| 3/0 | 380 | 0.13 | Rubber |
| 4/0 | 440 | 0.11 | Rubber |
| 250 | 500 | 0.09 | Rubber |
| 300 | 550 | 0.08 | Rubber |
This chart provides a quick reference for selecting the appropriate cable size based on the current requirements of your welding machine. For example, if your welding machine requires 400 amps, you would need a cable with an AWG rating of at least 4/0 to ensure safe and efficient operation.
🔧 Note: Always consult the manufacturer's specifications for your welding machine to determine the exact current requirements.

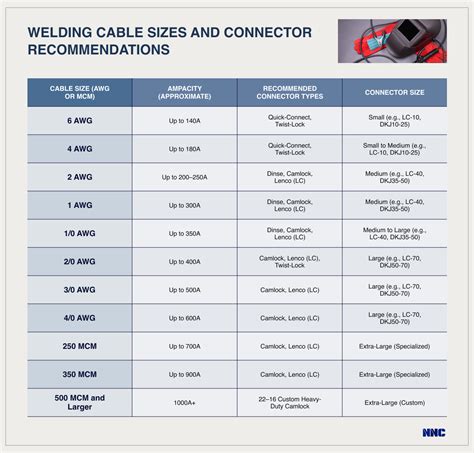

Selecting the Right Welding Cable Size
Choosing the right welding cable size involves several factors, including the current requirements of your welding machine, the length of the cable, and the type of welding you will be performing. Here are some steps to help you select the appropriate cable size:
- Determine the Current Requirements: Check the specifications of your welding machine to find out the maximum current it can draw. This information is usually provided in the machine's manual or on a label attached to the machine.
- Calculate the Cable Length: Measure the distance from the power source to the welding machine. This will help you determine the voltage drop and ensure that the cable can handle the required current over the specified distance.
- Consult the Welding Cable Size Chart: Use the Welding Cable Size Chart to find a cable that can handle the required current and minimize voltage drop over the specified distance.
- Consider the Insulation Type: Choose a cable with insulation that is suitable for your working environment. For example, rubber insulation is flexible and durable, making it ideal for most welding applications.
By following these steps, you can ensure that you select the right welding cable size for your needs, which will improve the performance and safety of your welding operations.
🔧 Note: Always use cables that are rated for the specific voltage and current requirements of your welding machine. Using undersized cables can lead to overheating and potential hazards.
Common Mistakes to Avoid
Selecting the wrong welding cable size can lead to several problems. Here are some common mistakes to avoid:
- Using Undersized Cables: This can cause overheating, voltage drops, and potential hazards. Always ensure that the cable can handle the required current and minimize voltage drop.
- Ignoring Cable Length: The length of the cable affects the voltage drop. Longer cables require larger gauges to maintain efficient power transmission.
- Not Considering Insulation Type: The type of insulation affects the cable's flexibility and durability. Choose an insulation type that is suitable for your working environment.
- Overlooking Manufacturer Specifications: Always consult the manufacturer's specifications for your welding machine to determine the exact current requirements.
By avoiding these common mistakes, you can ensure that your welding operations are safe and efficient.
🔧 Note: Regularly inspect your welding cables for signs of wear and tear. Replace any damaged cables immediately to prevent potential hazards.
Maintaining Your Welding Cables
Maintaining your welding cables is essential for ensuring their longevity and performance. Here are some tips for maintaining your welding cables:
- Regular Inspection: Inspect your cables regularly for signs of wear and tear, such as cracks, cuts, or frayed insulation. Replace any damaged cables immediately.
- Proper Storage: Store your cables in a cool, dry place away from direct sunlight and heat sources. Avoid kinking or twisting the cables, as this can damage the insulation.
- Cleaning: Clean your cables regularly to remove dirt, grease, and other contaminants that can affect their performance. Use a mild detergent and water, and allow the cables to dry completely before use.
- Avoiding Overheating: Do not exceed the current rating of your cables. Overheating can damage the insulation and reduce the cable's lifespan.
By following these maintenance tips, you can extend the lifespan of your welding cables and ensure that they perform reliably.
🔧 Note: Always follow the manufacturer's guidelines for maintaining your welding cables. Proper maintenance can help prevent potential hazards and ensure the safety of your welding operations.
Welding cables are a critical component in any welding setup. Understanding the importance of a Welding Cable Size Chart and how to select the right cable size can significantly improve the performance and safety of your welding operations. By following the guidelines outlined in this post, you can ensure that your welding cables are up to the task, providing reliable power transmission and minimizing potential hazards.
