Water Well Drilling Equipment

Water well drilling is a critical process that involves creating a borehole in the ground to access groundwater. This process requires specialized water well drilling equipment to ensure efficiency, accuracy, and safety. Whether you are a professional driller or a homeowner looking to install a well, understanding the types of equipment and their functions is essential.

Table of Contents

Understanding Water Well Drilling Equipment

Water well drilling equipment encompasses a variety of tools and machinery designed to penetrate the earth's surface and extract water from underground aquifers. The choice of equipment depends on several factors, including the geological conditions, the depth of the well, and the intended use of the water. Here are some of the key components of water well drilling equipment:

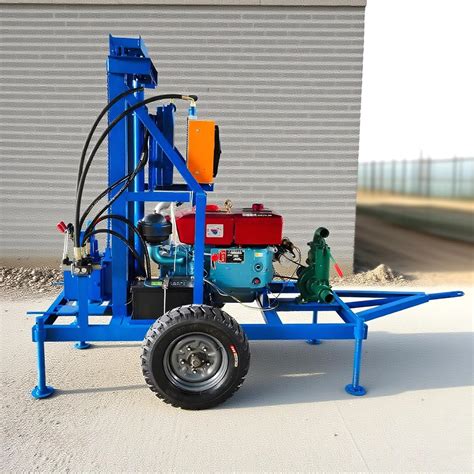

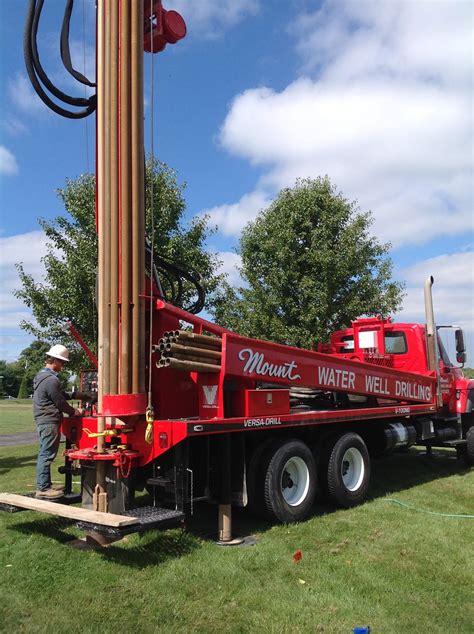

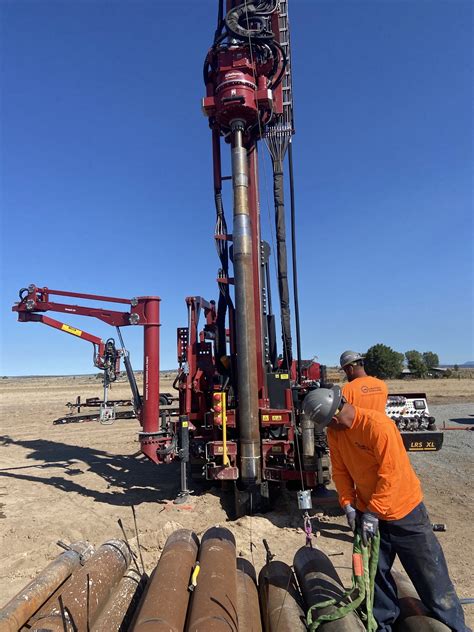

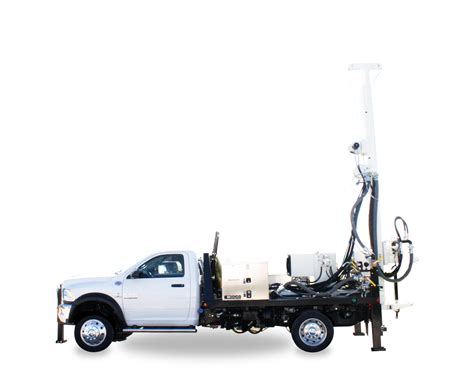

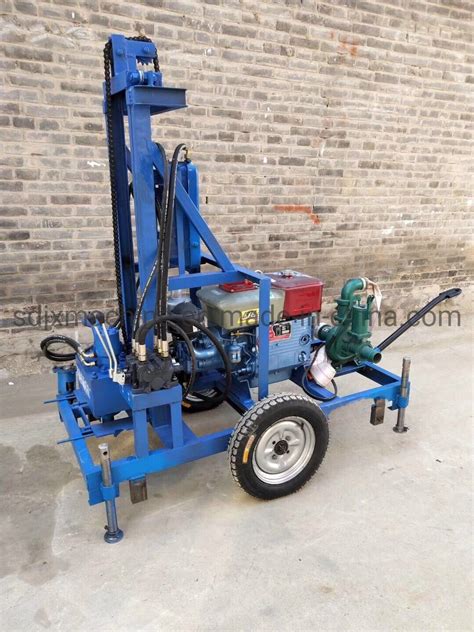

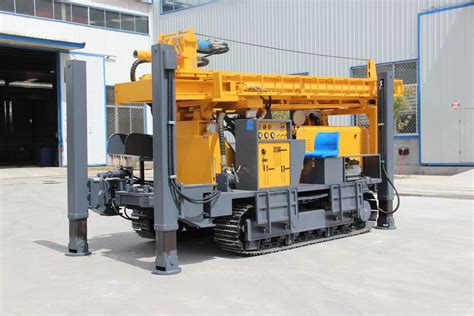

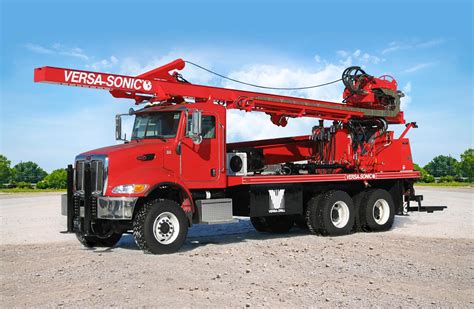

Drilling Rigs

Drilling rigs are the backbone of any water well drilling operation. They provide the mechanical power and stability needed to drill through various soil and rock formations. There are several types of drilling rigs, each suited to different drilling methods:

Rotary Drilling Rigs: These rigs use a rotating drill bit to cut through the earth. They are versatile and can handle a wide range of soil and rock types.
Cable Tool Drilling Rigs: Also known as percussion drilling rigs, these use a heavy drill bit that is repeatedly raised and dropped to break through the ground.
Hydraulic Drilling Rigs: These rigs use hydraulic power to drive the drill bit, making them suitable for drilling in hard rock formations.

Drill Bits

Drill bits are the cutting tools that directly interact with the earth. The type of drill bit used depends on the geological conditions and the drilling method. Common types of drill bits include:

Tricone Bits: These bits have three cones with teeth that cut through the rock as the bit rotates.
Drag Bits: These bits have fixed cutters that scrape the rock as the bit rotates.
Percussion Bits: These bits are used in cable tool drilling and have a chisel-like design that breaks through the rock with repeated impacts.

Drill Pipes and Casing

Drill pipes are long, hollow tubes that connect the drill bit to the drilling rig. They transmit the rotational force and drilling fluid to the bit. Casing, on the other hand, is a protective lining installed in the well to prevent collapse and contamination. Casing is typically made of steel or PVC and is available in various diameters and lengths.

Drilling Fluids

Drilling fluids, also known as mud, play a crucial role in the drilling process. They serve multiple purposes, including:

Cooling and lubricating the drill bit.
Removing cuttings from the borehole.
Stabilizing the borehole walls.
Preventing the influx of water or gas into the well.

Drilling fluids can be water-based, oil-based, or synthetic, depending on the specific requirements of the drilling operation.

Pumps and Compressors

Pumps and compressors are essential for circulating drilling fluids and removing cuttings from the borehole. Pumps generate the pressure needed to circulate the fluid, while compressors provide the air or gas required for certain drilling methods. These components ensure that the drilling process is efficient and that the borehole remains stable.

Supporting Equipment

In addition to the primary drilling equipment, several supporting tools and machinery are necessary for a successful drilling operation. These include:

Generators: Provide the electrical power needed to operate the drilling rig and other equipment.
Water Tanks: Store water for mixing drilling fluids and for other operational needs.
Cranes and Hoists: Used for lifting and moving heavy equipment and materials.
Safety Equipment: Includes personal protective equipment (PPE), emergency response kits, and safety barriers.

Choosing the Right Water Well Drilling Equipment

Selecting the appropriate water well drilling equipment is crucial for the success of any drilling project. Several factors should be considered when choosing the right equipment:

Geological Conditions

The type of soil and rock formations at the drilling site will significantly impact the choice of equipment. For example, hard rock formations may require hydraulic drilling rigs and specialized drill bits, while softer soil types may be suitable for rotary drilling rigs.

Depth of the Well

The depth of the well will determine the size and capacity of the drilling rig and other equipment. Deeper wells require more powerful and robust equipment to handle the increased pressure and depth.

Intended Use of the Water

The purpose of the well, whether for domestic, agricultural, or industrial use, will influence the choice of equipment. For example, a well intended for domestic use may require a smaller, more portable drilling rig, while an industrial well may need a larger, more powerful rig.

Budget and Cost Considerations

The cost of the equipment and the overall budget for the drilling project are important factors to consider. It is essential to balance the need for high-quality equipment with the available budget to ensure a successful and cost-effective drilling operation.

Maintenance and Safety of Water Well Drilling Equipment

Maintaining water well drilling equipment in good working condition is essential for the safety and efficiency of the drilling operation. Regular maintenance and inspections can prevent equipment failures and ensure that the drilling process runs smoothly. Here are some key maintenance and safety considerations:

Regular Inspections

Regular inspections of all drilling equipment, including the drilling rig, drill bits, drill pipes, and pumps, are crucial for identifying potential issues before they become major problems. Inspections should be conducted by trained personnel who can assess the condition of the equipment and make necessary repairs or replacements.

Lubrication and Cleaning

Proper lubrication and cleaning of drilling equipment are essential for maintaining its performance and longevity. Lubricants should be applied to moving parts to reduce friction and wear, while cleaning should be done to remove dirt, debris, and drilling fluids that can accumulate on the equipment.

Safety Protocols

Safety protocols should be strictly followed to prevent accidents and injuries during the drilling operation. This includes wearing appropriate personal protective equipment (PPE), following safe operating procedures, and ensuring that all equipment is in good working condition. Regular safety training and drills should be conducted to keep personnel prepared for emergencies.

🛑 Note: Always ensure that safety protocols are followed and that all personnel are trained in emergency procedures.

Environmental Considerations

Water well drilling can have environmental impacts, and it is essential to take steps to minimize these effects. Proper management of drilling fluids, waste materials, and site cleanup are crucial for protecting the environment. Here are some environmental considerations to keep in mind:

Drilling Fluids Management

Drilling fluids should be managed carefully to prevent contamination of groundwater and soil. Used drilling fluids should be collected and disposed of according to local regulations and environmental standards. Recycling and reuse of drilling fluids can also help reduce waste and environmental impact.

Waste Management

Waste materials generated during the drilling process, such as drill cuttings and debris, should be properly managed to prevent environmental contamination. Waste should be collected, stored, and disposed of in accordance with local regulations and environmental standards.

Site Cleanup

After the drilling operation is complete, the site should be thoroughly cleaned to remove any remaining equipment, materials, and debris. The site should be restored to its original condition, and any environmental impacts should be mitigated to ensure the long-term health of the ecosystem.

🌿 Note: Always follow local regulations and environmental standards for managing drilling fluids, waste materials, and site cleanup.

Case Studies and Success Stories

To illustrate the importance of choosing the right water well drilling equipment and following best practices, let's look at a few case studies and success stories:

Case Study 1: Domestic Well Drilling

A homeowner in a rural area needed a well to provide water for their household. The geological conditions at the site included a mix of soil and rock formations. The drilling team chose a rotary drilling rig with a tricone drill bit, which was suitable for the varied soil types. The drilling process was completed efficiently, and the well provided a reliable water source for the homeowner.

Case Study 2: Agricultural Well Drilling

A farmer required a well to irrigate their crops. The site had hard rock formations, and the well needed to be deep to access sufficient water. The drilling team selected a hydraulic drilling rig with a drag bit, which was capable of penetrating the hard rock. The well was successfully drilled to the required depth, and the farmer was able to irrigate their crops effectively.

Case Study 3: Industrial Well Drilling

An industrial facility needed a well to supply water for their operations. The site had complex geological conditions, and the well needed to be deep and wide to meet the facility's water demands. The drilling team used a combination of rotary and hydraulic drilling rigs, along with specialized drill bits and casing. The well was completed on time and within budget, providing a reliable water source for the industrial facility.

These case studies demonstrate the importance of selecting the right water well drilling equipment and following best practices for maintenance, safety, and environmental management. By choosing the appropriate equipment and adhering to industry standards, drilling operations can be completed efficiently and safely, providing a reliable water source for various applications.

Water well drilling is a complex process that requires specialized equipment and expertise. By understanding the types of water well drilling equipment and their functions, choosing the right equipment for the job, and following best practices for maintenance, safety, and environmental management, drilling operations can be completed successfully. Whether for domestic, agricultural, or industrial use, a well-drilled water well can provide a reliable and sustainable water source for years to come.

In summary, water well drilling involves the use of specialized equipment to create a borehole and access groundwater. The choice of equipment depends on geological conditions, well depth, intended use, and budget. Regular maintenance, safety protocols, and environmental considerations are crucial for successful drilling operations. By following best practices and selecting the right equipment, drilling projects can be completed efficiently and safely, providing a reliable water source for various applications.
