Volumetric Flow Rate Units

Understanding volumetric flow rate units is crucial for anyone working in fields such as engineering, fluid dynamics, and environmental science. Volumetric flow rate refers to the volume of fluid that passes through a given surface or channel per unit of time. This measurement is essential for designing and optimizing systems that involve fluid flow, such as pipelines, HVAC systems, and water treatment facilities.

Table of Contents

What is Volumetric Flow Rate?

Volumetric flow rate is a measure of the volume of fluid that moves through a system over a specific period. It is typically expressed in units such as cubic meters per second (m³/s), cubic feet per second (ft³/s), or liters per minute (L/min). The volumetric flow rate is different from mass flow rate, which measures the mass of fluid passing through a point per unit time.

Importance of Volumetric Flow Rate Units

Accurate measurement and understanding of volumetric flow rate units are vital for several reasons:

System Design: Engineers use volumetric flow rate to design systems that can handle the required fluid volume efficiently.
Performance Monitoring: Monitoring volumetric flow rate helps in assessing the performance of systems and identifying any inefficiencies or blockages.
Safety and Compliance: Many industries have regulations that require precise control and measurement of fluid flow to ensure safety and compliance with environmental standards.
Cost Efficiency: Optimizing volumetric flow rate can lead to significant cost savings by reducing energy consumption and minimizing waste.

Common Volumetric Flow Rate Units

There are several units used to measure volumetric flow rate, each suitable for different applications. Some of the most common units include:

Cubic Meters per Second (m³/s): Widely used in scientific and engineering contexts, especially in metric systems.
Cubic Feet per Second (ft³/s): Commonly used in the United States and other countries that use the imperial system.
Liters per Minute (L/min): Often used in medical and laboratory settings.
Gallons per Minute (GPM): Frequently used in plumbing and HVAC systems.
Milliliters per Second (mL/s): Used in micro-fluidics and small-scale applications.

Converting Between Volumetric Flow Rate Units

Converting between different volumetric flow rate units is often necessary when working with systems that use different measurement standards. Here are some common conversion factors:

Unit	Conversion Factor to m³/s
Cubic Feet per Second (ft³/s)	0.0283168
Liters per Minute (L/min)	0.0000166667
Gallons per Minute (GPM)	0.0000630902
Milliliters per Second (mL/s)	0.000001

For example, to convert 1 cubic foot per second to cubic meters per second, you would multiply by 0.0283168:

💡 Note: Always double-check conversion factors to ensure accuracy, as slight errors can lead to significant discrepancies in calculations.

Measuring Volumetric Flow Rate

Measuring volumetric flow rate accurately is essential for various applications. Several methods and instruments are used to measure flow rate, including:

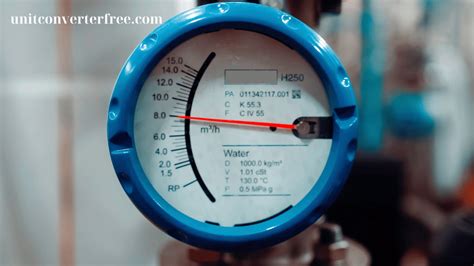

Flow Meters: Devices that measure the flow of fluid through a pipe or channel. Common types include:

Differential Pressure Flow Meters: Measure the difference in pressure between two points in a flow stream.
Velocity Flow Meters: Measure the velocity of the fluid and calculate the flow rate.
Positive Displacement Flow Meters: Measure the volume of fluid passing through the meter by counting the number of times a known volume is displaced.

Ultrasonic Flow Meters: Use sound waves to measure the velocity of the fluid and calculate the flow rate.
Electromagnetic Flow Meters: Use magnetic fields to measure the flow rate of conductive fluids.

Applications of Volumetric Flow Rate

Volumetric flow rate is applied in various industries and fields. Some of the key applications include:

Oil and Gas Industry: Monitoring and controlling the flow of hydrocarbons through pipelines and refineries.
Water Treatment: Ensuring the proper flow of water through treatment processes to maintain water quality.
HVAC Systems: Regulating the flow of air and water to maintain optimal temperature and humidity levels.
Pharmaceuticals: Precise control of fluid flow in manufacturing processes to ensure product quality and consistency.
Agriculture: Managing irrigation systems to optimize water usage and crop yield.

Challenges in Measuring Volumetric Flow Rate

Measuring volumetric flow rate can present several challenges, including:

Turbulence: Fluctuations in flow velocity can affect the accuracy of measurements.
Viscosity: The viscosity of the fluid can impact the flow rate and the performance of flow meters.
Temperature and Pressure: Changes in temperature and pressure can alter the volumetric flow rate and require adjustments in measurement techniques.
Calibration: Regular calibration of flow meters is necessary to ensure accurate measurements over time.

Addressing these challenges requires careful selection of measurement instruments and techniques, as well as regular maintenance and calibration of equipment.

Future Trends in Volumetric Flow Rate Measurement

Advances in technology are continually improving the accuracy and efficiency of volumetric flow rate measurement. Some emerging trends include:

Smart Flow Meters: Equipped with sensors and data analytics capabilities, these meters provide real-time monitoring and predictive maintenance.
IoT Integration: Connecting flow meters to the Internet of Things (IoT) allows for remote monitoring and control, enhancing operational efficiency.
Non-Invasive Measurement: Techniques such as ultrasonic and electromagnetic flow meters offer non-invasive measurement options, reducing the need for intrusive installations.
Advanced Materials: The use of advanced materials in flow meter construction improves durability and accuracy, especially in harsh environments.

These trends are driving innovation in the field of volumetric flow rate measurement, making it easier to achieve precise and reliable results.

In summary, understanding volumetric flow rate units is fundamental for various applications in engineering, environmental science, and industry. Accurate measurement and conversion between different units are crucial for designing efficient systems, monitoring performance, and ensuring compliance with regulations. As technology advances, the methods and tools for measuring volumetric flow rate continue to evolve, offering new opportunities for improved accuracy and efficiency.
