Volume Pipe Calculation

Understanding the intricacies of Volume Pipe Calculation is crucial for engineers, plumbers, and anyone involved in fluid dynamics. Whether you're designing a plumbing system, optimizing a water supply network, or working on industrial piping, accurate volume pipe calculations are essential. This post will guide you through the fundamentals of volume pipe calculation, the formulas involved, and practical applications.

Table of Contents

Understanding Volume Pipe Calculation

Volume pipe calculation involves determining the amount of fluid that can be contained within a pipe. This is a fundamental aspect of fluid dynamics and is used in various industries, including plumbing, chemical engineering, and civil engineering. The calculation is based on the pipe's dimensions and the properties of the fluid being transported.

Key Concepts in Volume Pipe Calculation

Before diving into the formulas, it's important to understand some key concepts:

Pipe Diameter: The internal diameter of the pipe, which affects the volume it can hold.
Pipe Length: The total length of the pipe, which directly influences the volume.
Fluid Properties: The density and viscosity of the fluid can affect how it flows through the pipe.

Formulas for Volume Pipe Calculation

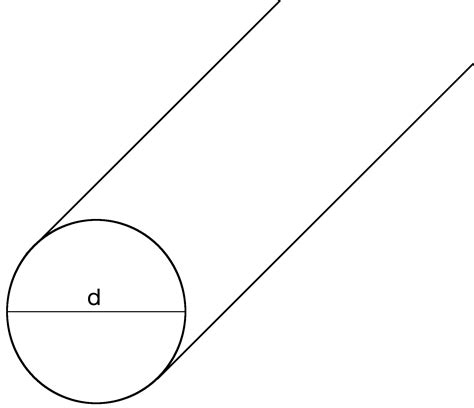

The basic formula for calculating the volume of a pipe is derived from the formula for the volume of a cylinder:

Volume (V) = π * r^2 * h

Where:

r is the radius of the pipe (half of the diameter).
h is the height or length of the pipe.

For a pipe, the formula can be simplified to:

Volume (V) = π * (d/2)^2 * L

Where:

d is the diameter of the pipe.
L is the length of the pipe.

This formula assumes the pipe is straight and has a constant diameter throughout its length. For more complex pipe systems, additional factors may need to be considered.

Step-by-Step Guide to Volume Pipe Calculation

Here is a step-by-step guide to performing a Volume Pipe Calculation:

Measure the Pipe Diameter: Use a caliper or measuring tape to determine the internal diameter of the pipe.
Measure the Pipe Length: Measure the total length of the pipe using a tape measure or other suitable tool.
Calculate the Radius: Divide the diameter by 2 to get the radius.
Apply the Formula: Use the formula V = π * (d/2)^2 * L to calculate the volume.
Convert Units if Necessary: Ensure all measurements are in consistent units (e.g., meters, centimeters, inches) and convert the volume to the desired unit (e.g., liters, gallons).

📝 Note: For pipes with varying diameters or lengths, you may need to calculate the volume for each section separately and then sum the volumes.

Practical Applications of Volume Pipe Calculation

Volume pipe calculation has numerous practical applications across various industries:

Plumbing Systems: Ensuring adequate water supply and drainage by calculating the volume of pipes in residential and commercial buildings.
Industrial Piping: Designing and optimizing piping systems for chemical plants, refineries, and manufacturing facilities.
Water Supply Networks: Planning and maintaining water distribution systems to meet the needs of communities and industries.
Hydraulic Systems: Calculating the volume of fluid in hydraulic systems used in machinery and vehicles.

Example of Volume Pipe Calculation

Let's go through an example to illustrate the process. Suppose you have a pipe with a diameter of 10 cm and a length of 5 meters. You want to calculate the volume of the pipe.

Measure the Pipe Diameter: 10 cm
Measure the Pipe Length: 5 meters (500 cm)
Calculate the Radius: 10 cm / 2 = 5 cm
Apply the Formula: V = π * (5 cm)^2 * 500 cm
Calculate the Volume: V = π * 25 cm^2 * 500 cm = 39,269.91 cm^3
Convert Units: 39,269.91 cm^3 = 39.27 liters

Therefore, the volume of the pipe is approximately 39.27 liters.

Advanced Considerations in Volume Pipe Calculation

For more complex scenarios, additional factors may need to be considered:

Pipe Fittings and Valves: These can affect the overall volume and flow characteristics of the pipe system.
Fluid Dynamics: The behavior of the fluid, including turbulence and pressure, can influence the volume calculation.
Temperature and Pressure: Changes in temperature and pressure can affect the volume of the fluid and the dimensions of the pipe.

In such cases, more advanced formulas and computational tools may be required to accurately calculate the volume.

Common Mistakes in Volume Pipe Calculation

When performing Volume Pipe Calculation, it's important to avoid common mistakes:

Incorrect Measurements: Ensure accurate measurements of the pipe diameter and length.
Unit Inconsistencies: Use consistent units for all measurements and conversions.
Ignoring Pipe Fittings: Account for any fittings or valves that may affect the volume.
Neglecting Fluid Properties: Consider the density and viscosity of the fluid being transported.

📝 Note: Double-check your calculations and measurements to ensure accuracy.

Tools for Volume Pipe Calculation

Several tools and software can assist with Volume Pipe Calculation:

Calculators: Online calculators and mobile apps can quickly perform volume calculations.
CAD Software: Computer-aided design (CAD) software can model complex piping systems and calculate volumes.
Engineering Software: Specialized engineering software can handle advanced fluid dynamics and volume calculations.

These tools can save time and improve the accuracy of your calculations.

Conclusion

Volume Pipe Calculation is a critical aspect of fluid dynamics and piping systems. By understanding the key concepts, formulas, and practical applications, you can accurately determine the volume of fluid in a pipe. Whether you’re designing a plumbing system, optimizing an industrial process, or working on a water supply network, mastering volume pipe calculation is essential. Always ensure accurate measurements, consistent units, and consider any additional factors that may affect the volume. With the right tools and knowledge, you can perform precise volume pipe calculations to meet your project’s requirements.
