Voltage Vs Current

Understanding the relationship between voltage vs current is fundamental in the field of electronics and electrical engineering. These two concepts are interconnected and play crucial roles in the design and operation of electrical circuits. Voltage, measured in volts (V), represents the electrical potential difference between two points, while current, measured in amperes (A), is the flow of electric charge through a conductor. This post will delve into the intricacies of voltage vs current, their relationship, and their applications in various electrical systems.

Table of Contents

Understanding Voltage

Voltage, often referred to as electrical potential difference, is the force that drives electric charges through a conductor. It is analogous to the pressure in a water pipe, which pushes water through the pipe. In an electrical circuit, voltage is the difference in electrical potential between two points. This difference causes electrons to flow from a point of higher potential to a point of lower potential, creating an electric current.

Voltage can be generated through various means, including batteries, generators, and power supplies. The voltage source provides the necessary potential difference to drive the current through the circuit. For example, a 9V battery provides a 9-volt potential difference between its positive and negative terminals, which can power a small electronic device.

Understanding Current

Current, measured in amperes (A), is the flow of electric charge through a conductor. It is often compared to the flow of water through a pipe. In an electrical circuit, current is the movement of electrons from the negative terminal to the positive terminal of a voltage source. The amount of current flowing through a circuit depends on the voltage applied and the resistance of the circuit.

Current can be direct (DC) or alternating (AC). Direct current flows in one direction, while alternating current periodically reverses direction. DC is commonly used in batteries and electronic devices, while AC is used in power grids and household appliances. The flow of current is governed by Ohm's Law, which states that the current (I) is equal to the voltage (V) divided by the resistance (R), or I = V/R.

Voltage vs Current: The Relationship

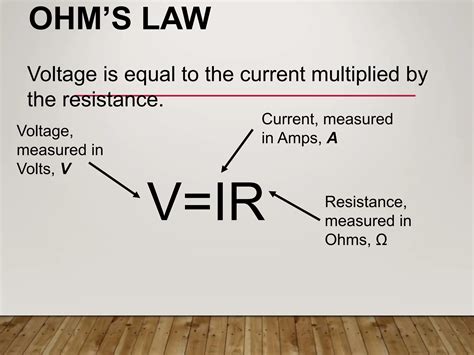

The relationship between voltage and current is governed by Ohm’s Law, which is a fundamental principle in electronics. Ohm’s Law states that the current flowing through a conductor is directly proportional to the voltage applied across it, provided the temperature and other physical conditions remain constant. This relationship can be expressed mathematically as:

V = IR

Where:

V is the voltage in volts (V)
I is the current in amperes (A)
R is the resistance in ohms (Ω)

This equation shows that if the resistance of a circuit is constant, increasing the voltage will increase the current, and vice versa. Conversely, if the voltage is constant, increasing the resistance will decrease the current, and vice versa.

Applications of Voltage vs Current

The understanding of voltage vs current is crucial in various applications, including:

Electronic Circuits: In electronic circuits, voltage and current are used to power components such as resistors, capacitors, and transistors. The design of these circuits relies on the precise control of voltage and current to ensure proper functioning.
Power Systems: In power systems, voltage and current are used to transmit electrical energy over long distances. The voltage is stepped up using transformers to reduce power losses during transmission, and then stepped down at the destination for safe use.
Batteries and Power Supplies: Batteries and power supplies provide the necessary voltage and current to power electronic devices. The design of these components involves careful consideration of voltage and current requirements to ensure efficient and safe operation.
Motor Control: In motor control applications, voltage and current are used to control the speed and torque of electric motors. By varying the voltage and current supplied to the motor, precise control over its operation can be achieved.

Measuring Voltage and Current

Accurate measurement of voltage and current is essential for the design, testing, and troubleshooting of electrical circuits. Various instruments are used to measure these quantities, including:

Voltmeters: Voltmeters are used to measure the voltage across a component or circuit. They are connected in parallel with the component or circuit being measured.
Ammeters: Ammeters are used to measure the current flowing through a component or circuit. They are connected in series with the component or circuit being measured.
Multimeters: Multimeters are versatile instruments that can measure voltage, current, resistance, and other electrical quantities. They are commonly used in electronics and electrical engineering for testing and troubleshooting.

When measuring voltage and current, it is important to follow safety guidelines to avoid electrical shock or damage to the measuring instruments. Always ensure that the measuring instrument is properly calibrated and that the correct range is selected for the measurement.

Safety Considerations

Working with electrical circuits involves handling voltage and current, which can be hazardous if not managed properly. Here are some safety considerations to keep in mind:

Use Proper Insulation: Ensure that all electrical components and wires are properly insulated to prevent accidental contact with live parts.
Avoid Overloading: Do not exceed the rated voltage and current of electrical components to prevent overheating and potential fires.
Use Safety Equipment: Wear appropriate personal protective equipment (PPE), such as insulated gloves and safety glasses, when working with electrical circuits.
Follow Safety Protocols: Always follow established safety protocols and guidelines when working with electrical circuits to minimize the risk of accidents.

🛑 Note: Always ensure that the power is turned off before working on electrical circuits to prevent electrical shock.

Voltage and Current in Series and Parallel Circuits

In electrical circuits, components can be connected in series or parallel, and the behavior of voltage and current differs in each configuration.

Series Circuits

In a series circuit, components are connected end-to-end, forming a single path for the current to flow. The same current flows through each component, but the voltage drops across each component add up to the total voltage supplied by the source.

For a series circuit with multiple resistors, the total resistance (R_total) is the sum of the individual resistances:

R_total = R₁ + R₂ + R₃ + ...

The total voltage (V_total) is the sum of the voltage drops across each resistor:

V_total = V₁ + V₂ + V₃ + ...

The current (I) flowing through the circuit is the same for each resistor:

I = V_total / R_total

Parallel Circuits

In a parallel circuit, components are connected side-by-side, forming multiple paths for the current to flow. The voltage across each component is the same, but the current through each component can be different.

For a parallel circuit with multiple resistors, the total resistance (R_total) is calculated using the formula:

1/R_total = 1/R₁ + 1/R₂ + 1/R₃ + ...

The total current (I_total) is the sum of the currents through each resistor:

I_total = I₁ + I₂ + I₃ + ...

The voltage (V) across each resistor is the same:

V = V₁ = V₂ = V₃ = ...

Practical Examples of Voltage vs Current

To better understand the relationship between voltage vs current, let’s consider some practical examples:

Example 1: Simple Resistor Circuit

Consider a simple circuit with a 9V battery and a 100-ohm resistor. Using Ohm’s Law, we can calculate the current flowing through the resistor:

I = V / R

I = 9V / 100Ω

I = 0.09A

So, the current flowing through the resistor is 0.09 amperes.

Example 2: Series Circuit

Consider a series circuit with a 9V battery and three resistors: 100Ω, 200Ω, and 300Ω. The total resistance is:

R_total = 100Ω + 200Ω + 300Ω

R_total = 600Ω

The current flowing through the circuit is:

I = V / R_total

I = 9V / 600Ω

I = 0.015A

The voltage drop across each resistor is:

V₁ = I * R₁ = 0.015A * 100Ω = 1.5V

V₂ = I * R₂ = 0.015A * 200Ω = 3V

V₃ = I * R₃ = 0.015A * 300Ω = 4.5V

Example 3: Parallel Circuit

Consider a parallel circuit with a 9V battery and three resistors: 100Ω, 200Ω, and 300Ω. The total resistance is:

1/R_total = 1/100Ω + 1/200Ω + 1/300Ω

1/R_total = 0.01 + 0.005 + 0.0033

1/R_total = 0.0183

R_total = 1 / 0.0183

R_total ≈ 54.64Ω

The total current flowing through the circuit is:

I_total = V / R_total

I_total = 9V / 54.64Ω

I_total ≈ 0.165A

The current through each resistor is:

I₁ = V / R₁ = 9V / 100Ω = 0.09A

I₂ = V / R₂ = 9V / 200Ω = 0.045A

I₃ = V / R₃ = 9V / 300Ω = 0.03A

Note that the sum of the individual currents equals the total current:

I_total = I₁ + I₂ + I₃

0.165A = 0.09A + 0.045A + 0.03A

This confirms the correctness of the calculations.

Voltage and Current in Real-World Applications

Understanding the relationship between voltage vs current is crucial in various real-world applications. Here are some examples:

Automotive Electrical Systems

In automotive electrical systems, the battery provides the necessary voltage to power various components, such as lights, ignition systems, and electronic devices. The current drawn by these components depends on their power requirements and the voltage supplied by the battery. For example, a typical car battery provides 12V, and the current drawn by the headlights can be calculated using Ohm’s Law.

Renewable Energy Systems

In renewable energy systems, such as solar and wind power, the voltage and current generated by the energy sources must be carefully managed to ensure efficient power conversion and storage. Solar panels, for instance, generate direct current (DC) with a specific voltage and current output, which is then converted to alternating current (AC) using inverters for use in homes and businesses.

Electronic Devices

In electronic devices, such as smartphones, laptops, and tablets, the voltage and current supplied by the battery or power adapter must be carefully regulated to ensure proper functioning and safety. Voltage regulators and current limiters are used to maintain the required voltage and current levels, protecting the device from overvoltage and overcurrent conditions.

Conclusion

The relationship between voltage vs current is a fundamental concept in electronics and electrical engineering. Understanding how voltage and current interact in electrical circuits is essential for designing, testing, and troubleshooting various electrical systems. By applying Ohm’s Law and considering the behavior of voltage and current in series and parallel circuits, engineers can create efficient and reliable electrical designs. Whether in automotive systems, renewable energy, or electronic devices, the principles of voltage vs current are crucial for ensuring safe and effective operation.
