Understanding the behavior of electronic circuits is fundamental to designing and troubleshooting them effectively. One crucial aspect of this understanding is the Voltage Transfer Characteristic (VTC), which provides insights into how the output voltage of a circuit responds to changes in the input voltage. This characteristic is particularly important in the analysis of amplifiers, comparators, and other analog circuits. By examining the VTC, engineers can determine key parameters such as gain, threshold voltages, and the overall performance of the circuit.
What is a Voltage Transfer Characteristic?
The Voltage Transfer Characteristic (VTC) is a graphical representation that shows the relationship between the input voltage (Vin) and the output voltage (Vout) of a circuit. It is essentially a plot of Vout versus Vin, illustrating how the output voltage changes as the input voltage varies. This characteristic is vital for understanding the behavior of nonlinear circuits, such as those involving diodes, transistors, and operational amplifiers.
Importance of Voltage Transfer Characteristic
The VTC is a powerful tool for several reasons:
- Gain Determination: The slope of the VTC curve in the linear region indicates the gain of the circuit. A steeper slope means higher gain.
- Threshold Voltages: The points where the curve deviates from linearity can indicate threshold voltages, which are critical for circuits like comparators and Schmitt triggers.
- Nonlinear Behavior: The VTC helps in understanding the nonlinear behavior of circuits, which is essential for designing and analyzing circuits that operate in nonlinear regions.
- Stability Analysis: By examining the VTC, engineers can assess the stability of the circuit under different operating conditions.
Analyzing the Voltage Transfer Characteristic
To analyze the VTC, it is essential to understand the different regions of the curve. Typically, a VTC curve can be divided into three main regions:
- Linear Region: In this region, the output voltage changes linearly with the input voltage. The slope of the curve in this region represents the gain of the circuit.
- Saturation Region: Beyond a certain input voltage, the output voltage reaches a maximum or minimum value and does not change further. This region is known as the saturation region.
- Cutoff Region: Below a certain input voltage, the output voltage remains at a minimum value, and the circuit is said to be in the cutoff region.
Let's consider an example of a simple inverting amplifier using an operational amplifier (op-amp). The VTC for this circuit can be analyzed as follows:
1. Linear Region: When the input voltage is within the linear range of the op-amp, the output voltage changes linearly with the input voltage. The gain of the amplifier is determined by the feedback resistor network.
2. Saturation Region: If the input voltage exceeds the linear range, the op-amp enters the saturation region. The output voltage reaches its maximum or minimum value, typically limited by the power supply rails.
3. Cutoff Region: When the input voltage is very low, the op-amp may enter the cutoff region, where the output voltage remains at a minimum value.
💡 Note: The exact shape and characteristics of the VTC curve depend on the specific circuit components and their configurations.
Applications of Voltage Transfer Characteristic
The VTC has numerous applications in the field of electronics and circuit design. Some of the key applications include:
- Amplifier Design: The VTC helps in designing amplifiers with specific gain characteristics. By analyzing the VTC, engineers can optimize the circuit for desired performance.
- Comparator Circuits: In comparator circuits, the VTC is used to determine the threshold voltages at which the output switches between high and low states.
- Schmitt Triggers: Schmitt triggers use the VTC to define hysteresis, which helps in reducing noise and ensuring stable switching.
- Nonlinear Circuit Analysis: The VTC is essential for analyzing nonlinear circuits, such as those involving diodes and transistors, where the relationship between input and output voltages is not linear.

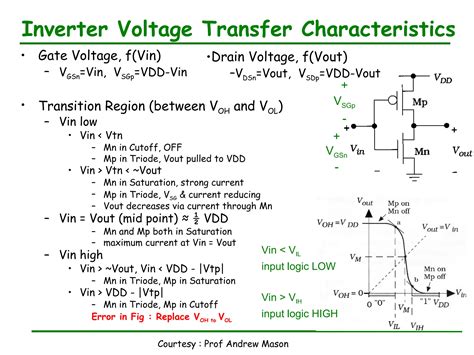

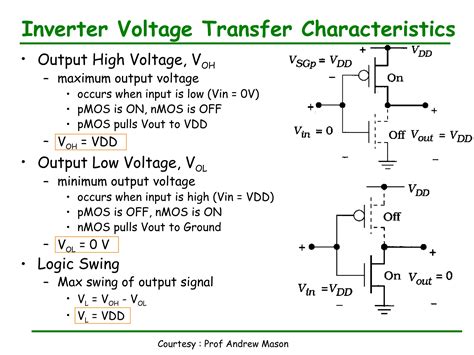

Example: VTC of a CMOS Inverter
A CMOS inverter is a fundamental building block in digital circuits. The VTC of a CMOS inverter provides insights into its switching behavior and threshold voltage. The VTC curve for a CMOS inverter typically shows a transition region where the output voltage changes rapidly from high to low or vice versa.
Consider the following table, which summarizes the key points of the VTC for a CMOS inverter:
| Input Voltage (Vin) | Output Voltage (Vout) | Region |
|---|---|---|
| 0 V | Vdd | High |
| Vdd/2 | Vdd/2 | Transition |
| Vdd | 0 V | Low |
In the transition region, the output voltage changes rapidly as the input voltage crosses the threshold voltage (Vdd/2). This rapid change is crucial for the switching behavior of the inverter.
💡 Note: The exact values of the threshold voltage and the transition region depend on the specific design and fabrication process of the CMOS inverter.
Conclusion
The Voltage Transfer Characteristic (VTC) is a vital tool for understanding and analyzing the behavior of electronic circuits. By examining the VTC, engineers can determine key parameters such as gain, threshold voltages, and the overall performance of the circuit. Whether designing amplifiers, comparators, or nonlinear circuits, the VTC provides valuable insights that help in optimizing circuit performance and ensuring reliable operation. Understanding the VTC is essential for anyone involved in the design and analysis of electronic circuits, making it a fundamental concept in the field of electronics.
