Voltage Drop Calculations

Understanding and performing accurate Voltage Drop Calculations is crucial for electrical engineers and technicians. Voltage drop refers to the reduction in voltage as electrical current flows through a conductor. This phenomenon is essential to consider in electrical system design to ensure that all components receive the necessary voltage to function correctly. This post will delve into the importance of voltage drop calculations, the formulas involved, and practical steps to perform these calculations effectively.

Table of Contents

Understanding Voltage Drop

Voltage drop occurs due to the resistance of the conductor through which the current flows. According to Ohm's Law, the voltage drop (V) across a conductor can be calculated using the formula:

V = I * R

Where:

V is the voltage drop
I is the current flowing through the conductor
R is the resistance of the conductor

Resistance (R) is influenced by the material of the conductor, its length, and its cross-sectional area. The resistance can be calculated using the formula:

R = ρ * (L / A)

Where:

ρ is the resistivity of the conductor material
L is the length of the conductor
A is the cross-sectional area of the conductor

Importance of Voltage Drop Calculations

Accurate Voltage Drop Calculations are vital for several reasons:

Ensuring Proper Functioning of Equipment: Electrical equipment requires a specific voltage range to operate correctly. Excessive voltage drop can lead to under-voltage conditions, causing equipment to malfunction or fail.
Preventing Overheating: High voltage drops can result in increased current flow, leading to overheating of conductors and potential fire hazards.
Optimizing System Efficiency: Proper voltage drop calculations help in selecting the right conductor size, reducing energy losses, and improving overall system efficiency.
Compliance with Standards: Many electrical codes and standards specify maximum allowable voltage drops to ensure safety and reliability.

Steps to Perform Voltage Drop Calculations

Performing Voltage Drop Calculations involves several steps. Here is a detailed guide:

Step 1: Gather Necessary Data

Collect the following data:

Current (I) flowing through the conductor
Length (L) of the conductor
Cross-sectional area (A) of the conductor
Resistivity (ρ) of the conductor material
Voltage source (V_source)

Step 2: Calculate the Resistance

Using the formula R = ρ * (L / A), calculate the resistance of the conductor.

Step 3: Calculate the Voltage Drop

Using the formula V = I * R, calculate the voltage drop across the conductor.

Step 4: Determine the Voltage at the Load

Subtract the voltage drop from the source voltage to determine the voltage at the load:

V_load = V_source - V

Step 5: Verify Compliance with Standards

Ensure that the calculated voltage drop complies with relevant electrical codes and standards. For example, the National Electrical Code (NEC) typically allows a maximum voltage drop of 3% for feeders and 5% for branch circuits.

🔍 Note: Always refer to the specific codes and standards applicable to your region and project requirements.

Example of Voltage Drop Calculation

Let's consider an example to illustrate the process:

Suppose we have a copper conductor with the following specifications:

Current (I) = 20 Amperes
Length (L) = 50 meters
Cross-sectional area (A) = 2.5 mm²
Resistivity (ρ) of copper = 1.68 × 10^-8 Ω·m
Source voltage (V_source) = 240 Volts

First, calculate the resistance:

R = ρ * (L / A) = 1.68 × 10^-8 Ω·m * (50 m / 2.5 mm²)

Convert the cross-sectional area to square meters:

A = 2.5 mm² = 2.5 × 10^-6 m²

Now, calculate the resistance:

R = 1.68 × 10^-8 Ω·m * (50 m / 2.5 × 10^-6 m²) = 0.336 Ω

Next, calculate the voltage drop:

V = I * R = 20 A * 0.336 Ω = 6.72 Volts

Finally, determine the voltage at the load:

V_load = V_source - V = 240 V - 6.72 V = 233.28 Volts

In this example, the voltage drop is 6.72 Volts, and the voltage at the load is 233.28 Volts. This voltage drop is within the acceptable range for most applications.

Factors Affecting Voltage Drop

Several factors can affect the voltage drop in a conductor:

Conductor Material: Different materials have different resistivities. Copper and aluminum are commonly used due to their low resistivity.
Conductor Size: Larger conductors have lower resistance, resulting in lower voltage drops.
Conductor Length: Longer conductors have higher resistance, leading to higher voltage drops.
Current Flow: Higher current flow results in higher voltage drops.
Temperature: The resistivity of a conductor increases with temperature, affecting the voltage drop.

Voltage Drop in Parallel and Series Circuits

Voltage drop calculations can be more complex in parallel and series circuits. Here are the key points to consider:

Series Circuits

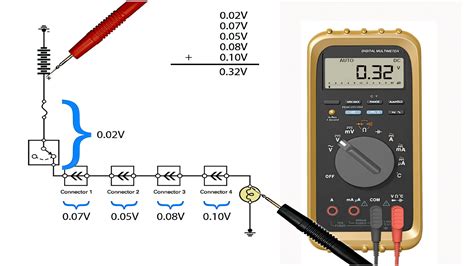

In a series circuit, the total voltage drop is the sum of the voltage drops across each component. The formula for the total voltage drop (V_total) is:

V_total = V₁ + V₂ + ... + V_n

Where V₁, V₂, ..., V_n are the voltage drops across each component.

Parallel Circuits

In a parallel circuit, the voltage drop across each branch is the same and equal to the source voltage. The current through each branch can be calculated using Ohm's Law, and the total current is the sum of the currents through each branch.

For example, in a parallel circuit with two branches:

I_total = I₁ + I₂

Where I₁ and I₂ are the currents through each branch.

Practical Applications of Voltage Drop Calculations

Voltage Drop Calculations are essential in various practical applications, including:

Electrical Wiring: Ensuring that electrical wiring in buildings and facilities provides adequate voltage to all outlets and equipment.
Power Distribution Systems: Designing efficient power distribution networks to minimize losses and ensure reliable power supply.
Renewable Energy Systems: Optimizing the performance of solar and wind energy systems by minimizing voltage drops in the wiring.
Automotive Electrical Systems: Ensuring that all components in a vehicle receive the necessary voltage for proper functioning.

Common Mistakes in Voltage Drop Calculations

Several common mistakes can occur during Voltage Drop Calculations. Being aware of these can help avoid errors:

Incorrect Resistance Values: Using incorrect resistivity values or not accounting for temperature effects.
Incorrect Current Values: Using incorrect current values, especially in complex circuits.
Ignoring Parallel Paths: Failing to account for parallel paths in the circuit, which can affect the total current and voltage drop.
Incorrect Conductor Lengths: Using incorrect lengths for conductors, especially in complex wiring layouts.

🔍 Note: Always double-check your calculations and verify the data used to ensure accuracy.

Advanced Voltage Drop Calculations

For more complex systems, advanced Voltage Drop Calculations may be required. This can involve:

Using Software Tools: Specialized software can perform detailed voltage drop calculations, considering various factors and providing accurate results.
Considering Non-Linear Loads: Non-linear loads, such as electronic devices, can affect voltage drop calculations due to their varying current draw.
Accounting for Harmonics: Harmonics in the electrical system can cause additional voltage drops and need to be considered in advanced calculations.

Advanced calculations often require a deeper understanding of electrical theory and the use of specialized tools and techniques.

Voltage Drop Tables

Voltage drop tables are useful references for quick calculations. Here is an example table for copper conductors:

Conductor Size (AWG)	Cross-Sectional Area (mm²)	Resistance per 1000 ft (Ω)	Voltage Drop per 1000 ft at 20A (V)
14	2.08	2.52	5.04
12	3.31	1.56	3.12
10	5.26	0.99	1.98
8	8.37	0.62	1.24
6	13.3	0.38	0.76

This table provides a quick reference for the voltage drop per 1000 feet of copper conductor at a current of 20 Amperes. Adjustments can be made for different currents and lengths.

🔍 Note: Always verify the accuracy of voltage drop tables and adjust for specific conditions as needed.

In conclusion, Voltage Drop Calculations are a fundamental aspect of electrical engineering and design. Understanding the principles, formulas, and practical applications of voltage drop calculations ensures the reliability and efficiency of electrical systems. By following the steps outlined and considering the factors that affect voltage drop, engineers can design systems that meet performance and safety standards. Whether performing basic calculations or using advanced tools, accurate voltage drop calculations are essential for ensuring that electrical systems function correctly and safely.
