The Vickers Hardness Test is a widely used method for measuring the hardness of materials. It is particularly valuable in industries such as metallurgy, materials science, and manufacturing, where the mechanical properties of materials are crucial. This test provides a reliable and consistent way to determine the hardness of a material by measuring the size of an indentation left by a diamond indenter. Understanding the Vickers Hardness Test is essential for engineers, researchers, and quality control professionals who need to ensure that materials meet specific performance standards.
Understanding the Vickers Hardness Test
The Vickers Hardness Test is based on the principle of indentation hardness, where a diamond indenter in the shape of a square-based pyramid is pressed into the surface of the material being tested. The hardness value is then calculated based on the size of the indentation. This method is preferred for its versatility, as it can be used on a wide range of materials, including metals, ceramics, and composites.
Principles of the Vickers Hardness Test
The Vickers Hardness Test operates on the following principles:
- Indentation Load: A known load is applied to the diamond indenter, which is pressed into the material's surface.
- Indentation Size: The size of the indentation is measured using a microscope. The diagonal lengths of the indentation are used to calculate the hardness value.
- Hardness Calculation: The Vickers hardness number (HV) is calculated using the formula:
HV = 1.8544 * (P / d^2)
- P: The applied load in kilograms-force (kgf).
- d: The average length of the diagonal left by the indenter in millimeters (mm).
This formula ensures that the hardness value is a direct measure of the material's resistance to plastic deformation.
Equipment and Setup
The Vickers Hardness Test requires specific equipment to ensure accurate and reliable results. The key components include:

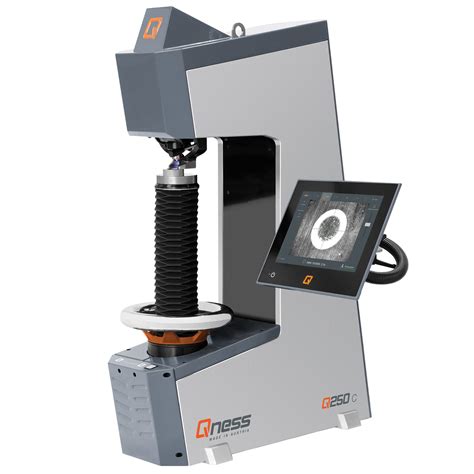

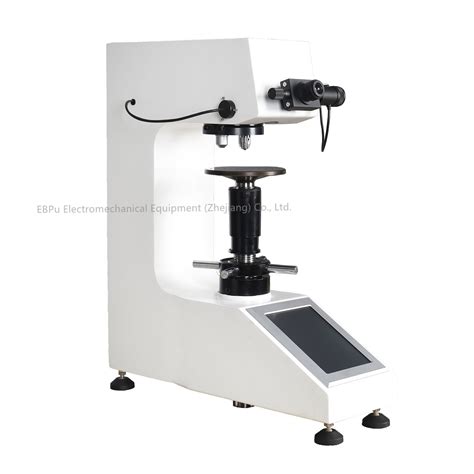

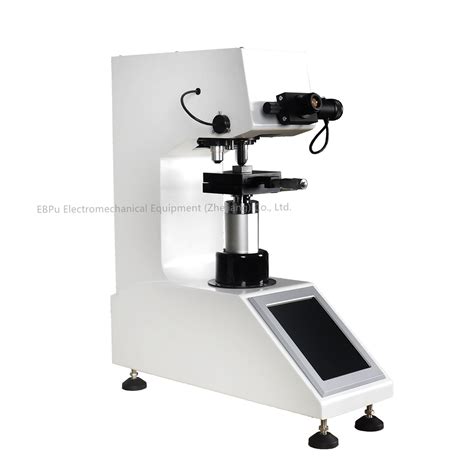

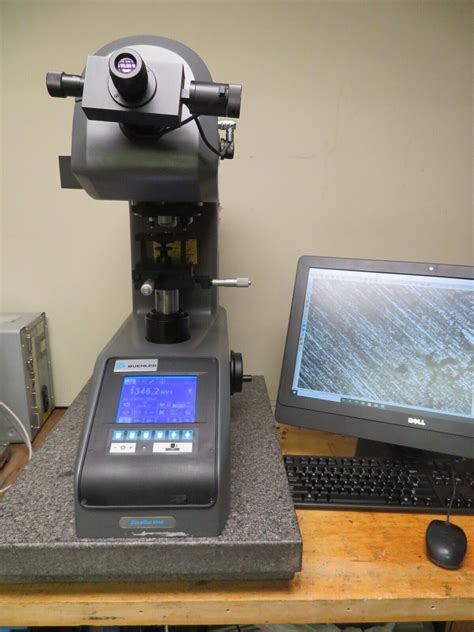

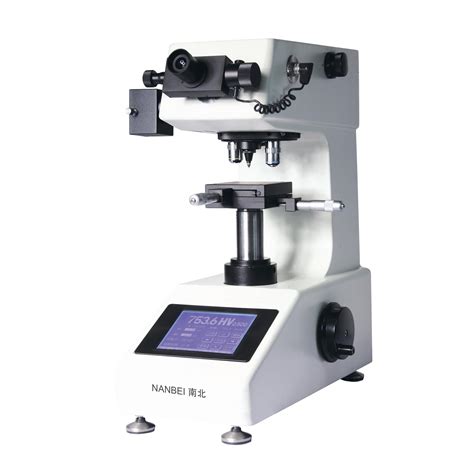

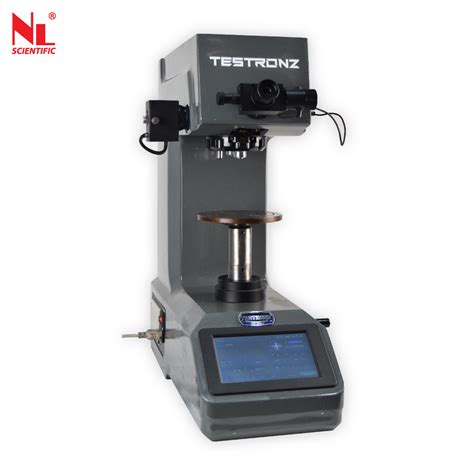

- Vickers Hardness Tester: This machine applies a controlled load to the diamond indenter and measures the indentation size.
- Diamond Indenter: A square-based pyramid-shaped diamond indenter with a specific angle between the opposite faces.
- Microscope: Used to measure the diagonal lengths of the indentation.
- Sample Preparation: The material sample must be prepared with a smooth, flat surface to ensure accurate measurements.
Setting up the Vickers Hardness Tester involves calibrating the machine to ensure that the applied load and measurement accuracy are within acceptable limits. Proper calibration is crucial for obtaining reliable hardness values.
Procedure for Conducting the Vickers Hardness Test
The procedure for conducting the Vickers Hardness Test involves several steps:
- Sample Preparation: Prepare the material sample by ensuring it has a smooth, flat surface. This may involve polishing or grinding the surface.
- Load Selection: Choose the appropriate load based on the material's hardness and the desired indentation size. Common loads range from 1 kgf to 120 kgf.
- Indentation: Place the sample under the diamond indenter and apply the selected load for a specified duration, typically 10 to 15 seconds.
- Measurement: Use a microscope to measure the diagonal lengths of the indentation. Ensure that the measurements are accurate to within 0.001 mm.
- Calculation: Calculate the Vickers hardness number (HV) using the formula provided earlier.
🔍 Note: It is important to ensure that the indentation is fully formed and that the diagonal measurements are accurate. Any errors in measurement can significantly affect the calculated hardness value.
Applications of the Vickers Hardness Test
The Vickers Hardness Test is used in various industries and applications, including:
- Metallurgy: To determine the hardness of metals and alloys, ensuring they meet specific performance standards.
- Materials Science: To study the mechanical properties of new materials and composites.
- Manufacturing: To quality control processes and ensure that manufactured parts meet hardness specifications.
- Research and Development: To develop new materials with improved hardness and wear resistance.
The versatility of the Vickers Hardness Test makes it a valuable tool for a wide range of applications.
Advantages and Limitations
The Vickers Hardness Test offers several advantages, including:
- Versatility: Can be used on a wide range of materials, including metals, ceramics, and composites.
- Accuracy: Provides precise and reliable hardness values.
- Non-Destructive: The test can be performed without significantly damaging the material sample.
However, there are also some limitations to consider:
- Surface Preparation: Requires a smooth, flat surface for accurate measurements.
- Equipment Cost: The Vickers Hardness Tester and associated equipment can be expensive.
- Operator Skill: Requires trained personnel to ensure accurate and reliable results.
Understanding these advantages and limitations is essential for effectively using the Vickers Hardness Test in various applications.
Comparison with Other Hardness Tests
The Vickers Hardness Test is just one of several methods used to measure material hardness. Other common tests include the Brinell Hardness Test, Rockwell Hardness Test, and Knoop Hardness Test. Each method has its own advantages and limitations, making them suitable for different applications.
| Hardness Test | Indenter Shape | Load Range | Applications |
|---|---|---|---|
| Vickers Hardness Test | Square-based pyramid | 1 kgf to 120 kgf | Metals, ceramics, composites |
| Brinell Hardness Test | Spherical ball | 500 kgf to 3000 kgf | Large, soft materials |
| Rockwell Hardness Test | Diamond cone or steel ball | 15 kgf to 150 kgf | Metals, alloys |
| Knoop Hardness Test | Rhombic-based pyramid | 10 gf to 5000 gf | Thin sections, brittle materials |
Choosing the appropriate hardness test depends on the material being tested and the specific requirements of the application.
Factors Affecting Vickers Hardness Test Results
Several factors can affect the results of the Vickers Hardness Test, including:
- Surface Finish: A rough or uneven surface can lead to inaccurate measurements.
- Load Selection: Choosing an inappropriate load can result in either too small or too large an indentation, affecting the accuracy of the hardness value.
- Indentation Time: The duration for which the load is applied can influence the size of the indentation.
- Material Anisotropy: The directionality of the material's properties can affect the hardness value.
It is essential to control these factors to ensure accurate and reliable results.
🔍 Note: Proper calibration of the Vickers Hardness Tester and careful preparation of the material sample are crucial for obtaining accurate hardness values.
The Vickers Hardness Test is a fundamental tool in materials science and engineering, providing valuable insights into the mechanical properties of materials. By understanding the principles, equipment, and procedures involved in this test, professionals can ensure that materials meet specific performance standards and quality control requirements. The versatility and accuracy of the Vickers Hardness Test make it an indispensable method for a wide range of applications, from metallurgy to manufacturing and research and development.
