Vertebral Artery Segments

Understanding the anatomy and function of the vertebral artery segments is crucial for medical professionals, particularly those involved in neurosurgery, radiology, and vascular medicine. The vertebral arteries are a pair of arteries that supply blood to the brainstem, cerebellum, and posterior portion of the brain. These arteries originate from the subclavian arteries and ascend through the transverse foramina of the cervical vertebrae before merging to form the basilar artery. This intricate pathway is divided into several segments, each with distinct characteristics and clinical significance.

Anatomy of the Vertebral Artery Segments

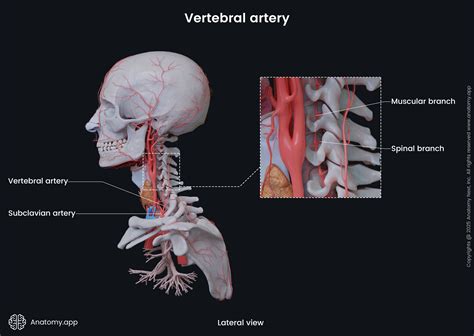

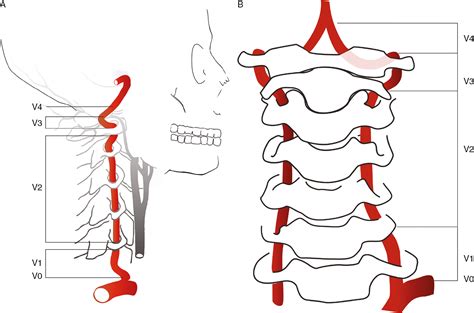

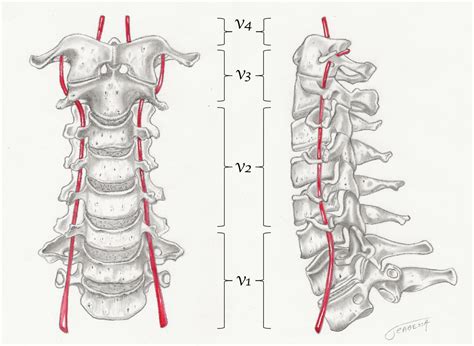

The vertebral artery is traditionally divided into four segments, each with specific anatomical landmarks and clinical implications. Understanding these segments is essential for diagnosing and treating various vascular pathologies.

V1 Segment

The V1 segment, also known as the preforaminal segment, extends from the origin of the vertebral artery at the subclavian artery to the entrance into the transverse foramen of the sixth cervical vertebra (C6). This segment is relatively short and is often the site of atherosclerotic plaques and aneurysms. The V1 segment is particularly important in vascular surgeries and interventions due to its accessibility and proximity to the subclavian artery.

V2 Segment

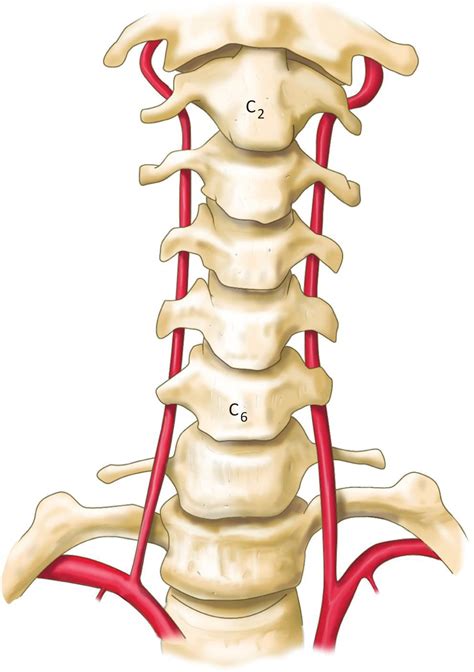

The V2 segment, or the foraminal segment, runs vertically through the transverse foramina of the cervical vertebrae from C6 to the axis (C2). This segment is protected by the bony structures of the vertebrae, making it less susceptible to external trauma but more challenging to access surgically. The V2 segment is crucial for maintaining blood flow to the brainstem and cerebellum, and any occlusion or stenosis in this segment can lead to severe neurological deficits.

V3 Segment

The V3 segment, known as the extraforaminal segment, extends from the transverse foramen of the axis (C2) to the dural penetration at the foramen magnum. This segment is characterized by its tortuous course and is particularly vulnerable to mechanical stress and trauma. The V3 segment is often involved in cases of vertebral artery dissection, which can occur due to sudden neck movements or trauma. This segment's tortuosity also makes it a challenging area for surgical interventions.

V4 Segment

The V4 segment, or the intracranial segment, begins at the dural penetration at the foramen magnum and ends at the junction with the contralateral vertebral artery to form the basilar artery. This segment is entirely intracranial and supplies blood to the brainstem, cerebellum, and posterior cerebral circulation. The V4 segment is a critical area for diagnosing and treating conditions such as vertebral artery stenosis, aneurysms, and arteriovenous malformations (AVMs).

Clinical Significance of Vertebral Artery Segments

The vertebral artery segments play a pivotal role in various clinical scenarios, including diagnostic imaging, surgical planning, and interventional procedures. Understanding the clinical significance of each segment is essential for accurate diagnosis and effective treatment.

Diagnostic Imaging

Imaging techniques such as magnetic resonance angiography (MRA), computed tomography angiography (CTA), and digital subtraction angiography (DSA) are commonly used to visualize the vertebral artery segments. These imaging modalities provide detailed information about the anatomy, patency, and any pathological changes in the vertebral arteries. Accurate imaging of the vertebral artery segments is crucial for diagnosing conditions such as:

Atherosclerotic plaques: These can occur in any segment but are more common in the V1 and V4 segments.
Aneurysms: These can develop in any segment but are particularly dangerous in the V4 segment due to its intracranial location.
Dissections: These are often seen in the V3 segment due to its tortuous course and vulnerability to mechanical stress.
Stenosis: Narrowing of the vertebral artery can occur in any segment but is clinically significant in the V2 and V4 segments.

Surgical Planning

Surgical interventions involving the vertebral artery segments require meticulous planning and a thorough understanding of the anatomy. Procedures such as endarterectomy, stenting, and bypass surgeries are performed to restore blood flow and prevent ischemic events. The choice of surgical approach depends on the specific segment involved and the nature of the pathology. For example:

V1 Segment: Accessible for surgical interventions due to its proximity to the subclavian artery.
V2 Segment: Protected by bony structures, making surgical access more challenging.
V3 Segment: Vulnerable to mechanical stress, requiring careful handling during surgery.
V4 Segment: Entirely intracranial, necessitating advanced neurosurgical techniques.

Interventional Procedures

Interventional procedures such as angioplasty, stenting, and embolization are often used to treat pathologies in the vertebral artery segments. These minimally invasive techniques aim to restore blood flow, prevent ischemic events, and treat aneurysms or AVMs. The choice of interventional procedure depends on the specific segment involved and the nature of the pathology. For example:

V1 Segment: Often treated with stenting or endarterectomy due to its accessibility.
V2 Segment: May require advanced imaging techniques for accurate diagnosis and treatment planning.
V3 Segment: Often treated with stenting or embolization due to its vulnerability to mechanical stress.
V4 Segment: May require advanced neurosurgical techniques for treatment.

Pathologies Involving Vertebral Artery Segments

Various pathologies can affect the vertebral artery segments, leading to significant clinical implications. Understanding these pathologies is essential for accurate diagnosis and effective treatment.

Atherosclerotic Plaques

Atherosclerotic plaques can develop in any segment of the vertebral artery but are more common in the V1 and V4 segments. These plaques can lead to stenosis, reducing blood flow to the brainstem and cerebellum. Symptoms of vertebral artery stenosis include:

Vertigo: A sensation of spinning or dizziness.
Ataxia: Loss of coordination and balance.
Nystagmus: Involuntary eye movements.
Dysphagia: Difficulty swallowing.
Dysarthria: Difficulty speaking.

Treatment options for atherosclerotic plaques include medical management with antiplatelet agents, statins, and lifestyle modifications. In severe cases, surgical interventions such as endarterectomy or stenting may be necessary.

Aneurysms

Aneurysms can develop in any segment of the vertebral artery but are particularly dangerous in the V4 segment due to its intracranial location. Vertebral artery aneurysms can rupture, leading to subarachnoid hemorrhage and potentially fatal outcomes. Symptoms of vertebral artery aneurysms include:

Severe headache: Often described as the "worst headache of life."
Nausea and vomiting: Commonly associated with severe headaches.
Neck stiffness: Due to meningeal irritation.
Photophobia: Sensitivity to light.
Altered mental status: Confusion or loss of consciousness.

Treatment options for vertebral artery aneurysms include endovascular coiling, stenting, and surgical clipping. The choice of treatment depends on the size, location, and morphology of the aneurysm.

Dissections

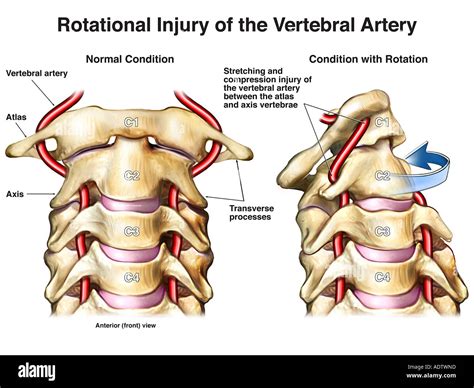

Vertebral artery dissections are often seen in the V3 segment due to its tortuous course and vulnerability to mechanical stress. Dissections occur when the inner layer of the artery wall tears, allowing blood to enter the vessel wall and form a hematoma. Symptoms of vertebral artery dissection include:

Neck pain: Often described as a sudden, severe pain.
Headache: Often unilateral and severe.
Vertigo: A sensation of spinning or dizziness.
Ataxia: Loss of coordination and balance.
Nystagmus: Involuntary eye movements.

Treatment options for vertebral artery dissections include medical management with antiplatelet agents or anticoagulants. In severe cases, endovascular stenting may be necessary to restore blood flow and prevent ischemic events.

Stenosis

Stenosis, or narrowing, of the vertebral artery can occur in any segment but is clinically significant in the V2 and V4 segments. Vertebral artery stenosis can lead to reduced blood flow to the brainstem and cerebellum, resulting in ischemic events. Symptoms of vertebral artery stenosis include:

Vertigo: A sensation of spinning or dizziness.
Ataxia: Loss of coordination and balance.
Nystagmus: Involuntary eye movements.
Dysphagia: Difficulty swallowing.
Dysarthria: Difficulty speaking.

Treatment options for vertebral artery stenosis include medical management with antiplatelet agents, statins, and lifestyle modifications. In severe cases, surgical interventions such as angioplasty, stenting, or bypass surgery may be necessary.

Imaging Techniques for Vertebral Artery Segments

Accurate imaging of the vertebral artery segments is crucial for diagnosing and treating various pathologies. Several imaging techniques are commonly used to visualize the vertebral arteries and assess their patency and any pathological changes.

Magnetic Resonance Angiography (MRA)

MRA is a non-invasive imaging technique that uses magnetic resonance imaging (MRI) to visualize the blood vessels. MRA provides detailed information about the anatomy and patency of the vertebral artery segments without the use of ionizing radiation or contrast agents. MRA is particularly useful for diagnosing conditions such as:

Atherosclerotic plaques: MRA can detect the presence and extent of atherosclerotic plaques in the vertebral arteries.
Aneurysms: MRA can visualize the size, location, and morphology of vertebral artery aneurysms.
Dissections: MRA can detect the presence of vertebral artery dissections and assess the extent of the hematoma.
Stenosis: MRA can measure the degree of stenosis in the vertebral arteries and assess the impact on blood flow.

Computed Tomography Angiography (CTA)

CTA is an imaging technique that uses computed tomography (CT) to visualize the blood vessels. CTA provides detailed information about the anatomy and patency of the vertebral artery segments and is particularly useful for diagnosing acute pathologies. CTA is often used in emergency settings to assess conditions such as:

Aneurysms: CTA can visualize the size, location, and morphology of vertebral artery aneurysms.
Dissections: CTA can detect the presence of vertebral artery dissections and assess the extent of the hematoma.
Stenosis: CTA can measure the degree of stenosis in the vertebral arteries and assess the impact on blood flow.

Digital Subtraction Angiography (DSA)

DSA is an invasive imaging technique that uses contrast agents to visualize the blood vessels. DSA provides detailed information about the anatomy and patency of the vertebral artery segments and is often used for both diagnostic and interventional purposes. DSA is particularly useful for diagnosing and treating conditions such as:

Aneurysms: DSA can visualize the size, location, and morphology of vertebral artery aneurysms and guide endovascular treatment.
Dissections: DSA can detect the presence of vertebral artery dissections and assess the extent of the hematoma.
Stenosis: DSA can measure the degree of stenosis in the vertebral arteries and guide interventional procedures such as angioplasty or stenting.

Surgical and Interventional Approaches

Surgical and interventional approaches are often necessary to treat pathologies involving the vertebral artery segments. These procedures aim to restore blood flow, prevent ischemic events, and treat aneurysms or AVMs. The choice of surgical or interventional approach depends on the specific segment involved and the nature of the pathology.

Endarterectomy

Endarterectomy is a surgical procedure that involves removing atherosclerotic plaques from the vertebral artery. This procedure is often performed on the V1 segment due to its accessibility. Endarterectomy aims to restore blood flow and prevent ischemic events. The procedure involves:

Incision: Making an incision in the neck to access the vertebral artery.
Artery Exposure: Exposing the vertebral artery and isolating it from surrounding structures.
Plaque Removal: Making an incision in the artery and removing the atherosclerotic plaque.
Closure: Closing the incision in the artery and the skin.

📝 Note: Endarterectomy is a complex procedure that requires specialized training and experience. It is typically performed by vascular surgeons or neurosurgeons.

Stenting

Stenting is an interventional procedure that involves placing a stent in the vertebral artery to restore blood flow and prevent ischemic events. Stenting is often performed on the V1, V3, and V4 segments. The procedure involves:

Access: Gaining access to the vertebral artery through a catheter inserted into a peripheral artery, such as the femoral artery.
Angiography: Performing angiography to visualize the vertebral artery and assess the extent of the stenosis.
Stent Placement: Placing a stent in the narrowed segment of the vertebral artery to restore blood flow.
Post-Procedure Care: Monitoring the patient for any complications and providing appropriate post-procedure care.

📝 Note: Stenting is a minimally invasive procedure that can be performed under local anesthesia. It is often used as an alternative to surgical interventions.

Bypass Surgery

Bypass surgery is a surgical procedure that involves creating a new pathway for blood flow around a narrowed or blocked segment of the vertebral artery. Bypass surgery is often performed on the V2 and V4 segments. The procedure involves:

Incision: Making an incision in the neck or skull to access the vertebral artery.
Graft Placement: Placing a graft between the healthy segments of the vertebral artery to create a new pathway for blood flow.
Closure: Closing the incision in the artery and the skin.

📝 Note: Bypass surgery is a complex procedure that requires specialized training and experience. It is typically performed by vascular surgeons or neurosurgeons.

Endovascular Coiling

Endovascular coiling is an interventional procedure that involves placing coils in an aneurysm to prevent rupture. This procedure is often performed on the V4 segment due to its intracranial location. The procedure involves:

Access: Gaining access to the vertebral artery through a catheter inserted into a peripheral artery, such as the femoral artery.
Angiography: Performing angiography to visualize the aneurysm and assess its size, location, and morphology.
Coil Placement: Placing coils in the aneurysm to promote thrombosis and prevent rupture.
Post-Procedure Care: Monitoring the patient for any complications and providing appropriate post-procedure care.

📝 Note: Endovascular coiling is a minimally invasive procedure that can be performed under local anesthesia. It is often used as an alternative to surgical interventions.

Surgical Clipping

Surgical clipping is a surgical procedure that involves placing a clip on the neck of an aneurysm to prevent rupture. This procedure is often performed on the V4 segment due to its intracranial location. The procedure involves:

Incision: Making an incision in the skull to access the aneurysm.
Aneurysm Exposure: Exposing the aneurysm and isolating it from surrounding structures.
Clip Placement: Placing a clip on the neck of the aneurysm to prevent rupture.
Closure: Closing the incision in the skull and the skin.

📝 Note: Surgical clipping is a complex procedure that requires specialized training and experience. It is typically performed by neurosurgeons.

Conclusion

The vertebral artery segments play a crucial role in maintaining blood flow to the brainstem, cerebellum, and posterior portion of the brain. Understanding the anatomy, clinical significance, and pathologies involving these segments is essential for accurate diagnosis and effective treatment. Imaging techniques such as MRA, CTA, and DSA provide detailed information about the vertebral artery segments and guide surgical and interventional approaches. Surgical and interventional procedures, including endarterectomy, stenting, bypass surgery, endovascular coiling, and surgical clipping, aim to restore blood flow, prevent ischemic events, and treat aneurysms or AVMs. By understanding the vertebral artery segments and their clinical implications, medical professionals can provide optimal care for patients with vascular pathologies.
