In the ever-evolving world of automotive engineering, one innovation that has significantly enhanced engine performance and efficiency is Variable Valve Timing (VVT). This technology allows engines to adjust the timing of the valve events, optimizing power, fuel efficiency, and emissions across a wide range of operating conditions. Understanding the intricacies of VVT can provide valuable insights into modern engine design and its impact on vehicle performance.
Understanding Variable Valve Timing

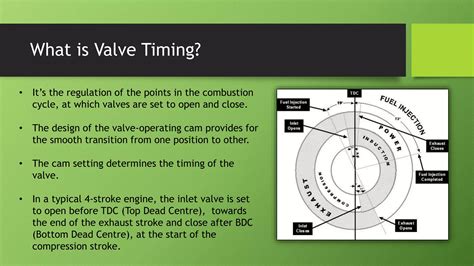

Variable Valve Timing (VVT) is a system that alters the timing of the intake and exhaust valves in an internal combustion engine. By adjusting the valve timing, the engine can achieve better performance, improved fuel efficiency, and reduced emissions. This technology is particularly beneficial in modern engines, where the demand for both power and efficiency is high.
Traditional engines have fixed valve timing, which means the valves open and close at the same points in the engine cycle regardless of the engine's speed or load. In contrast, VVT systems can dynamically adjust the valve timing to optimize engine performance under various conditions. This flexibility allows the engine to deliver more power when needed and conserve fuel when cruising or idling.
Types of Variable Valve Timing Systems
There are several types of VVT systems, each with its own advantages and applications. The most common types include:
- Continuous Variable Valve Timing (CVVT): This system allows for continuous adjustment of the valve timing over a wide range. It is often used in high-performance engines where precise control over valve timing is crucial.
- Discrete Variable Valve Timing (DVVT): This system adjusts the valve timing in discrete steps rather than continuously. It is simpler and less expensive than CVVT but offers less precise control.
- Variable Valve Lift and Timing (VVLT): This advanced system not only adjusts the timing of the valves but also changes the lift, or the distance the valves open. This provides even greater control over engine performance and efficiency.
Benefits of Variable Valve Timing
Implementing Variable Valve Timing (VVT) in an engine offers numerous benefits, including:
- Improved Fuel Efficiency: By optimizing valve timing, VVT systems can reduce fuel consumption, especially during low-load and idle conditions.
- Enhanced Performance: VVT allows engines to deliver more power and torque, particularly at higher RPMs, by optimizing the intake and exhaust processes.
- Reduced Emissions: Better control over valve timing can lead to more complete combustion, reducing harmful emissions such as nitrogen oxides (NOx) and hydrocarbons (HC).
- Smoother Operation: VVT systems can help reduce engine vibrations and noise, providing a smoother and quieter driving experience.
How Variable Valve Timing Works
The operation of a VVT system involves several key components and mechanisms. Here’s a breakdown of how it works:

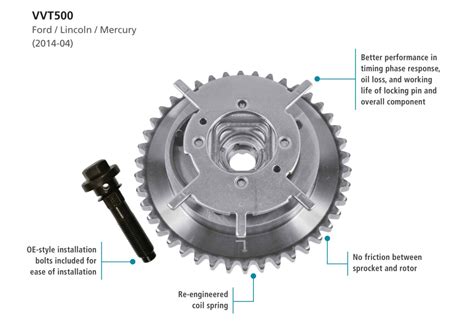

- Camshaft Phasers: These devices are mounted on the camshaft and can adjust the phase angle of the camshaft relative to the crankshaft. By changing the phase angle, the timing of the valve events can be altered.

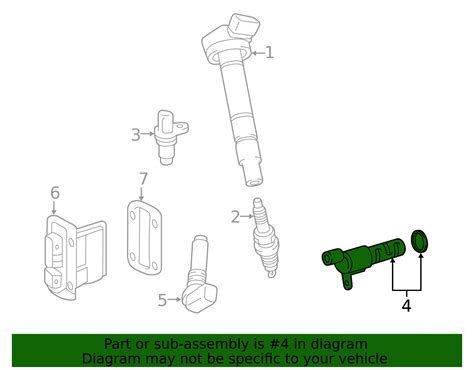

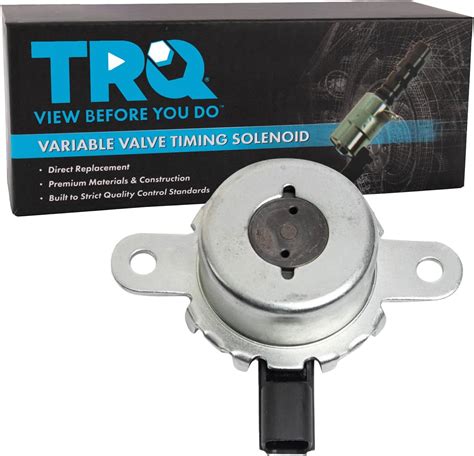

- Oil Control Valves (OCVs): These valves regulate the flow of engine oil to the camshaft phasers, controlling the timing adjustment. The OCVs are typically controlled by the engine's electronic control unit (ECU).
- Electronic Control Unit (ECU): The ECU monitors various engine parameters, such as RPM, load, and throttle position, and adjusts the valve timing accordingly. The ECU uses sensors and algorithms to determine the optimal valve timing for current conditions.
Here is a simplified table illustrating the components of a typical VVT system:
| Component | Function |
|---|---|
| Camshaft Phasers | Adjust the phase angle of the camshaft |
| Oil Control Valves (OCVs) | Regulate oil flow to the phasers |
| Electronic Control Unit (ECU) | Monitors and controls valve timing |
🔧 Note: The specific design and operation of VVT systems can vary between different manufacturers and engine types. Always refer to the vehicle's service manual for detailed information.
Applications of Variable Valve Timing
Variable Valve Timing (VVT) is widely used in various types of engines, including gasoline, diesel, and hybrid powertrains. Some of the most common applications include:
- Passenger Cars: Many modern passenger vehicles, from compact cars to luxury sedans, utilize VVT to enhance performance and fuel efficiency.
- Sports Cars: High-performance sports cars often employ advanced VVT systems to maximize power output and throttle response.
- Trucks and SUVs: Larger vehicles, such as trucks and SUVs, benefit from VVT by improving torque at low RPMs, which is crucial for towing and hauling.
- Hybrid Vehicles: In hybrid powertrains, VVT can help optimize the operation of the internal combustion engine, ensuring it works efficiently in conjunction with the electric motor.
Maintenance and Troubleshooting
While Variable Valve Timing (VVT) systems are generally reliable, they do require regular maintenance and occasional troubleshooting. Here are some key points to consider:
- Regular Oil Changes: Clean engine oil is crucial for the proper functioning of VVT systems. Regular oil changes help prevent the buildup of contaminants that can affect the operation of the camshaft phasers and OCVs.
- Inspecting OCVs: Over time, OCVs can become clogged or fail. Regular inspections and replacements, if necessary, can prevent issues with valve timing.
- Diagnostic Tools: Modern diagnostic tools can help identify problems with VVT systems. Common issues include codes related to camshaft position sensors, OCVs, and ECU malfunctions.
If you encounter issues with your VVT system, it's essential to address them promptly to avoid further damage to the engine. Consulting a professional mechanic or referring to the vehicle's service manual can provide valuable guidance.
🛠️ Note: Always use high-quality engine oil and follow the manufacturer's recommendations for oil change intervals to ensure the longevity of your VVT system.
In conclusion, Variable Valve Timing (VVT) represents a significant advancement in engine technology, offering numerous benefits in terms of performance, fuel efficiency, and emissions reduction. By understanding how VVT systems work and their various applications, you can appreciate the role they play in modern automotive engineering. Whether you’re a car enthusiast or a professional mechanic, knowledge of VVT can enhance your understanding of engine design and operation.
