In the realm of electronics and electrical engineering, a reliable and precise power source is indispensable. Among the various types of power supplies available, the Variable DC Power Supply stands out due to its versatility and adaptability. This device allows users to adjust the voltage and current output, making it an essential tool for testing, prototyping, and educational purposes. Whether you are a hobbyist, a student, or a professional engineer, understanding the intricacies of a Variable DC Power Supply can significantly enhance your projects and experiments.
Understanding Variable DC Power Supply
A Variable DC Power Supply is an electronic device that provides a stable and adjustable direct current (DC) output. Unlike fixed power supplies, which offer a single voltage level, variable power supplies allow users to set the voltage and current to specific values within a given range. This flexibility is particularly useful in scenarios where different components require varying power levels.
Key features of a Variable DC Power Supply include:
- Adjustable voltage and current settings
- Stable output with minimal ripple
- Overload and short-circuit protection
- Digital or analog display for precise readings
- Compact and portable design
Components of a Variable DC Power Supply
A typical Variable DC Power Supply consists of several key components that work together to provide a stable and adjustable power output. These components include:
- Transformer: Converts the input AC voltage to a higher or lower AC voltage.
- Rectifier: Converts the AC voltage to DC voltage.
- Filter: Smooths out the DC voltage to reduce ripple.
- Voltage Regulator: Maintains a constant output voltage despite variations in input voltage or load.
- Control Circuit: Allows users to adjust the voltage and current settings.
- Display: Shows the current voltage and current levels.
Types of Variable DC Power Supplies
Variable DC Power Supplies come in various types, each suited for different applications. The most common types include:
- Linear Power Supplies: Use a linear regulator to provide a stable output voltage. These are known for their low noise and high stability but are less efficient.

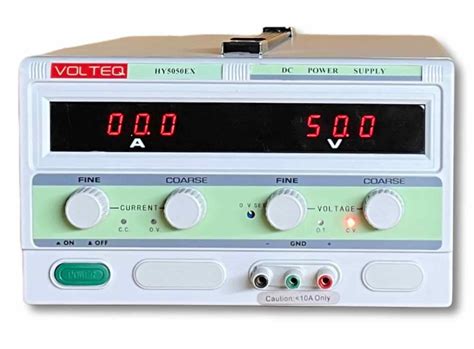

- Switching Power Supplies: Use a switching regulator to convert the input voltage to the desired output voltage. These are more efficient but can generate more noise.
- Programmable Power Supplies: Allow for remote control and programming, making them ideal for automated testing and industrial applications.

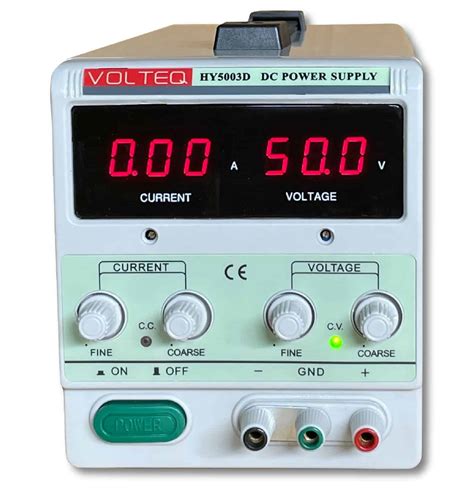

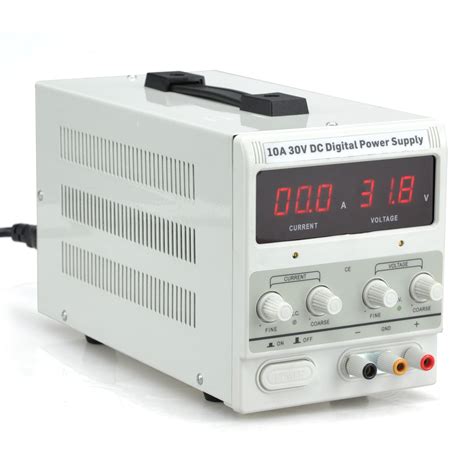

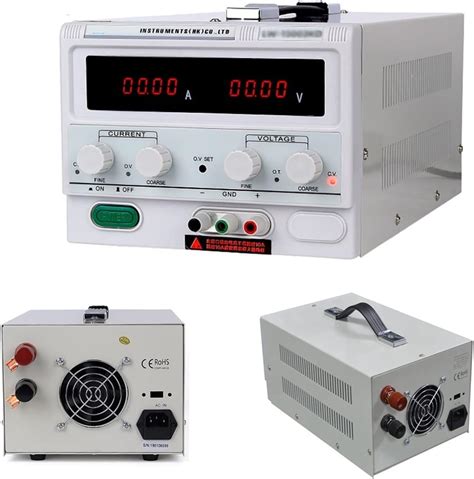

- Bench Power Supplies: Designed for use in laboratories and workshops, these supplies offer a range of features and are often used for prototyping and testing.
Applications of Variable DC Power Supplies
The versatility of a Variable DC Power Supply makes it suitable for a wide range of applications. Some of the most common uses include:
- Electronics Prototyping: Ideal for testing and developing new electronic circuits.
- Educational Purposes: Used in classrooms and laboratories to teach students about electronics and power supplies.
- Repair and Maintenance: Essential for diagnosing and repairing electronic devices.
- Industrial Applications: Used in manufacturing processes that require precise power control.
- Automotive Testing: Helps in testing and diagnosing automotive electrical systems.
Choosing the Right Variable DC Power Supply
Selecting the right Variable DC Power Supply depends on several factors, including the specific requirements of your project, budget, and the features you need. Here are some key considerations:
- Voltage and Current Range: Ensure the supply can provide the voltage and current levels required for your application.
- Stability and Ripple: Look for a supply with low ripple and high stability for precise measurements.
- Protection Features: Overload, short-circuit, and over-voltage protection are essential for safety and longevity.
- Display and Controls: A clear and easy-to-read display, along with intuitive controls, can enhance usability.
- Portability: If you need to move the supply frequently, consider a compact and lightweight design.
Safety Precautions
Working with a Variable DC Power Supply involves handling electrical components, which can be hazardous if not done correctly. Here are some safety precautions to keep in mind:
- Always turn off and unplug the power supply before making any connections or adjustments.
- Use insulated tools and wear protective gear when working with electrical components.
- Ensure proper ventilation to prevent overheating.
- Avoid exposing the power supply to moisture or extreme temperatures.
- Regularly inspect the power supply for any signs of damage or wear.
🛑 Note: Always follow the manufacturer's instructions and safety guidelines when using a Variable DC Power Supply.
Maintenance and Troubleshooting
Regular maintenance and proper troubleshooting can extend the lifespan of your Variable DC Power Supply and ensure reliable performance. Here are some tips:
- Clean the power supply regularly to remove dust and debris.
- Check the connections and cables for any signs of damage or corrosion.
- Monitor the output voltage and current to ensure they are within the specified range.
- If the power supply is not functioning correctly, check the fuse and replace it if necessary.
- Consult the user manual for specific troubleshooting steps and solutions.
Here is a table summarizing common issues and their potential solutions:
| Issue | Potential Solution |
|---|---|
| No Output | Check the power cord and connections, replace the fuse if necessary. |
| Fluctuating Output | Inspect the filter capacitors and replace if damaged. |
| Overheating | Ensure proper ventilation and check for any obstructions. |
| Short Circuit | Disconnect the load and check for any shorted components. |
🛑 Note: Always unplug the power supply before performing any maintenance or troubleshooting.
In conclusion, a Variable DC Power Supply is an indispensable tool for anyone working in electronics and electrical engineering. Its ability to provide adjustable voltage and current makes it suitable for a wide range of applications, from prototyping to educational purposes. By understanding the components, types, and safety precautions associated with these supplies, you can ensure reliable and efficient performance in your projects. Regular maintenance and proper troubleshooting will further enhance the longevity and reliability of your Variable DC Power Supply, making it a valuable asset in your toolkit.
