Van Deemter Equation

The Van Deemter Equation is a fundamental concept in chromatography, a technique used to separate the components of a mixture. It provides a mathematical framework for understanding the factors that affect the efficiency of a chromatographic separation. By analyzing the Van Deemter Equation, scientists and engineers can optimize chromatographic methods to achieve better resolution and faster analysis times. This post delves into the intricacies of the Van Deemter Equation, its components, and its practical applications in chromatography.

Understanding the Van Deemter Equation

The Van Deemter Equation, named after its developers John Van Deemter, F.J. Zuiderweg, and A. Klinkenberg, describes the relationship between the height equivalent to a theoretical plate (HETP) and the linear velocity of the mobile phase in chromatography. The equation is given by:

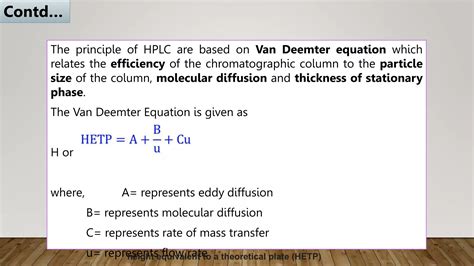

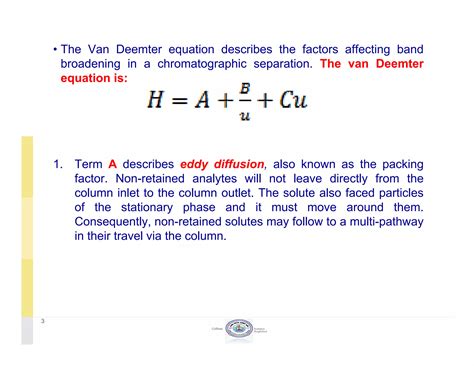

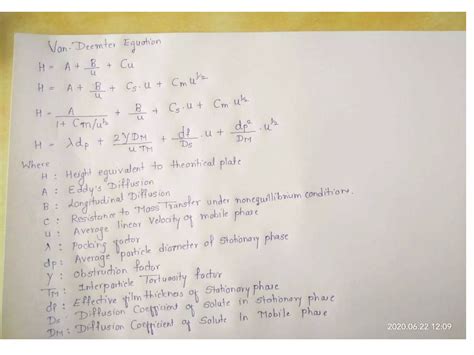

HETP = A + B/u + Cu

Where:

A is the eddy diffusion term, which accounts for the multiple pathways that molecules can take through the chromatographic bed.
B is the longitudinal diffusion term, which represents the diffusion of molecules along the axis of the column.

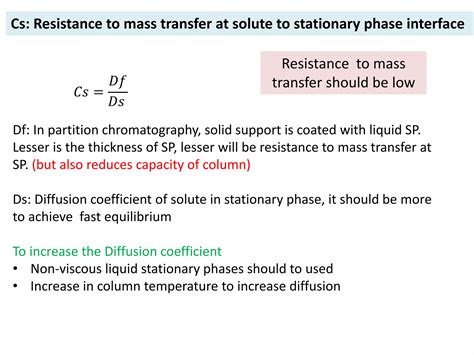

C is the resistance to mass transfer term, which includes both the resistance to mass transfer in the stationary phase and the resistance to mass transfer in the mobile phase.
u is the linear velocity of the mobile phase.

The Components of the Van Deemter Equation

To fully grasp the Van Deemter Equation, it is essential to understand each of its components and how they contribute to the overall efficiency of the chromatographic separation.

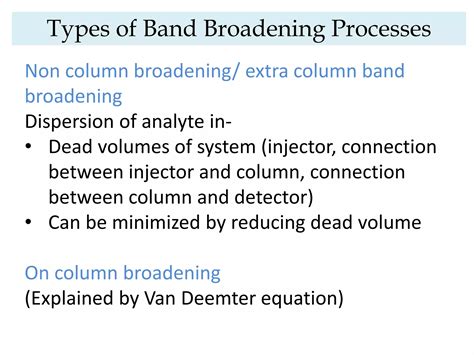

The Eddy Diffusion Term (A)

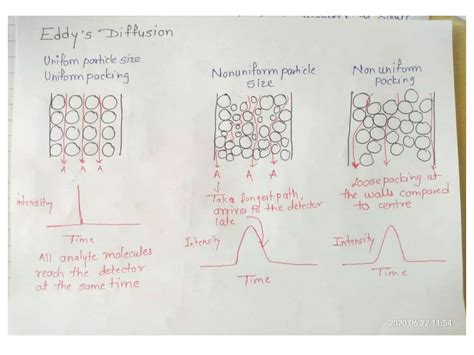

The eddy diffusion term, represented by A, accounts for the variations in the flow paths that molecules can take through the chromatographic bed. These variations are due to the packing of the stationary phase particles. The term A is influenced by the particle size and the uniformity of the packing. Smaller particles and more uniform packing generally result in a lower A value, leading to better column efficiency.

The Longitudinal Diffusion Term (B)

The longitudinal diffusion term, represented by B, describes the diffusion of molecules along the axis of the column. This term is more significant at lower mobile phase velocities. As the velocity increases, the contribution of longitudinal diffusion to the overall band broadening decreases. The B term is inversely proportional to the linear velocity of the mobile phase, meaning that faster flow rates reduce the impact of longitudinal diffusion.

The Resistance to Mass Transfer Term ©

The resistance to mass transfer term, represented by C, encompasses the resistance to mass transfer in both the stationary and mobile phases. This term is crucial at higher mobile phase velocities. As the velocity increases, the time available for molecules to equilibrate between the stationary and mobile phases decreases, leading to increased band broadening. The C term is directly proportional to the linear velocity of the mobile phase, indicating that faster flow rates exacerbate the resistance to mass transfer.

Optimizing Chromatographic Separations

By understanding the Van Deemter Equation, chromatographers can optimize their separation methods to achieve better resolution and faster analysis times. Here are some key strategies for optimization:

Selecting the Appropriate Particle Size

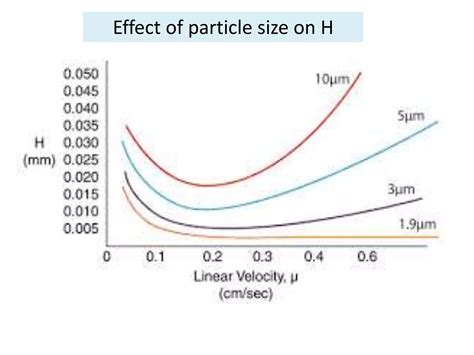

The particle size of the stationary phase significantly impacts the eddy diffusion term (A). Smaller particles generally result in lower A values, leading to better column efficiency. However, smaller particles also increase the resistance to mass transfer term (C), which can be mitigated by using higher flow rates. Therefore, a balance must be struck between particle size and flow rate to achieve optimal separation.

Adjusting the Mobile Phase Velocity

The linear velocity of the mobile phase affects all three terms in the Van Deemter Equation. At low velocities, the longitudinal diffusion term (B) dominates, leading to increased band broadening. At high velocities, the resistance to mass transfer term (C) becomes more significant, also resulting in increased band broadening. There is an optimal velocity range where the combined effects of A, B, and C result in the minimum HETP, leading to the best separation efficiency.

Improving Column Packing

The uniformity of the column packing directly influences the eddy diffusion term (A). Poorly packed columns with non-uniform particle distribution can lead to increased band broadening. Techniques such as slurry packing and axial compression can improve the uniformity of the packing, resulting in better column efficiency.

Practical Applications of the Van Deemter Equation

The Van Deemter Equation has wide-ranging applications in various fields of chromatography, including gas chromatography (GC), liquid chromatography (LC), and high-performance liquid chromatography (HPLC).

Gas Chromatography (GC)

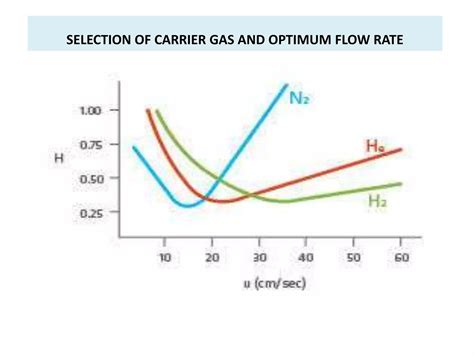

In GC, the Van Deemter Equation helps in optimizing the separation of volatile compounds. The choice of carrier gas, column dimensions, and flow rate can be fine-tuned using the Van Deemter Equation to achieve the best resolution. For example, using hydrogen as a carrier gas can reduce the longitudinal diffusion term (B) due to its higher diffusivity compared to helium or nitrogen.

Liquid Chromatography (LC)

In LC, the Van Deemter Equation is used to optimize the separation of non-volatile compounds. The selection of the mobile phase, column packing material, and flow rate is crucial. For instance, using smaller particle sizes in the stationary phase can reduce the eddy diffusion term (A), but this must be balanced with the increased resistance to mass transfer term (C).

High-Performance Liquid Chromatography (HPLC)

In HPLC, the Van Deemter Equation is essential for achieving high-resolution separations in a short amount of time. The use of ultra-high-performance liquid chromatography (UHPLC) with sub-2 µm particles can significantly reduce the eddy diffusion term (A), but this requires higher pressures and optimized flow rates to minimize the resistance to mass transfer term (C).

Experimental Validation

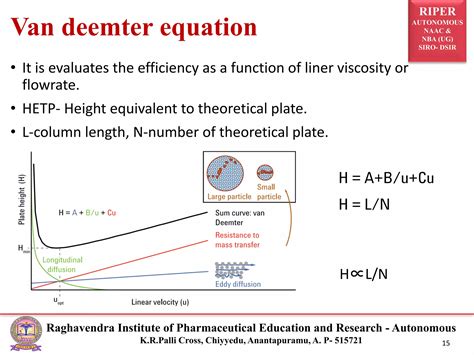

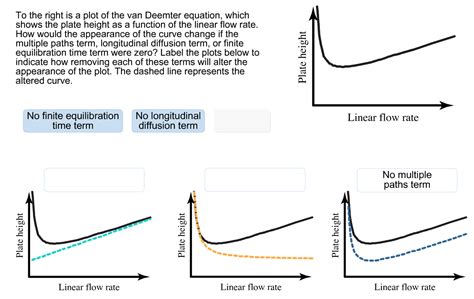

To validate the Van Deemter Equation experimentally, chromatographers can perform a series of measurements at different mobile phase velocities. By plotting the HETP against the linear velocity, the contributions of the A, B, and C terms can be visualized. This plot, known as the Van Deemter curve, helps in identifying the optimal velocity range for the best separation efficiency.

📊 Note: The Van Deemter curve typically shows a U-shaped pattern, with the minimum HETP occurring at an intermediate velocity. This velocity corresponds to the optimal balance between the A, B, and C terms.

Advanced Considerations

While the Van Deemter Equation provides a comprehensive framework for understanding chromatographic efficiency, there are advanced considerations that can further enhance separation performance.

Column Temperature

The temperature of the column can significantly affect the separation efficiency. In GC, higher temperatures can reduce the resistance to mass transfer term (C) by increasing the diffusivity of the analytes. However, in LC, temperature effects are more complex and can influence both the A and C terms. Optimizing the column temperature can lead to better resolution and faster analysis times.

Gradient Elution

In gradient elution, the composition of the mobile phase changes over time, which can affect the Van Deemter Equation terms. The changing mobile phase composition can alter the resistance to mass transfer term (C) and the longitudinal diffusion term (B). Optimizing the gradient profile can improve separation efficiency and resolution.

Multidimensional Chromatography

In multidimensional chromatography, multiple columns with different stationary phases are used to achieve better separation. The Van Deemter Equation can be applied to each dimension to optimize the overall separation efficiency. By carefully selecting the columns and optimizing the flow rates, multidimensional chromatography can provide superior resolution compared to single-dimensional methods.

Conclusion

The Van Deemter Equation is a cornerstone of chromatographic theory, providing a mathematical framework for understanding and optimizing separation efficiency. By analyzing the contributions of the eddy diffusion term (A), the longitudinal diffusion term (B), and the resistance to mass transfer term (C), chromatographers can fine-tune their methods to achieve better resolution and faster analysis times. Whether in gas chromatography, liquid chromatography, or high-performance liquid chromatography, the Van Deemter Equation offers valuable insights into the factors that influence chromatographic performance. By applying the principles of the Van Deemter Equation, scientists and engineers can develop more efficient and effective chromatographic methods, leading to advancements in various fields of analytical chemistry.
