Valve Flow Coefficient

Understanding the Valve Flow Coefficient (Cv) is crucial for anyone involved in fluid dynamics, process engineering, or system design. The Cv value is a measure of the flow capacity of a valve, indicating how much water can flow through the valve at a given pressure drop. This metric is essential for selecting the right valve for a specific application, ensuring optimal performance and efficiency.

Table of Contents

What is the Valve Flow Coefficient?

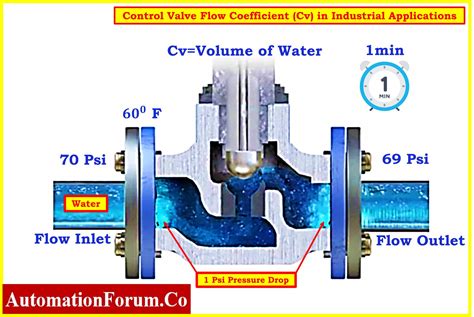

The Valve Flow Coefficient (Cv) is a dimensionless number that quantifies the flow rate of a liquid or gas through a valve. It is defined as the number of U.S. gallons per minute (GPM) of water that will flow through a valve with a pressure drop of 1 psi across the valve. The formula for Cv is:

Cv = Q / (N * sqrt(ΔP / G))

Where:

Q is the flow rate in GPM
N is a constant (1 for liquids, 35.3 for gases)
ΔP is the pressure drop across the valve in psi
G is the specific gravity of the fluid

Importance of Valve Flow Coefficient in System Design

The Valve Flow Coefficient plays a pivotal role in system design for several reasons:

Flow Control: Knowing the Cv value helps in selecting valves that can handle the required flow rate, ensuring that the system operates efficiently.
Pressure Drop Management: The Cv value helps in calculating the pressure drop across the valve, which is crucial for maintaining the desired pressure in the system.
Energy Efficiency: Properly sized valves based on Cv values can reduce energy consumption by minimizing pressure drops and ensuring smooth flow.
System Stability: Valves with appropriate Cv values help in maintaining system stability by preventing flow surges and ensuring consistent performance.

Calculating the Valve Flow Coefficient

Calculating the Valve Flow Coefficient involves understanding the flow rate, pressure drop, and specific gravity of the fluid. Here are the steps to calculate Cv:

Determine the Flow Rate (Q): Measure or calculate the flow rate of the fluid in GPM.
Measure the Pressure Drop (ΔP): Determine the pressure drop across the valve in psi.
Identify the Specific Gravity (G): Find the specific gravity of the fluid.
Apply the Formula: Use the formula Cv = Q / (N * sqrt(ΔP / G)) to calculate the Cv value.

💡 Note: For gases, the constant N is 35.3, and for liquids, it is 1. Ensure that the units are consistent when performing the calculation.

Factors Affecting the Valve Flow Coefficient

Several factors can influence the Valve Flow Coefficient, including:

Valve Size: Larger valves generally have higher Cv values due to their increased flow capacity.
Valve Type: Different types of valves (e.g., ball valves, globe valves, butterfly valves) have varying flow characteristics and Cv values.
Valve Trim: The internal design and trim of the valve can affect its flow capacity and Cv value.
Fluid Properties: The viscosity, density, and specific gravity of the fluid can impact the Cv value.
Pressure Drop: The pressure drop across the valve directly affects the Cv value.

Selecting the Right Valve Based on Cv

Choosing the right valve based on the Valve Flow Coefficient involves several steps:

Determine System Requirements: Identify the flow rate, pressure drop, and fluid properties required for your system.
Calculate Required Cv: Use the formula to calculate the required Cv value for your application.
Select Valve Type: Choose a valve type that meets your flow and control requirements.
Check Valve Specifications: Ensure the selected valve has a Cv value that matches or exceeds the required Cv.
Verify Compatibility: Confirm that the valve is compatible with the fluid and operating conditions of your system.

💡 Note: Always refer to the manufacturer's specifications for accurate Cv values and ensure that the valve is rated for the intended application.

Common Valve Types and Their Cv Values

Different types of valves have varying Valve Flow Coefficient values. Here is a table of common valve types and their typical Cv ranges:

Valve Type	Typical Cv Range
Ball Valve	100 - 10,000
Globe Valve	5 - 500
Butterfly Valve	50 - 5,000
Check Valve	10 - 500
Gate Valve	100 - 10,000

Applications of Valve Flow Coefficient

The Valve Flow Coefficient is used in various industries and applications, including:

Oil and Gas: Ensuring efficient flow control in pipelines and refineries.
Chemical Processing: Managing flow rates and pressure drops in chemical plants.
Water Treatment: Controlling water flow in treatment facilities and distribution systems.
HVAC Systems: Regulating airflow and pressure in heating, ventilation, and air conditioning systems.
Power Generation: Controlling steam and water flow in power plants.

Best Practices for Using Valve Flow Coefficient

To effectively use the Valve Flow Coefficient in your applications, follow these best practices:

Accurate Measurements: Ensure accurate measurements of flow rate, pressure drop, and fluid properties.
Consistent Units: Use consistent units for all calculations to avoid errors.
Regular Maintenance: Perform regular maintenance on valves to ensure they operate at their designed Cv values.
Consult Manufacturer Data: Refer to manufacturer specifications for accurate Cv values and valve performance data.
Safety Margins: Include safety margins in your calculations to account for variations in operating conditions.

💡 Note: Always validate your calculations with field tests to ensure the selected valve meets the required performance criteria.

In summary, the Valve Flow Coefficient is a critical parameter in fluid dynamics and system design. Understanding and accurately calculating the Cv value ensures optimal performance, energy efficiency, and system stability. By following best practices and considering the factors that affect Cv, you can select the right valve for your application and achieve the desired flow control.
